CURT · 16685

Part #: 16685
UPC: 612314044511

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: CURT Series: 5th Wheel Hitches

Description: A16 Sliding 5th Wheel Hitch, 16K, Select Ram 2500, 3500, 6.5' Bed Puck System; CURT 16685 A16 5th Wheel Slider Hitch, 16,000 lbs, Select Ram 2500, 3500, 6.5-Foot Bed Puck System

This part number has been superseded by 16056.

(For California Residents)
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

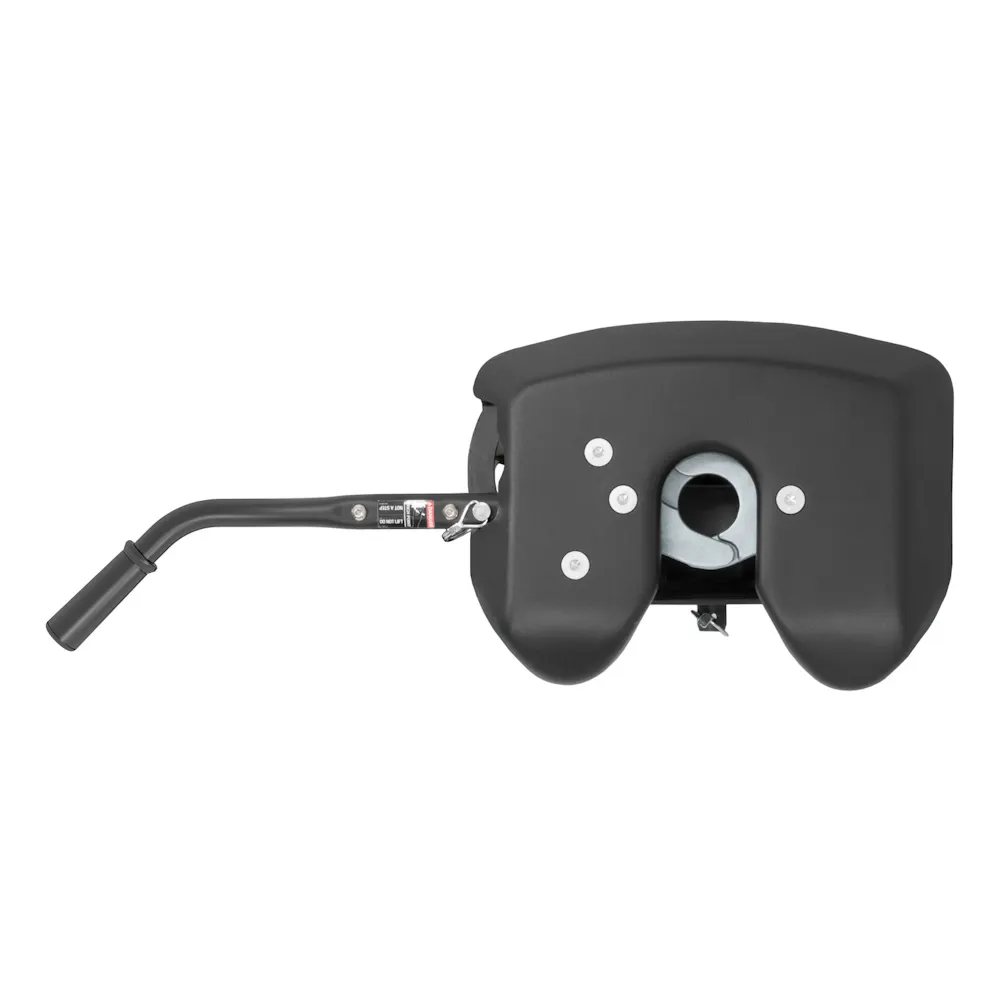

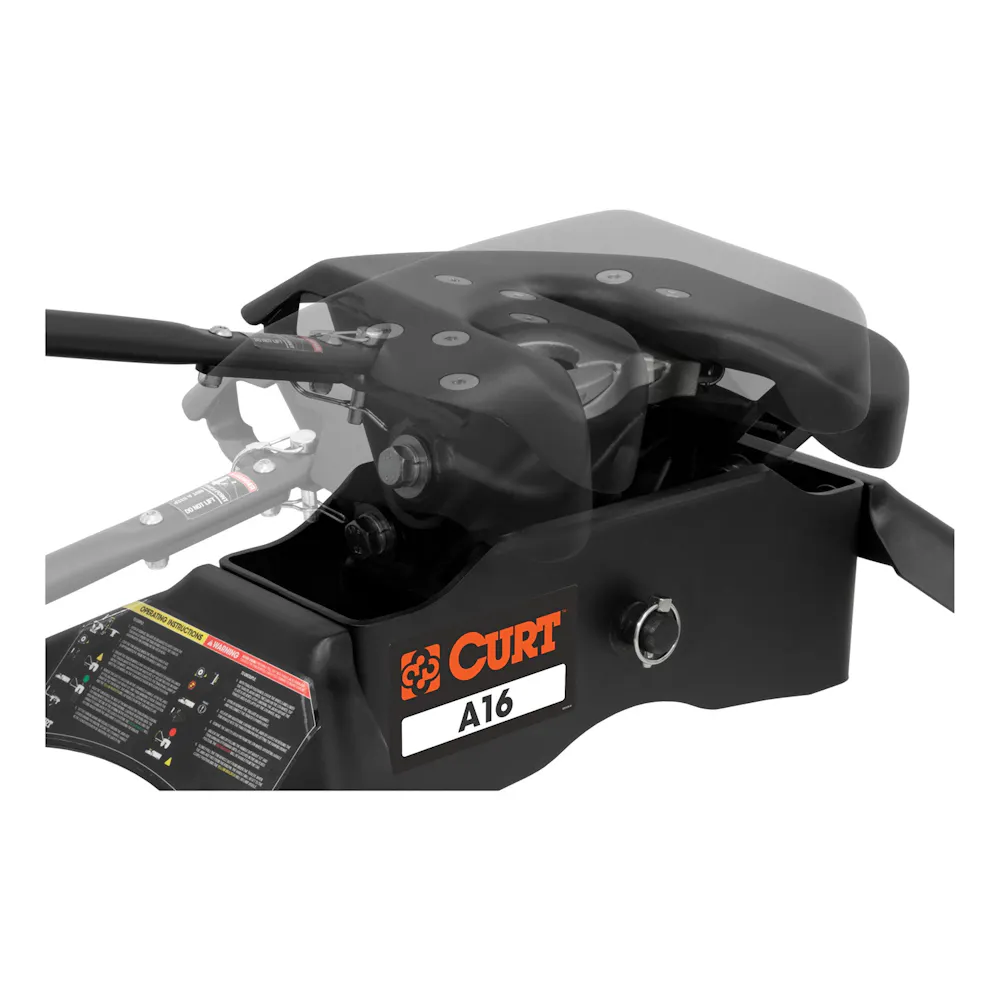

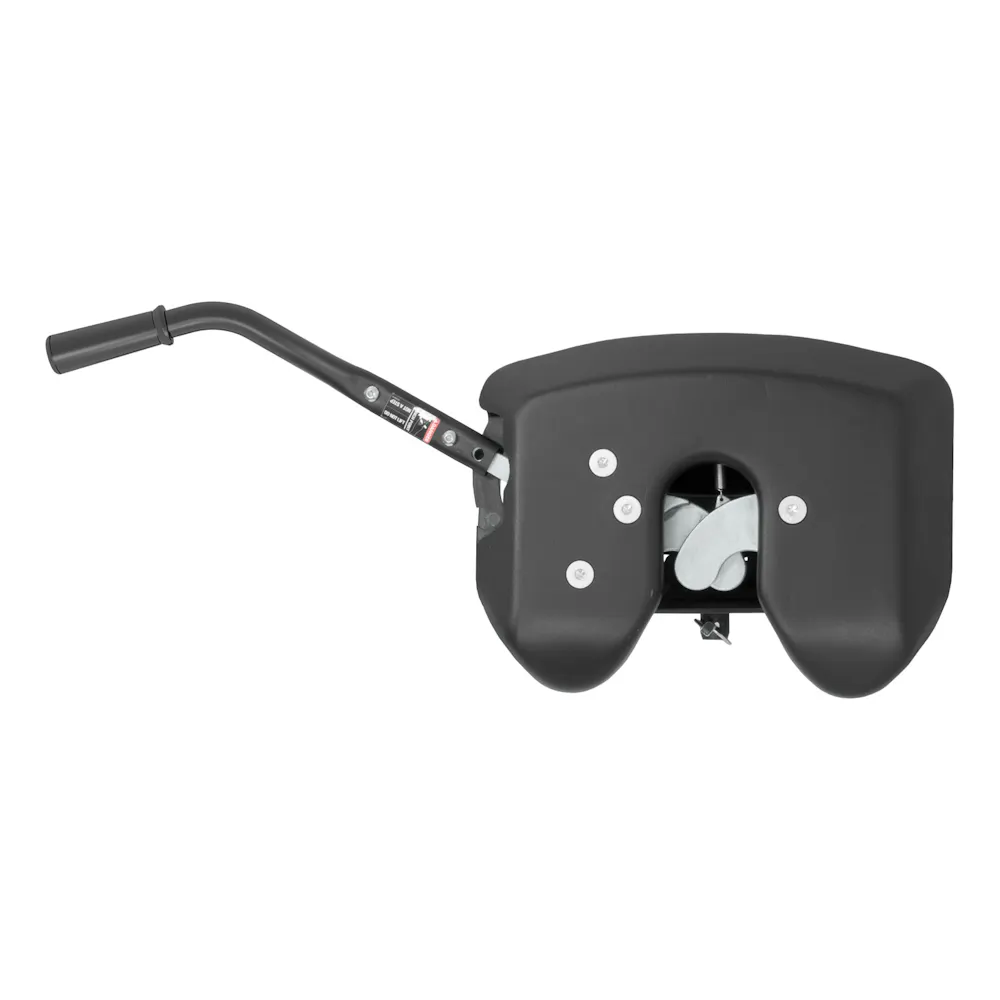

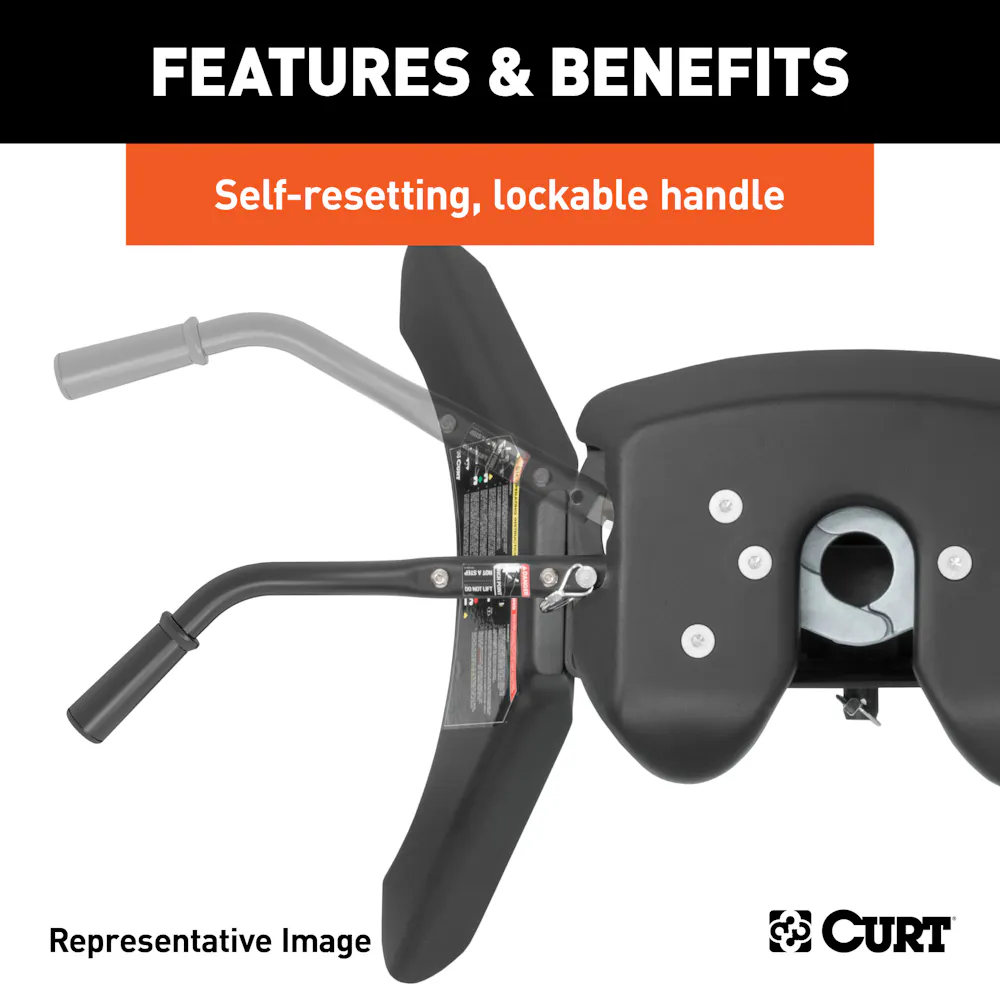

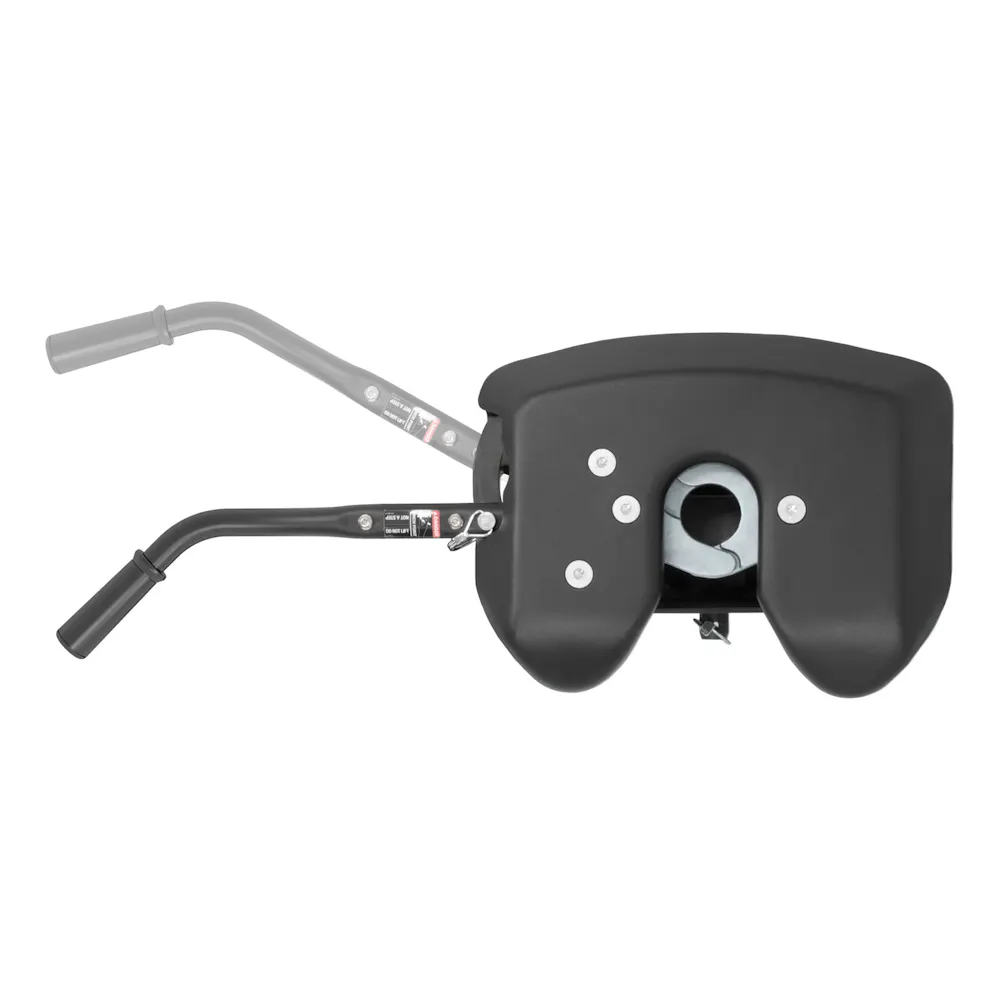

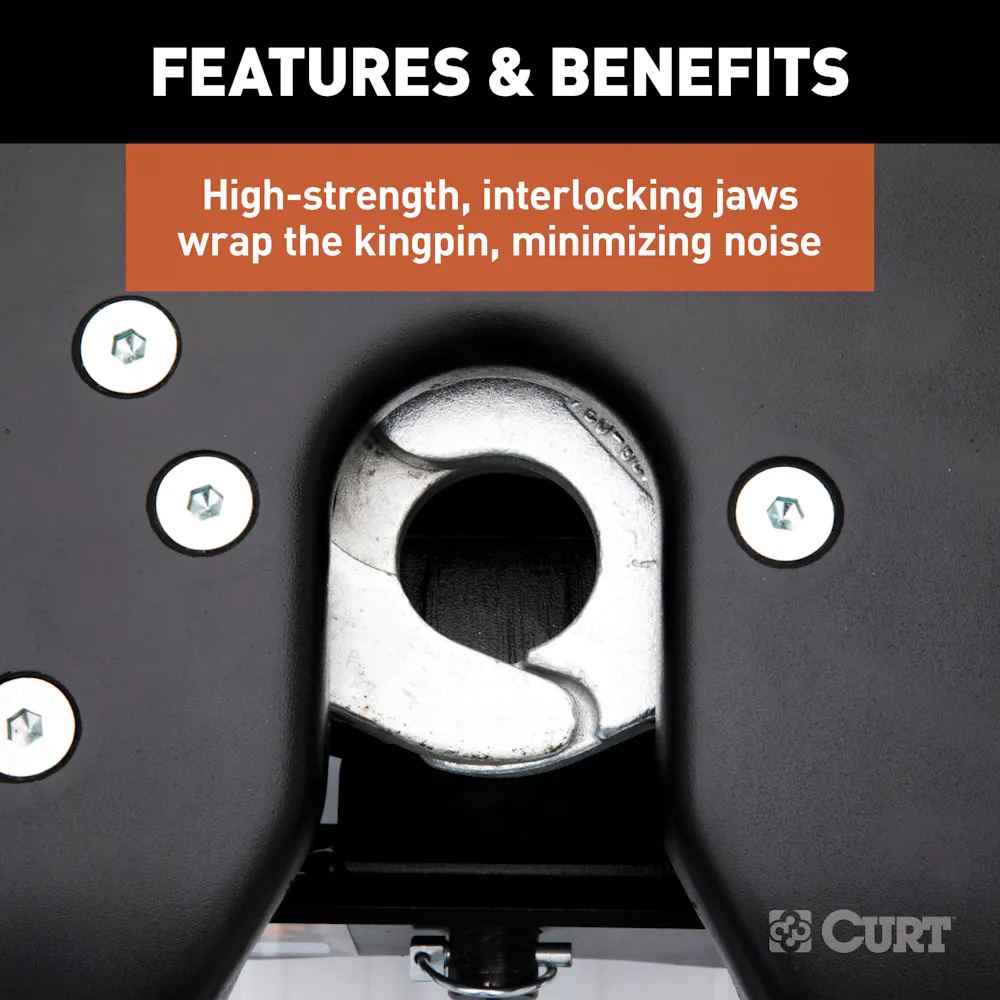

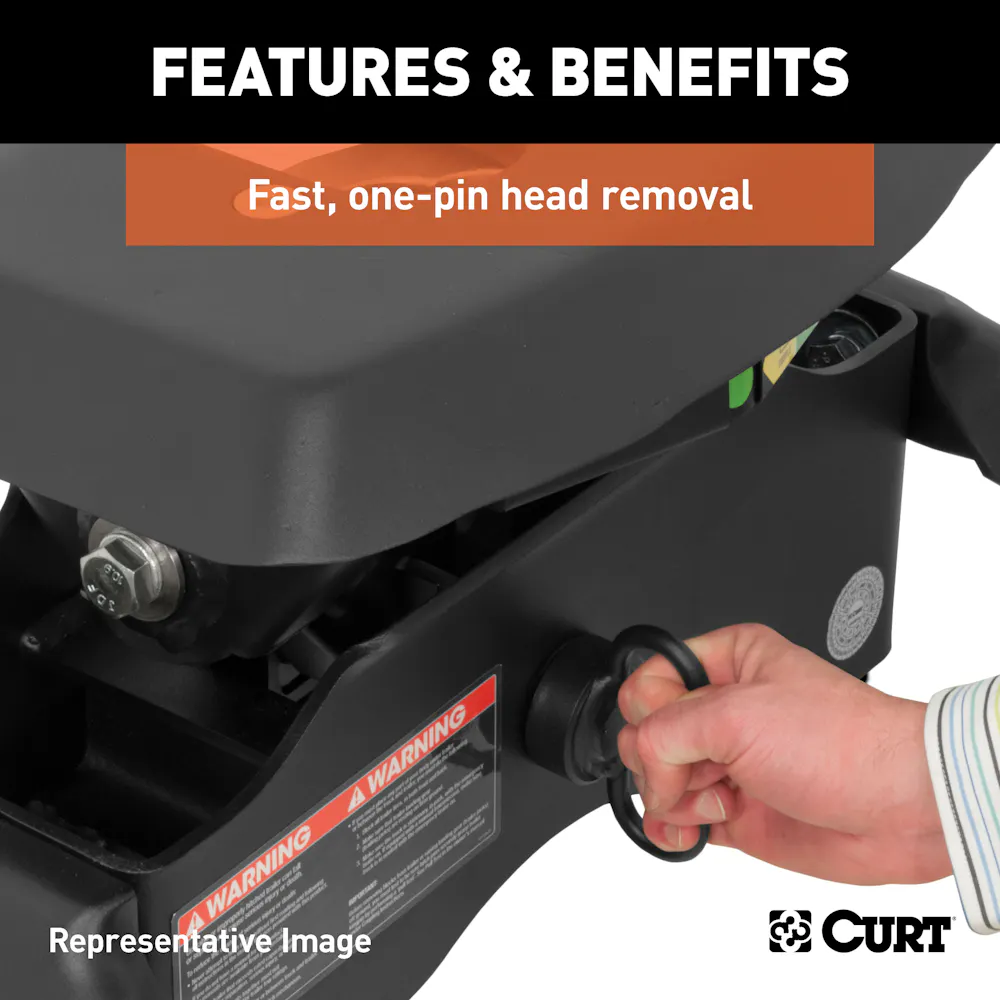

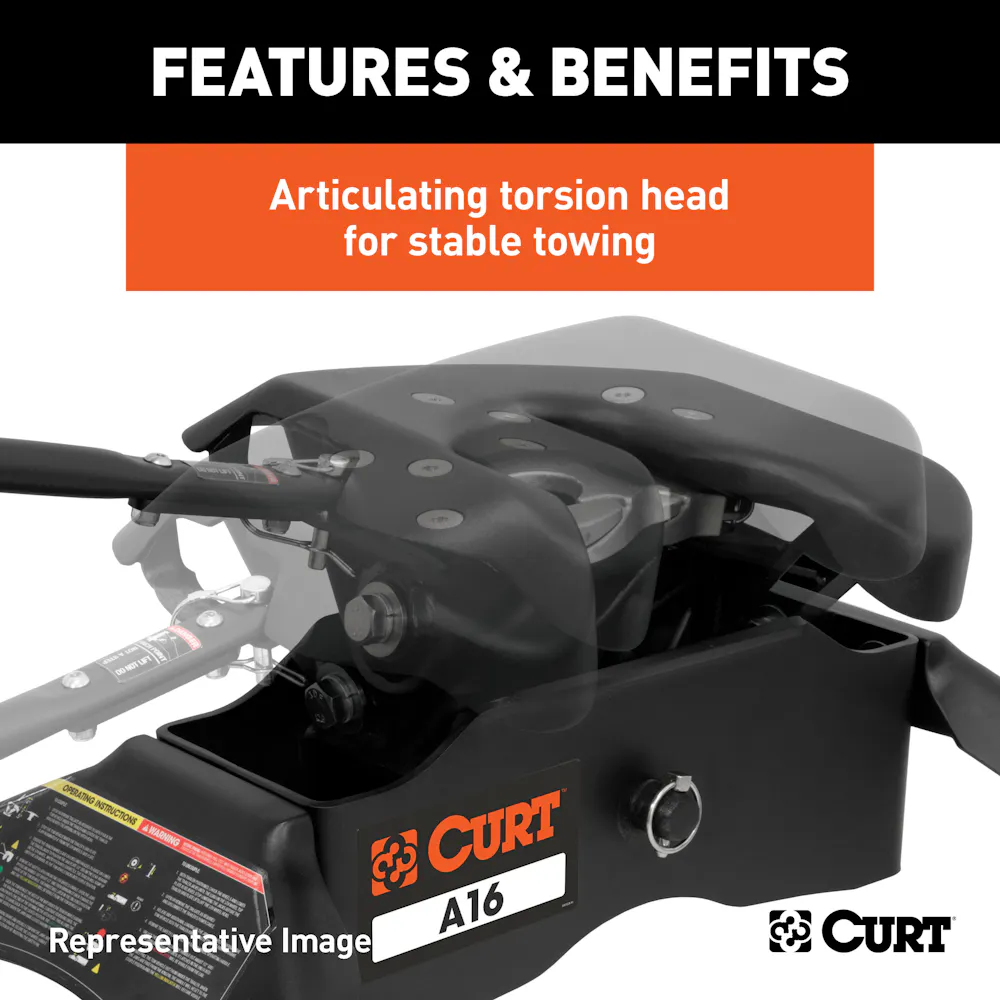

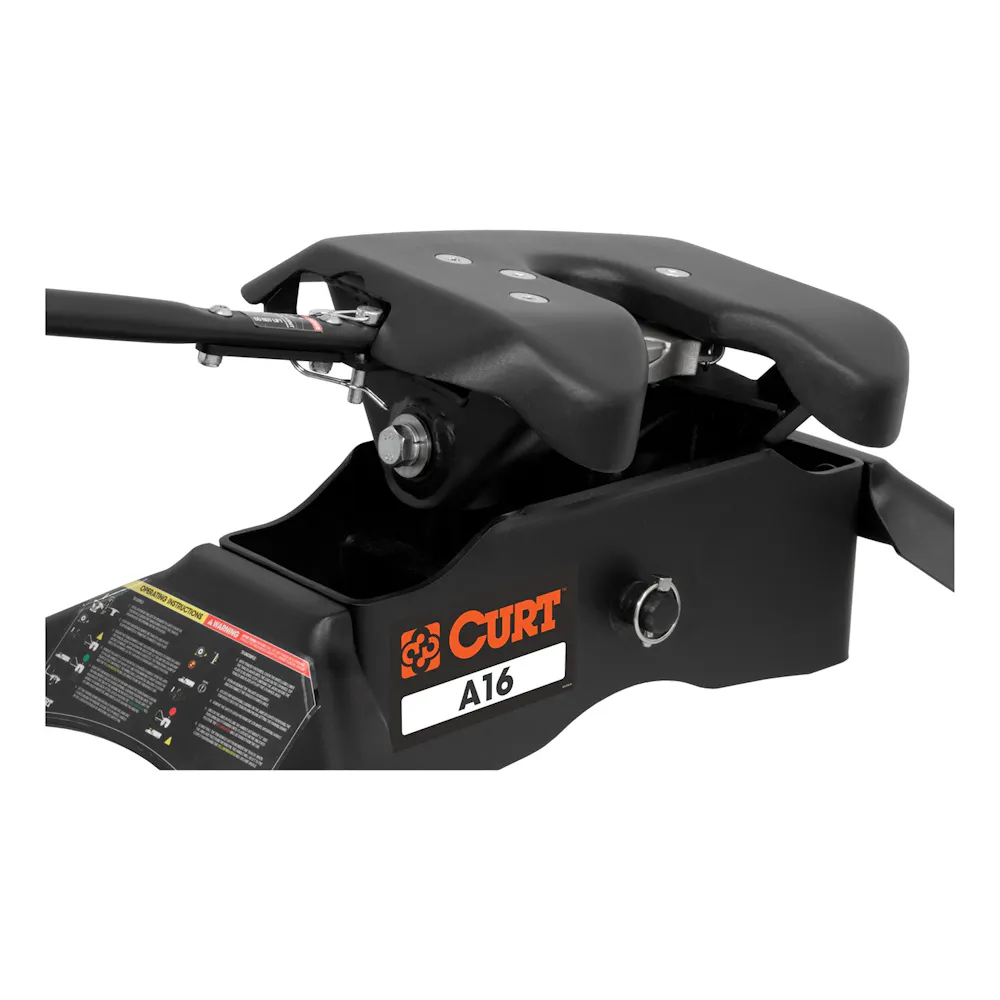

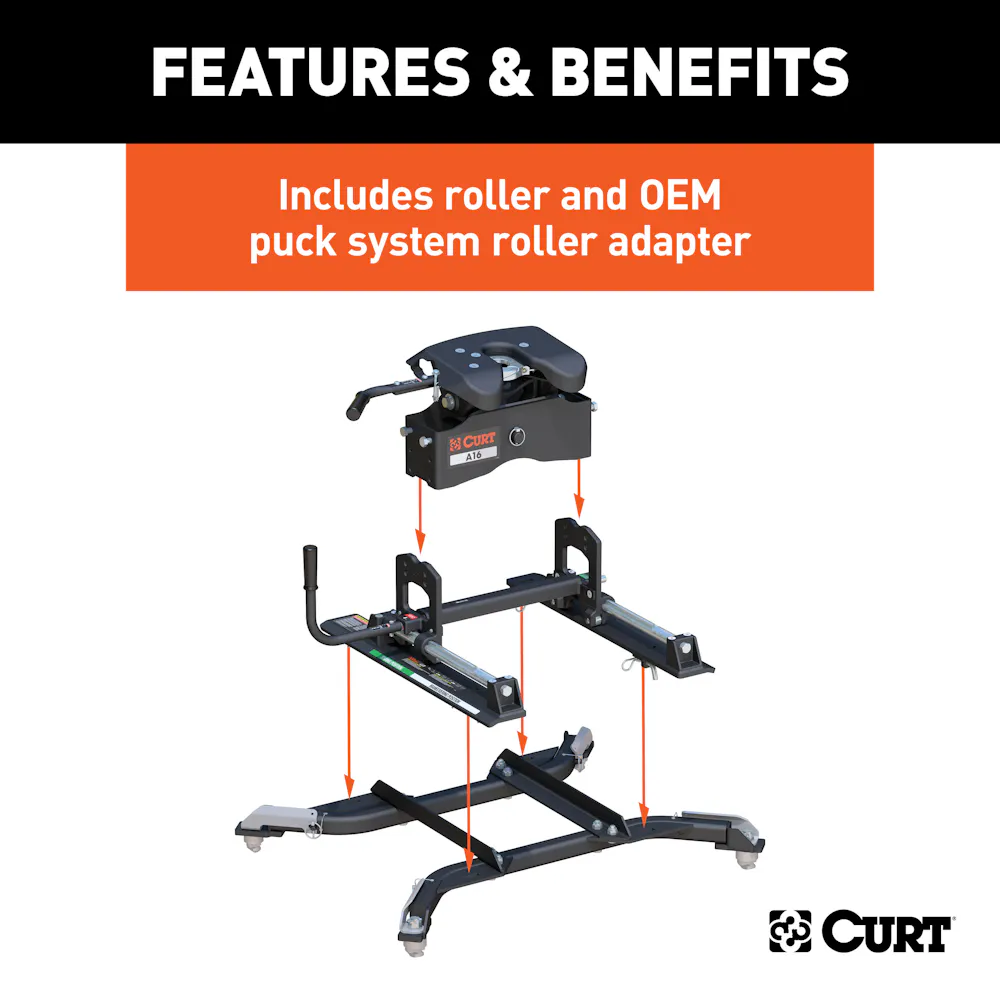

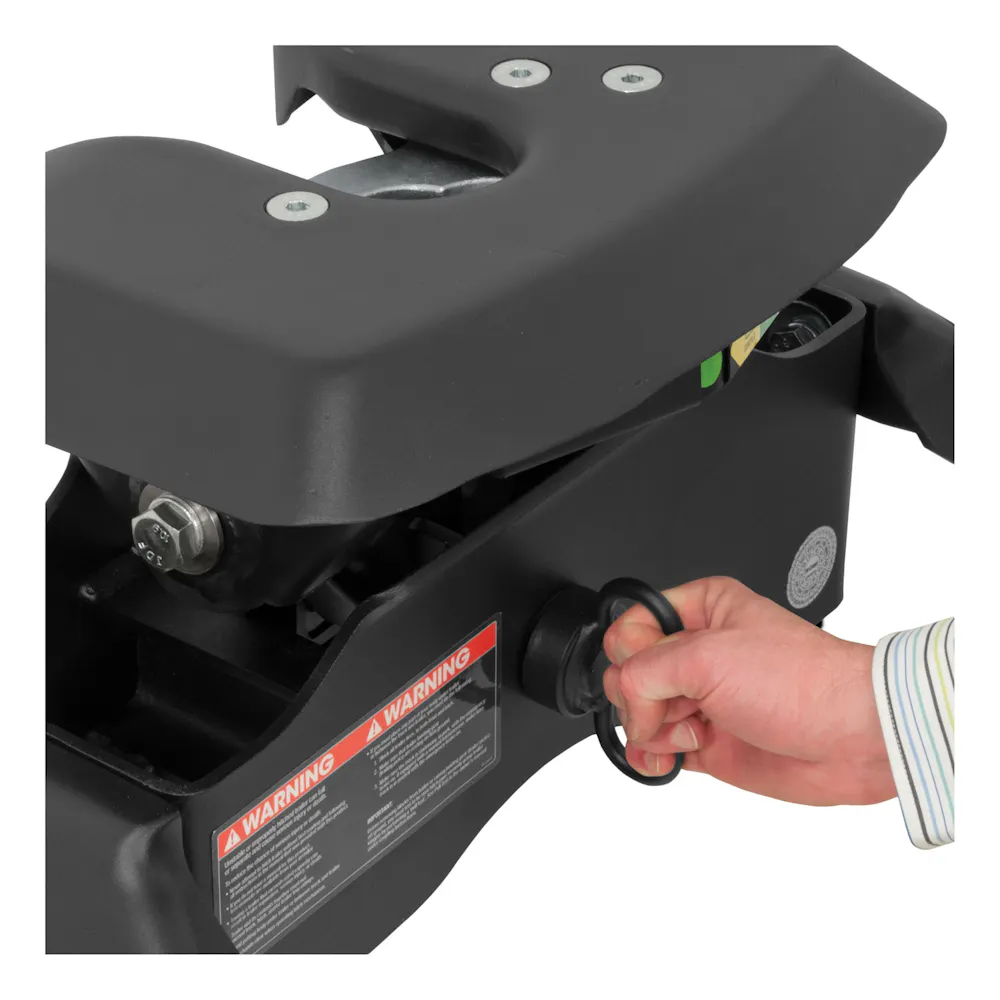

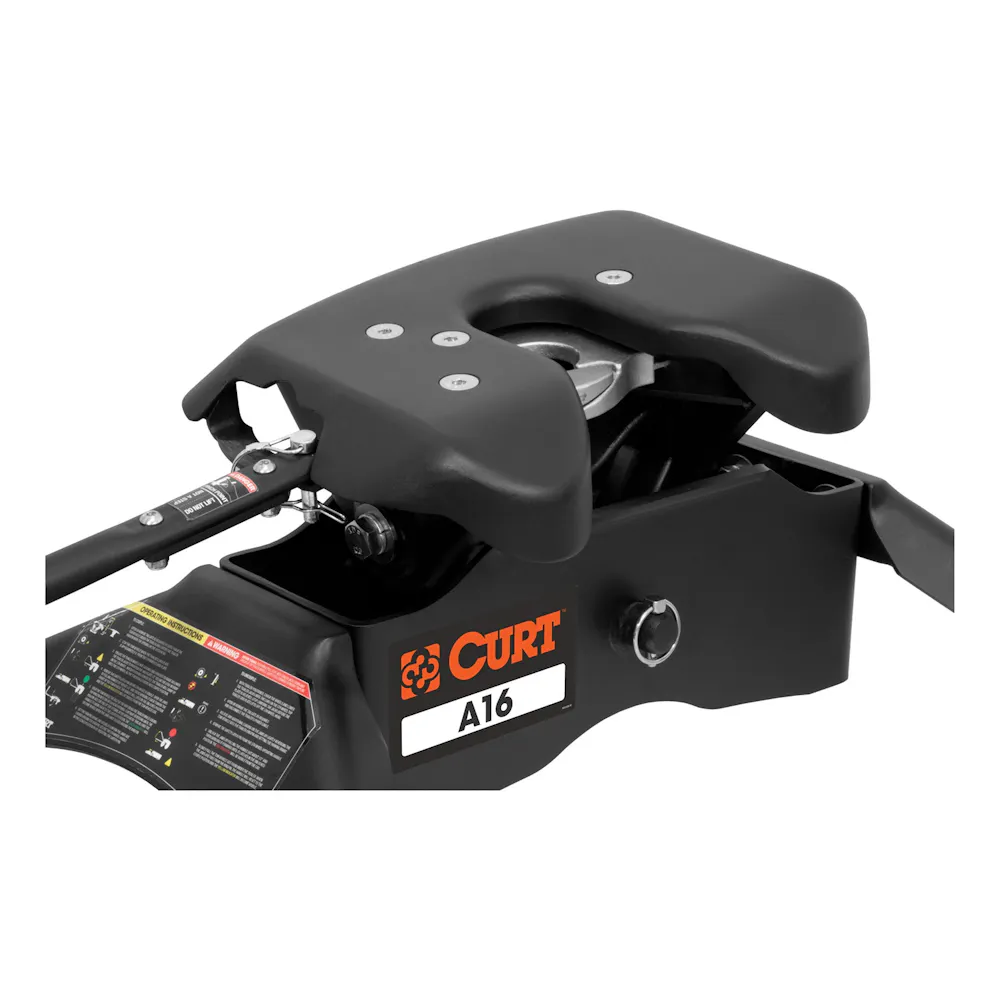

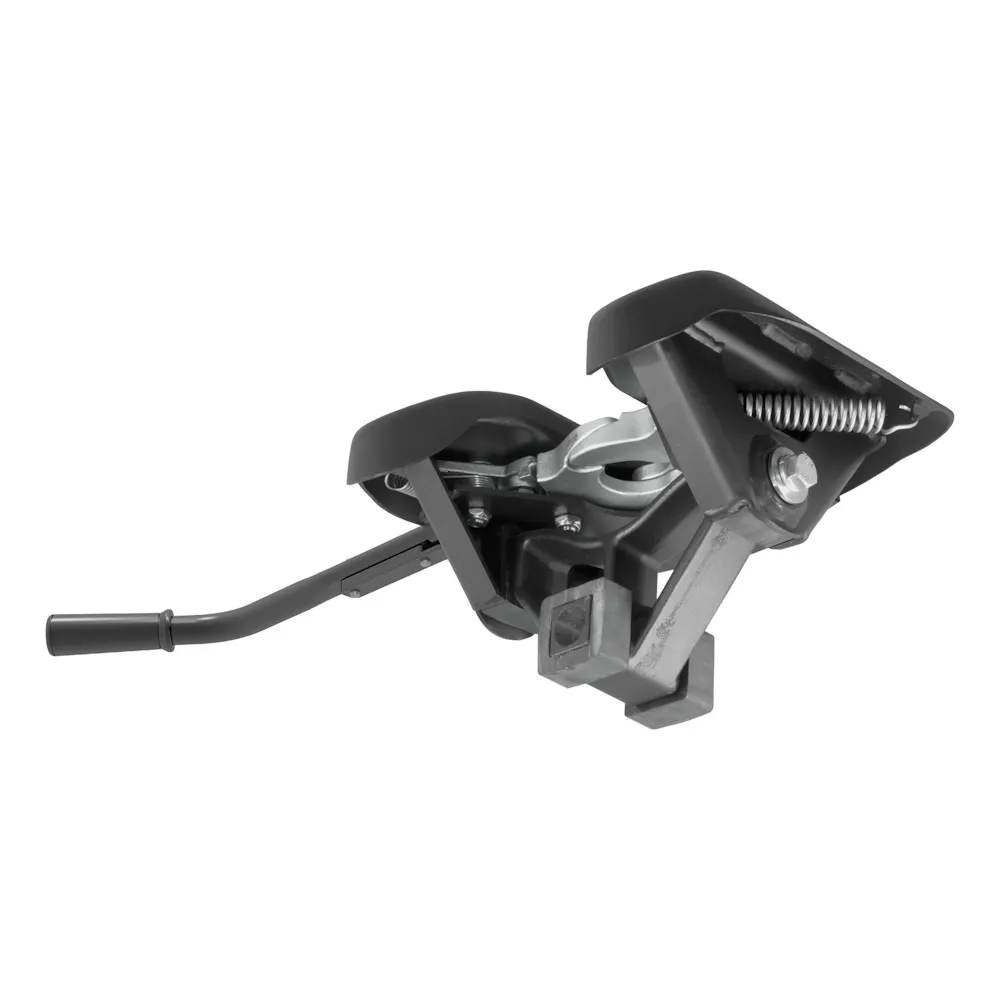

The CURT A16 5th wheel hitch excels in easy operation and stable, quiet 5th wheel towing. It does this with two key features: a single-throw handle and a patented head design. The single-throw handle only needs to be pulled once when coupling and uncoupling. It is designed to self-reset to the ready-to-couple position after uncoupling, allowing for fewer steps while hooking up your trailer. The patented head of the A16 features a cast yoke with poly-torsion inserts as well as interlocking jaws to create stability for your truck and trailer. These components allow the A16 to suppress shock and vibrations and reduce any additional noise coming from your trailer. The A16 also has an extra wide head to make coupling even easier, one-pin head removal to make it simple to move the hitch, and a GTW rating of 16,000 lbs. This 16K 5th wheel hitch comes with the CURT R16 slider and the CURT OEM puck system 5th wheel slider adapter. It is designed to be mounted on a Ram short-bed pickup with the truck bed puck system. Using a set of quarter-turn anchors, the adapter quickly and easily drop into the pucks, instantly mounting the A16 hitch and slider and equipping the truck for 5th wheel towing. Once installed, the R16 slider allows for added clearance when making tight turns with your trailer. CURT 5th wheel sliders are true rolling units, meaning they actually roll on wheels that bear the weight of the trailer rather than simply sliding on hollow rods as seen in competitive models. With a thick operating handle, the roller smoothly rolls the 5th wheel head forward and back, locking securely into each position as desired. CURT sliders also provide up to 12 of displacement as well, unlike the more common 10, to give you a wide range of motion and plenty of space to get your RV or other 5th wheel trailer around any turn. This A16 hitch with puck system slider is only intended to fit the Ram puck system and cannot be installed without it.

Features & benefits

Fits Ram short-bed pickups with the OEM truck bed puck system

Information

Fits Ram short-bed pickups with the OEM truck bed puck system

Application summary

Year	Make / model
2013-2025	Ram 2500
2013-2025	Ram 3500

Specifications

GTIN: 00612314044511
Weight: 264.1 lb
Height: 14.25 in
Length: 45.75 in
Width: 18 in
Life cycle: Available Only While Supplies Last
AAM brand code: CUR
Warehouse brand code: CUR
AAIA brand code: BKDK

Attributes

Box Height in Inches - XA: 0
Box Length in Inches - XA: 0
Box Width in Inches - XA: 0
California Proposition 65: Yes
Class ID: 0
Container Cases Qty - XA: 0
Container Pallet Qty - XA: 0
Container Unit Qty - XA: 0
Container Volume Cubic Feet - XA: 0.00000
Container Volume Cubic Meter - XA: 0.00000
Container Weight KG - XA: 0
Container Weight Lbs - XA: 0
Finish: Carbide Black Powder Coat
Finish - XA: CARBIDE BLACK POWDER COAT
Gross Trailer Weight: 16000 lbs.
Gross Trailer Weight (GTW): 16,000 LB
Gross Trailer Weight (lbs.): 16000
Installation Height: 19 IN - 23 IN
Item Class - XA: OBS
Item Height - XA: 0.000
Item Length - XA: 0.000
Item Width - XA: 0.000
Master Case Height Inches - XA: 0.000
Master Case ITF14: 0
Master Case ITF14 - XA: 0
Master Case Inner Pack Qty - XA: 0
Master Case Length Inches - XA: 0.000
Master Case Qty - XA: 0
Master Case Volume Cubic Feet - XA: 0.00000
Master Case Weight Lbs - XA: 0.000
Master Case Width Inches - XA: 0.000
Material - XA: Blank
Mount Type Description - XA: Blank
Pallet Case Per - XA: 0
Pallet Case Per Layer - XA: 0
Pallet Cases Per - XA: 0
Pallet Cases Per Layer - XA: 0
Pallet Layer of Cases - XA: 0
Pallet Qty - XA: 0.000
Pallet Total Height Inches - XA: 0.000
Pallet Total Weight Per - XA: 0.000
Parcel Allowed - XA: No
Product Weight - XA: 0.000
Rate Class - XA: 100.0
Retail Height - XA: 14.250
Retail Length - XA: 45.750
Retail Width - XA: 18.000
Sales Family Code - XA: FIFTH
Sales Family Description - XA: FIFTH WHEEL
Sales Group Description - XA: 16K FIFTH WHEEL
Shipping Weight - XA: 264.100
Side Application Type Description - XA: Blank
Superceded by Item - XA: 16056
Tariff 301 - XA: Yes
Title: A16 Sliding 5th Wheel Hitch, 16K, Select Ram 2500, 3500, 6.5' Bed Puck System
Truckload Cases Qty - XA: 0
Truckload Pallets Qty - XA: 0
Truckload Units Qty - XA: 0
Truckload Volume Cubic Feet - XA: 0.00000
Truckload Weight - XA: 0
Vertical Load: 4,000 LB
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
