CURT / 13118
Part #: 13118
UPC: 612314027132
Loading...
Notify me when this item is in stock.

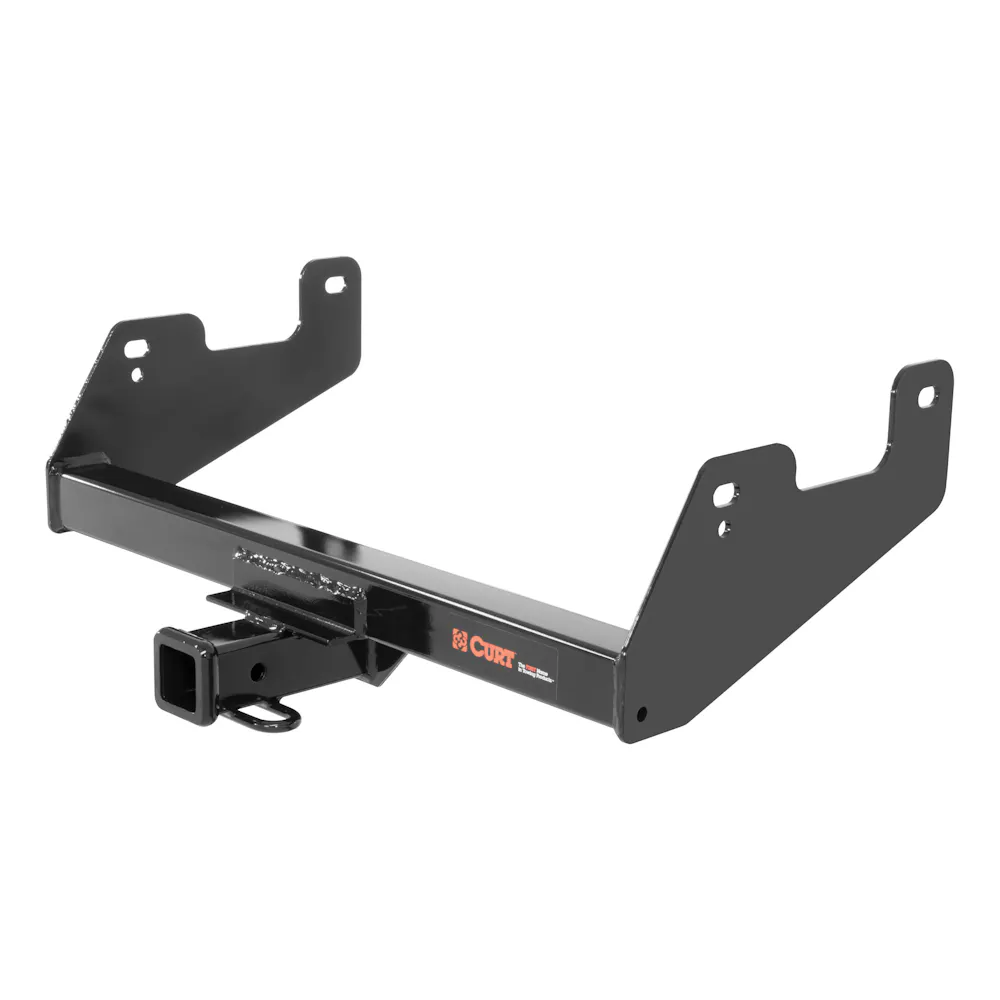

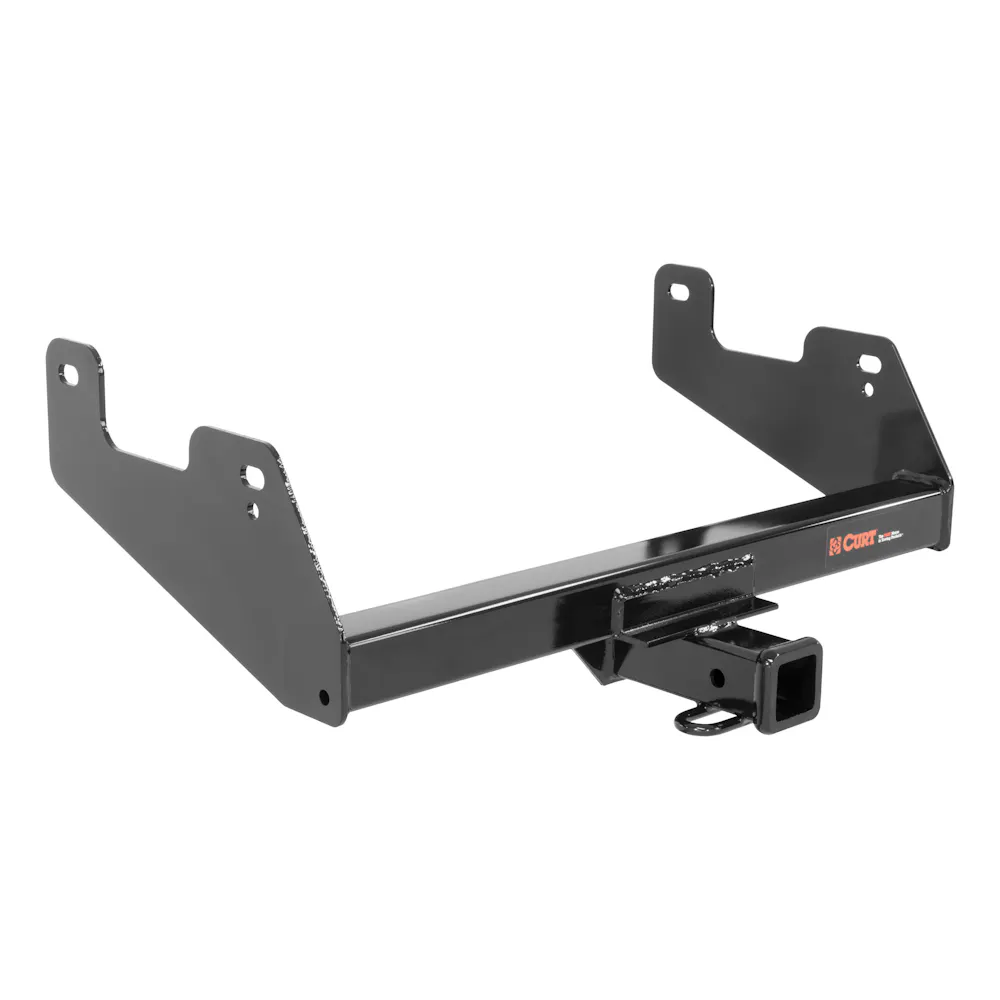

Description: Class 3 Trailer Hitch, 2 Receiver, Select Ford F-150; CURT 13118 Class 3 Trailer Hitch, 2-Inch Receiver, Compatible with Select Ford F-150
Description:
This part number has been superseded by 13475.
Description
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Ford F150 (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 6,000 lbs. GTW and 900 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 10,000 lbs. WD and 1,000 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2 receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Features & benefits
- Made w/A Vehicle-Specific Design For A Custom Fit
- Tested For Safety In Accordance w/SAE J684
- Precisely Welded For Superior Strength And Fit
- Protected By A Durable High-Gloss Black Powder Coat Finish
- Co-Cured In A Rust-Resistant Liquid Bonderite Coating
- Strengthened w/A Cast Welded Seamless Collar
- Equipped w/An Open-Back Receiver For Easy Cleaning
- Backed By A Limited Lifetime Warranty
- Made in USA [may include imported hardware]
Information
Class 3 Trailer Hitch, 2 Receiver, Select Ford F-150; Rated to 6,000 lbs. gross trailer weight and 900 lbs. tongue weight; Compatible with weight distribution hitch (10,000 lbs. WD / 1,000 lbs. WDTW); Engineered with a vehicle-specific design for a custom fit; Concealed main body for OE look and seamless integration with the vehicle; Tested for safety in accordance with SAE J684; Precisely welded for superior strength and fit; Protected by a durable high-gloss black powder coat finish; Co-cured in a rust-resistant liquid A-coat, inside and out; Equipped with an open-back receiver for easy cleaning; Limited lifetime warranty (one-year finish, one-year parts); Made in USA (may include imported hardware)
Application summary
| Year | Make / model |
|---|---|
| 2015-2020 | Ford F-150 |
Specifications
- GTIN
- 00612314027132
- Weight
- 44.2 lb
- Height
- 12 in
- Length
- 39 in
- Width
- 25 in
- EO
- Legal US
- Life cycle
- Discontinued
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- AAM Long Description
- Class III Trailer Hitch
- Body Shape
- Square
- Box Height in Inches - XA
- 23
- Box Length in Inches - XA
- 38
- Box Width in Inches - XA
- 11
- California Proposition 65
- No
- Class ID
- 3
- Drilling Required
- No
- Finish
- Gloss Black Powder Coat
- Finish - XA
- GLOSS BLACK POWDER COAT
- Gross Trailer Weight
- 10000 lbs.
- Gross Trailer Weight (lbs.)
- 10000
- Install Time
- 25 Minutes
- Item Class - XA
- MFH
- Item Height - XA
- 12.830
- Item Length - XA
- 31.940
- Item Width - XA
- 21.700
- Main Body Shape
- Square
- Parcel Allowed - XA
- Yes
- Position
- Rear
- Product Weight - XA
- 39.200
- Rate Class - XA
- 70.0
- Receiver Tube Size
- 2 IN
- Retail Height - XA
- 12.000
- Retail Length - XA
- 39.000
- Retail Width - XA
- 25.000
- Shipping Weight - XA
- 44.200
- Tariff 301 - XA
- No
- Title
- Class 3 Trailer Hitch, 2" Receiver, Select Ford F-150
- Tongue Weight (TW)
- 900 LB
- Tongue Weight(TW)
- 900 LB
- Visibility
- Concealed
- WC Tongue Weight
- 900
- WD Tongue Weight
- 1000
- Warranty
- Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
- Weight Carrying Capacity
- 6000
- Weight Carrying Capacity (WC)
- 6,000 LB
- Weight Carrying Capacity(WC)
- 6,000 LB
- Weight Distribution
- 10000
- Weight Distribution (WD)
- 10,000 LB
- Weight Distribution Tongue Weight (WDTW)
- 1,000 LB
- Weight Distribution Tongue Weight(WDTW)
- 1,000 LB
- Weight Distribution(WD)
- 10,000 LB
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2015-2020 Ford F-150
