Centerforce · DF834749
Part #: DF834749
UPC: 788442028492
Log in for inventory
Notify me when this item is in stock.

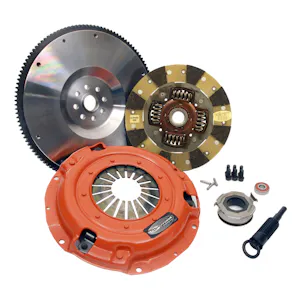

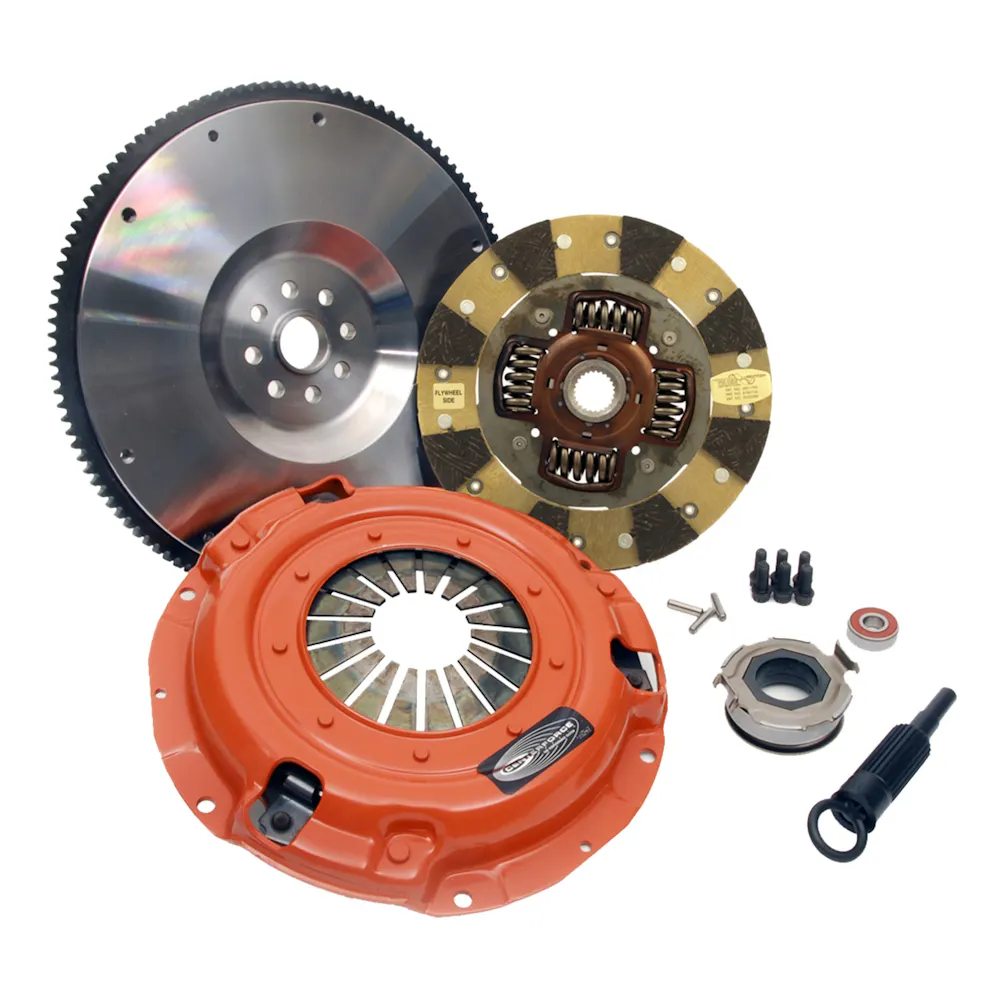

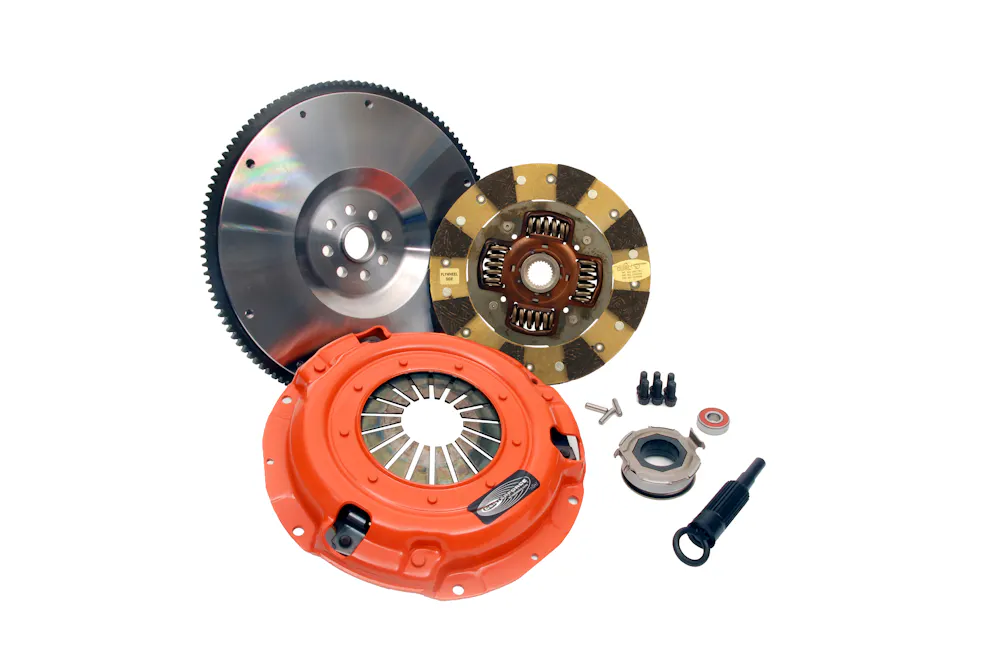

Description: Dual Friction(R), Clutch Pressure Plate, Disc, and Flywheel Set; The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.
Description:
This part number has been superseded by DF749834.
Description

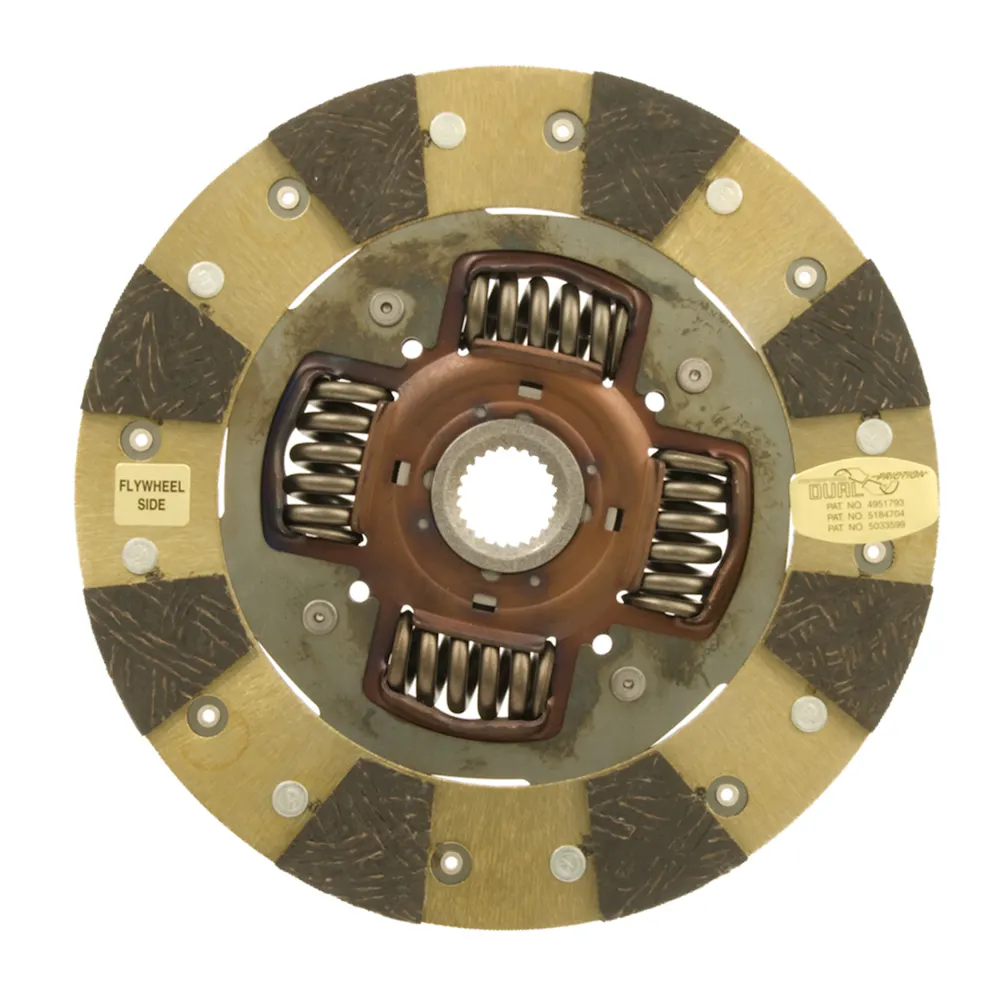

The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.
Features & benefits
- 8-7/8" Diameter;
- Dual Friction(R) Design
- Ball Bearing Pressure Plate (where Applicable)
- Light Pedal Effort
- High Quality Friction Material
- Increased Holding Capacity
- Smooth Engagement
Specifications
- GTIN
- 00788442028492
- Weight
- 36.55 lb
- Height
- 5.5 in
- Length
- 18 in
- Width
- 18 in
- EO
- Legal US
- Life cycle
- Discontinued
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Centrifugal Weights
- Without Centrifugal Weights
- Clutch Disc Diameter
- 8-7/8
- Counterweight Assist
- No
- Includes

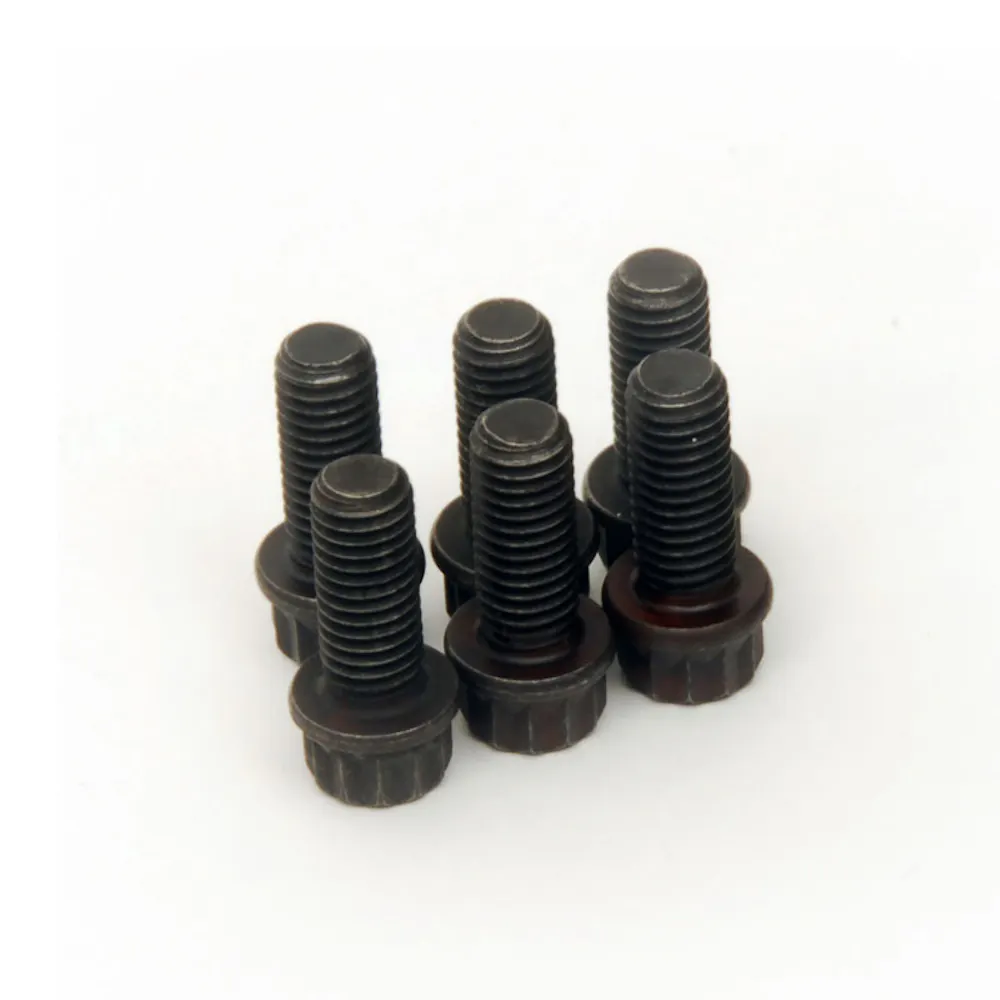

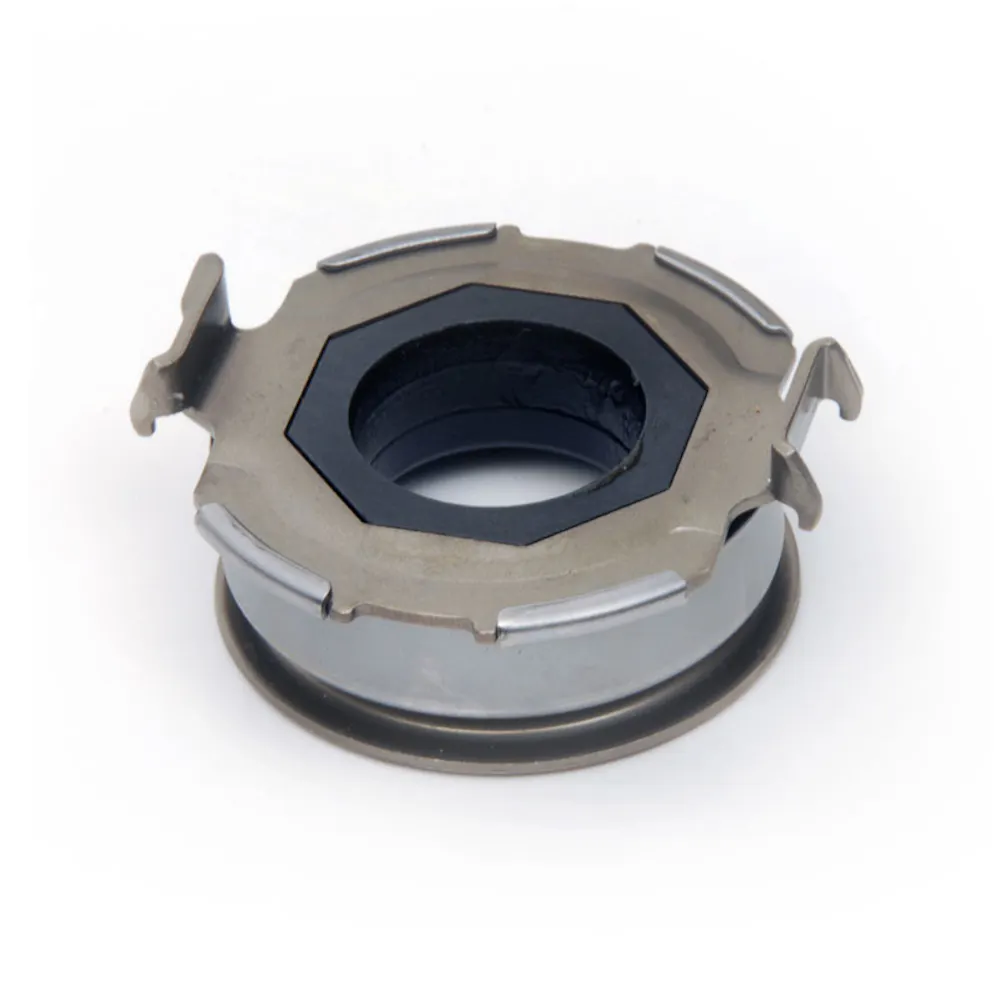

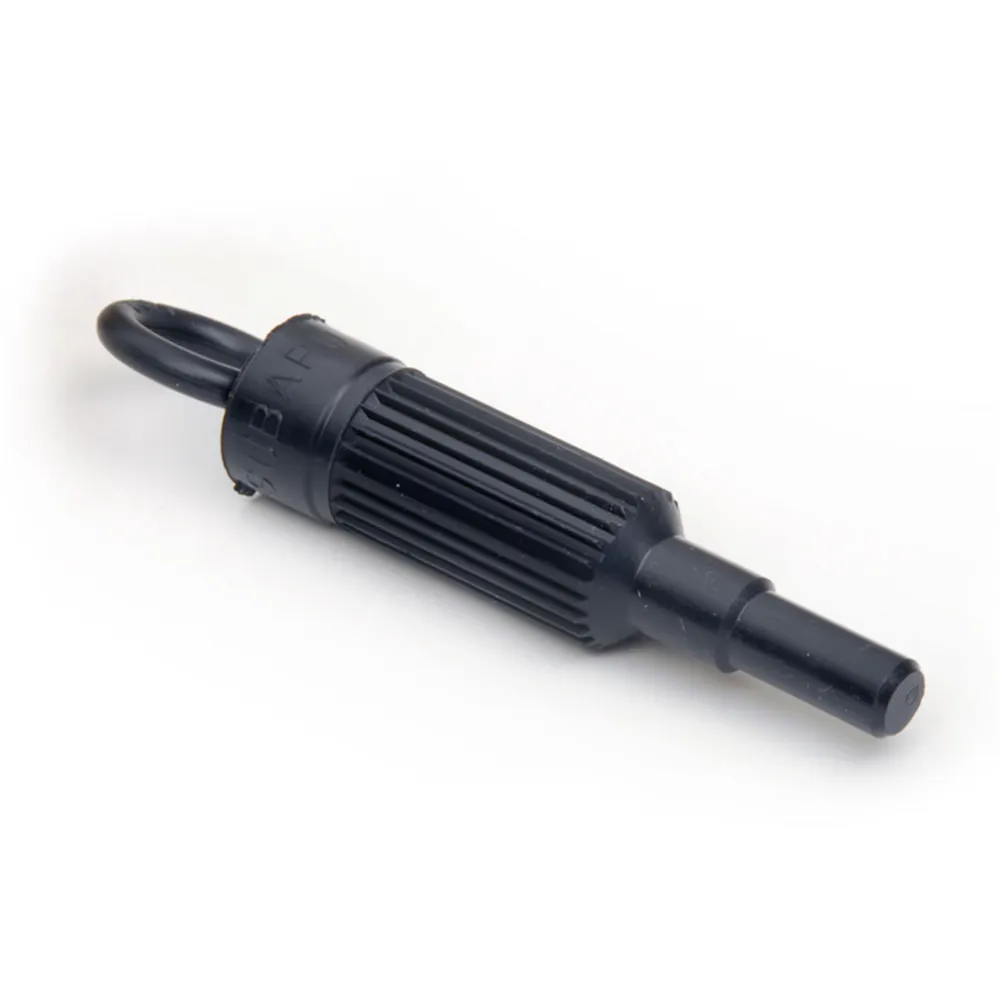

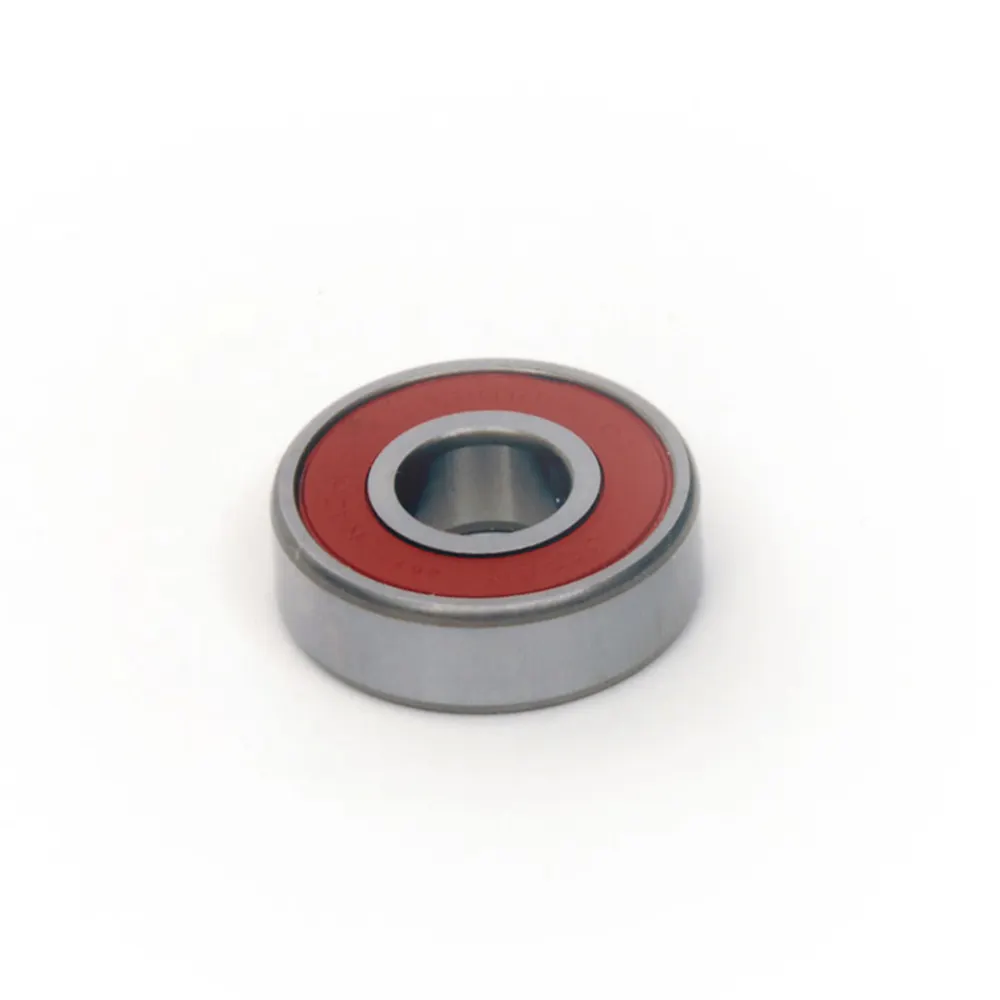

- Pressure Plate, Disc, Flywheel, Alignment Tool, T.O.B., Pilot Bearing, Bolts,
- Input Shaft Diameter
- 1
- Input Spline Quantity
- 24
- Material

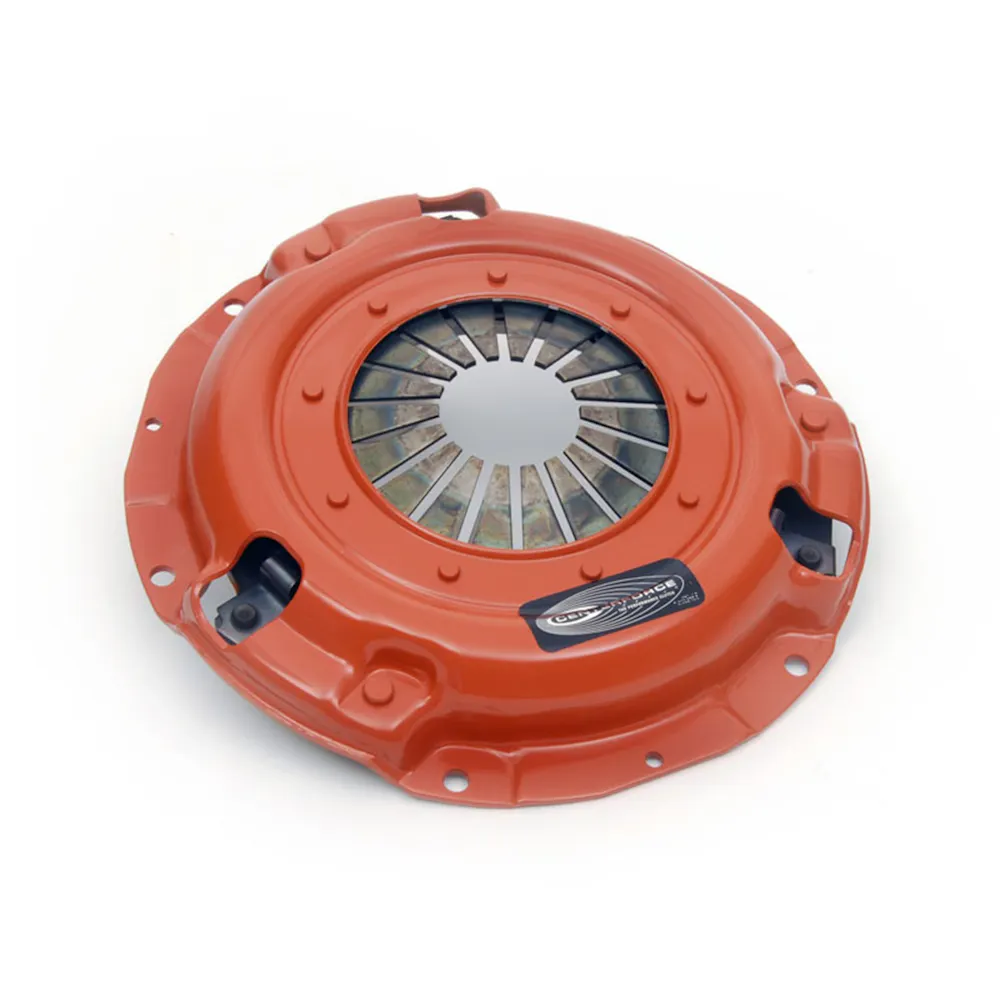

- Cast Iron Pressure Plate / Full Face and Segmented Organic Friction
- Outside Diameter of Friction Surface
- 225
- Outside Diameter of Friction Surface (Metric)
- 225
- Outside Diameter of Friction Surface (Standard)
- 8-7/8
- Replaceable Friction Surface
- N
- Spline Diameter and Tooth Count
- 1"-24
- Title
- PN: DF834749 - Dual Friction, Clutch Pressure Plate, Disc, and Flywheel Set
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary

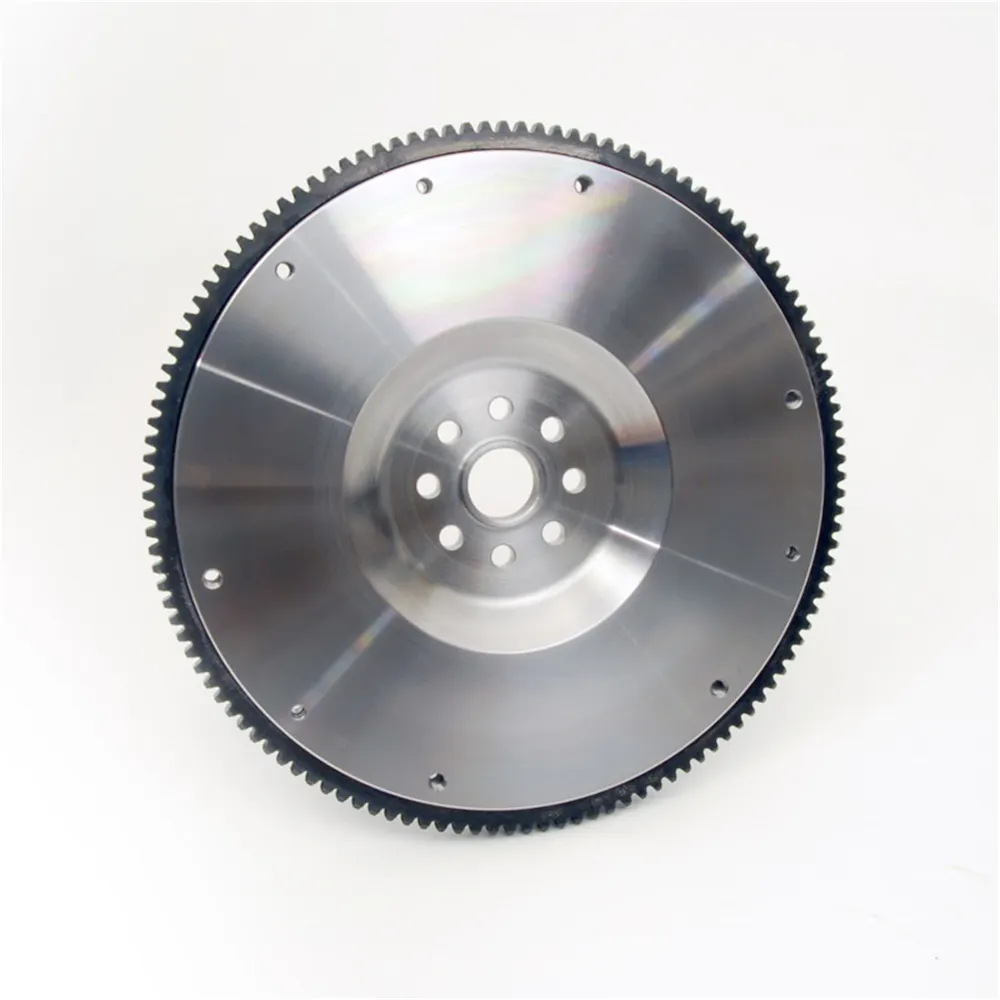

13-15 Scion FR-S 2.0L - Includes a Lightened Billet Steel Flywheel
