Centerforce · DF021048

Part #: DF021048
UPC: 788442015935

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Centerforce

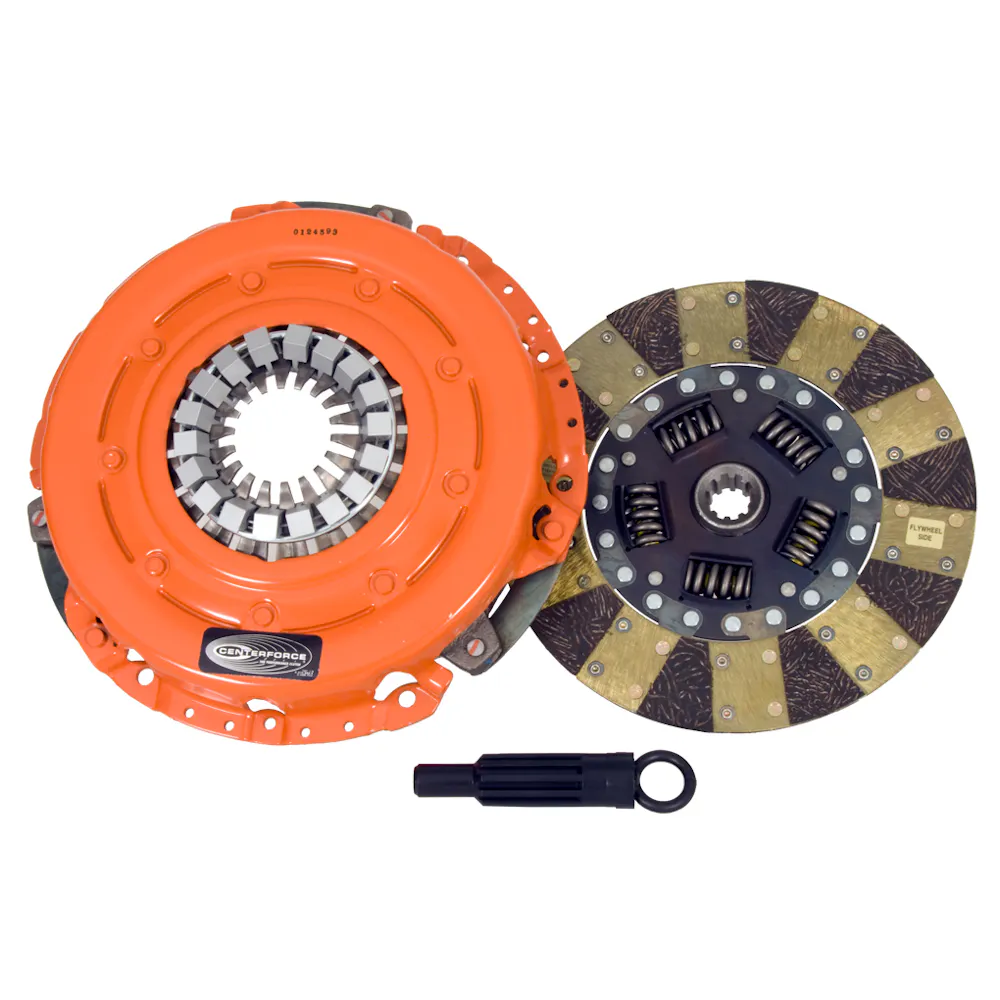

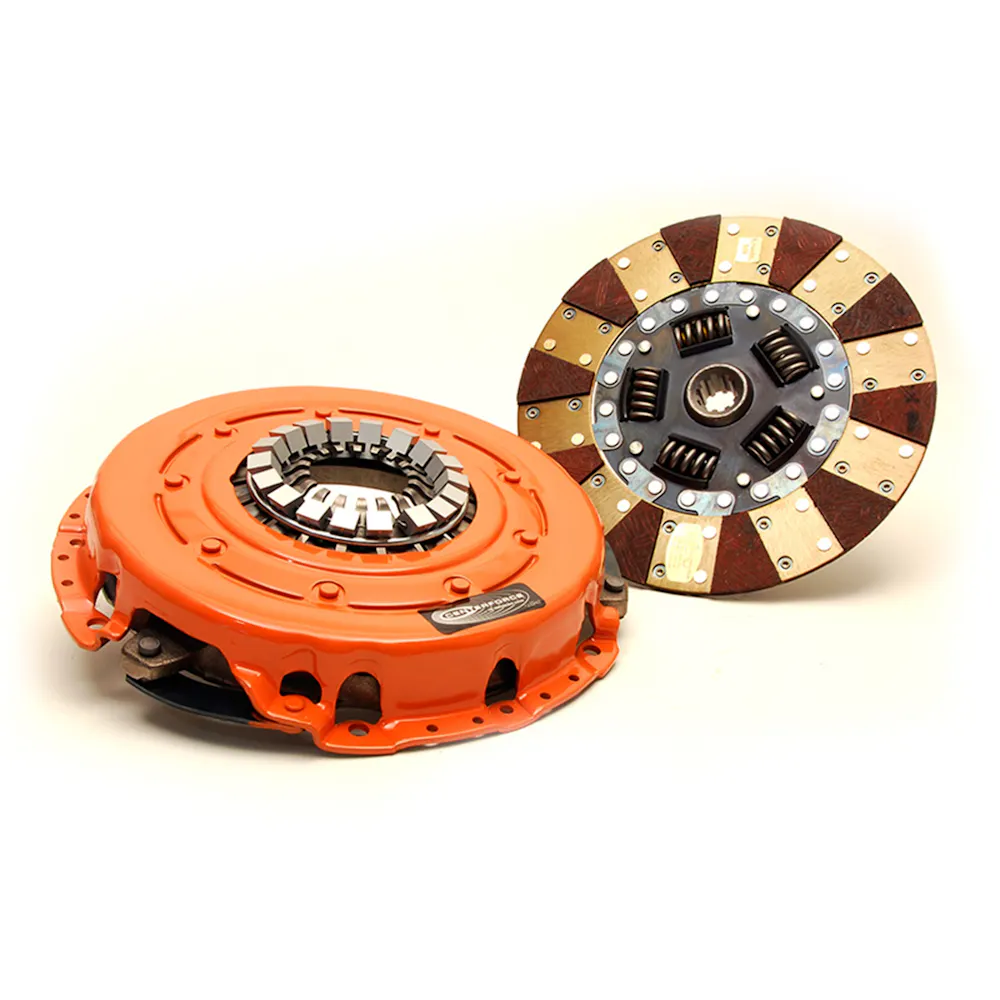

Description: Dual Friction(R), Clutch Pressure Plate and Disc Set; The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.

This part number has been superseded by DF920830.

Cancer - www.P65Warnings.ca.gov

Description

The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.

Features & benefits

1-1/16" x 10 Spline Input Shaft;
Dual Friction(R) Design
Ball Bearing Pressure Plate (where Applicable)
Light Pedal Effort
High Quality Friction Material
Increased Holding Capacity
Smooth Engagement

Specifications

GTIN: 00788442015935
Weight: 23.6 lb
Height: 4 in
Length: 14 in
Width: 14 in
EO: Legal US
Life cycle: Discontinued
AAM brand code: CEN
Warehouse brand code: CEN
AAIA brand code: BDPL

Attributes

AAM Standard Pack: 1
Attribute Data: 7
California Proposition 65: WARNING: Cancer - www.P65Warnings.ca.gov
Clutch Bolt Pattern: 7
Counterweight Assist: YES
Flywheel Step Type: FLAT
Friction Surface Configuration: FLAT
Includes: Pressure Plate, Disc, Alignment Tool
Input Shaft Diameter: 1-1/16
Input Spline Quantity: 10
Material: Cast Iron Pressure Plate / Full Face and Segmented Organic Friction
Replaceable Friction Surface: N
Spline Diameter and Tooth Count: 1-1/16"-10
Title: PN: DF021048 - Dual Friction, Clutch Pressure Plate and Disc Set
