Centerforce / CF019580

Part #: CF019580
UPC: 788442020441

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Centerforce Series: Centerforce I Clutch Kits

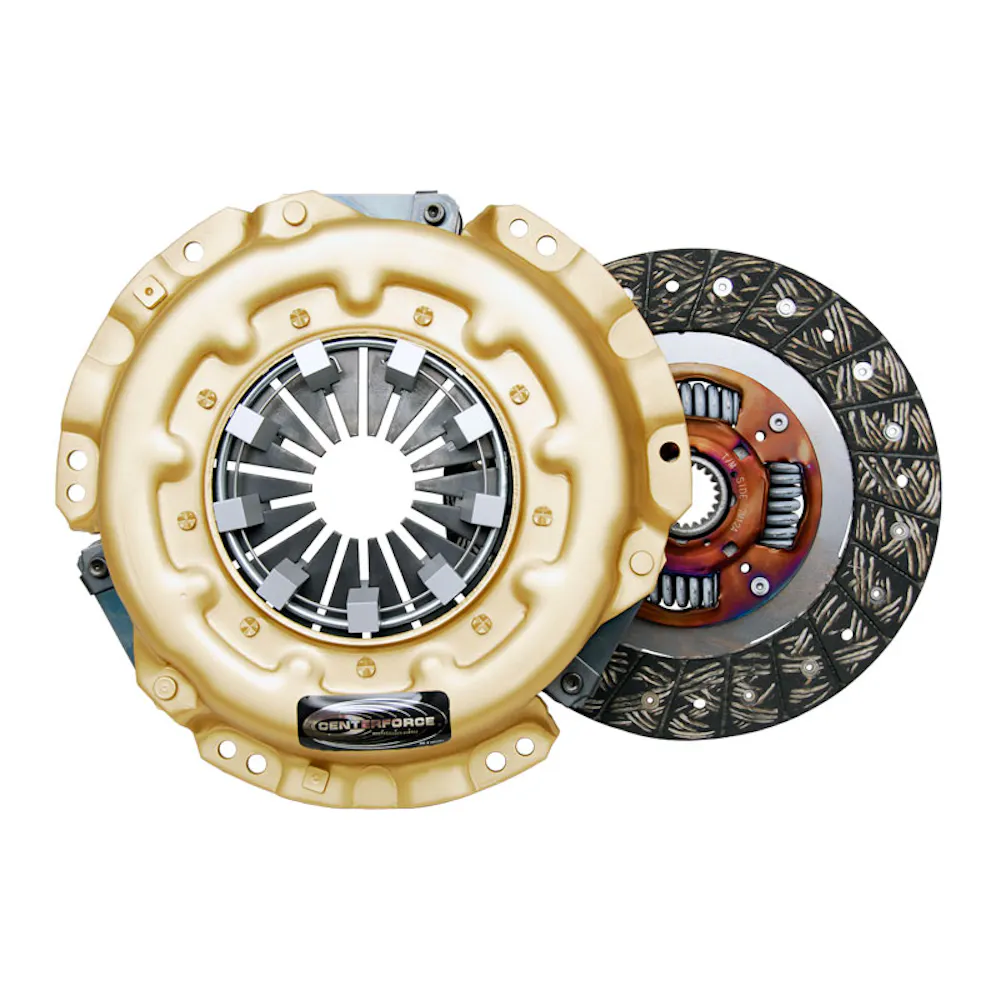

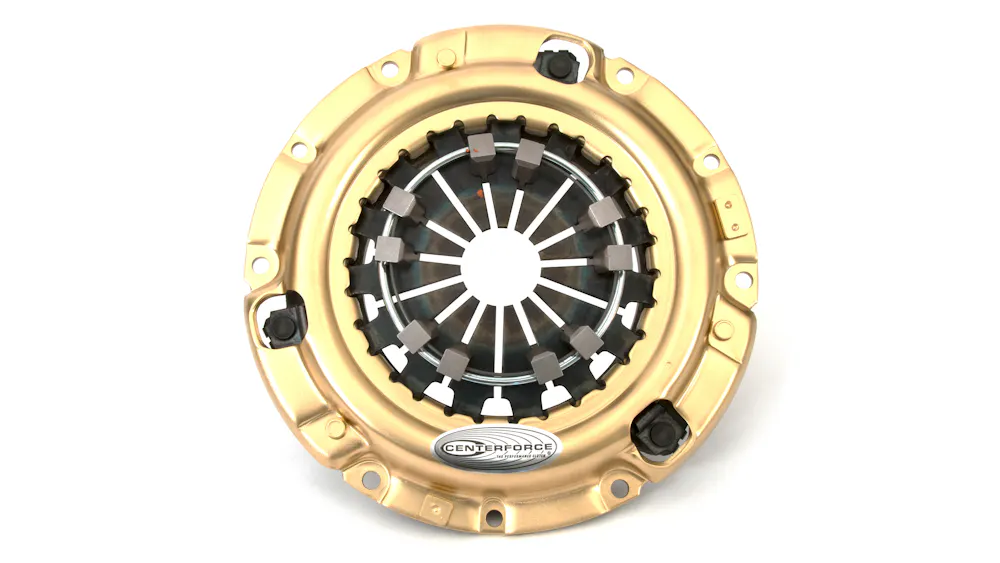

Description: Centerforce(R) I, Clutch Pressure Plate and Disc Set; The Centerforce(R) I Clutch Series is designed as a high-quality stock replacement for applications with stock engines or mild power increases from minor bolt-on modifications.

This part number has been superseded by KCF198013.

Cancer - www.P65Warnings.ca.gov

Description

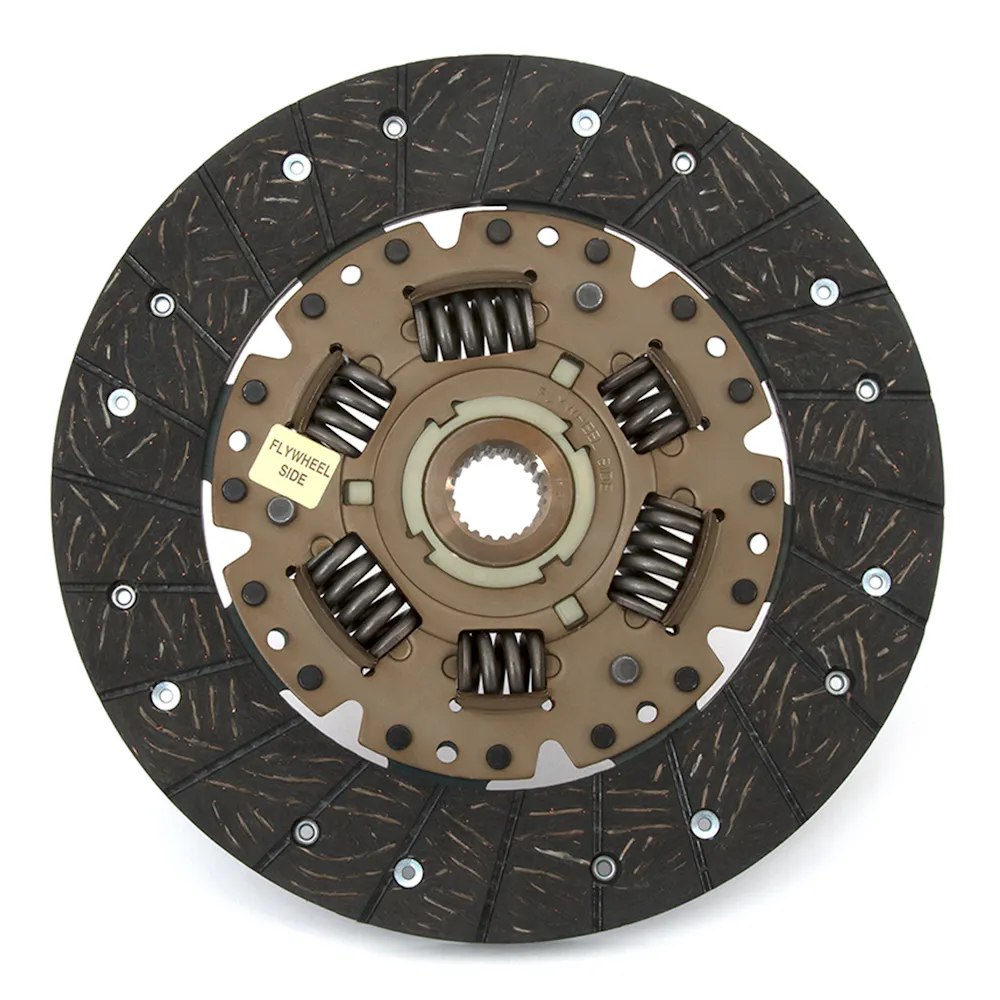

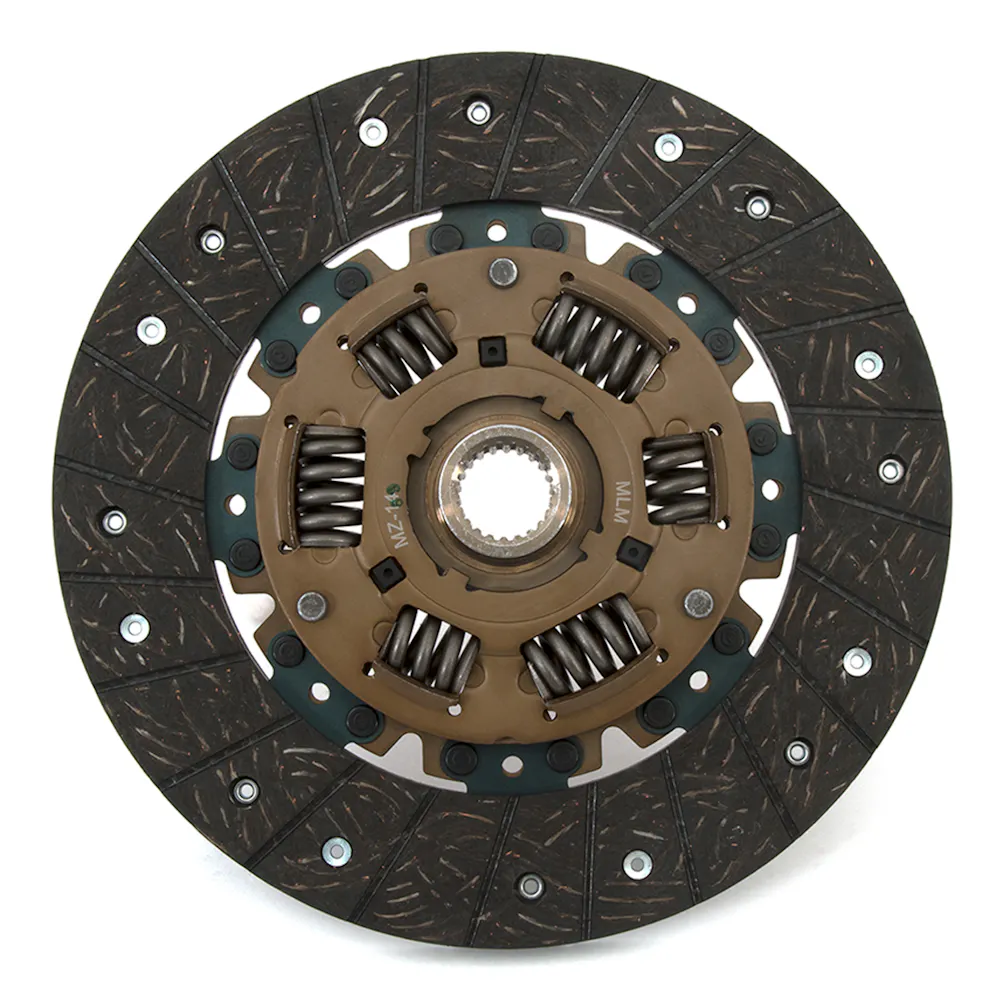

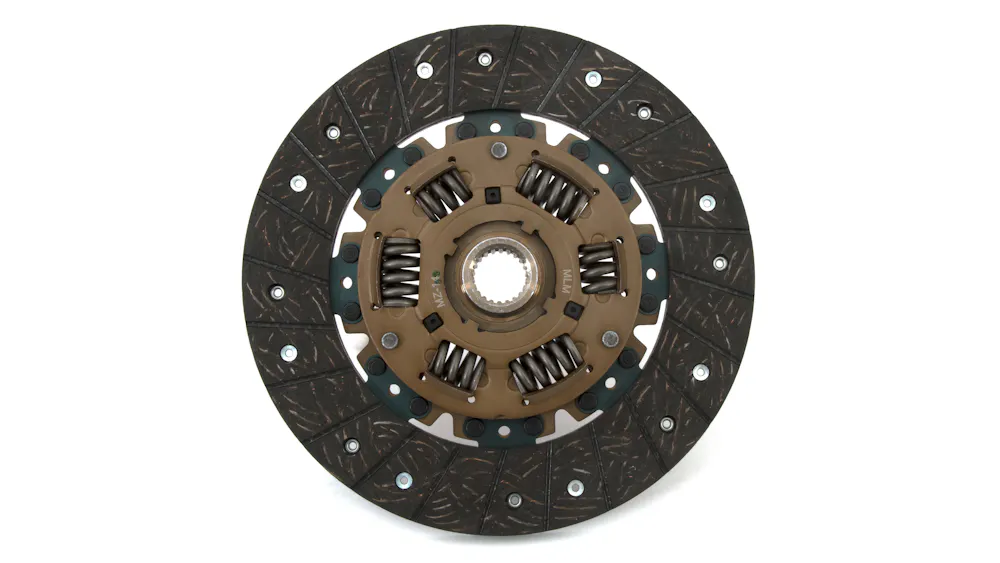

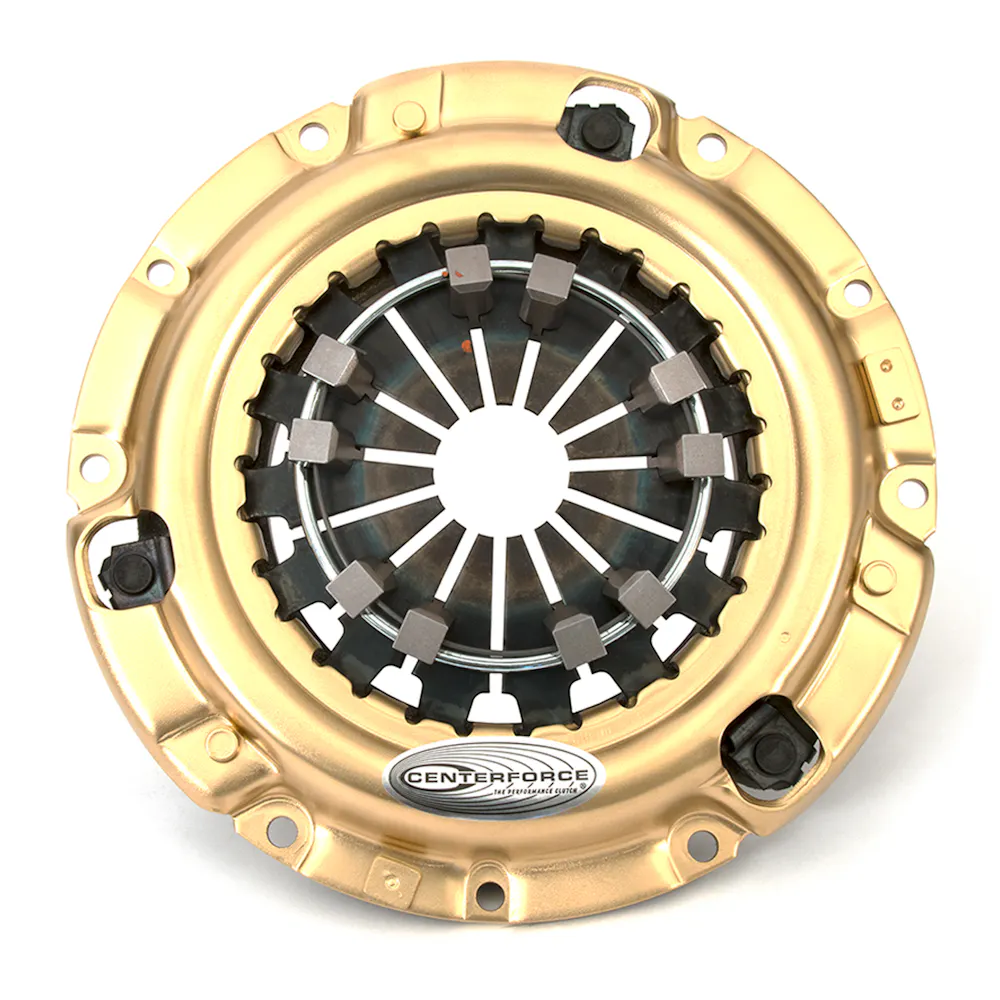

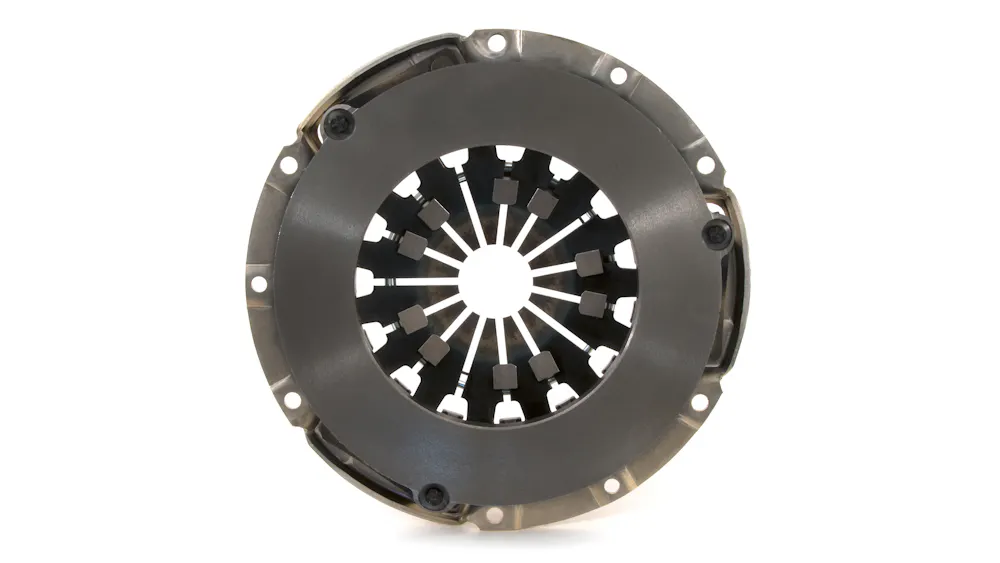

The Centerforce(R) I Clutch Series utilizes a full facing disc with premium friction material and is designed as a high-quality entry-level performance clutch for those in need of a superior stock replacement. Using the Centerforce centrifugal weights (where applicable), the Centerforce Stage 1 clutch system is perfect for applications with stock engines or mild power increases from minor bolt-on modifications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce I Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc.

Application summary

Year	Make / model
1994-1997	Mazda Miata
1999-2005	Mazda Miata

Specifications

GTIN: 00788442020441
Weight: 13.8 lb
Height: 4 in
Length: 14 in
Width: 14 in
EO: Legal US
Life cycle: Available to Order
AAM brand code: CEN
Warehouse brand code: CEN
AAIA brand code: BDPL

Attributes

AAM Standard Pack: 1
Alignment Tool Included: Yes
Attribute Data: 2
California Proposition 65: WARNING: Cancer - www.P65Warnings.ca.gov
Clutch Disc Diameter: 225
Counterweight Assist: YES
Disc Material: Organic

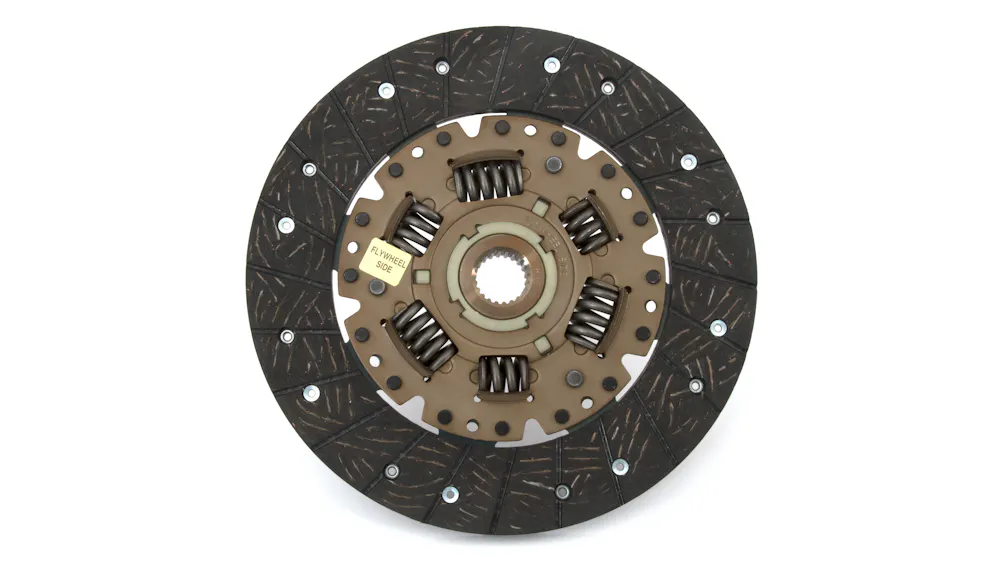

Disc Type: Full face
Disc Type Sprung Solid: Sprung
Flywheel Step: -0.787
Flywheel Step Type: CUP
Friction Surface Configuration: CUP

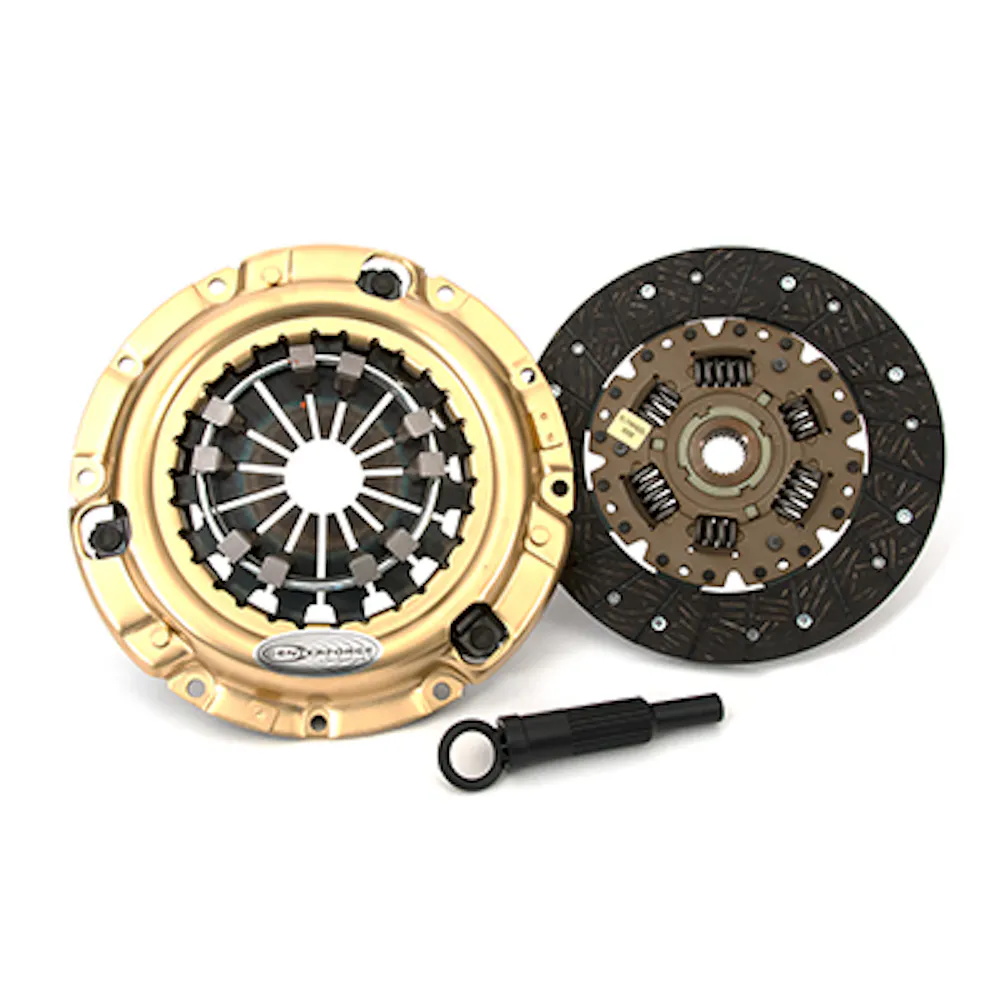

Includes: Pressure Plate, Disc, Alignment tool.
Input Shaft Diameter: 15/16
Input Spline Quantity: 22
Made In The USA: Assembled

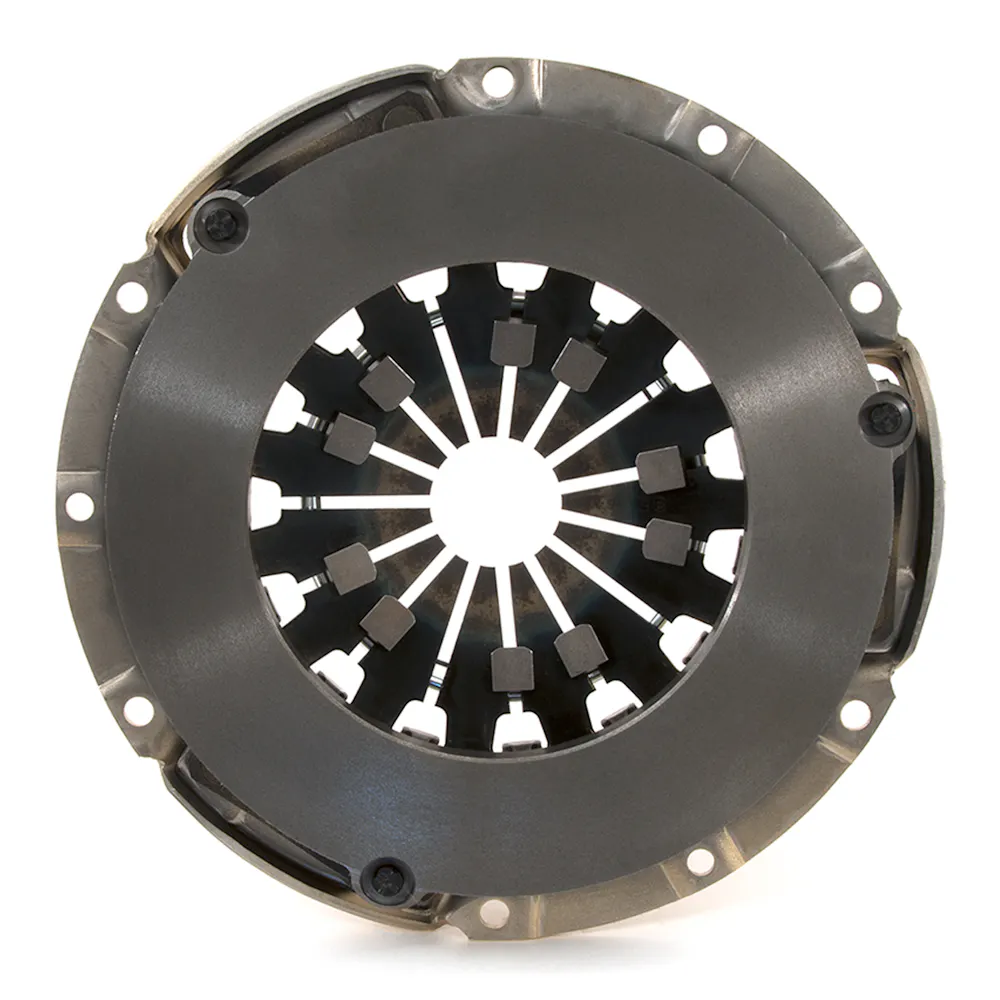

Material: Cast Iron Pressure Plate / Organic Friction
Outside Diameter of Friction Surface: 225
Outside Diameter of Friction Surface (Metric): 225
Outside Diameter of Friction Surface (Standard): 8-7/8
Replaceable Friction Surface: N
SFI 1.1 Approved: N
Spline Diameter and Tooth Count: 15/16"-22
Title: Centerforce ? I, Premium Clutch Pressure Plate and Disc Set, 206 ft/lbs Capacity, 8.875in Dia., 22-Spline, Fits Mazda Miata 1.8L
Torque Capacity: 206
