Centerforce · CF009512
Part #: CF009512
UPC: 788442012996
Log in for inventory
Notify me when this item is in stock.
Description: No description available.
Description:
This part number has been superseded by KCF009512.
Description
No description available.
Application summary
| Year | Make / model |
|---|---|
| 1986-1995 | Suzuki Samurai |
| 1989 | Suzuki Sidekick |
Specifications
- GTIN
- 00788442012996
- Weight
- 9.85 lb
- Height
- 4 in
- Length
- 14 in
- Width
- 14 in
- EO
- Legal US
- Life cycle
- Discontinued
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1

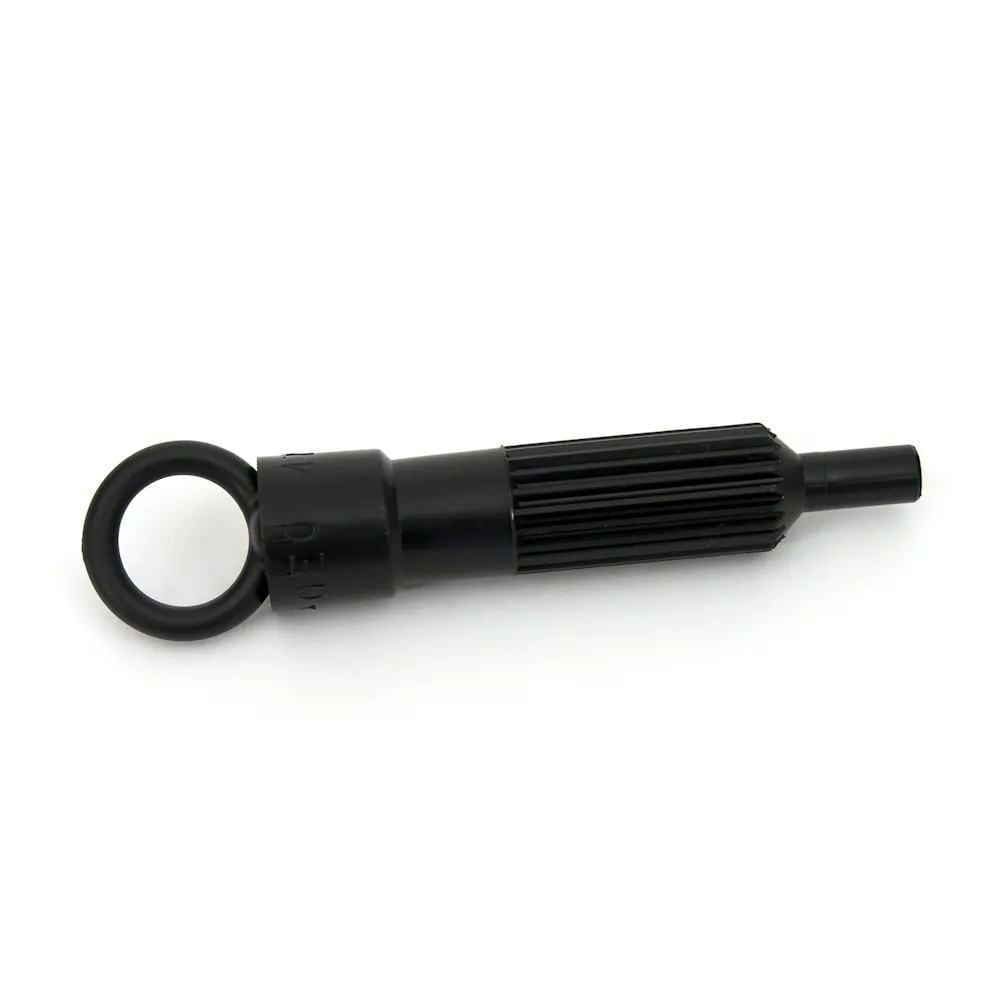

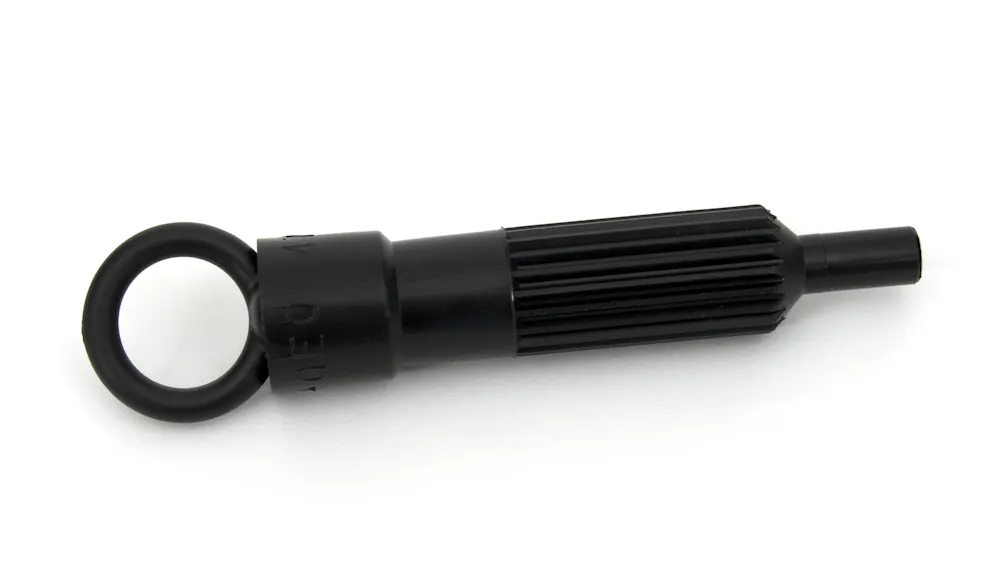

- Alignment Tool Included
- Yes
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov

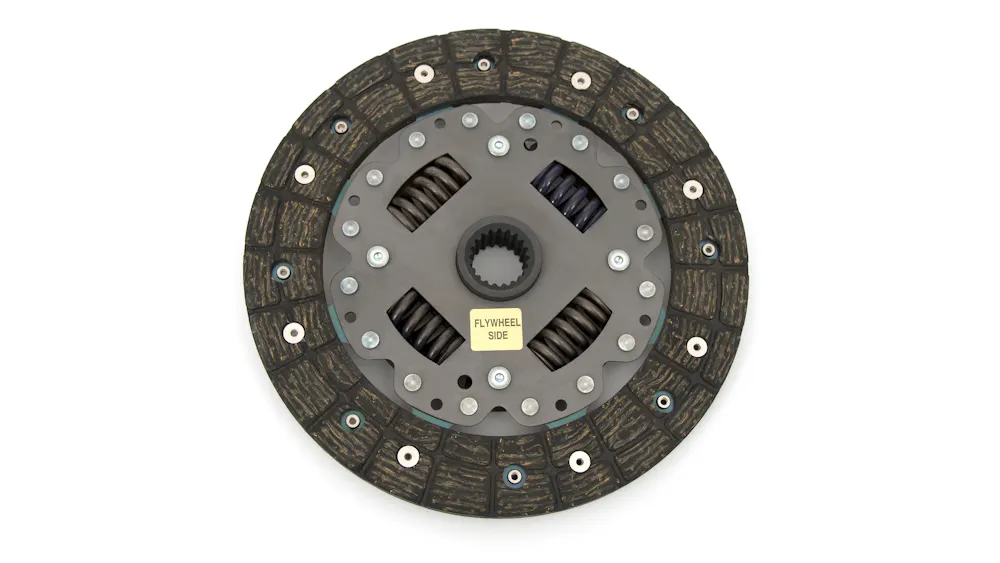

- Clutch Disc Diameter
- 190
- Counterweight Assist
- YES
- Disc Material
- Organic

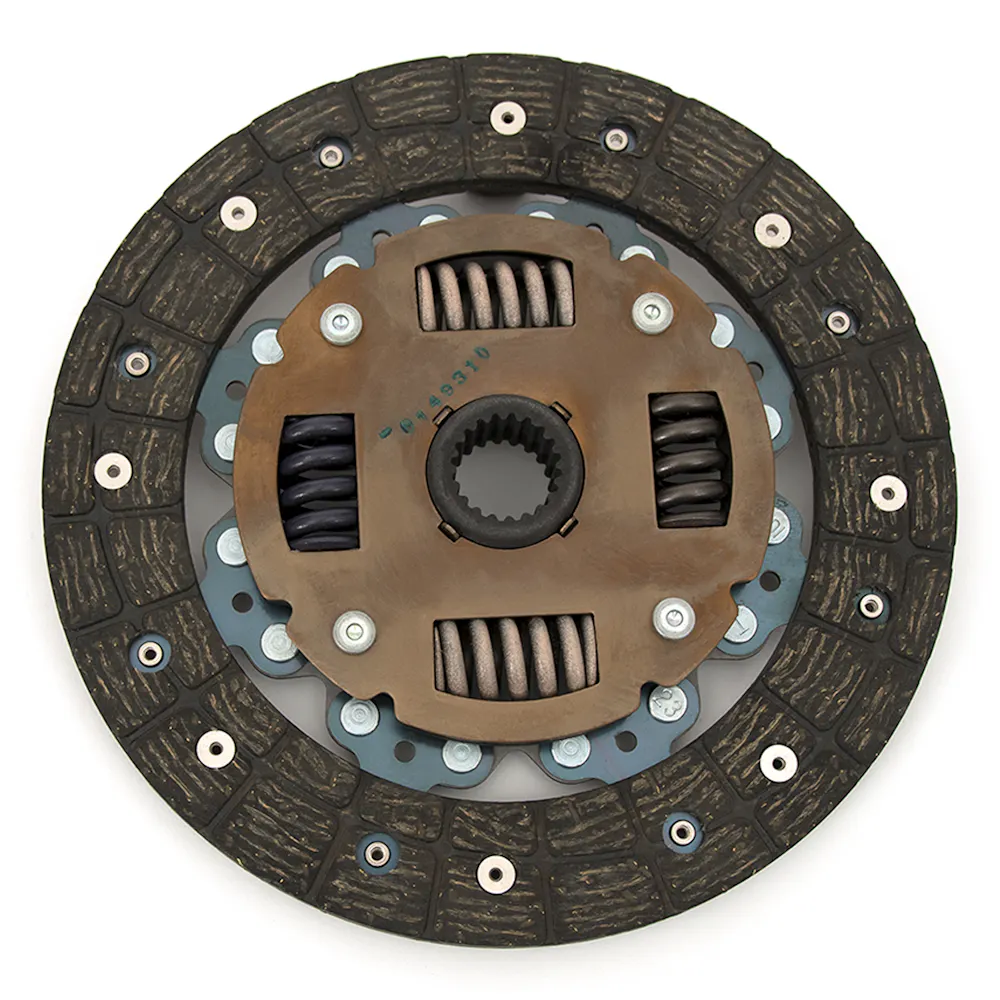

- Disc Type
- Full face
- Disc Type Sprung Solid
- Sprung
- Flywheel Step
- -0.090
- Flywheel Step Type
- CUP
- Friction Surface Configuration
- CUP

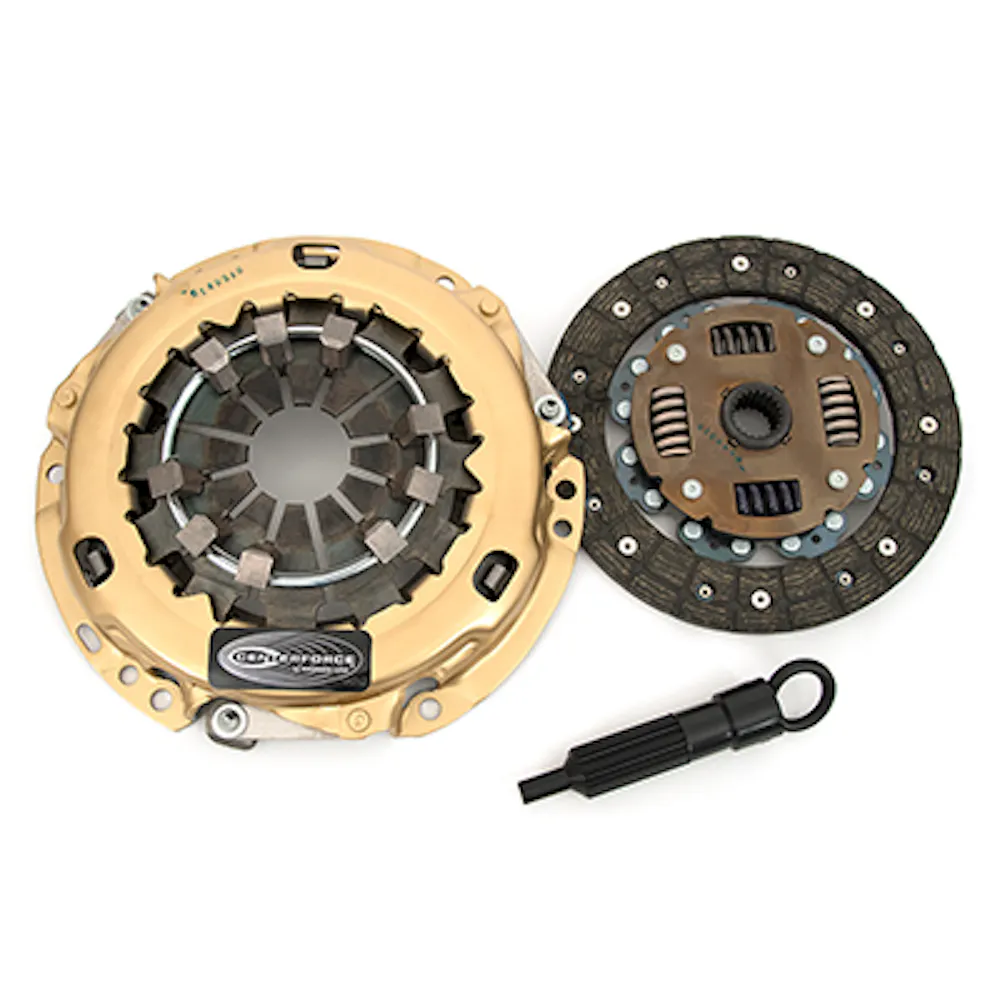

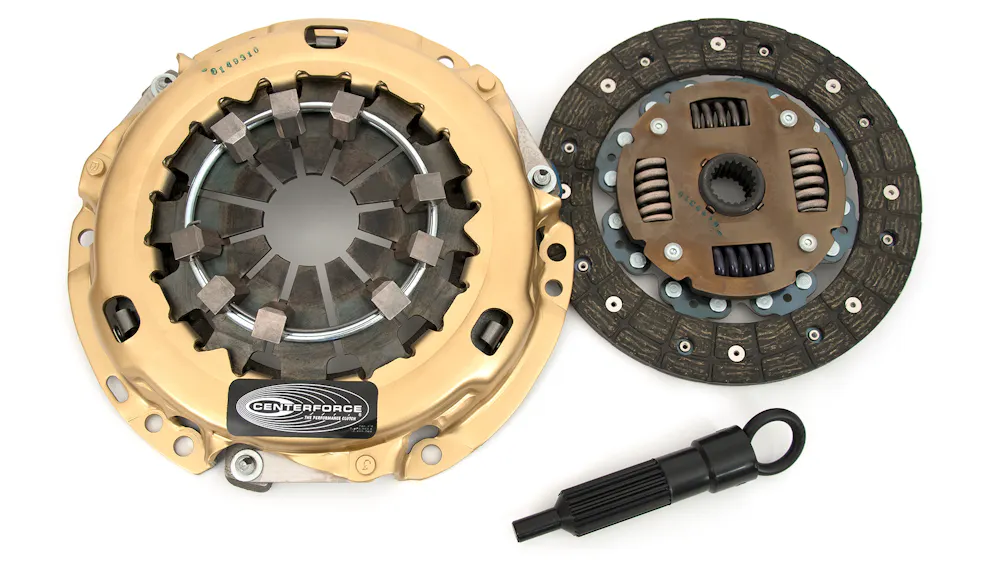

- Includes
- Pressure Plate, Disc, Alignment tool.
- Input Shaft Diameter
- 7/8
- Input Spline Quantity
- 20
- Made In The USA
- Assembled
- Material
- Cast Iron Pressure Plate / Organic Friction
- Outside Diameter of Friction Surface
- 190
- Outside Diameter of Friction Surface (Metric)
- 190
- Outside Diameter of Friction Surface (Standard)
- 7-1/2
- Replaceable Friction Surface
- N
- SFI 1.1 Approved
- N
- Spline Diameter and Tooth Count
- 7/8"-20
- Title
- Centerforce ? I, Premium Clutch Pressure Plate and Disc Set, 157 ft/lbs Capacity, 7.500in Dia., 20-Spline
- Torque Capacity
- 157
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1986-1995 Suzuki Samurai; 1989 Suzuki Sidekick
Resources
- Brand logo
- Technical Bulletin
- Installation Instructions
- Installation Instructions
- Installation Instructions
- Logo Image
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Primary
- Photo - Unmounted
- Photo - Unmounted
- Photo - Unmounted
- Photo - Unmounted
- Photo - Unmounted
- Photo - Unmounted
- Photo - Unmounted
- Centerforce I Overview
- Centerforce I & II Clutch

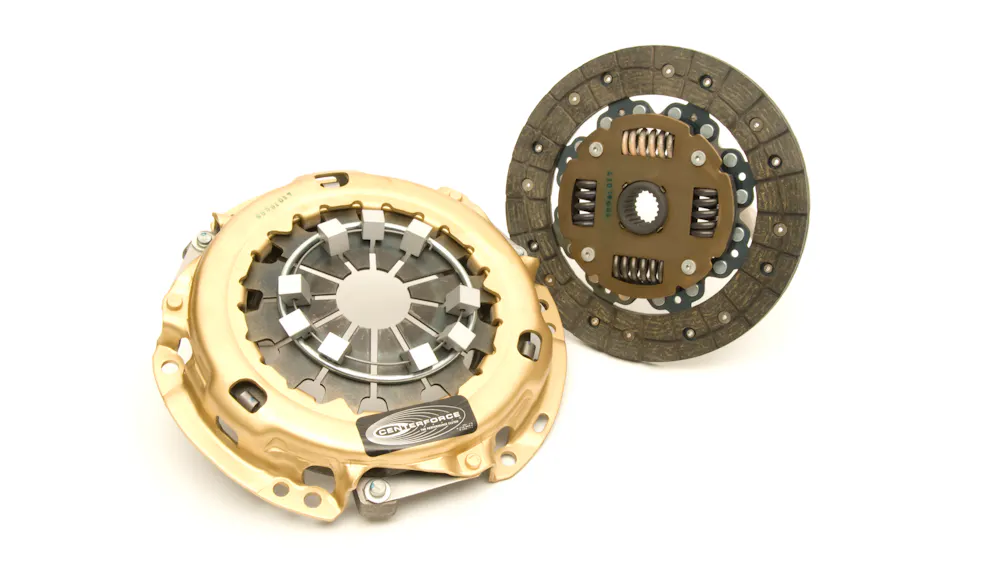

Centerforce CF009512
