Centerforce / 08613096
Part #: 08613096
UPC: 788442030426
Loading...
Notify me when this item is in stock.
Description: DYAD(R) XDS 10.4, Clutch and Flywheel Kit; The Centerforce(R) DYAD(R) XDS (eXtreme Drive System) 10.4 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 700 to 1600 ft /lbs.
Description:
This part number has been superseded by 427613096.
Description
The Centerforce(R) DYAD XDS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 700 to 1600 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with metallic paddle/button style friction material providing increased holding capacity. DYAD XDS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise and/or chatter during operation. Components are designed, machined and assembled in the USA. DYAD XDS clutches are match balanced and ready for installation using the included ARP fasteners.
Features & benefits
- No complicated setup or adjustments required
Application summary
| Year | Make / model |
|---|---|
| 2008-2010 | Dodge Viper |
| 2015 | Dodge Viper |
| 2013 | SRT Viper |
Specifications
- GTIN
- 00788442030426
- Weight
- 52.15 lb
- Height
- 5.5 in
- Length
- 17 in
- Width
- 18 in
- EO
- Legal US
- Life cycle
- Superseded
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Disc Diameter
- 10.4
- Counterweight Assist
- No
- Crankshaft Bolt Hole Quantity
- 8
- Disc Material
- Cerametallic
- Disc Type
- 6-Paddle
- Disc Type Sprung Solid
- Sprung
- Flywheel Counter Balance Weight
- 0
- Flywheel Crank Bolt Size
- 10mm
- Flywheel Crank Flange Register
- 2.159
- Flywheel Deck Height
- 3.770
- Includes

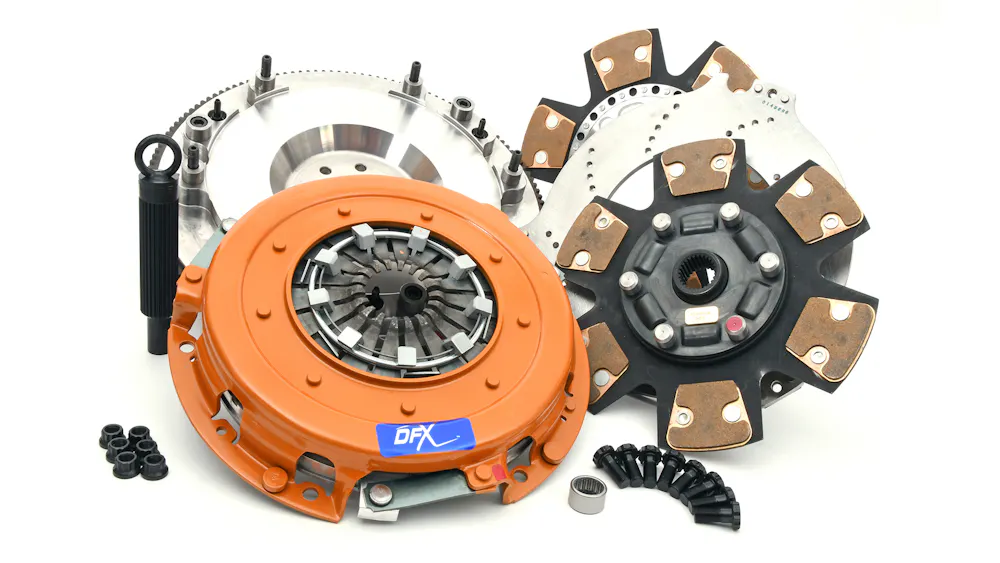

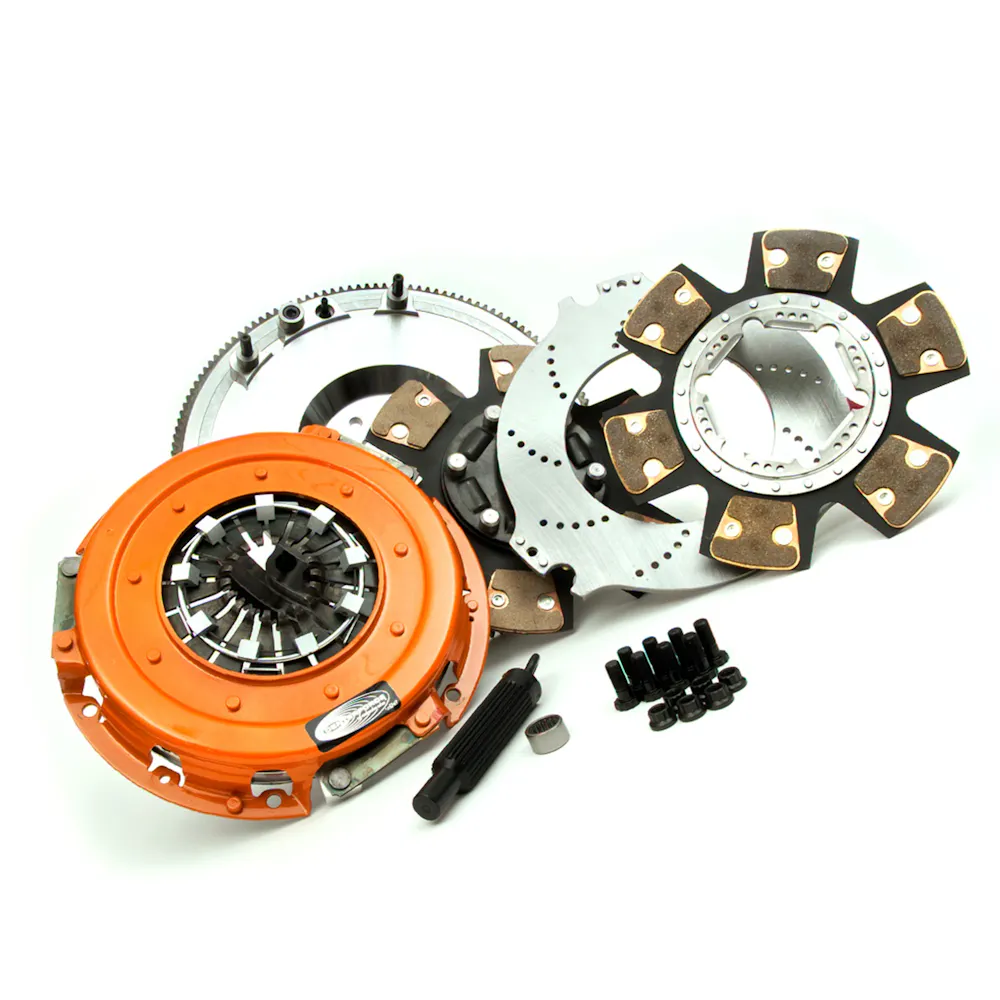

- Pressure Plate, Discs, Floater, Flywheel, Bolts, Alignment Tool, Pilot Bearing
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 26
- Material
- Billet Steel Flywheel / Aluminum Pressure Plate / Cerametallic Button Style Friction
- Out of Package Weight
- 48.40
- Replaceable Friction Surface
- N
- Ring Gear O.D
- 14.568
- Ring Gear Tooth Count
- 143
- Title
- PN: 08613096 - DYAD XDS 10.4, Clutch and Flywheel Kit
- Torque Capacity
- 1600
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2008-2010 Dodge Viper; 2015 Dodge Viper; 2013 SRT Viper
