Centerforce · 08262842
Part #: 08262842
UPC: 788442029826
Log in for inventory
Notify me when this item is in stock.

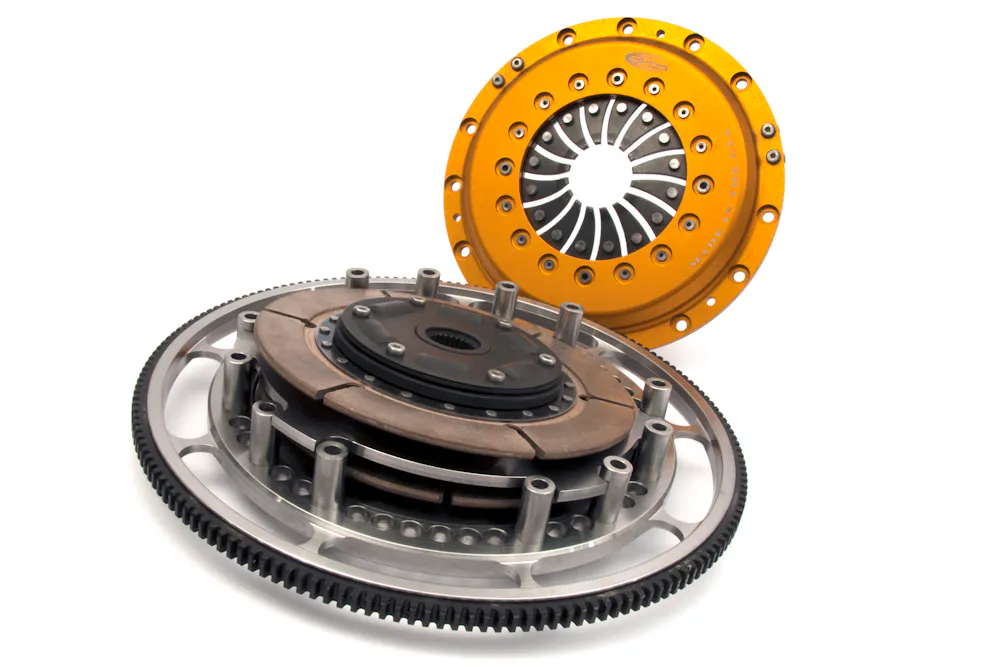

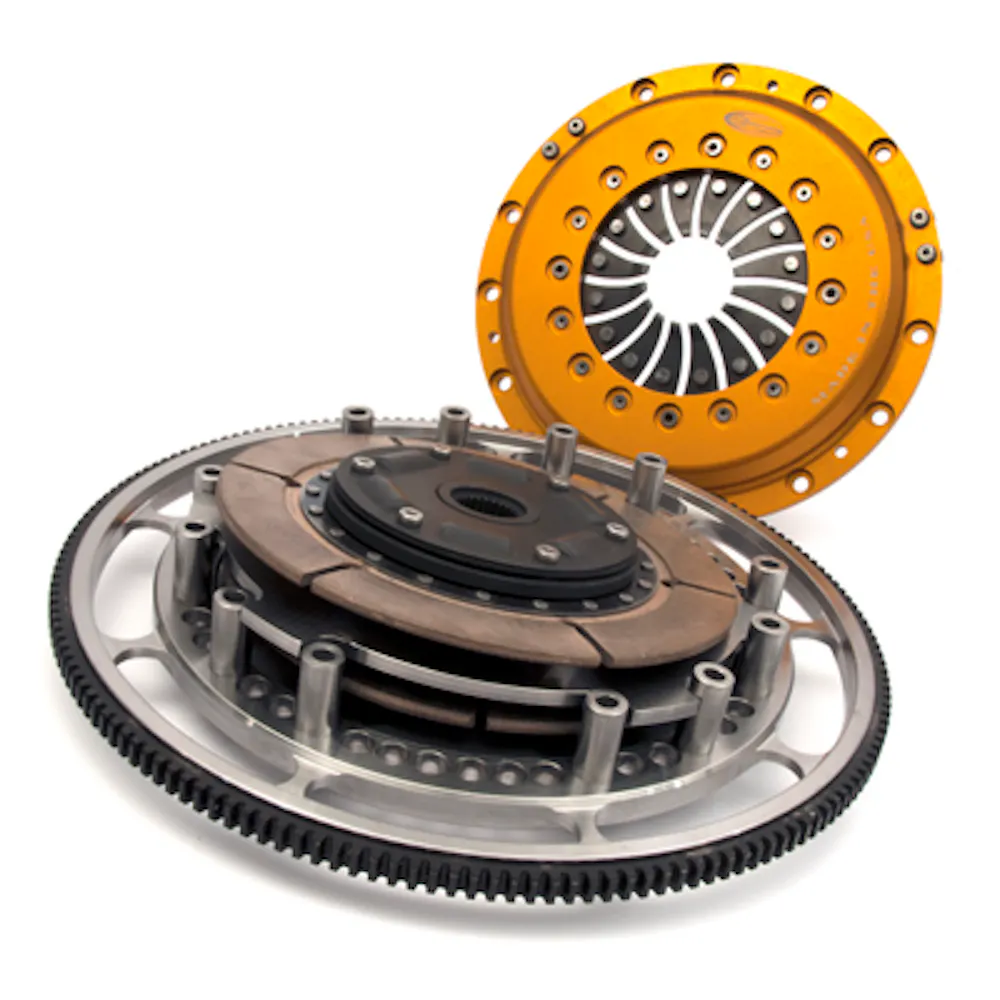

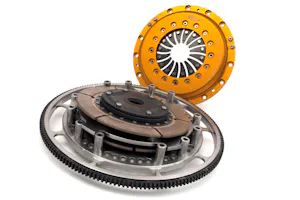

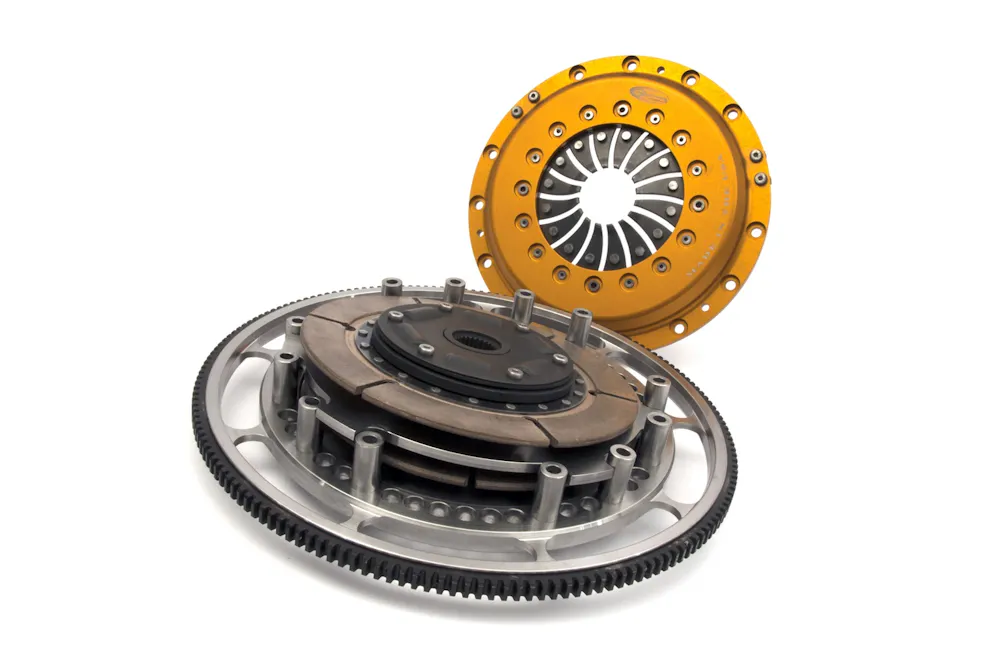

Description: DYAD(R) XDS 8.75, Clutch and Flywheel Kit; The Centerforce(R) DYAD(R) XDS (eXtreme Drive System) 8.75" patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 400 to 800 ft /lbs.
Description:
This part number has been superseded by 814262842.
Description
The Centerforce(R) DYAD XDS 8.75" twin disc clutch has been developed for vehicles requiring a holding capacity of 400 to 800 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The disc pack is equipped with metallic friction material providing increased holding capacity and is available in either sprung or solid hub (possible gear noise) depending on the application. DYAD XDS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise and/or chatter during operation. Components are designed, machined and assembled in the USA. DYAD XDS clutches are match balanced and ready for installation using the included ARP fasteners.
Features & benefits
- No complicated setup or adjustments required
Application summary
| Year | Make / model |
|---|---|
| 2010-2014 | Chevrolet Camaro |
Specifications
- GTIN
- 00788442029826
- Weight
- 35.15 lb
- Height
- 5.5 in
- Length
- 17 in
- Width
- 18 in
- EO
- Legal US
- Life cycle
- Superseded
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Disc Diameter
- 8.750
- Counterweight Assist
- Yes
- Crankshaft Bolt Hole Quantity
- 6
- Disc Material
- Sintered Metallic
- Disc Type
- Full face
- Disc Type Sprung Solid
- Sprung
- Flywheel Counter Balance Weight
- 0
- Flywheel Crank Bolt Size
- 11mm
- Flywheel Crank Flange Register
- 2.068
- Flywheel Deck Height
- 2.375
- Includes
- Pressure Plate, Discs, Floater, Flywheel, Bolts, Alignment Tool & Pilot Bearing
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 26
- Material
- Billet Steel Flywheel / Nodular Iron Pressure Plate / Full Face Cerametallic Friction
- Replaceable Friction Surface
- N
- Ring Gear O.D
- 14.096
- Ring Gear Tooth Count
- 168
- Title
- PN: 08262842 - DYAD XDS 8.75, Clutch and Flywheel Kit
- Torque Capacity
- 750
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2010-2014 Chevrolet Camaro
