Centerforce · 07264042
Part #: 07264042
UPC: 788442030747
Log in for inventory
Notify me when this item is in stock.
Description: TRIAD(R) DS, Clutch and Flywheel Kit; The Centerforce(R) TRIAD DS (Drive System) 8.75 Inch patented multi-disc clutch offers a smaller and lighter system for quick revving vehicles with engine torque levels from 500 to 1100 ft/lbs.
Description:
This part number has been superseded by 838264042.
Description

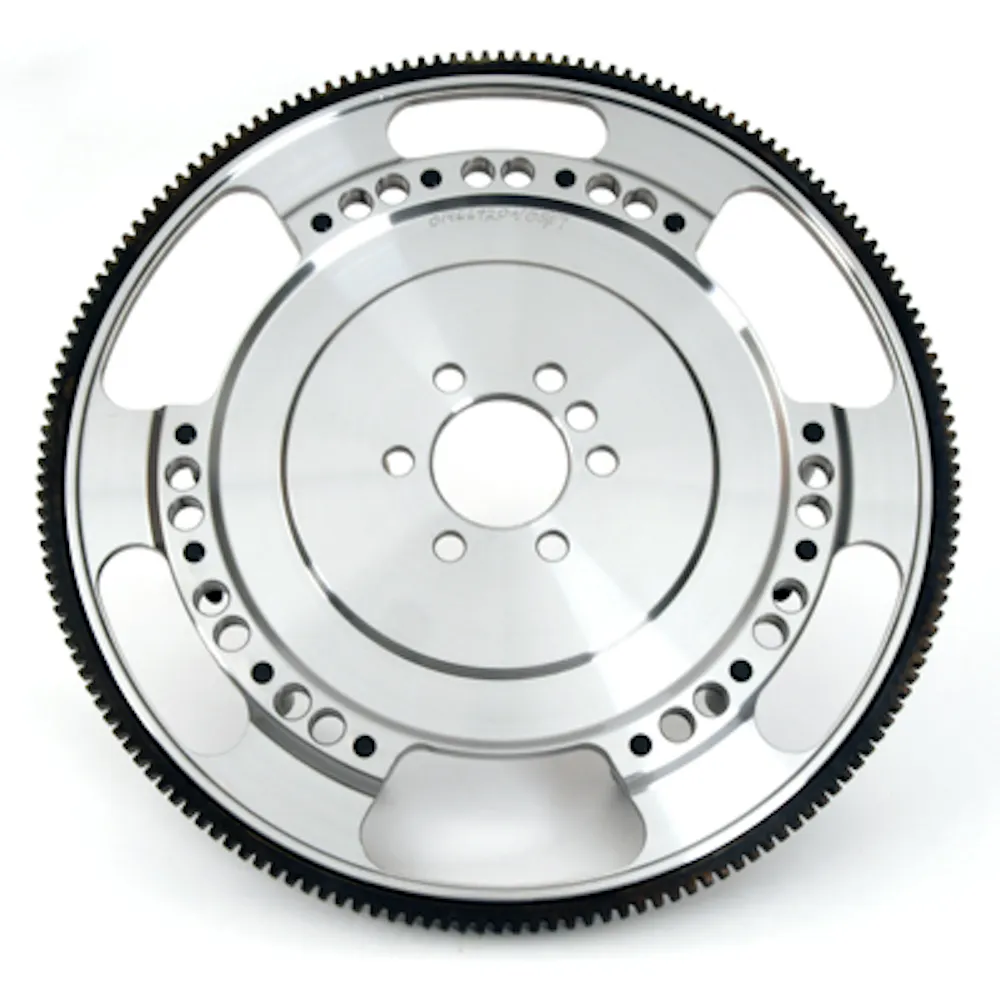

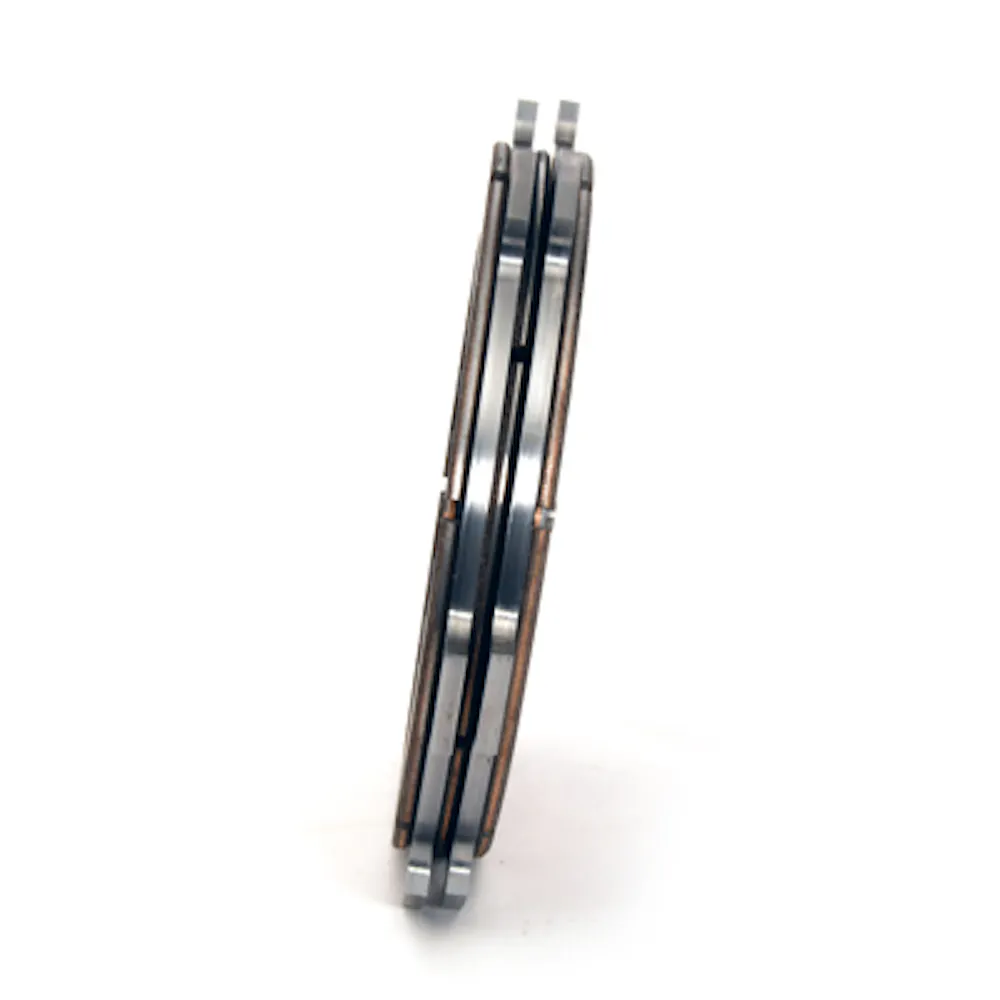

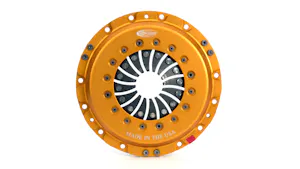

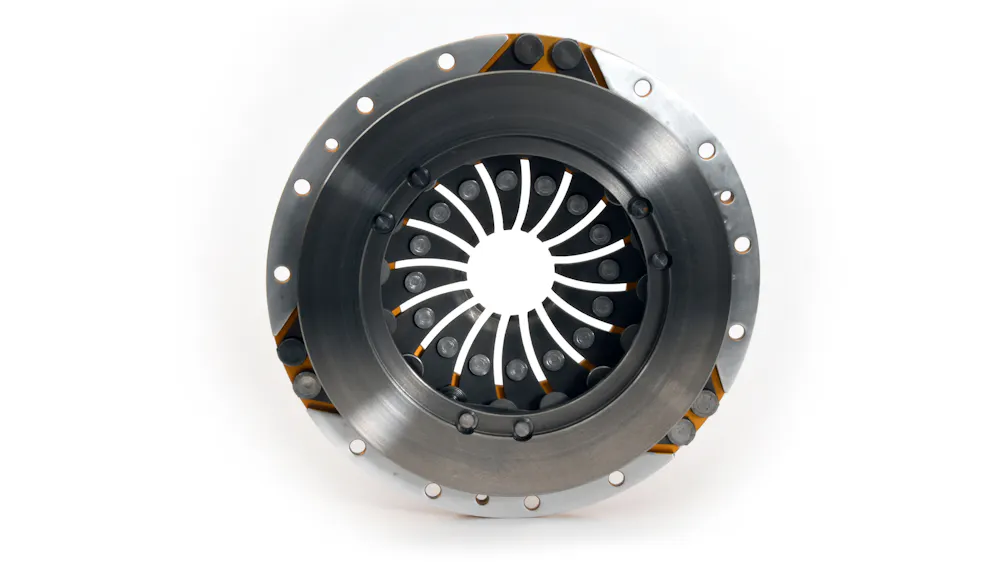

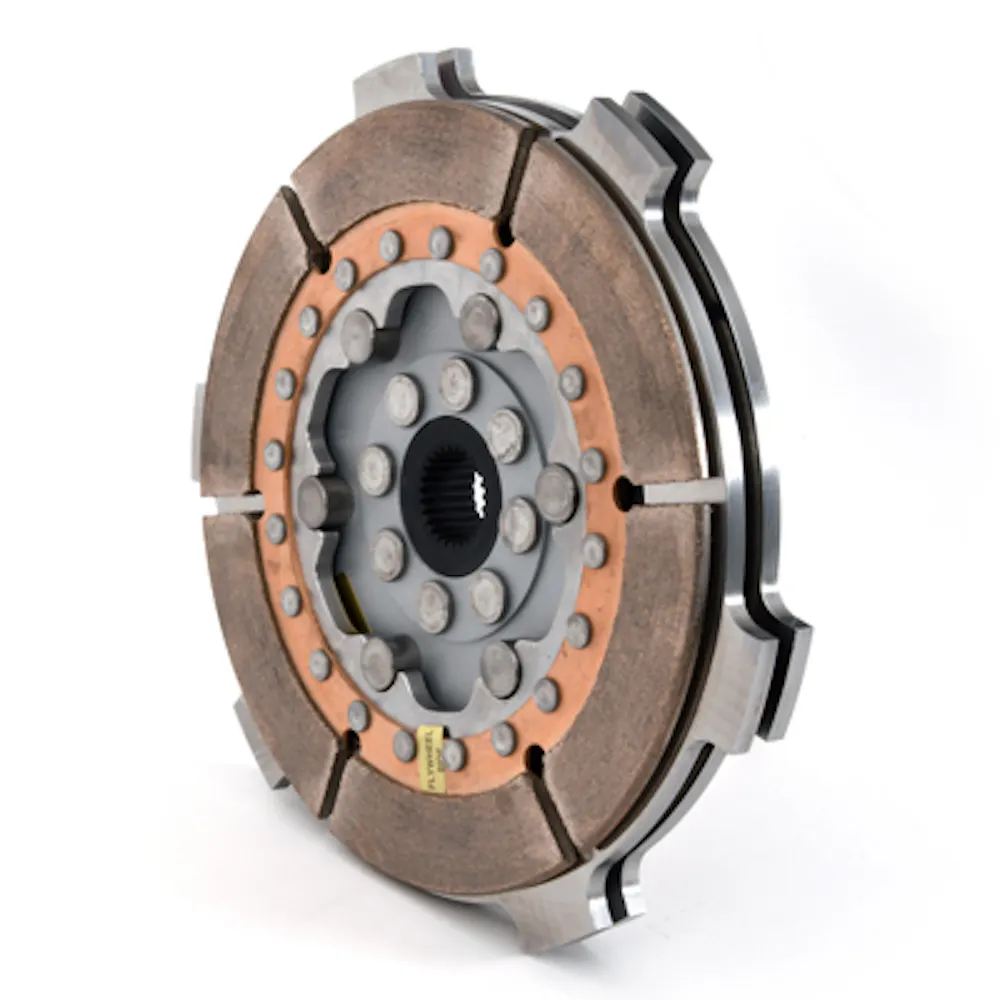

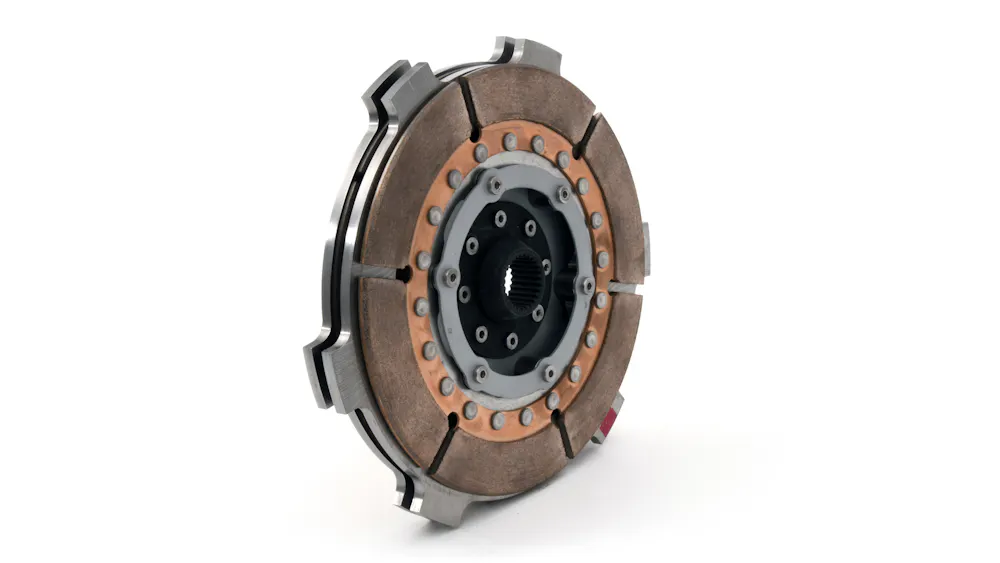

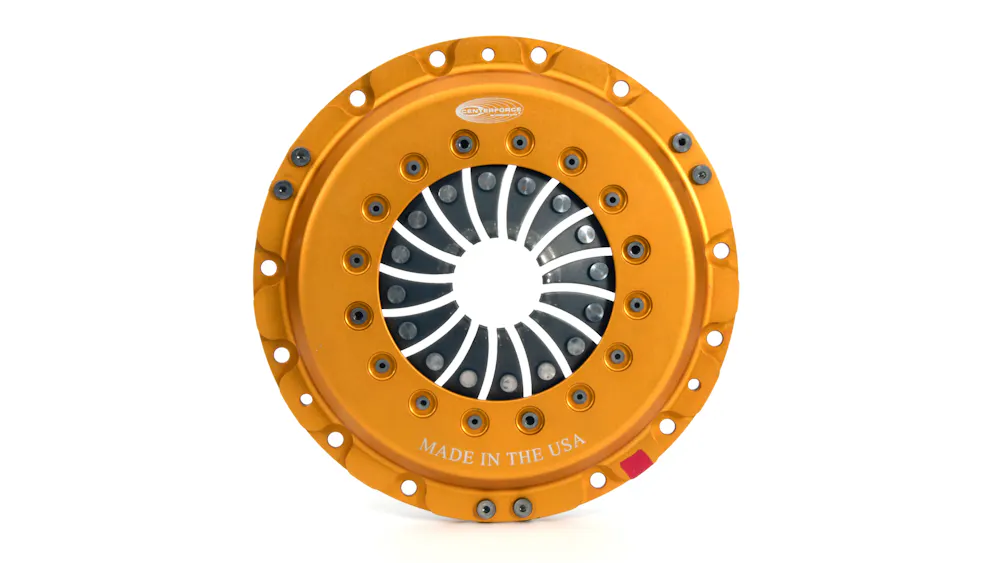

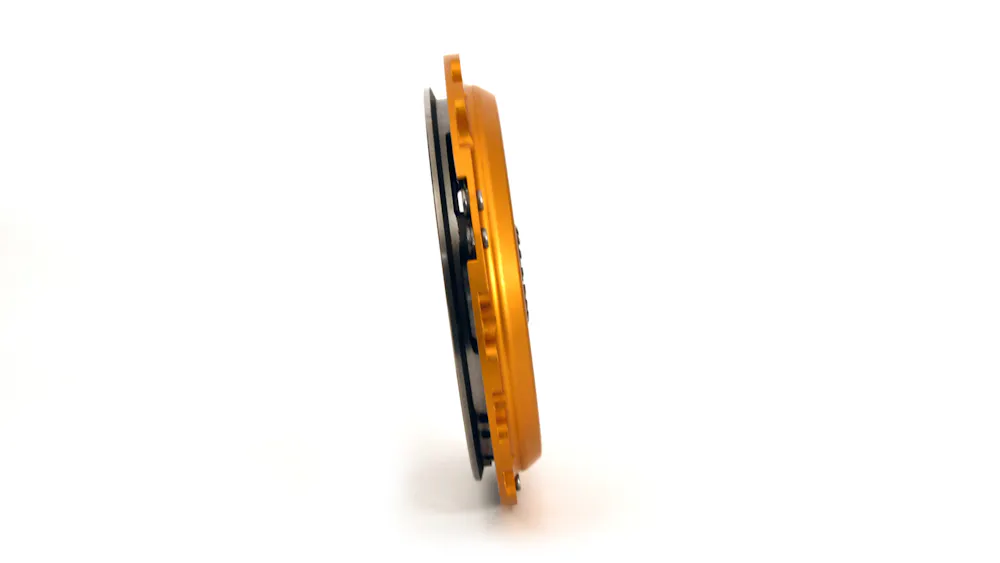

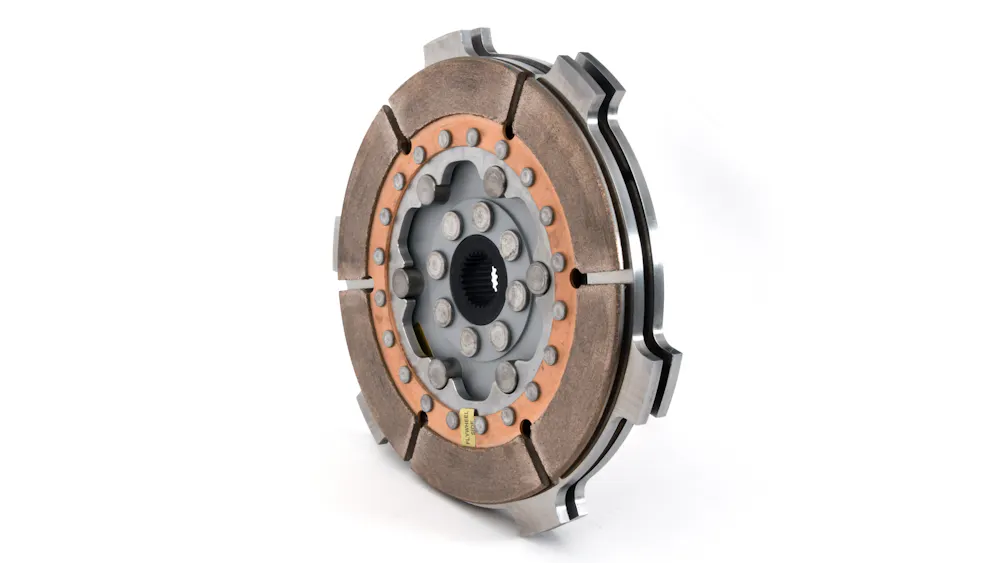

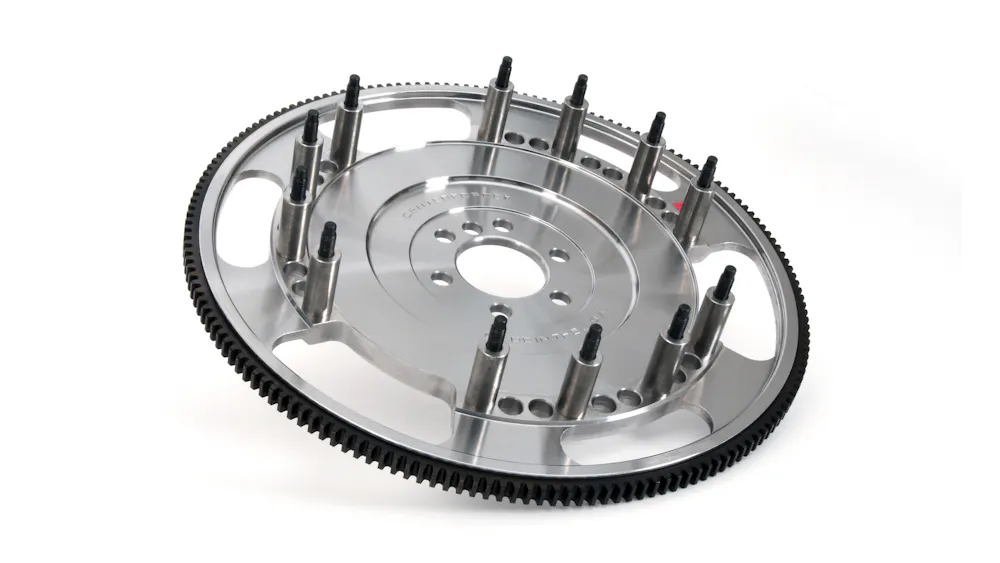

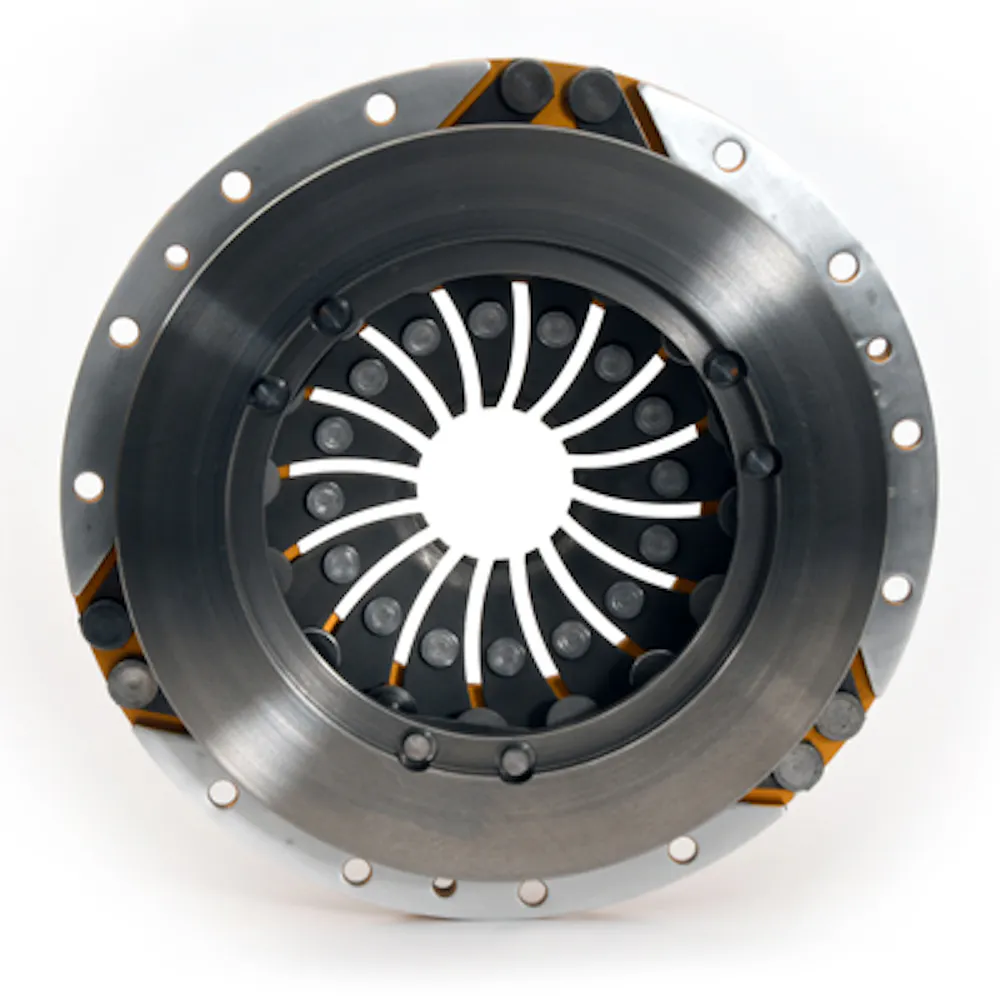

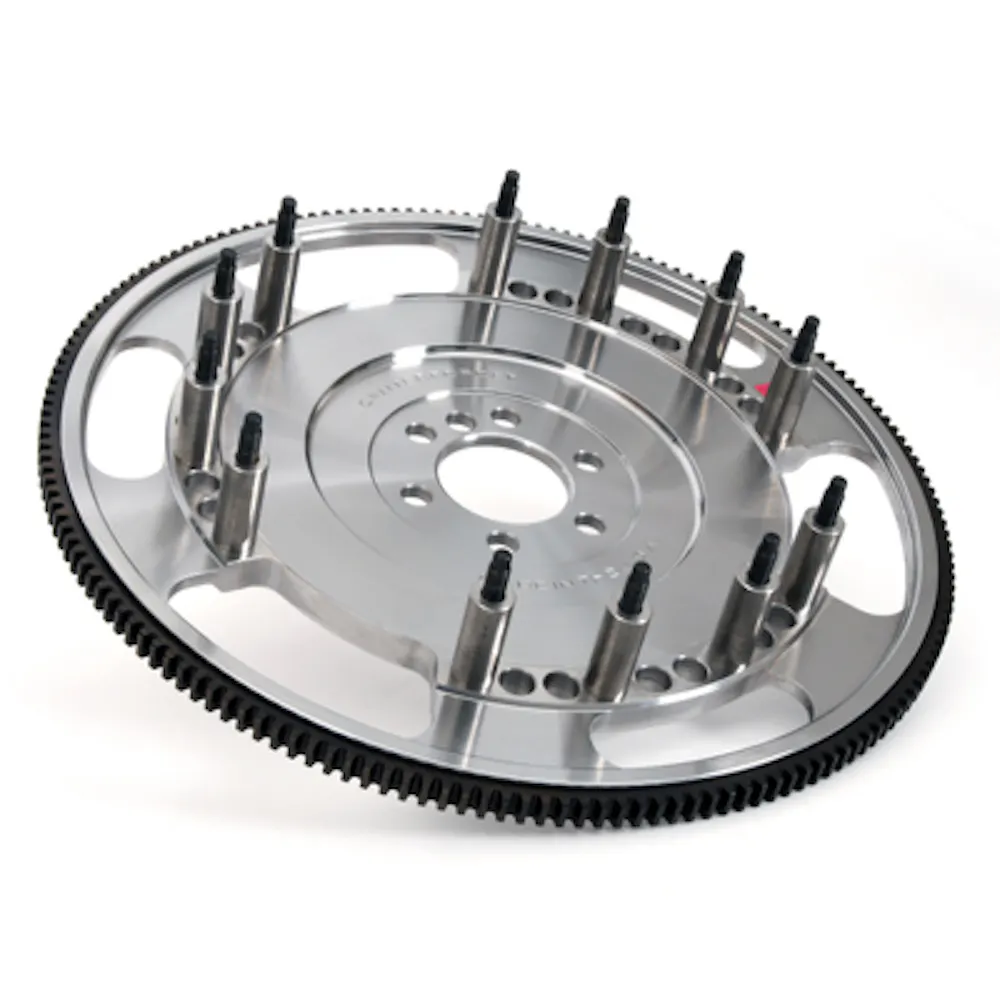

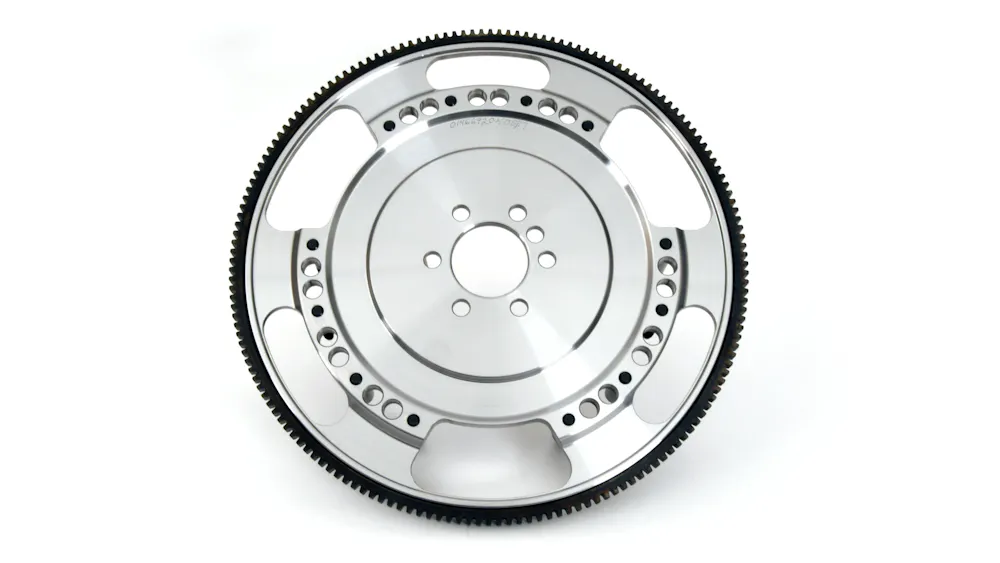

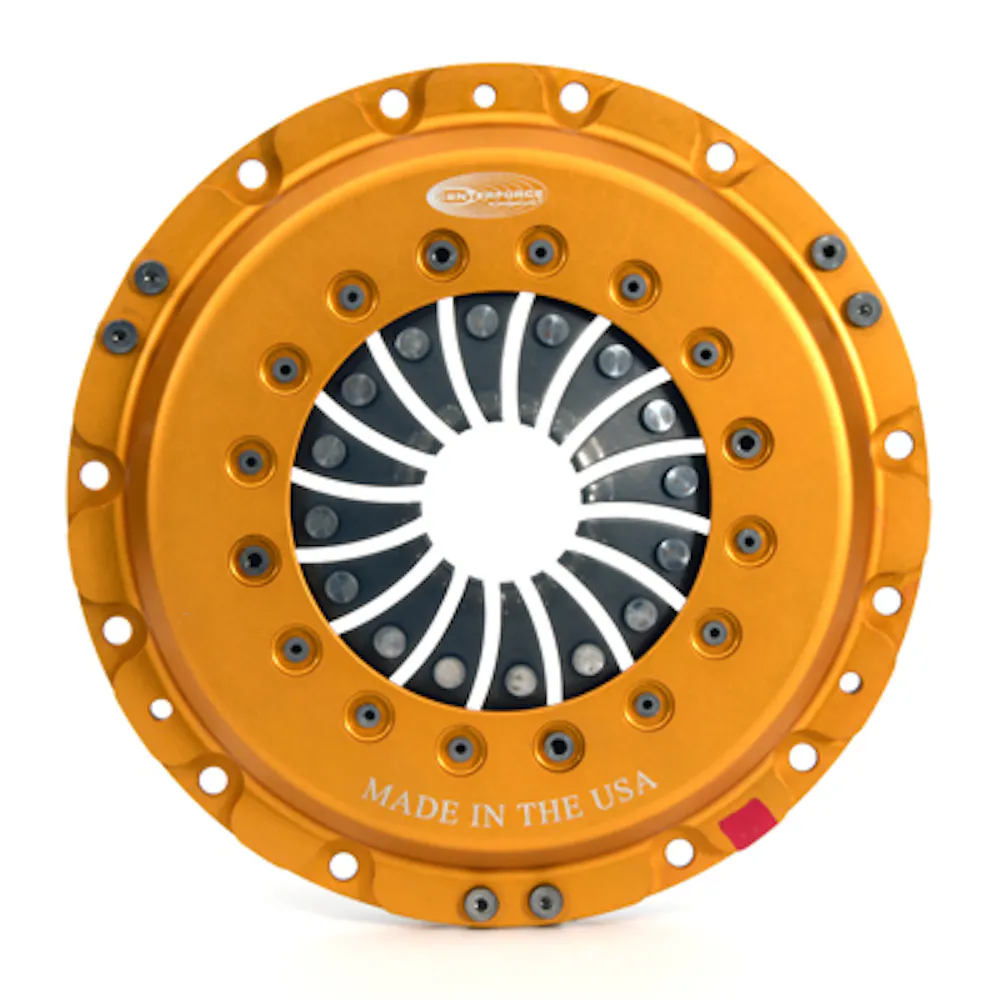

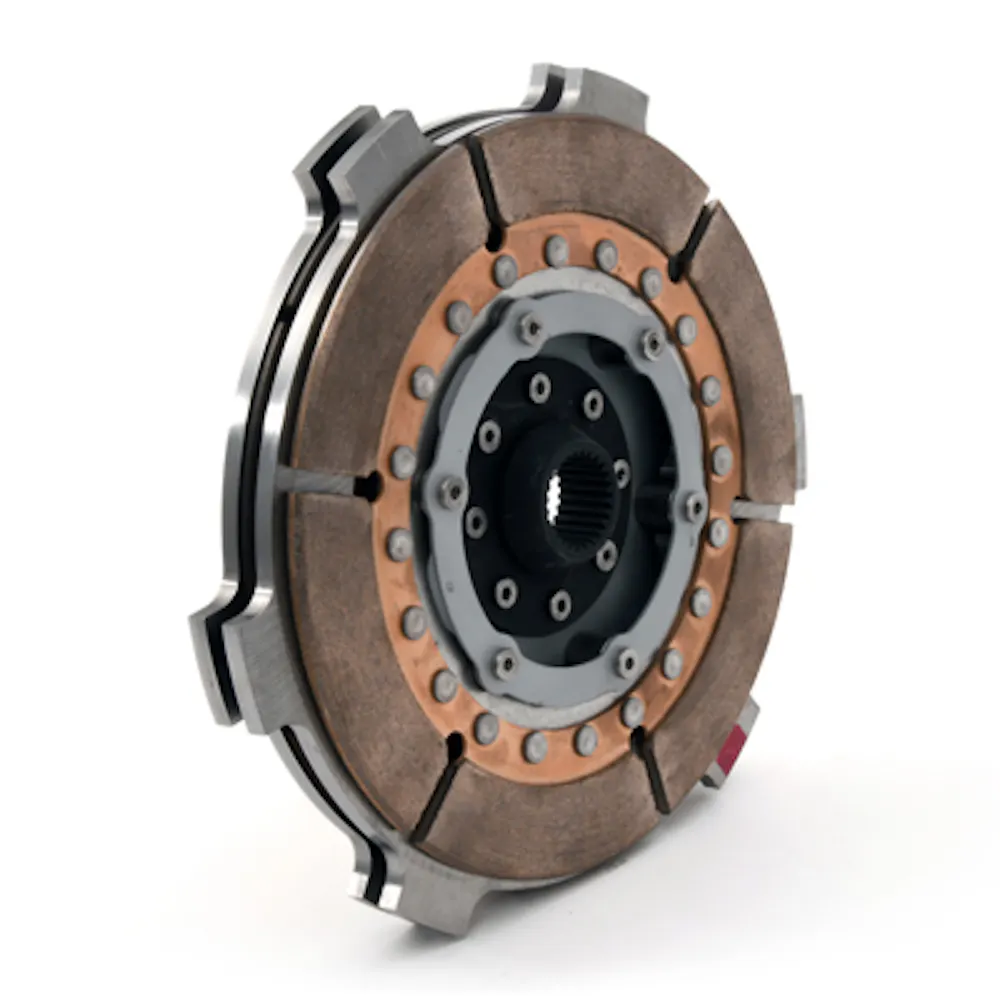

The Centerforce(R) TRIAD DS 8.75" triple disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1100 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The solid hub (possible gear noise) disc pack is equipped with Kevlar full facing friction material providing increased holding capacity. TRIAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Vehicles may experience some floater noise during operation. Components are designed, machined and assembled in the USA. TRIAD DS clutches are match balanced and ready for installation using the included ARP fasteners.
Features & benefits
- No complicated setup or adjustments required
Specifications
- GTIN
- 00788442030747
- Weight
- 38.45 lb
- Height
- 5.5 in
- Length
- 17 in
- Width
- 18 in
- EO
- Legal US
- Life cycle
- Superseded
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Disc Material
- Organic/Kevlar
- Disc Type
- Full face
- Disc Type Sprung Solid
- Solid
- Includes

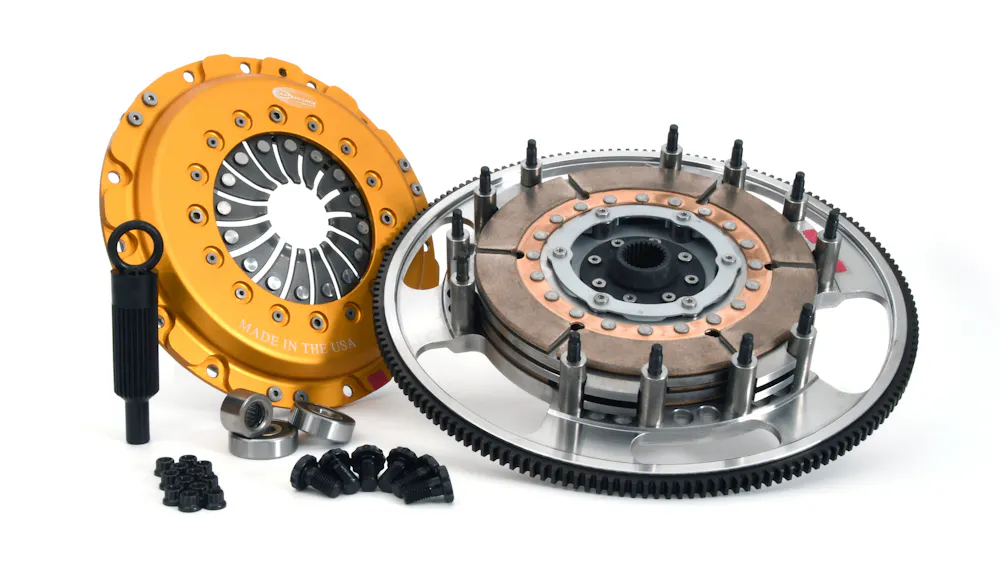

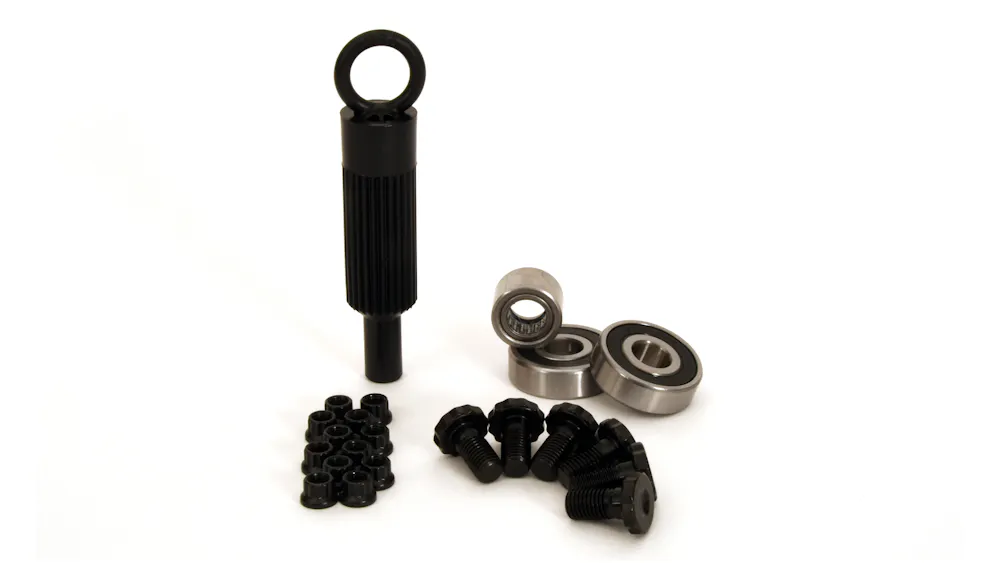

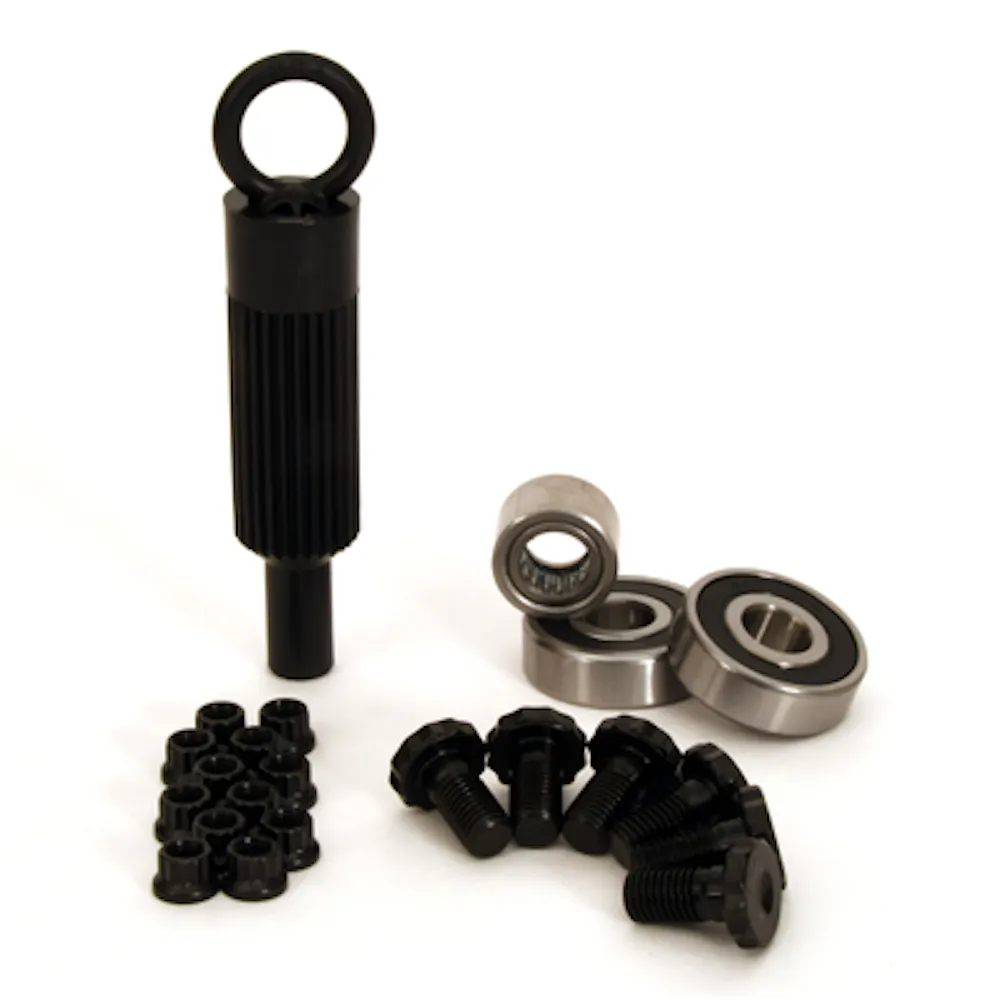

- Pressure Plate, Drive Disc Assembly, Floating Disc, 2 x Floaters, Flywheel, Pilot Bearing, Alignment Tool & Bolts
- Material
- Cast Iron Pressure Plate / Full Face Metalic Friction
- Out of Package Weight
- 34.30
- Replaceable Friction Surface
- N
- Title
- PN: 07264042 - TRIAD DS, Clutch and Flywheel Kit
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
98-02 Chevrolet Camaro Z28 5.7L ( 350 ci ) LS1 6-Spd
