Centerforce · 04714842
Part #: 04714842
UPC: 788442029963
Log in for inventory
Notify me when this item is in stock.
Description: DYAD(R) DS 10.4, Clutch and Flywheel Kit; The Centerforce(R) DYAD(R) DS (Drive System) 10.4 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 500 to 1300 ft /lbs.
Description:
This part number has been superseded by 413714842.
Description

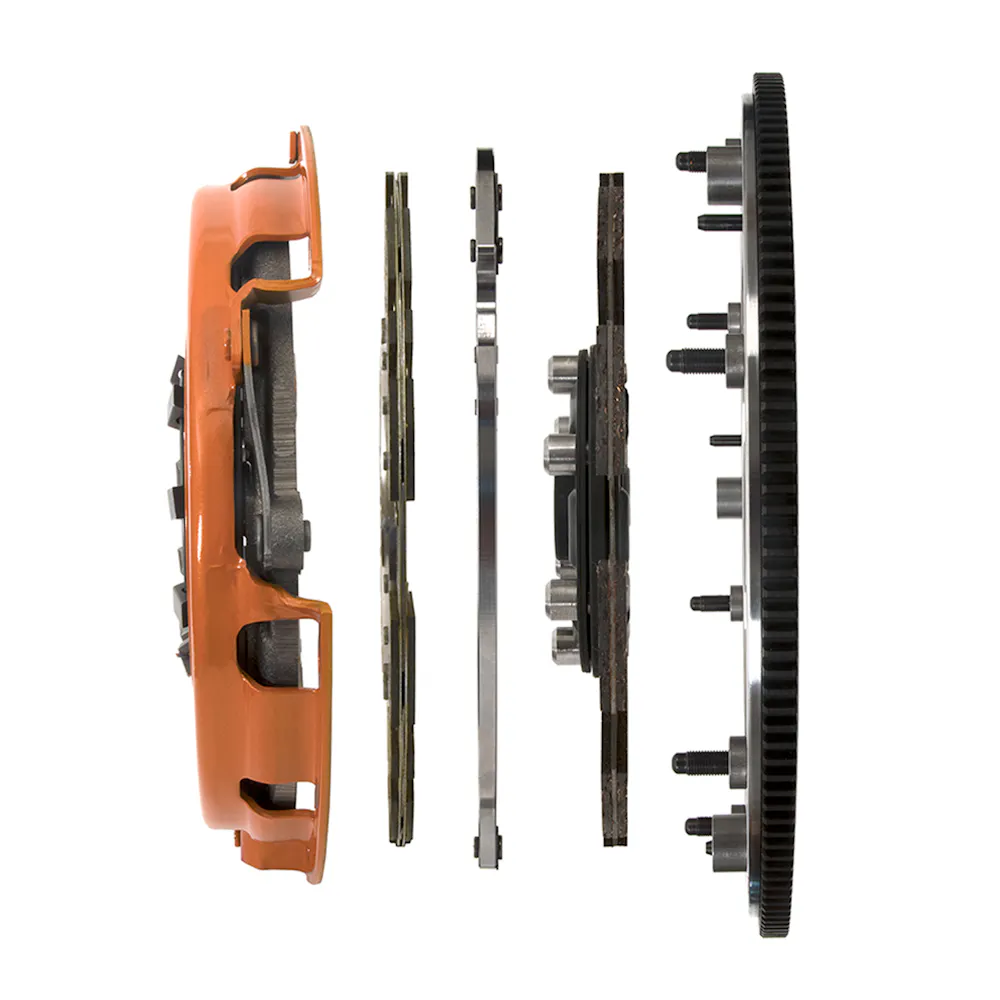

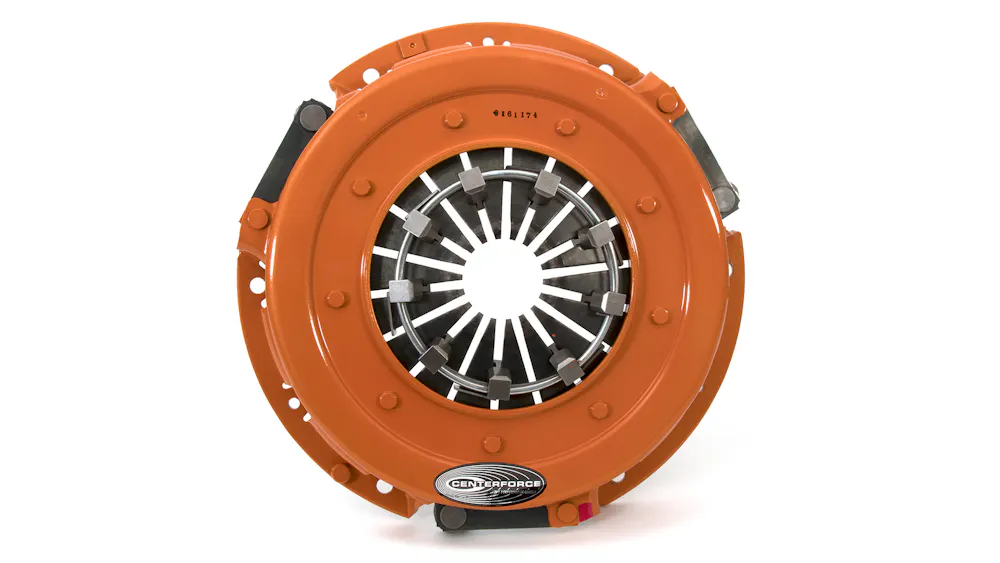

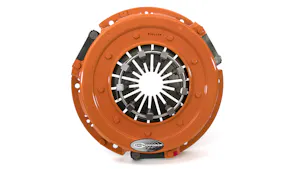

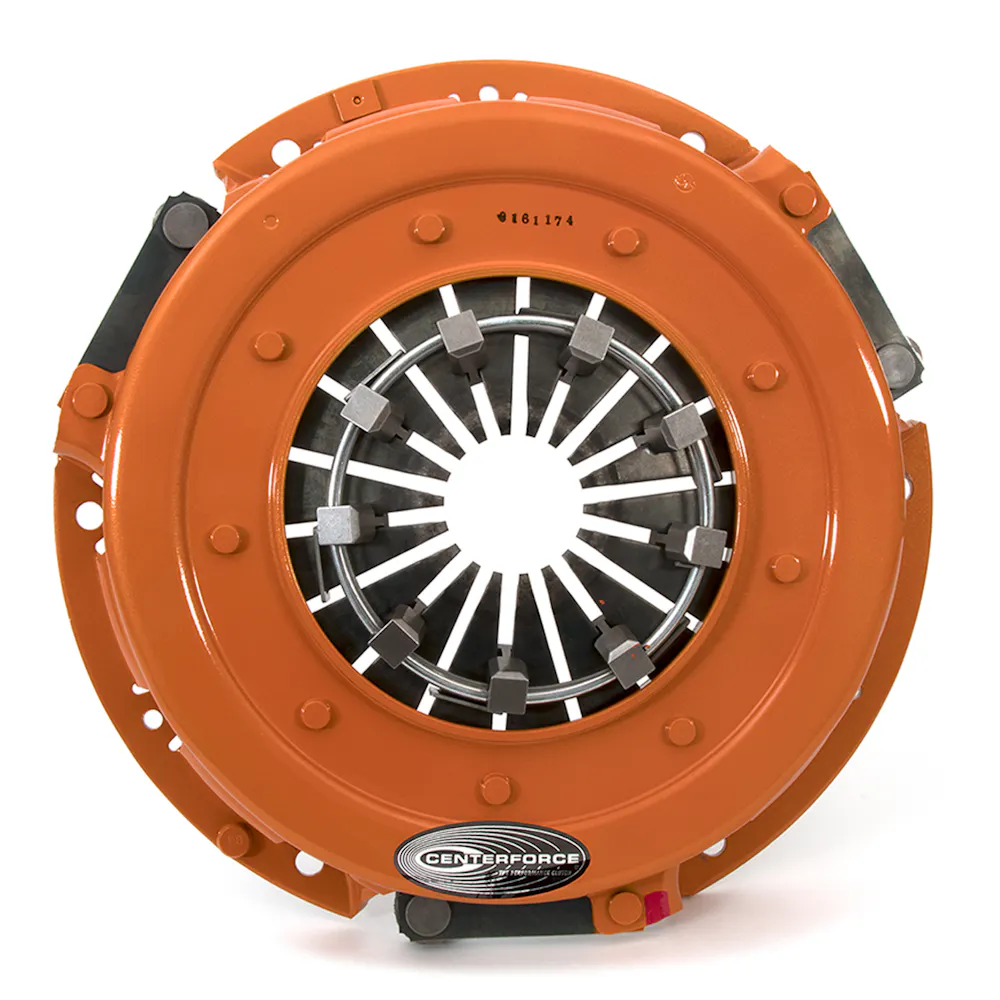

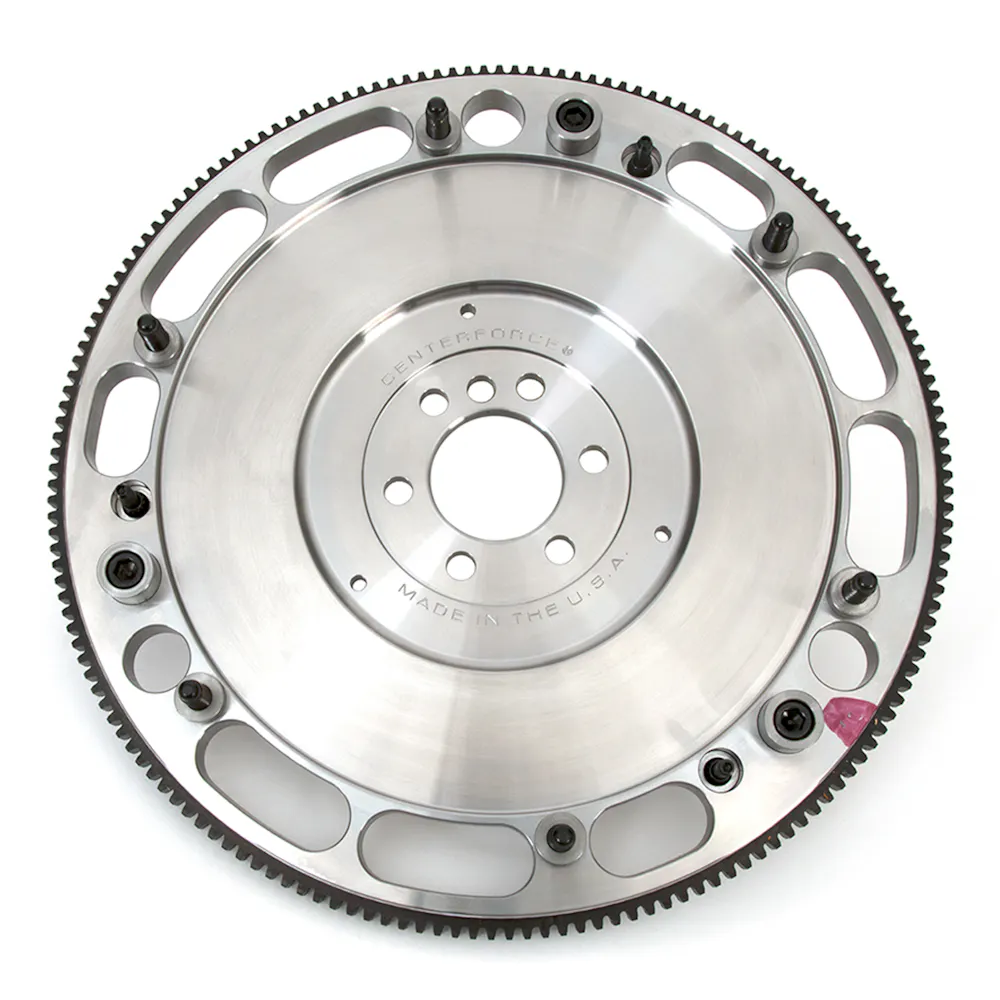

The Centerforce(R) DYAD DS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.
Features & benefits
- No complicated setup or adjustments required
Application summary
| Year | Make / model |
|---|---|
| 2004 | Chevrolet Silverado 1500 |
| 2002 | Chevrolet Silverado 1500 HD |
| 2001-2004 | Chevrolet Silverado 2500 |
| 2001-2006 | Chevrolet Silverado 2500 HD |
| 2007 | Chevrolet Silverado 2500 HD Classic |
| 2001-2006 | Chevrolet Silverado 3500 |
| 2007 | Chevrolet Silverado 3500 Classic |
| 2005 | GMC Sierra 1500 |
| 2001-2004 | GMC Sierra 2500 |
| 2001-2006 | GMC Sierra 2500 HD |
| 2007 | GMC Sierra 2500 HD Classic |
| 2001-2006 | GMC Sierra 3500 |
Specifications
- GTIN
- 00788442029963
- Weight
- 49.4 lb
- Height
- 5.5 in
- Length
- 18 in
- Width
- 18 in
- EO
- Legal US
- Life cycle
- Superseded
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Disc Diameter
- 10.4
- Counterweight Assist
- Yes
- Crankshaft Bolt Hole Quantity
- 6
- Disc Material
- Organic/Carbon composite
- Disc Type
- Segmented face
- Disc Type Sprung Solid
- Sprung
- Flywheel Counter Balance Weight
- 0
- Flywheel Crank Bolt Size
- 7/16 x 20
- Flywheel Crank Flange Register
- 2.068
- Flywheel Deck Height
- 2.760
- Includes

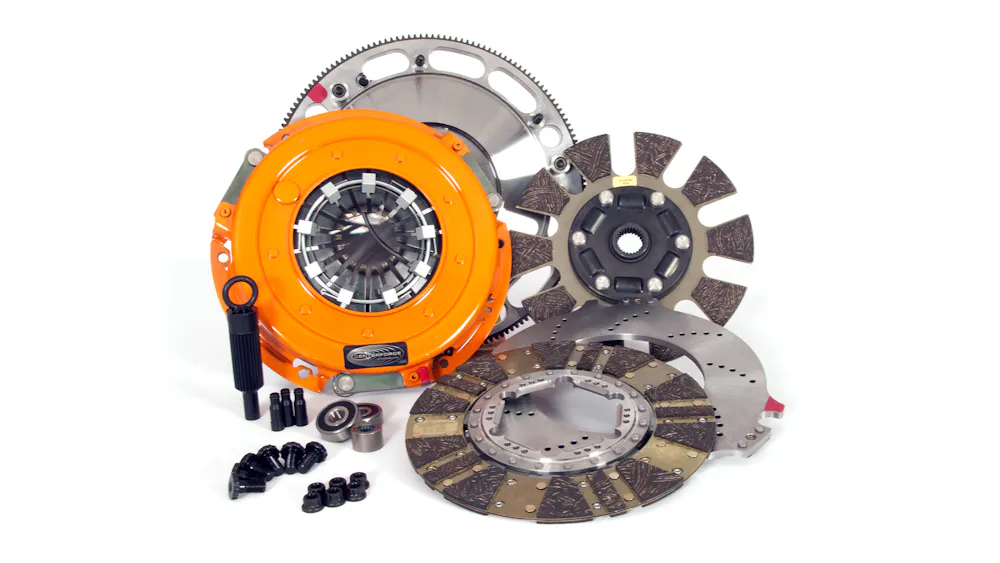

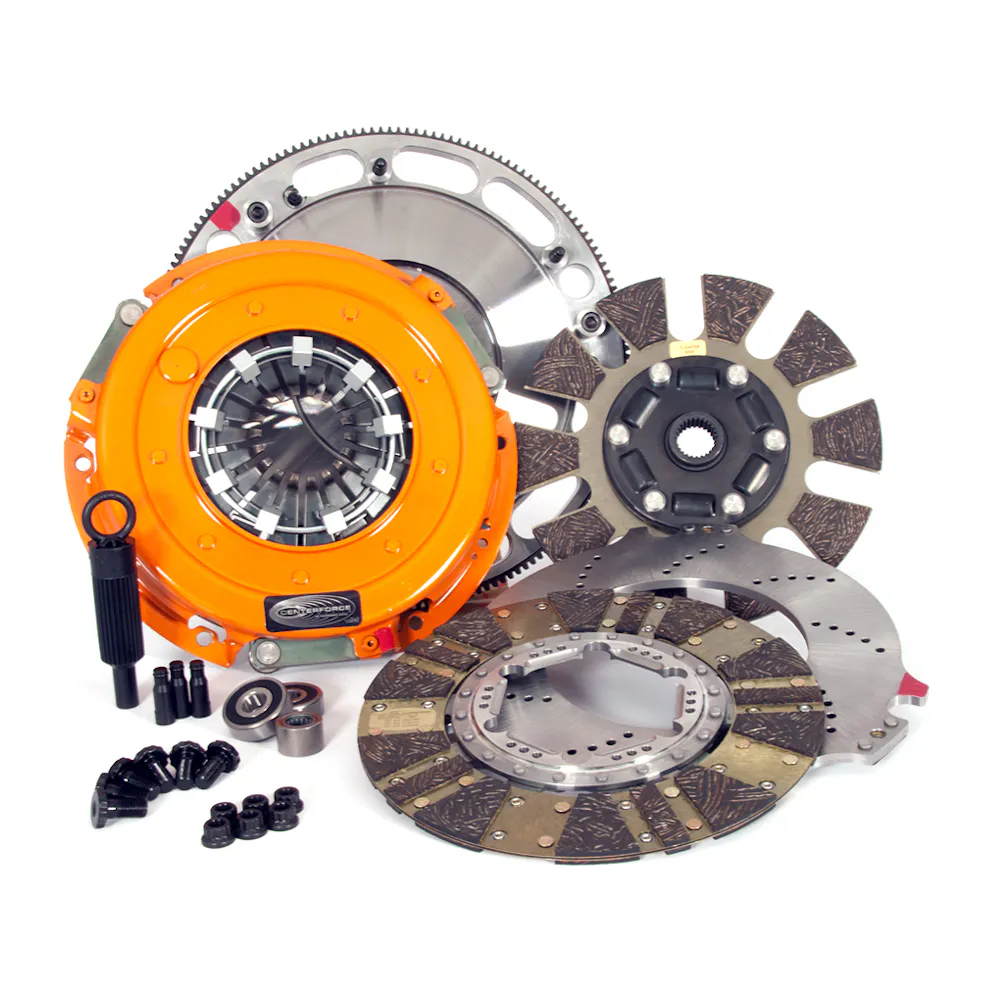

- Pressure Plate, Discs, Floater, Flywheel, Bolts, Alignment Tool, & Pilot Bearing
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 10
- Material
- Billet Steel Flywheel / Nodular Iron Pressure Plate / Segmented Organic Friction
- Out of Package Weight
- 46.50
- Outside Diameter of Friction Surface (Standard)
- 10.5
- Replaceable Friction Surface
- N
- Ring Gear O.D
- 14.096
- Ring Gear Tooth Count
- 168
- SFI 1.1 Approved
- N
- Title
- PN: 04714842 - DYAD DS 10.4, Clutch and Flywheel Kit
- Torque Capacity
- 1300
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2004 Chevrolet Silverado 1500; 2002 Chevrolet Silverado 1500 HD; 2001-2004 Chevrolet Silverado 2500; 2001-2006 Chevrolet Silverado 2500 HD; 2007 Chevrolet Silverado 2500 HD Classic; 2001-2006 Chevrolet Silverado 3500; 2007 Chevrolet Silverado 3500 Classic; 2005 GMC Sierra 1500; 2001-2004 GMC Sierra 2500; 2001-2006 GMC Sierra 2500 HD; 2007 GMC Sierra 2500 HD Classic; 2001-2006 GMC Sierra 3500
