Centerforce · 04714840
Part #: 04714840
UPC: 788442028294
Log in for inventory
Notify me when this item is in stock.
Description: DYAD(R) DS 10.4, Clutch and Flywheel Kit; The Centerforce(R) DYAD(R) DS (Drive System) 10.4" patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 500 to 1300 ft /lbs.
Description:
This part number has been superseded by 413714840.
Description
The Centerforce(R) DYAD DS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.
Features & benefits
- No complicated setup or adjustments required
Application summary
| Year | Make / model |
|---|---|
| 1973-1974 | Chevrolet Blazer |
| 1975-1980 | Chevrolet C10 |
| 1973-1980 | Chevrolet C10 Suburban |
| 1990 | Chevrolet C1500 |
| 1975-1986 | Chevrolet C20 |
| 1973-1984 | Chevrolet C20 Suburban |
| 1975-1986 | Chevrolet C30 |
| 1988-1990 | Chevrolet C3500 |
| 1976 | Chevrolet K10 |
| 1979-1980 | Chevrolet K10 |
| 1973-1974 | Chevrolet K10 Suburban |
| 1976-1978 | Chevrolet K20 |
| 1980 | Chevrolet K20 |
| 1973-1974 | Chevrolet K20 Suburban |
| 1977 | Chevrolet K30 |
| 1980-1986 | Chevrolet K30 |
| 1988-1990 | Chevrolet K3500 |
| 1976-1978 | Chevrolet K5 Blazer |
| 1987-1988 | Chevrolet R20 |
| 1987-1988 | Chevrolet R20 Suburban |
| 1989 | Chevrolet R2500 |
| 1987-1988 | Chevrolet R30 |
| 1989-1990 | Chevrolet R3500 |
| 1987-1988 | Chevrolet V20 Suburban |
| 1987-1988 | Chevrolet V30 |
| 1989-1990 | Chevrolet V3500 |
| 1975-1978 | GMC C15 |
| 1975-1978 | GMC C15 Suburban |
| 1973-1974 | GMC C15/C1500 Pickup |
| 1973-1974 | GMC C15/C1500 Suburban |
| 1979-1980 | GMC C1500 |
| 1979-1980 | GMC C1500 Suburban |
| 1975-1978 | GMC C25 |
| 1975-1978 | GMC C25 Suburban |
| 1973-1974 | GMC C25/C2500 Pickup |
| 1973-1974 | GMC C25/C2500 Suburban |
| 1979-1980 | GMC C2500 |
| 1979-1980 | GMC C2500 Suburban |
| 1975-1978 | GMC C35 |
| 1973-1974 | GMC C35/C3500 Pickup |
| 1979-1986 | GMC C3500 |
| 1988-1990 | GMC C3500 |
| 1973-1974 | GMC Jimmy |
| 1976 | GMC Jimmy |
| 1976 | GMC K15 |
| 1973-1974 | GMC K15/K1500 Pickup |
| 1973-1974 | GMC K15/K1500 Suburban |
| 1979-1980 | GMC K1500 |
| 1976-1978 | GMC K25 |
| 1976-1977 | GMC K25 Suburban |
| 1973-1974 | GMC K25/K2500 Pickup |
| 1973-1974 | GMC K25/K2500 Suburban |
| 1973-1974 | GMC K35/K3500 Pickup |
| 1979-1986 | GMC K3500 |
| 1988-1990 | GMC K3500 |
| 1987-1988 | GMC R2500 |
| 1987-1988 | GMC R2500 Suburban |
| 1987-1988 | GMC R3500 |
| 1987 | GMC V3500 |
Specifications
- GTIN
- 00788442028294
- Weight
- 55.35 lb
- Height
- 5.5 in
- Length
- 17 in
- Width
- 18 in
- EO
- Legal US
- Life cycle
- Superseded
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Disc Diameter
- 10.4
- Counterweight Assist
- Yes
- Crankshaft Bolt Hole Quantity
- 6
- Disc Material
- Organic/Carbon composite
- Disc Type
- Segmented face
- Disc Type Sprung Solid
- Sprung
- Flywheel Counter Balance Weight
- 33.0
- Flywheel Crank Bolt Size
- 7/16 x 20
- Flywheel Crank Flange Register
- 2.485
- Flywheel Deck Height
- 2.860
- Includes
- Pressure Plate, Discs, Floater, Flywheel, Bolts, Alignment Tool, Pilot Bearing
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 10
- Material
- Billet Steel Flywheel / Nodular Iron Pressure Plate / Segmented Organic Friction
- Outside Diameter of Friction Surface
- 266.7mm
- Outside Diameter of Friction Surface (Metric)
- 266.7
- Outside Diameter of Friction Surface (Standard)
- 12
- Rear Main Seal Style
- 2
- Replaceable Friction Surface
- N
- Ring Gear O.D
- 14.096
- Ring Gear Tooth Count
- 168
- Spline Diameter and Tooth Count
- 1-1/8"-10
- Title
- PN: 04714840 - DYAD DS 10.4, Clutch and Flywheel Kit
- Torque Capacity
- 1300
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1973-1974 Chevrolet Blazer; 1975-1980 Chevrolet C10; 1973-1980 Chevrolet C10 Suburban; 1990 Chevrolet C1500; 1975-1986 Chevrolet C20; 1973-1984 Chevrolet C20 Suburban; 1975-1986 Chevrolet C30; 1988-1990 Chevrolet C3500; 1976 Chevrolet K10; 1979-1980 Chevrolet K10; 1973-1974 Chevrolet K10 Suburban; 1976-1978 Chevrolet K20; 1980 Chevrolet K20; 1973-1974 Chevrolet K20 Suburban; 1977 Chevrolet K30; 1980-1986 Chevrolet K30; 1988-1990 Chevrolet K3500; 1976-1978 Chevrolet K5 Blazer; 1987-1988 Chevrolet R20; 1987-1988 Chevrolet R20 Suburban; 1989 Chevrolet R2500; 1987-1988 Chevrolet R30; 1989-1990 Chevrolet R3500; 1987-1988 Chevrolet V20 Suburban; 1987-1988 Chevrolet V30; 1989-1990 Chevrolet V3500; 1975-1978 GMC C15; 1975-1978 GMC C15 Suburban; 1973-1974 GMC C15/C1500 Pickup; 1973-1974 GMC C15/C1500 Suburban; 1979-1980 GMC C1500; 1979-1980 GMC C1500 Suburban; 1975-1978 GMC C25; 1975-1978 GMC C25 Suburban; 1973-1974 GMC C25/C2500 Pickup; 1973-1974 GMC C25/C2500 Suburban; 1979-1980 GMC C2500; 1979-1980 GMC C2500 Suburban; 1975-1978 GMC C35; 1973-1974 GMC C35/C3500 Pickup; 1979-1986 GMC C3500; 1988-1990 GMC C3500; 1973-1974 GMC Jimmy; 1976 GMC Jimmy; 1976 GMC K15; 1973-1974 GMC K15/K1500 Pickup; 1973-1974 GMC K15/K1500 Suburban; 1979-1980 GMC K1500; 1976-1978 GMC K25; 1976-1977 GMC K25 Suburban; 1973-1974 GMC K25/K2500 Pickup; 1973-1974 GMC K25/K2500 Suburban; 1973-1974 GMC K35/K3500 Pickup; 1979-1986 GMC K3500; 1988-1990 GMC K3500; 1987-1988 GMC R2500; 1987-1988 GMC R2500 Suburban; 1987-1988 GMC R3500; 1987 GMC V3500

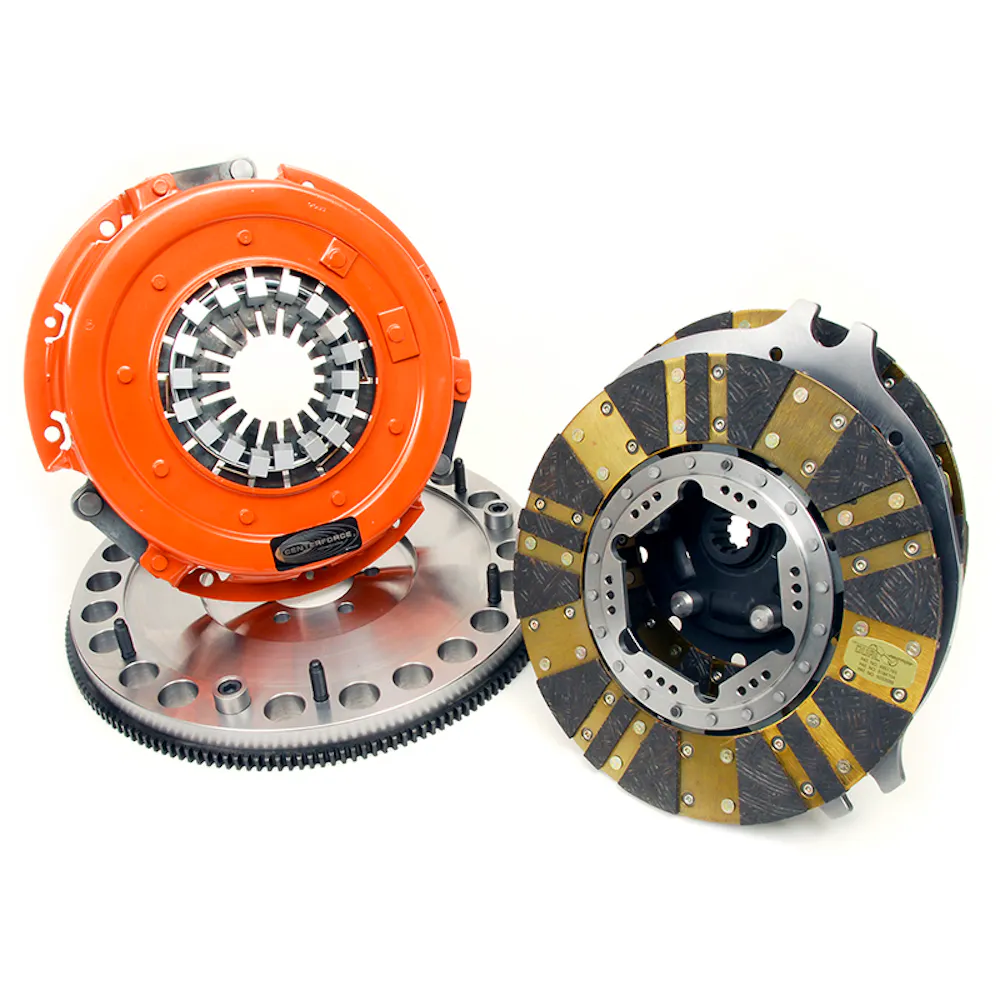

Centerforce 04714840
