Centerforce · 04714820
Part #: 04714820
UPC: 788442027457
Log in for inventory
Notify me when this item is in stock.
Description: DYAD(R) DS 10.4, Clutch and Flywheel Kit; The Centerforce(R) DYAD(R) DS (Drive System) 10.4 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 500 to 1300 ft /lbs.
Description:
This part number has been superseded by 413714820.
Description

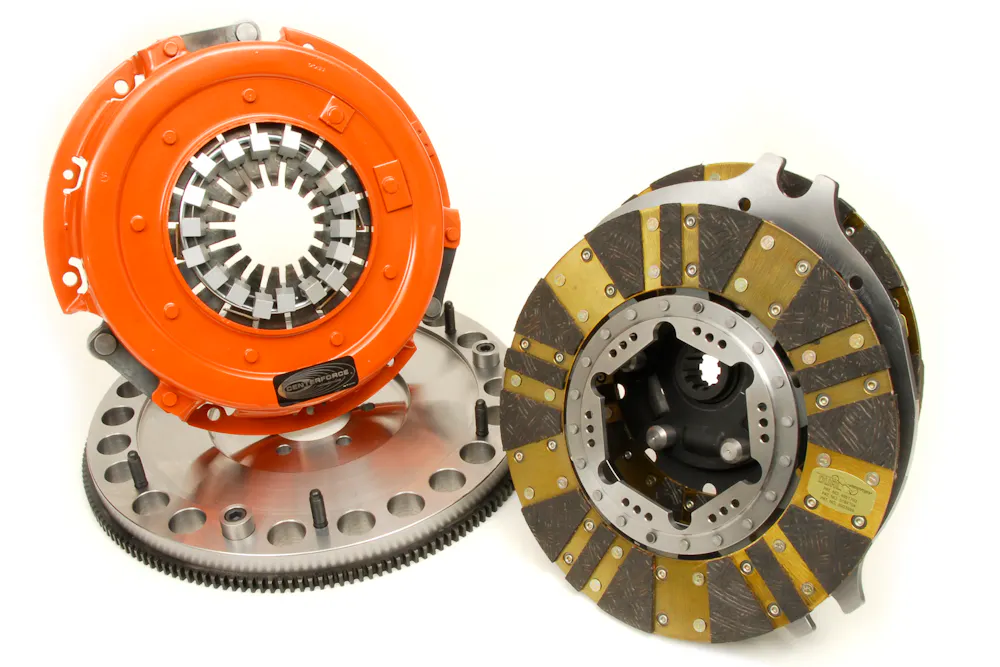

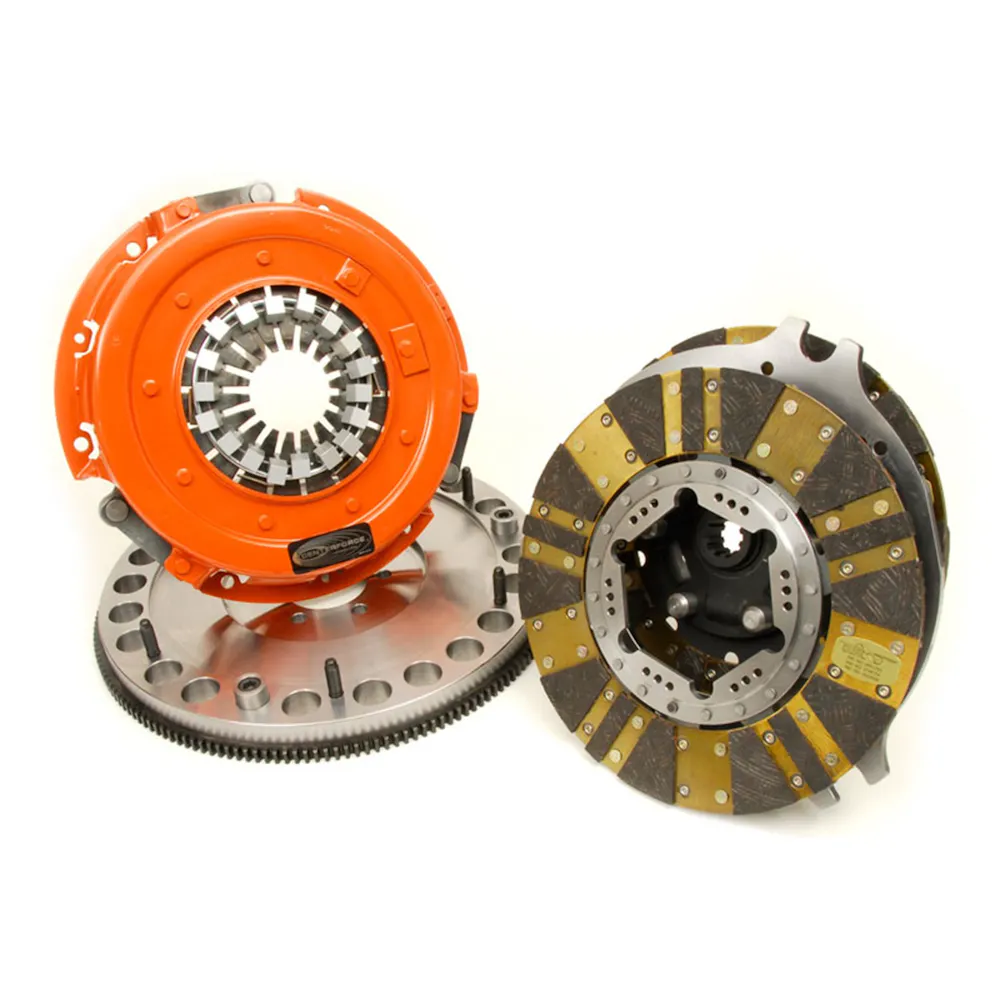

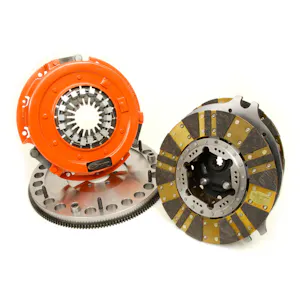

The Centerforce(R) DYAD DS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.
Features & benefits
- No complicated setup or adjustments required
Application summary
| Year | Make / model |
|---|---|
| 1955-1956 | Chevrolet Bel Air |
| 1966-1969 | Chevrolet Bel Air |
| 1958-1969 | Chevrolet Biscayne |
| 1969-1973 | Chevrolet Blazer |
| 1975-1985 | Chevrolet C10 |
| 1968-1973 | Chevrolet C10 Suburban |
| 1977-1984 | Chevrolet C10 Suburban |
| 1975-1985 | Chevrolet C20 |
| 1968-1973 | Chevrolet C20 Suburban |
| 1977-1984 | Chevrolet C20 Suburban |
| 1975-1985 | Chevrolet C30 |
| 1967-1969 | Chevrolet Camaro |
| 1966-1969 | Chevrolet Caprice |
| 1964-1967 | Chevrolet Chevelle |
| 1972 | Chevrolet Chevelle |
| 1966-1969 | Chevrolet Corvette |
| 1964-1970 | Chevrolet El Camino |
| 1972 | Chevrolet El Camino |
| 1958-1969 | Chevrolet Impala |
| 1975-1985 | Chevrolet K10 |
| 1968-1973 | Chevrolet K10 Suburban |
| 1977-1984 | Chevrolet K10 Suburban |
| 1975-1985 | Chevrolet K20 |
| 1968-1973 | Chevrolet K20 Suburban |
| 1980-1984 | Chevrolet K20 Suburban |
| 1977-1985 | Chevrolet K30 |
| 1975-1985 | Chevrolet K5 Blazer |
| 1972 | Chevrolet Monte Carlo |
| 1969-1970 | Chevrolet Nova |
| 1962-1963 | GMC 1500 Series |
| 1962-1963 | GMC 2500 Series |
| 1975-1978 | GMC C15 |
| 1975-1978 | GMC C15 Suburban |
| 1967-1973 | GMC C15/C1500 Pickup |
| 1968-1973 | GMC C15/C1500 Suburban |
| 1979-1986 | GMC C1500 |
| 1988-1995 | GMC C1500 |
| 1979-1984 | GMC C1500 Suburban |
| 1975-1978 | GMC C25 |
| 1975-1978 | GMC C25 Suburban |
| 1967-1973 | GMC C25/C2500 Pickup |
| 1968-1973 | GMC C25/C2500 Suburban |
| 1979-1986 | GMC C2500 |
| 1988-1995 | GMC C2500 |
| 1979-1984 | GMC C2500 Suburban |
| 1975-1978 | GMC C35 |
| 1967-1973 | GMC C35/C3500 Pickup |
| 1979-1986 | GMC C3500 |
| 1988-1995 | GMC C3500 |
| 1978 | GMC Caballero |
| 1970-1973 | GMC Jimmy |
| 1975-1991 | GMC Jimmy |
| 1975-1978 | GMC K15 |
| 1975-1978 | GMC K15 Suburban |
| 1967-1973 | GMC K15/K1500 Pickup |
| 1968-1973 | GMC K15/K1500 Suburban |
| 1979-1986 | GMC K1500 |
| 1988-1995 | GMC K1500 |
| 1979-1984 | GMC K1500 Suburban |
| 1975-1978 | GMC K25 |
| 1975-1978 | GMC K25 Suburban |
| 1967-1973 | GMC K25/K2500 Pickup |
| 1968-1973 | GMC K25/K2500 Suburban |
| 1979-1986 | GMC K2500 |
| 1988-1995 | GMC K2500 |
| 1979-1984 | GMC K2500 Suburban |
| 1977-1978 | GMC K35 |
| 1970-1973 | GMC K35/K3500 Pickup |
| 1979-1986 | GMC K3500 |
| 1988-1995 | GMC K3500 |
| 1987-1989 | GMC R2500 |
| 1987-1988 | GMC R2500 Suburban |
| 1987-1991 | GMC R3500 |
| 1972 | GMC Sprint |
Specifications
- GTIN
- 00788442027457
- Weight
- 52.45 lb
- Height
- 5.5 in
- Length
- 17 in
- Width
- 18 in
- EO
- Legal US
- Life cycle
- Superseded
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Disc Diameter
- 10.4
- Counterweight Assist
- Yes
- Crankshaft Bolt Hole Quantity
- 6
- Disc Material
- Organic/Carbon composite
- Disc Type
- Segmented face
- Disc Type Sprung Solid
- Sprung
- Flywheel Counter Balance Weight
- 0
- Flywheel Crank Bolt Size
- 7/16 x 20
- Flywheel Crank Flange Register
- 2.485
- Flywheel Deck Height
- 2.870
- Includes
- Pressure Plate, Discs, Floater, Flywheel, Bolts, Alignment Tool, Pilot Bearing
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 10
- Material
- Billet Steel Flywheel / Nodular Iron Pressure Plate / Segmented Organic Friction
- Outside Diameter of Friction Surface
- 266.7mm
- Outside Diameter of Friction Surface (Metric)
- 266.7
- Rear Main Seal Style
- 2
- Replaceable Friction Surface
- N
- Ring Gear O.D
- 14.096
- Ring Gear Tooth Count
- 168
- Spline Diameter and Tooth Count
- 1-1/8"-10
- Title
- PN: 04714820 - DYAD DS 10.4, Clutch and Flywheel Kit
- Torque Capacity
- 1300
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1955-1956 Chevrolet Bel Air; 1966-1969 Chevrolet Bel Air; 1958-1969 Chevrolet Biscayne; 1969-1973 Chevrolet Blazer; 1975-1985 Chevrolet C10; 1968-1973 Chevrolet C10 Suburban; 1977-1984 Chevrolet C10 Suburban; 1975-1985 Chevrolet C20; 1968-1973 Chevrolet C20 Suburban; 1977-1984 Chevrolet C20 Suburban; 1975-1985 Chevrolet C30; 1967-1969 Chevrolet Camaro; 1966-1969 Chevrolet Caprice; 1964-1967 Chevrolet Chevelle; 1972 Chevrolet Chevelle; 1966-1969 Chevrolet Corvette; 1964-1970 Chevrolet El Camino; 1972 Chevrolet El Camino; 1958-1969 Chevrolet Impala; 1975-1985 Chevrolet K10; 1968-1973 Chevrolet K10 Suburban; 1977-1984 Chevrolet K10 Suburban; 1975-1985 Chevrolet K20; 1968-1973 Chevrolet K20 Suburban; 1980-1984 Chevrolet K20 Suburban; 1977-1985 Chevrolet K30; 1975-1985 Chevrolet K5 Blazer; 1972 Chevrolet Monte Carlo; 1969-1970 Chevrolet Nova; 1962-1963 GMC 1500 Series; 1962-1963 GMC 2500 Series; 1975-1978 GMC C15; 1975-1978 GMC C15 Suburban; 1967-1973 GMC C15/C1500 Pickup; 1968-1973 GMC C15/C1500 Suburban; 1979-1986 GMC C1500; 1988-1995 GMC C1500; 1979-1984 GMC C1500 Suburban; 1975-1978 GMC C25; 1975-1978 GMC C25 Suburban; 1967-1973 GMC C25/C2500 Pickup; 1968-1973 GMC C25/C2500 Suburban; 1979-1986 GMC C2500; 1988-1995 GMC C2500; 1979-1984 GMC C2500 Suburban; 1975-1978 GMC C35; 1967-1973 GMC C35/C3500 Pickup; 1979-1986 GMC C3500; 1988-1995 GMC C3500; 1978 GMC Caballero; 1970-1973 GMC Jimmy; 1975-1991 GMC Jimmy; 1975-1978 GMC K15; 1975-1978 GMC K15 Suburban; 1967-1973 GMC K15/K1500 Pickup; 1968-1973 GMC K15/K1500 Suburban; 1979-1986 GMC K1500; 1988-1995 GMC K1500; 1979-1984 GMC K1500 Suburban; 1975-1978 GMC K25; 1975-1978 GMC K25 Suburban; 1967-1973 GMC K25/K2500 Pickup; 1968-1973 GMC K25/K2500 Suburban; 1979-1986 GMC K2500; 1988-1995 GMC K2500; 1979-1984 GMC K2500 Suburban; 1977-1978 GMC K35; 1970-1973 GMC K35/K3500 Pickup; 1979-1986 GMC K3500; 1988-1995 GMC K3500; 1987-1989 GMC R2500; 1987-1988 GMC R2500 Suburban; 1987-1991 GMC R3500; 1972 GMC Sprint; ...
