Centerforce / 04693000
Part #: 04693000
UPC: 788442028027
Loading...
Notify me when this item is in stock.
Description: DYAD(R) DS 10.4, Clutch and Flywheel Kit; The Centerforce(R) DYAD(R) DS (Drive System) 10.4" patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 500 to 1300 ft /lbs.
Description:
This part number has been superseded by 413693000.
Description
The Centerforce(R) DYAD DS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.
Features & benefits
- No complicated setup or adjustments required
Application summary
| Year | Make / model |
|---|---|
| 1977-1980 | Dodge B100 |
| 1981-1987 | Dodge B150 |
| 1977-1980 | Dodge B200 |
| 1977-1980 | Dodge B300 |
| 1970-1972 | Dodge Challenger |
| 1966-1972 | Dodge Charger |
| 1965-1967 | Dodge Coronet |
| 1970-1972 | Dodge Coronet |
| 1977-1979 | Dodge D100 |
| 1985-1987 | Dodge D100 |
| 1977-1987 | Dodge D150 |
| 1977-1980 | Dodge D200 |
| 1981-1987 | Dodge D250 |
| 1981-1983 | Dodge D350 |
| 1967-1972 | Dodge Dart |
| 1977-1987 | Dodge Ramcharger |
| 1977 | Dodge W100 |
| 1986-1987 | Dodge W100 |
| 1977-1980 | Dodge W200 |
| 1981-1987 | Dodge W250 |
| 1982-1983 | Dodge W350 |
| 1967-1973 | Plymouth Barracuda |
| 1963-1970 | Plymouth Belvedere |
| 1970-1973 | Plymouth Duster |
| 1963-1967 | Plymouth Fury |
| 1968 | Plymouth GTX |
| 1971 | Plymouth GTX |
| 1965-1969 | Plymouth Satellite |
| 1971-1973 | Plymouth Satellite |
| 1977-1980 | Plymouth Trailduster |
Specifications
- GTIN
- 00788442028027
- Weight
- 55.05 lb
- Height
- 5.5 in
- Length
- 17 in
- Width
- 18 in
- EO
- Legal US
- Life cycle
- Superseded
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Bolt Pattern
- 2
- Clutch Disc Diameter
- 10.4
- Counterweight Assist
- Yes
- Crankshaft Bolt Hole Quantity
- 6
- Disc Material
- Organic/Carbon composite
- Disc Type
- Segmented face
- Disc Type Sprung Solid
- Sprung
- Flywheel Counter Balance Weight
- 0
- Flywheel Crank Bolt Size
- 7/16 x 20
- Flywheel Crank Flange Register
- 2.160
- Flywheel Deck Height
- 2.960
- Includes
- Pressure Plate, Discs, Floater, Flywheel, Bolts, Alignment Tool
- Input Shaft Diameter
- 1
- Input Spline Quantity
- 23
- Material
- Billet Steel Flywheel / Nodular Iron Pressure Plate / Segmented Organic Friction
- Outside Diameter of Friction Surface
- 266.7mm
- Outside Diameter of Friction Surface (Metric)
- 266.7
- Outside Diameter of Friction Surface (Standard)
- 10.4
- Replaceable Friction Surface
- N
- Ring Gear O.D
- 13.195
- Ring Gear Tooth Count
- 130
- Spline Diameter and Tooth Count
- 1"-23
- Title
- PN: 04693000 - DYAD DS 10.4, Clutch and Flywheel Kit
- Torque Capacity
- 1300
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1977-1980 Dodge B100; 1981-1987 Dodge B150; 1977-1980 Dodge B200; 1977-1980 Dodge B300; 1970-1972 Dodge Challenger; 1966-1972 Dodge Charger; 1965-1967 Dodge Coronet; 1970-1972 Dodge Coronet; 1977-1979 Dodge D100; 1985-1987 Dodge D100; 1977-1987 Dodge D150; 1977-1980 Dodge D200; 1981-1987 Dodge D250; 1981-1983 Dodge D350; 1967-1972 Dodge Dart; 1977-1987 Dodge Ramcharger; 1977 Dodge W100; 1986-1987 Dodge W100; 1977-1980 Dodge W200; 1981-1987 Dodge W250; 1982-1983 Dodge W350; 1967-1973 Plymouth Barracuda; 1963-1970 Plymouth Belvedere; 1970-1973 Plymouth Duster; 1963-1967 Plymouth Fury; 1968 Plymouth GTX; 1971 Plymouth GTX; 1965-1969 Plymouth Satellite; 1971-1973 Plymouth Satellite; 1977-1980 Plymouth Trailduster

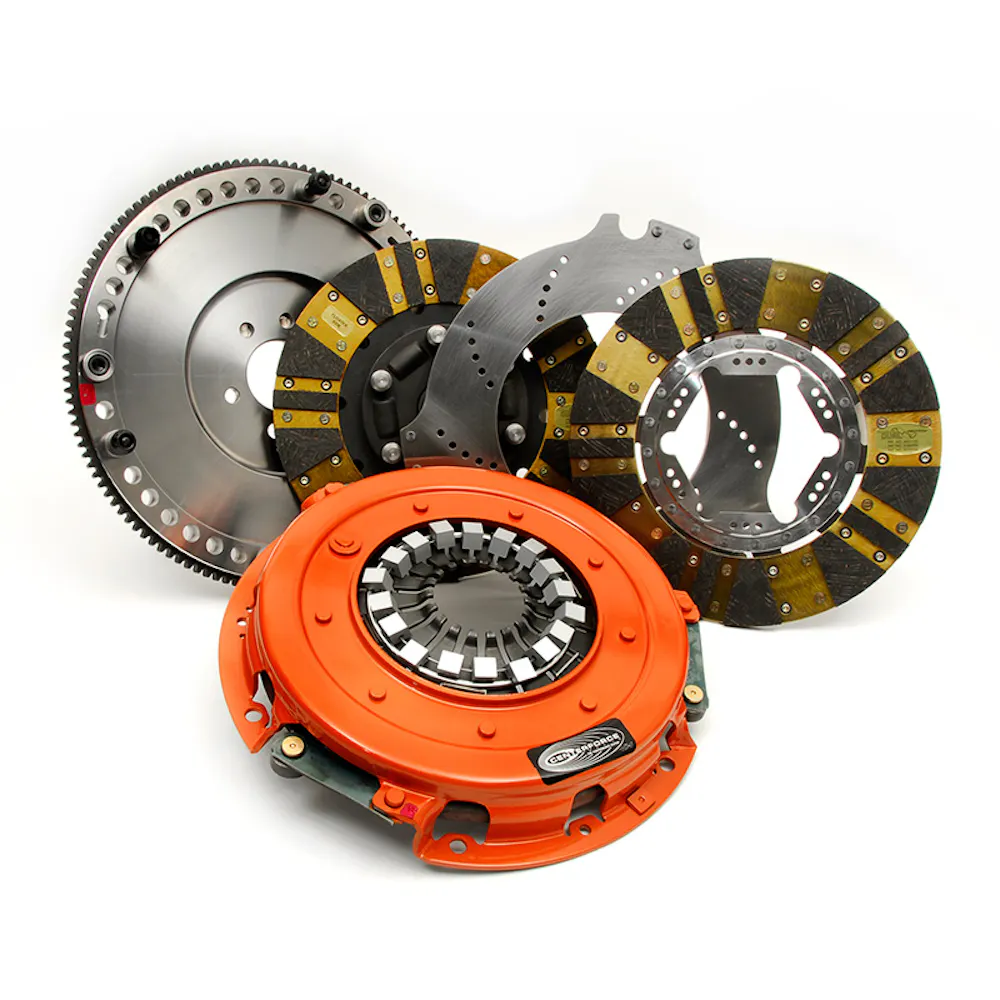

Centerforce 04693000
