Centerforce · 04614880
Part #: 04614880
UPC: 788442029949
Log in for inventory
Notify me when this item is in stock.

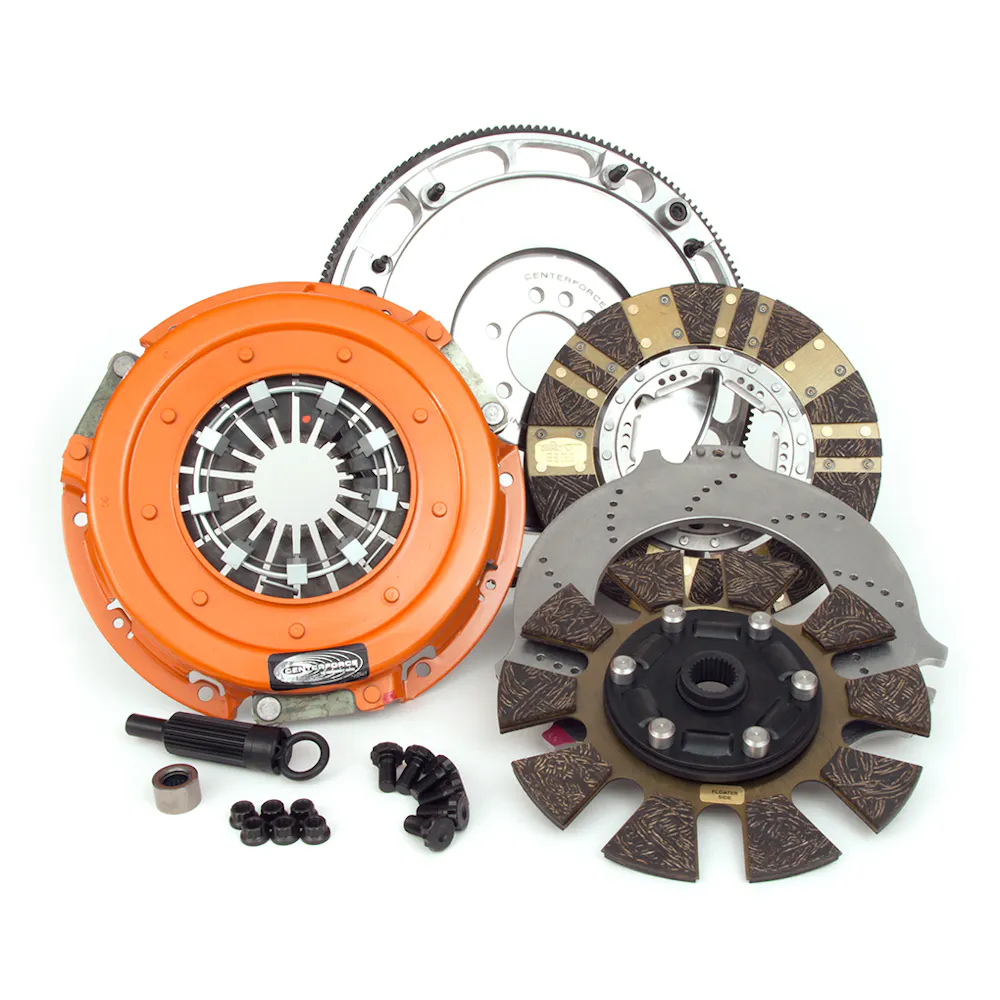

Description: DYAD(R) DS 10.4, Clutch and Flywheel Kit; The Centerforce(R) DYAD(R) DS (Drive System) 10.4" patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 500 to 1300 ft /lbs.
Description:
This part number has been superseded by 413614880.
Description
The Centerforce(R) DYAD DS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.
Features & benefits
- No complicated setup or adjustments required
Application summary
| Year | Make / model |
|---|---|
| 1978 | Chevrolet C10 |
| 1978 | Chevrolet C20 |
| 1978 | Chevrolet C20 Suburban |
| 1978 | Chevrolet C30 |
| 1978 | Chevrolet K10 |
| 1978 | Chevrolet K20 |
| 1978 | Chevrolet K20 Suburban |
| 1978 | Chevrolet K30 |
| 1978 | Chevrolet K5 Blazer |
| 1978 | GMC C15 |
| 1978 | GMC C25 |
| 1978 | GMC C25 Suburban |
| 1978 | GMC C35 |
| 1978 | GMC K15 |
| 1978 | GMC K15 Suburban |
| 1978 | GMC K25 |
| 1978 | GMC K25 Suburban |
Specifications
- GTIN
- 00788442029949
- Weight
- 51.55 lb
- Height
- 5.5 in
- Length
- 17 in
- Width
- 18 in
- EO
- Legal US
- Life cycle
- Superseded
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Disc Diameter
- 10.4
- Counterweight Assist
- Yes
- Crankshaft Bolt Hole Quantity
- 6
- Disc Material
- Organic/Carbon composite
- Disc Type
- Segmented face
- Disc Type Sprung Solid
- Sprung
- Flywheel Counter Balance Weight
- 24.4
- Flywheel Crank Bolt Size
- 7/16 x 20
- Flywheel Crank Flange Register
- 2.4855
- Flywheel Deck Height
- 3.00
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 26
- Material
- Billet Steel Flywheel / Nodular Iron Pressure Plate / Segmented Organic Friction
- Out of Package Weight
- 47.80
- Rear Main Seal Style
- 2
- Replaceable Friction Surface
- N
- Ring Gear O.D
- 14.096
- Ring Gear Tooth Count
- 168
- Title
- PN: 04614880 - DYAD DS 10.4, Clutch and Flywheel Kit
- Torque Capacity
- 1300
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1978 Chevrolet C10; 1978 Chevrolet C20; 1978 Chevrolet C20 Suburban; 1978 Chevrolet C30; 1978 Chevrolet K10; 1978 Chevrolet K20; 1978 Chevrolet K20 Suburban; 1978 Chevrolet K30; 1978 Chevrolet K5 Blazer; 1978 GMC C15; 1978 GMC C25; 1978 GMC C25 Suburban; 1978 GMC C35; 1978 GMC K15; 1978 GMC K15 Suburban; 1978 GMC K25; 1978 GMC K25 Suburban

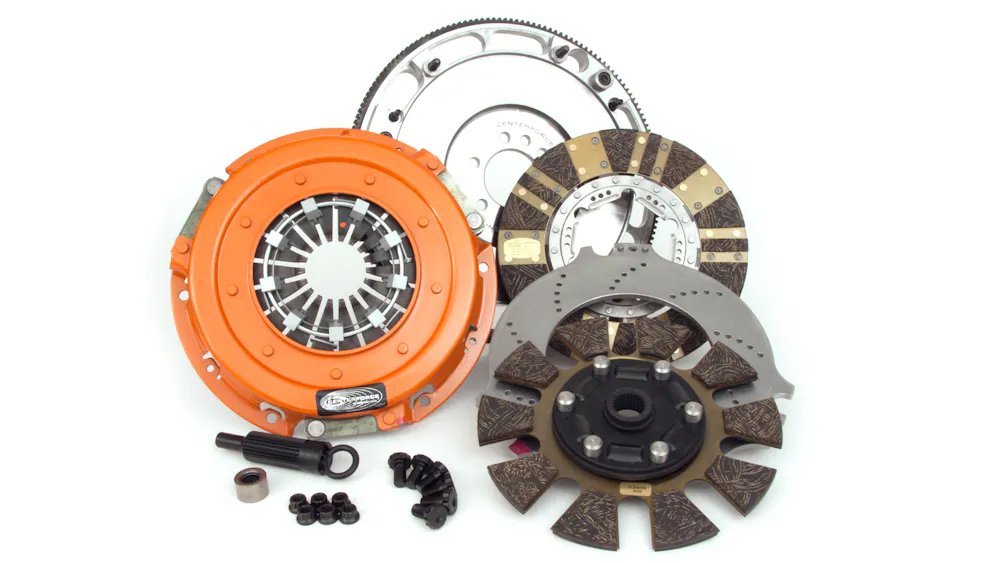

Centerforce 04614880
