Centerforce · 04614868
Part #: 04614868
UPC: 788442028140
Log in for inventory
Notify me when this item is in stock.
Description: DYAD(R) DS 10.4, Clutch and Flywheel Kit; The Centerforce(R) DYAD(R) DS (Drive System) 10.4" patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 500 to 1300 ft /lbs.
Description:
This part number has been superseded by 413614868.
Description
The Centerforce(R) DYAD DS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.
Features & benefits
- No complicated setup or adjustments required
Application summary
| Year | Make / model |
|---|---|
| 2009-2012 | Chevrolet Corvette |
Specifications
- GTIN
- 00788442028140
- Weight
- 54.3 lb
- Height
- 5.5 in
- Length
- 17 in
- Width
- 18 in
- EO
- Legal US
- Life cycle
- Superseded
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Centrifugal Weights
- Y
- Clutch Disc Diameter
- 10.4
- Clutch Disc Type
- Sprung
- Counterweight Assist
- Yes
- Crankshaft Bolt Hole Quantity
- 9
- Disc Material
- Organic/Carbon composite
- Disc Type
- Segmented face
- Disc Type Sprung Solid
- Sprung
- Flywheel Counter Balance Weight
- 0
- Flywheel Crank Bolt Qty
- 9
- Flywheel Crank Bolt Size
- 11mm
- Flywheel Crank Flange Register
- 2.068
- Flywheel Deck Height
- 3.780

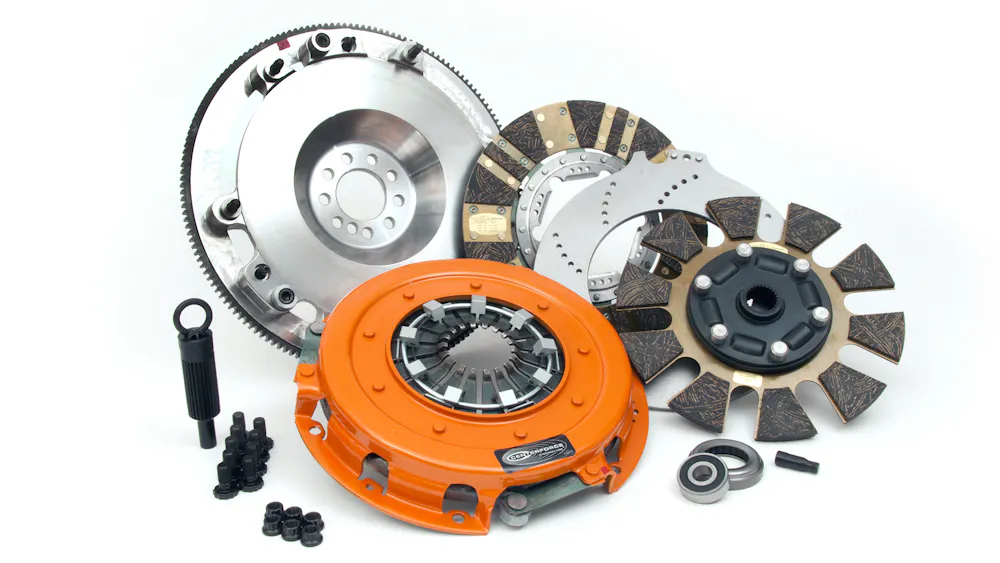

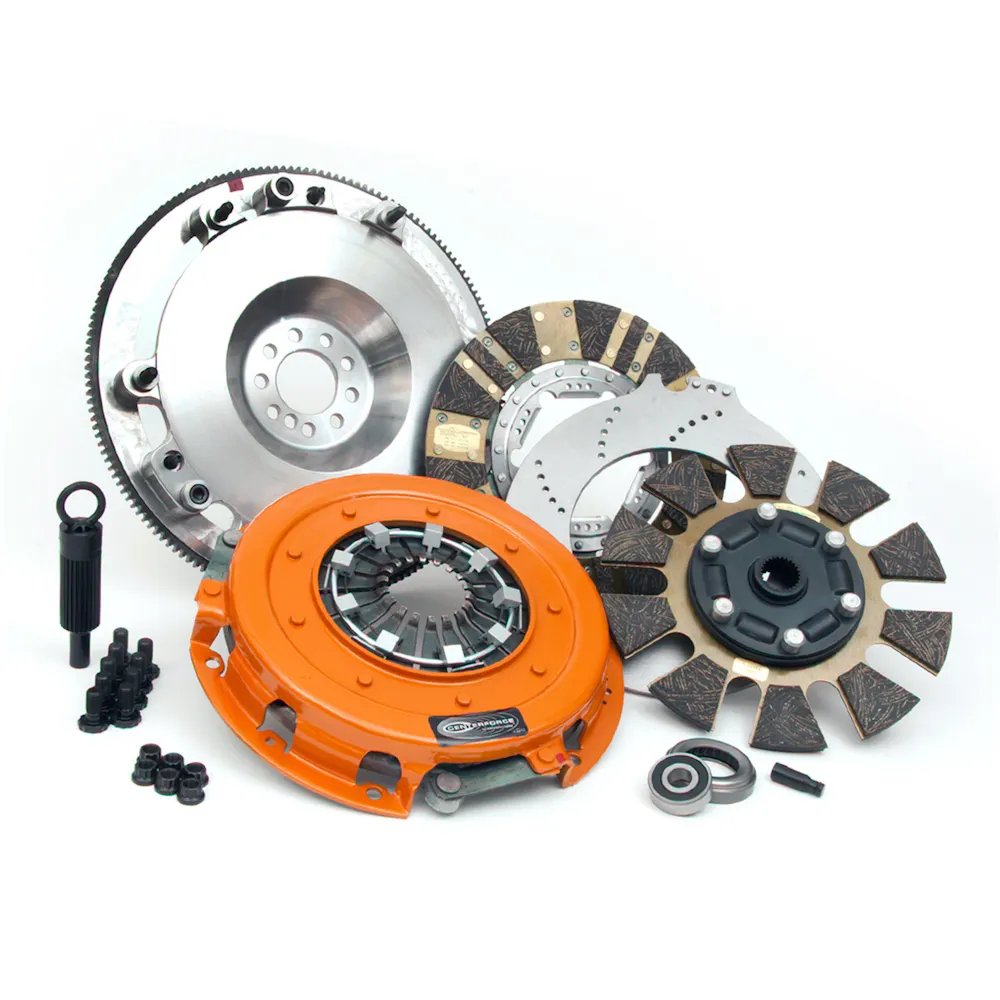

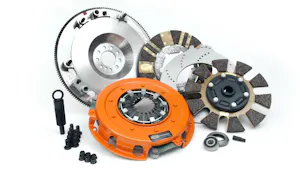

- Includes
- Pressure Plate, Discs, Floater, Flywheel, Bolts, Alignment Tool, Pilot Bearing
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 26
- Material
- Billet Steel Flywheel / Nodular Iron Pressure Plate / Segmented Organic Friction
- Out of Package Weight
- 52.10
- Replaceable Friction Surface
- N
- Ring Gear O.D
- 14.096
- Ring Gear Tooth Count
- 168
- SFI 1.1 Approved
- N
- Title
- PN: 04614868 - DYAD DS 10.4, Clutch and Flywheel Kit
- Torque Capacity
- 1300
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2009-2012 Chevrolet Corvette
