Centerforce · 04614860
Part #: 04614860
UPC: 788442028652
Log in for inventory
Notify me when this item is in stock.
Description: DYAD(R) DS 10.4, Clutch and Flywheel Kit; The Centerforce(R) DYAD(R) DS (Drive System) 10.4" patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 500 to 1300 ft /lbs.
Description:
This part number has been superseded by 413614860.
Description

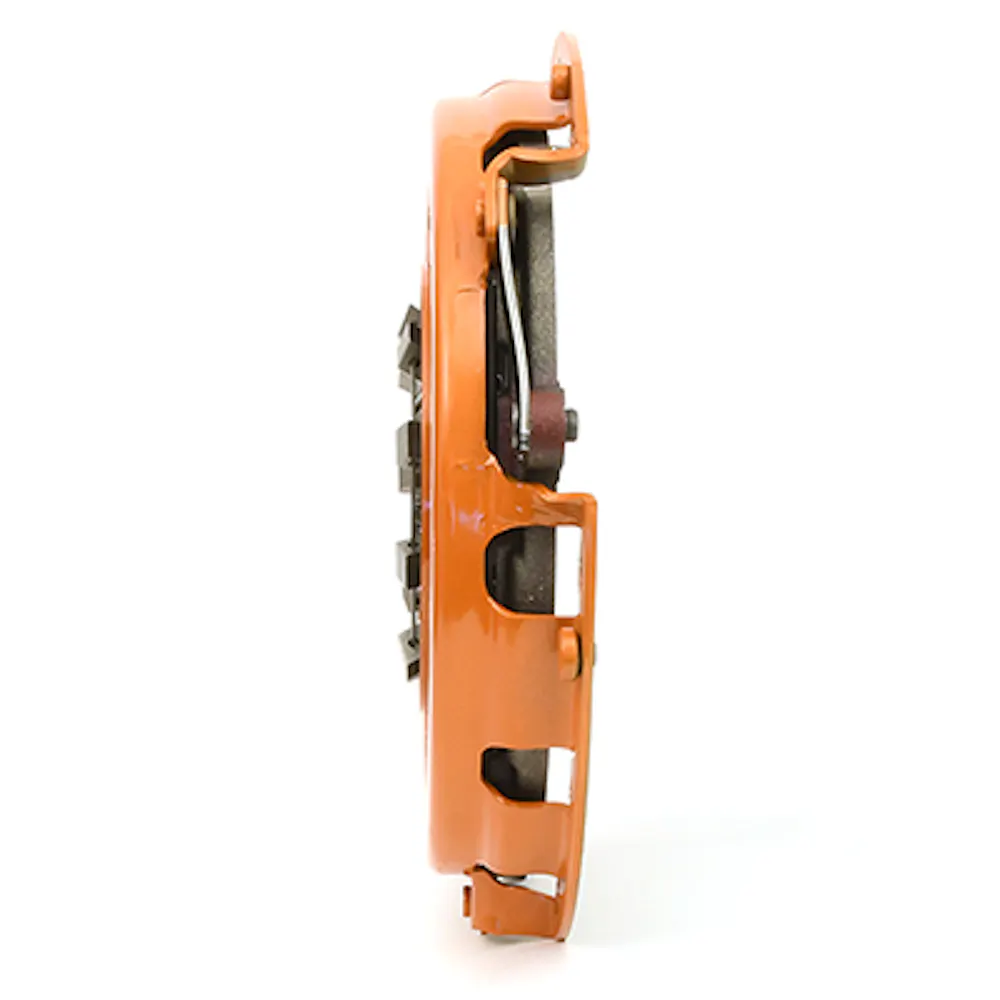

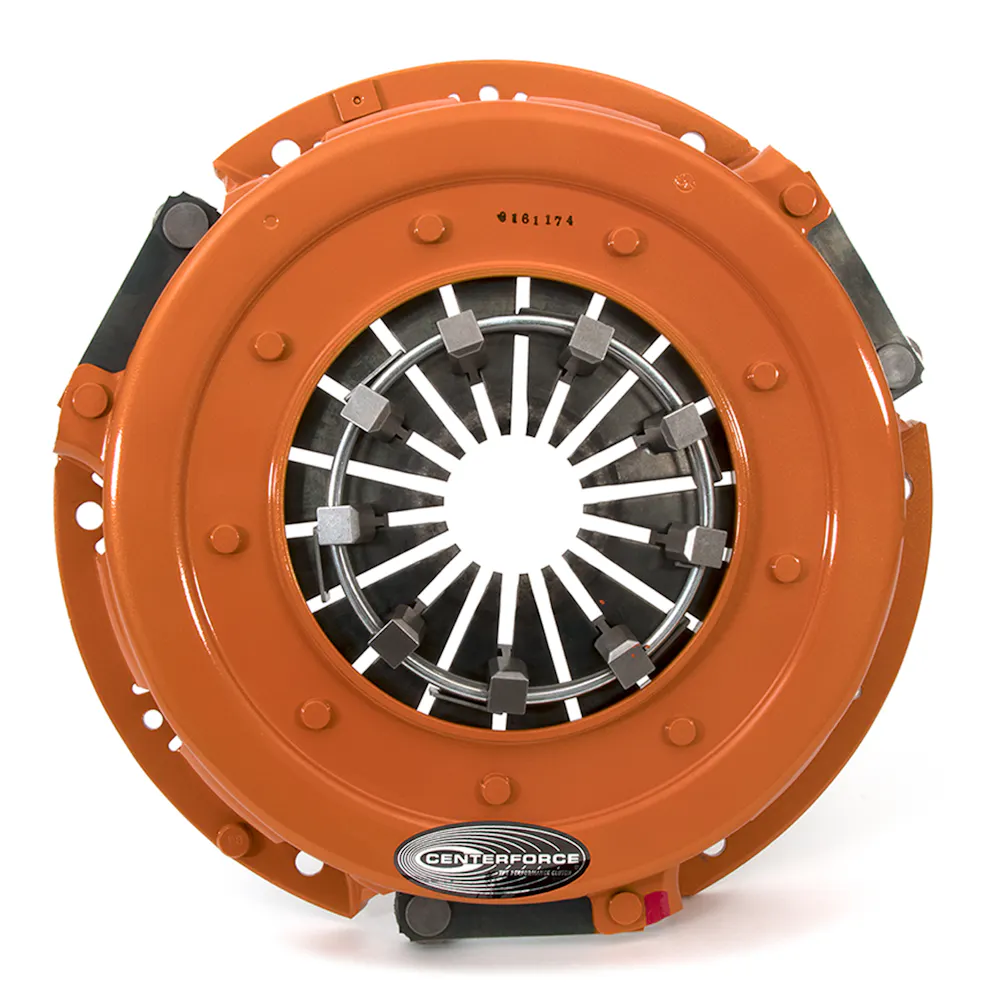

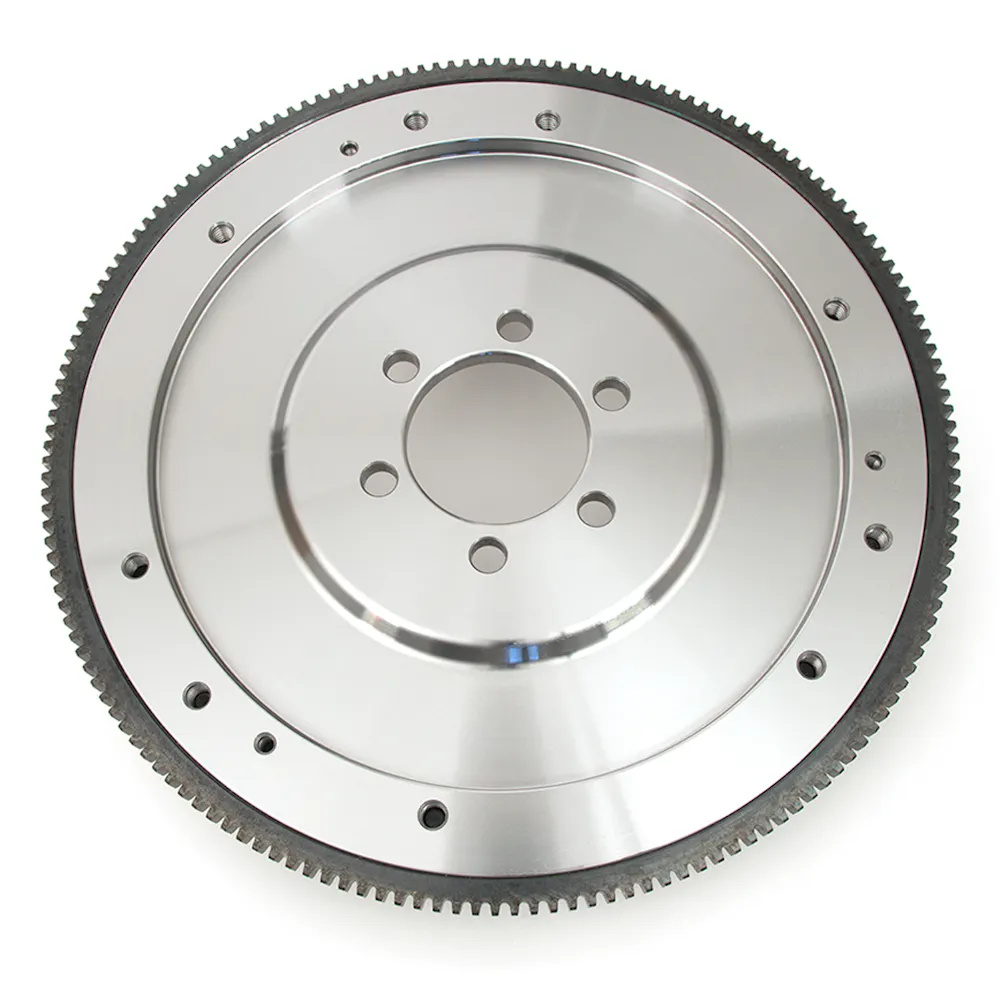

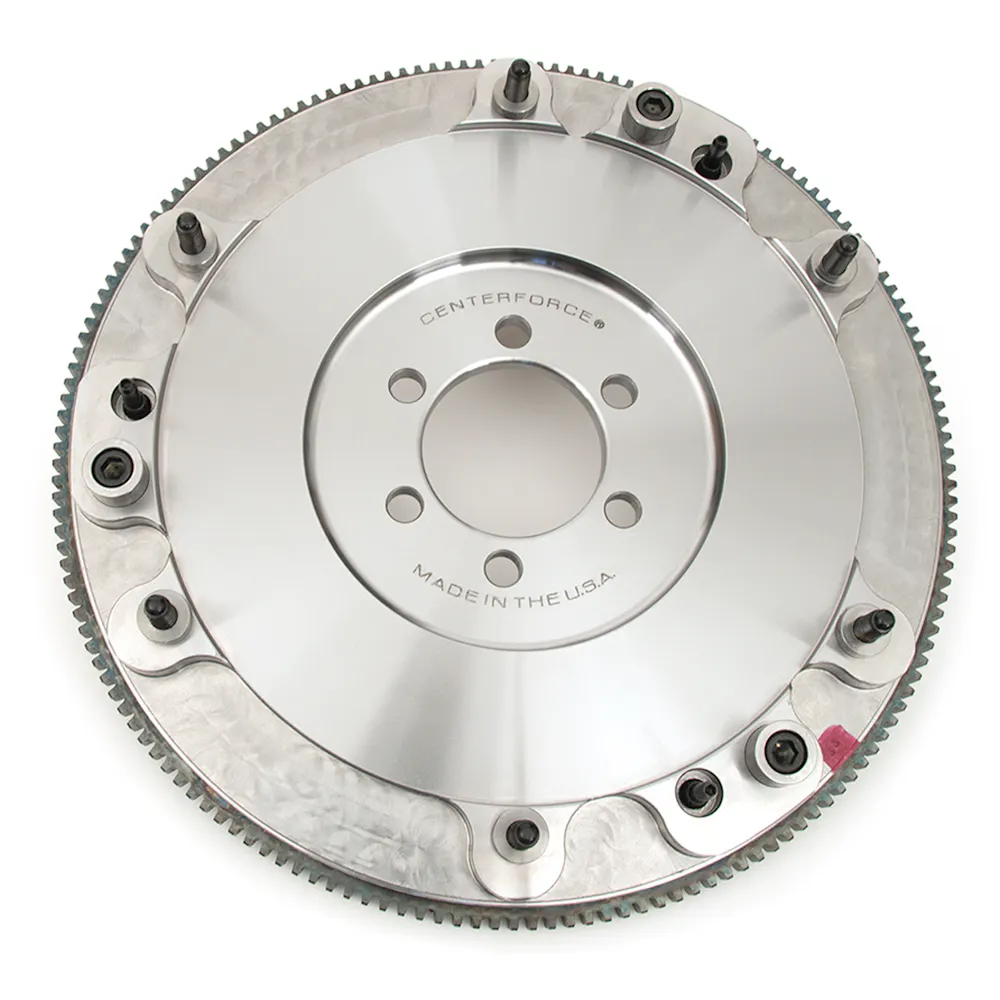

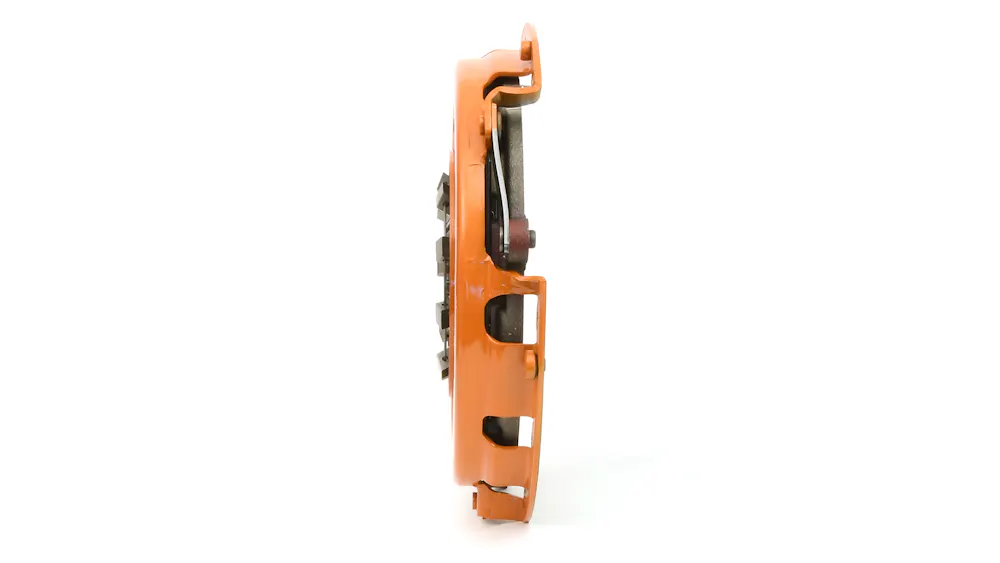

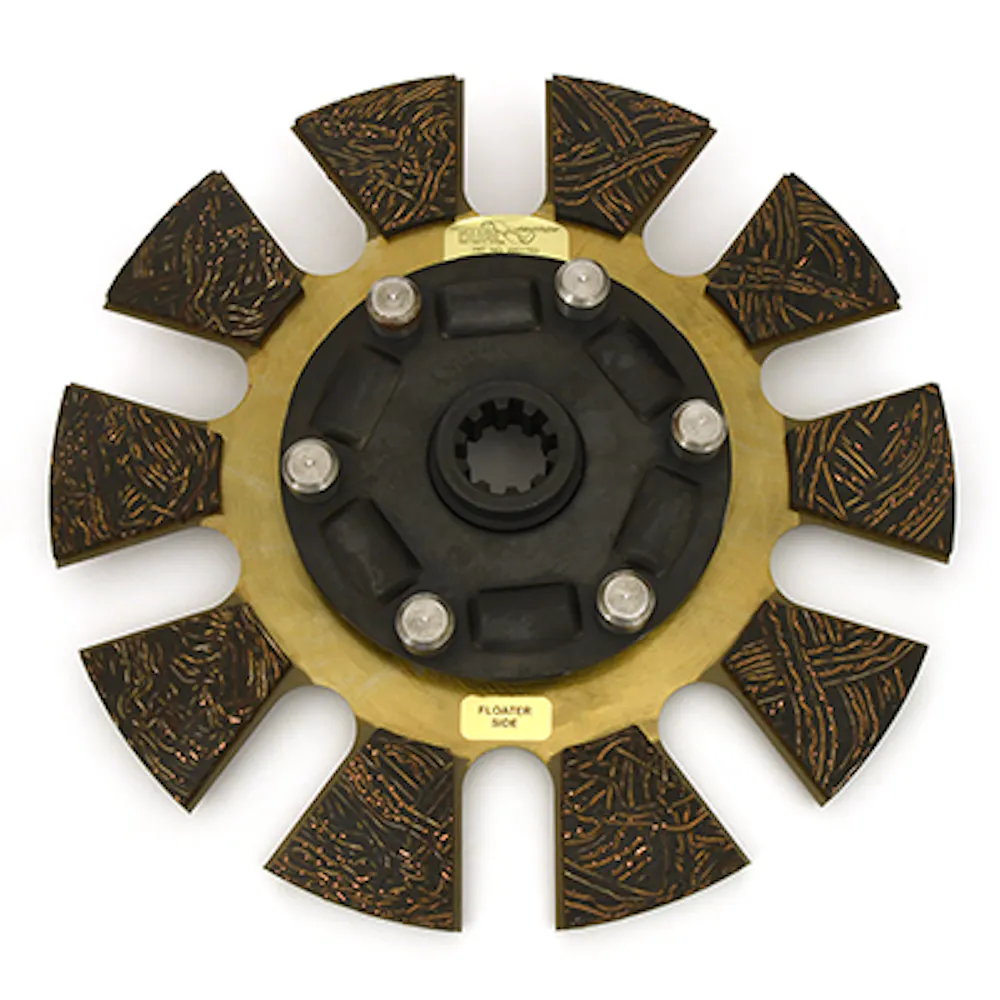

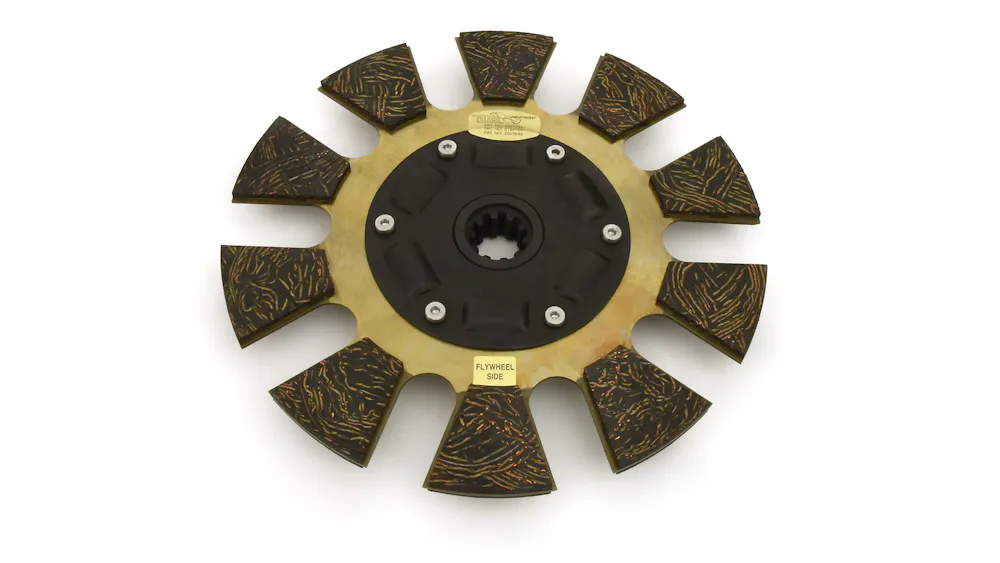

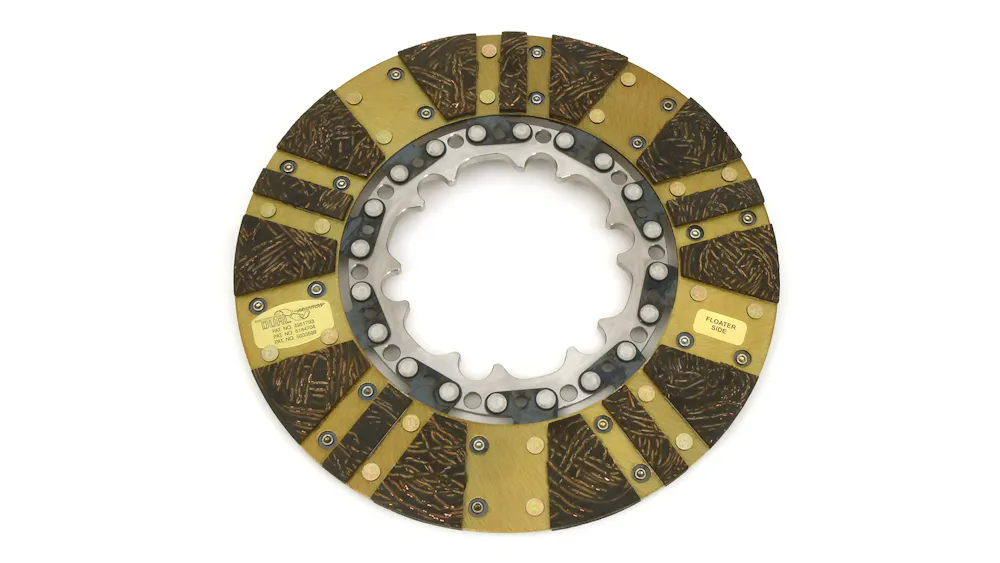

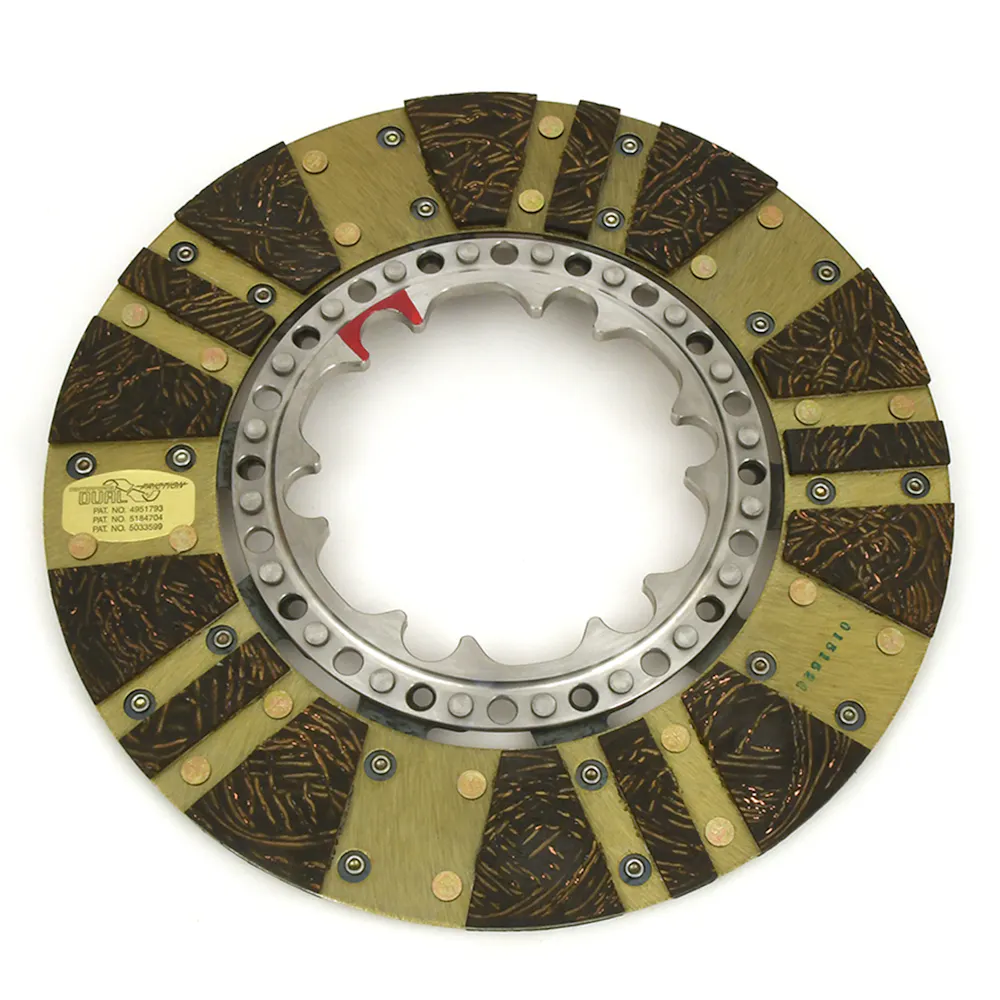

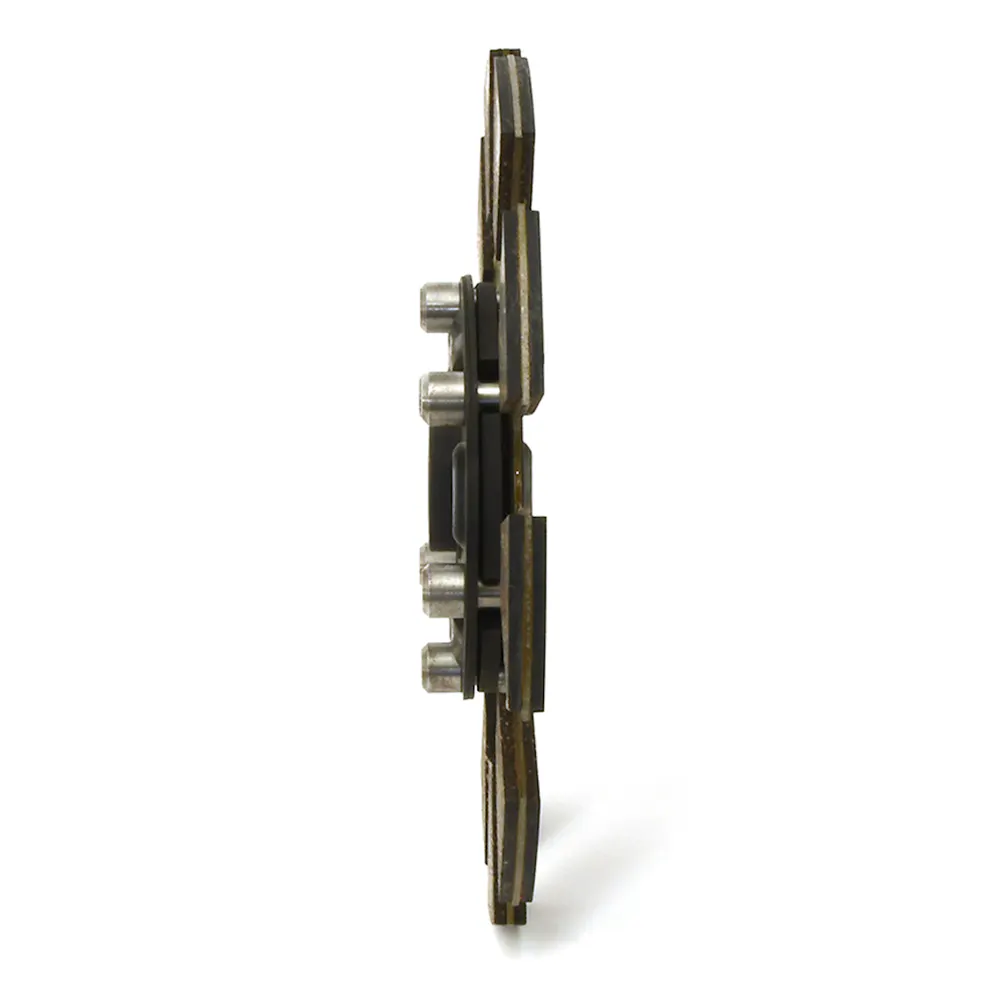

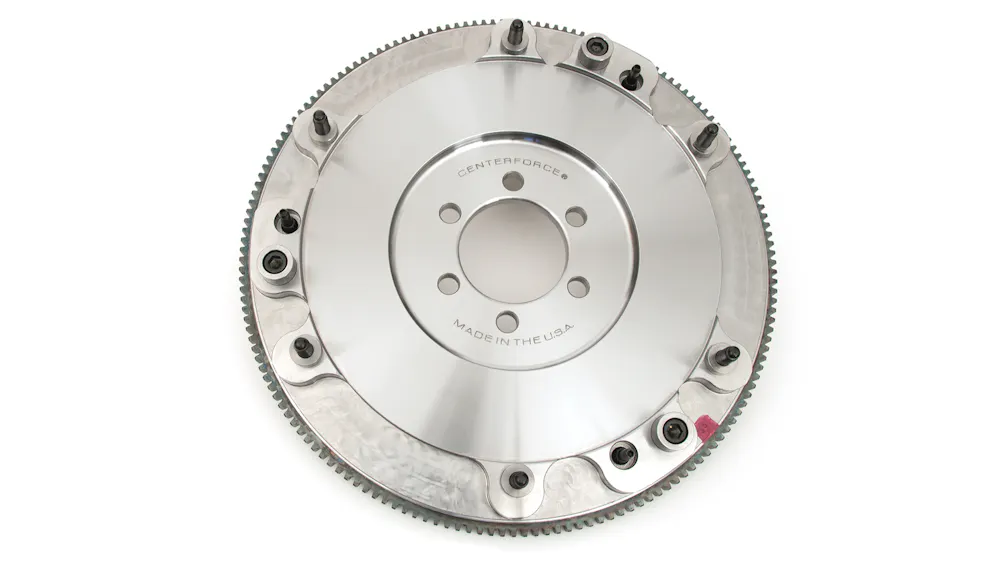

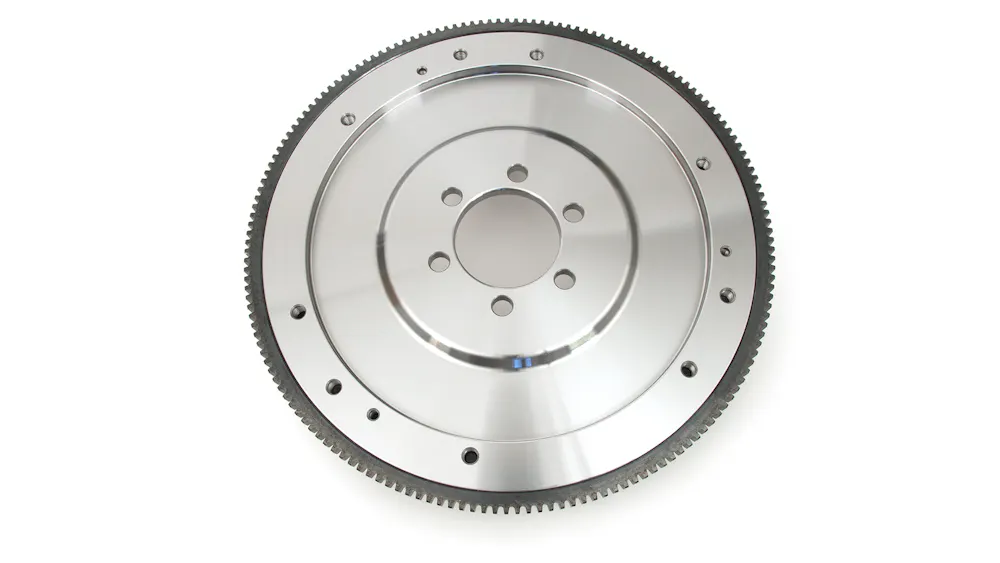

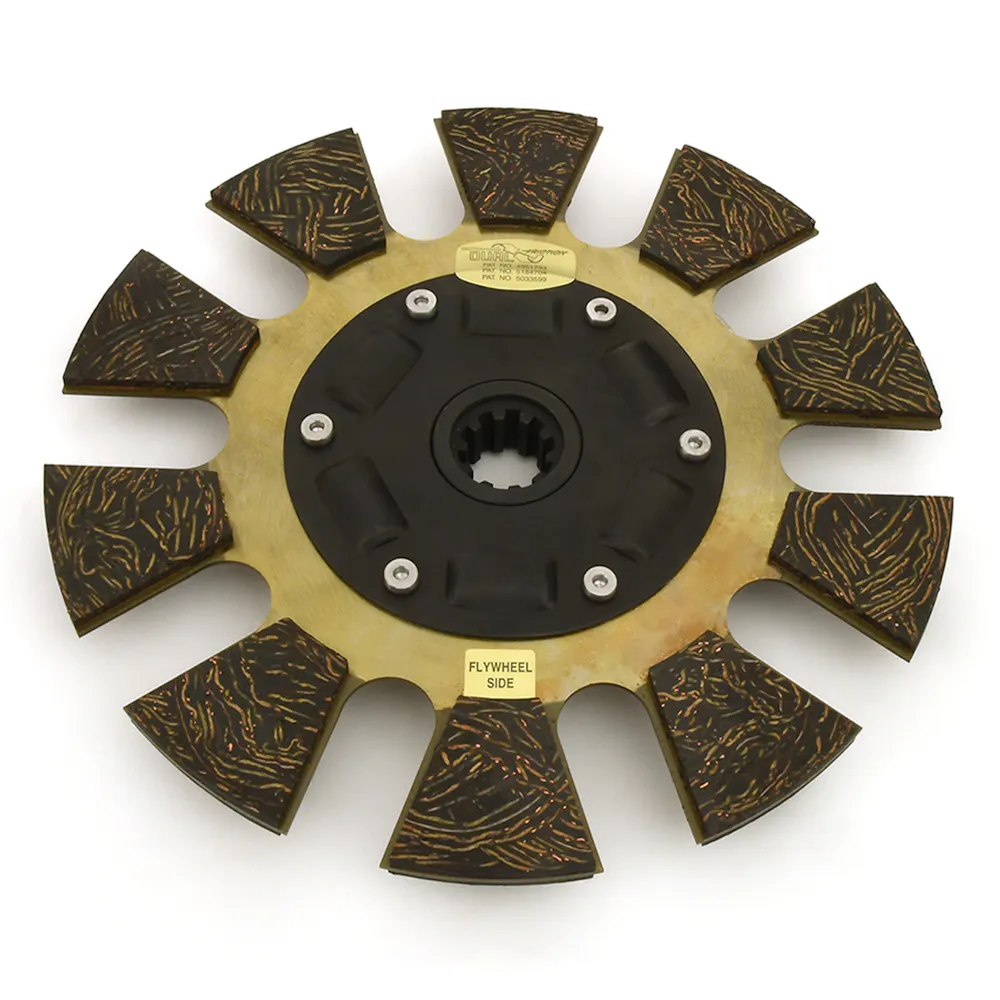

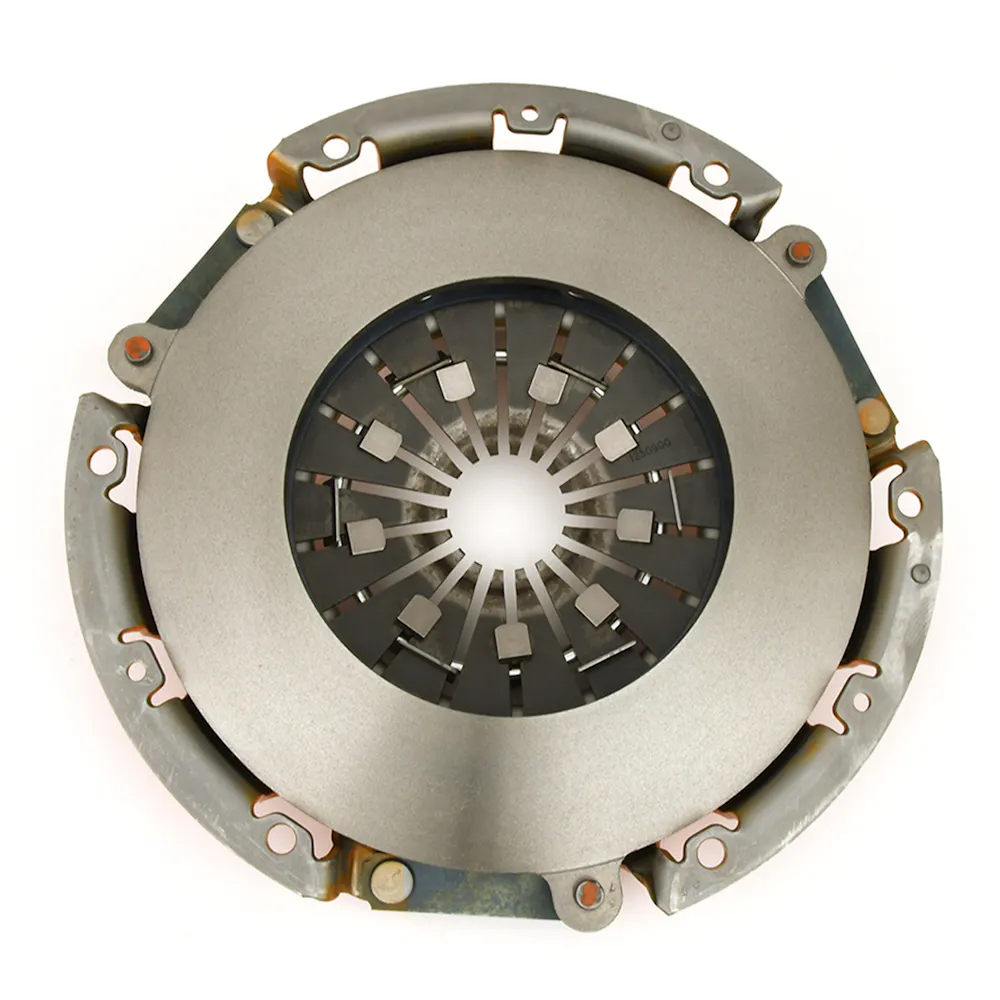

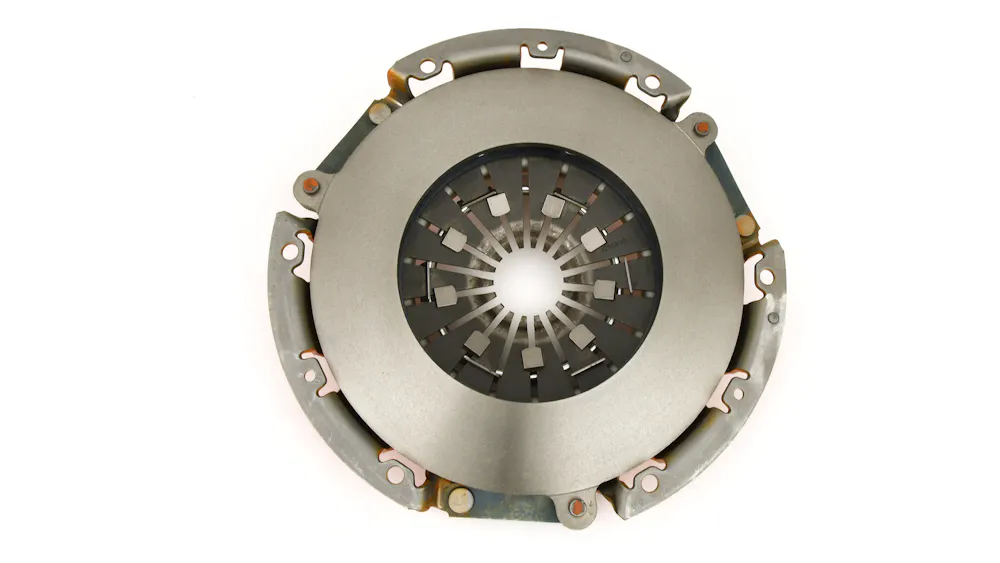

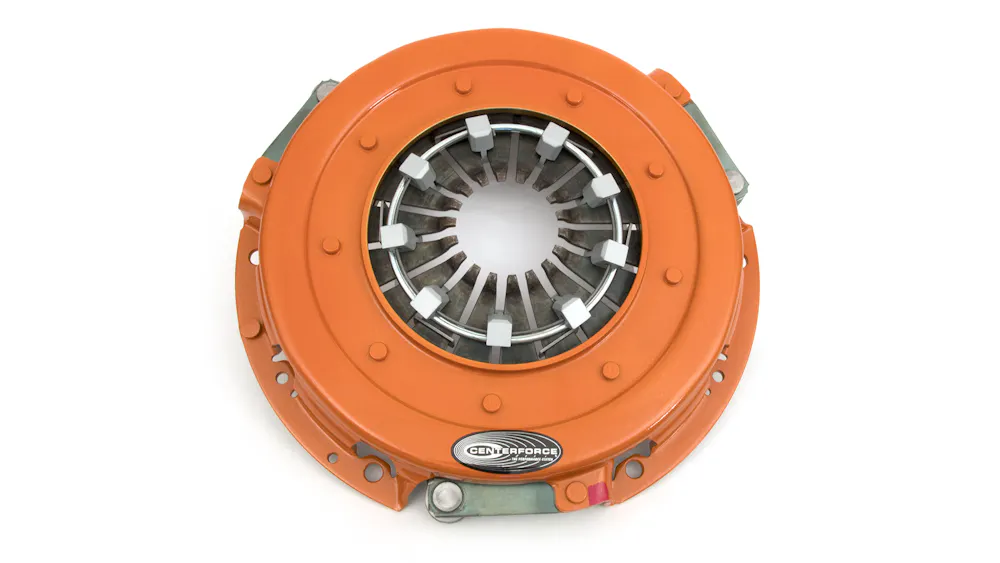

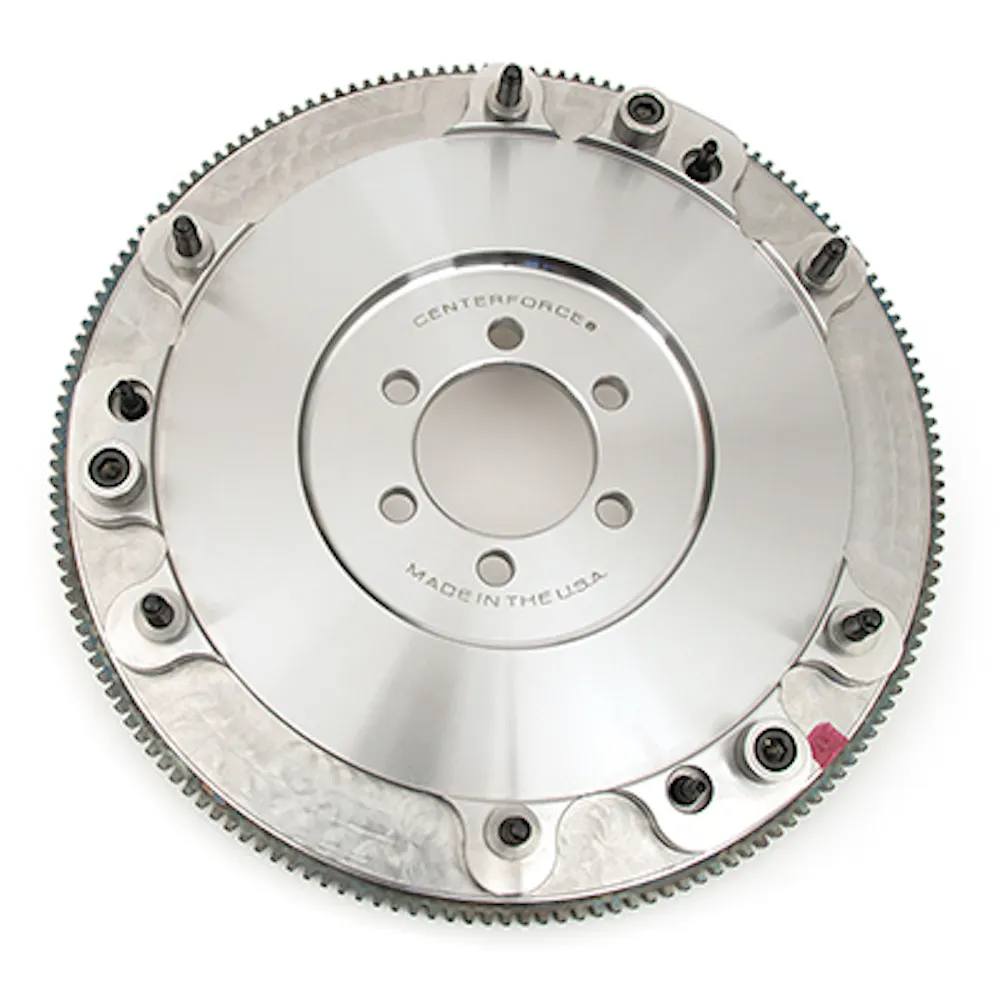

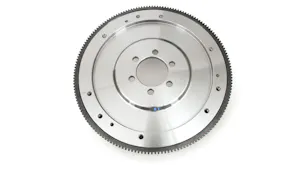

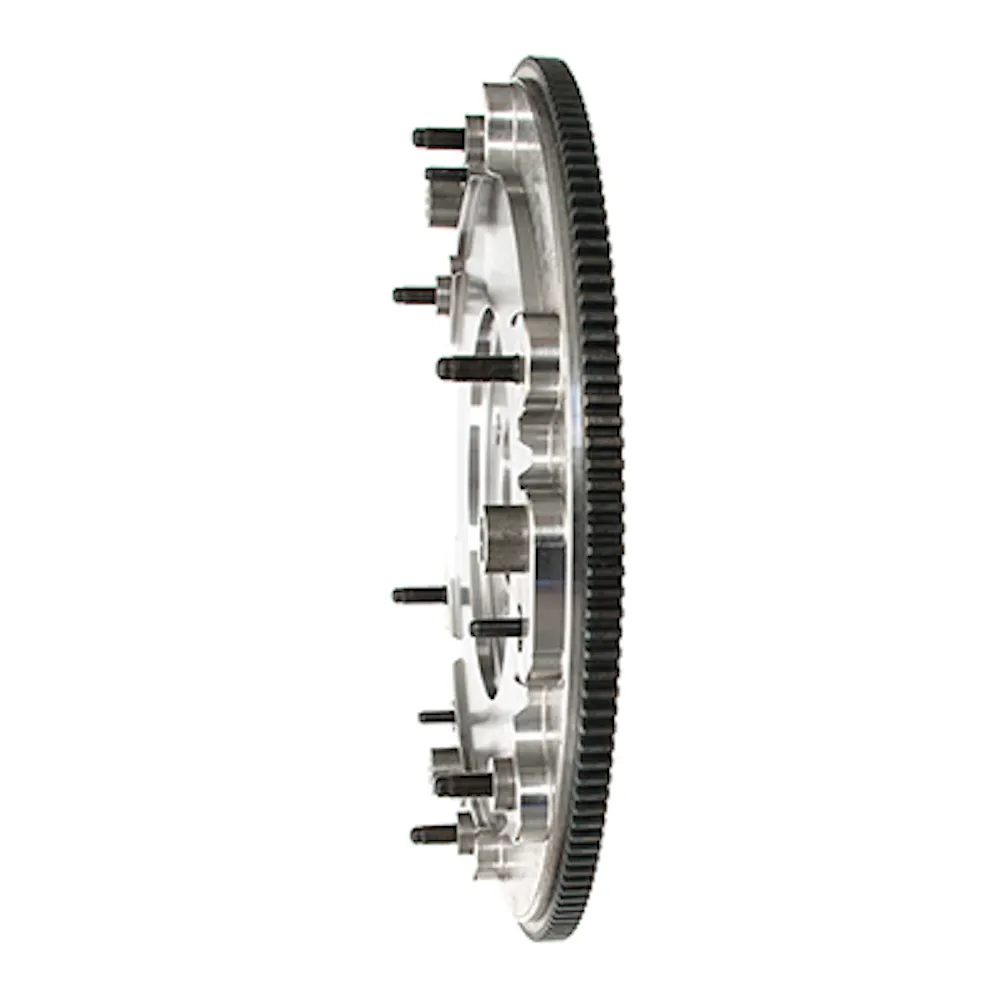

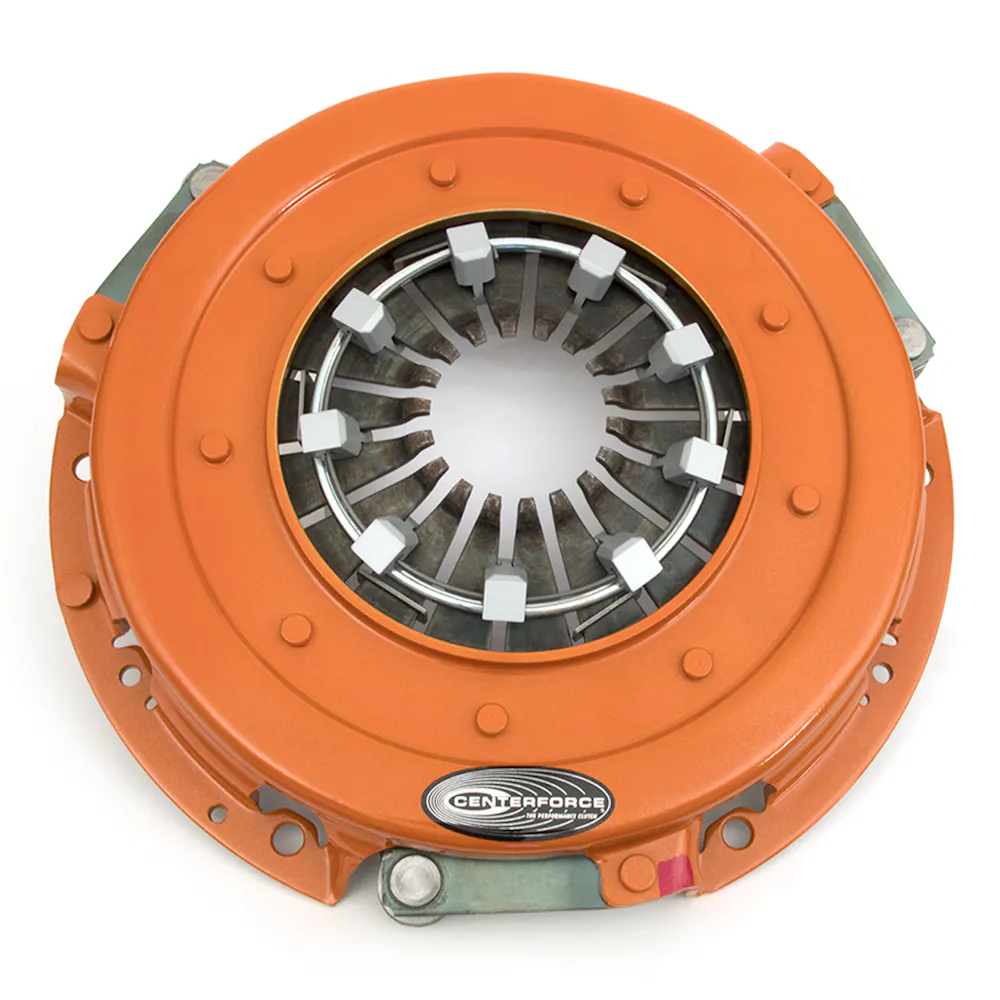

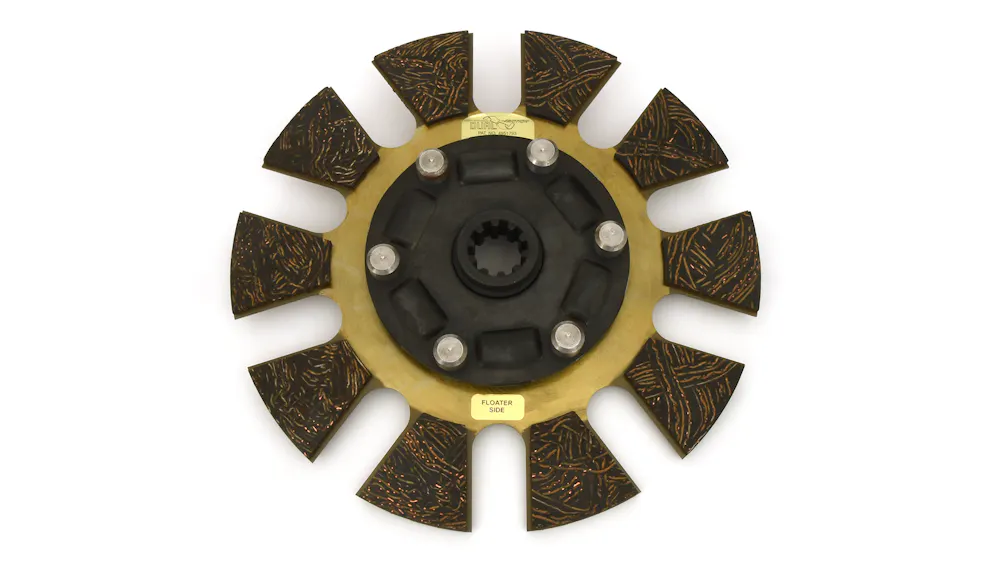

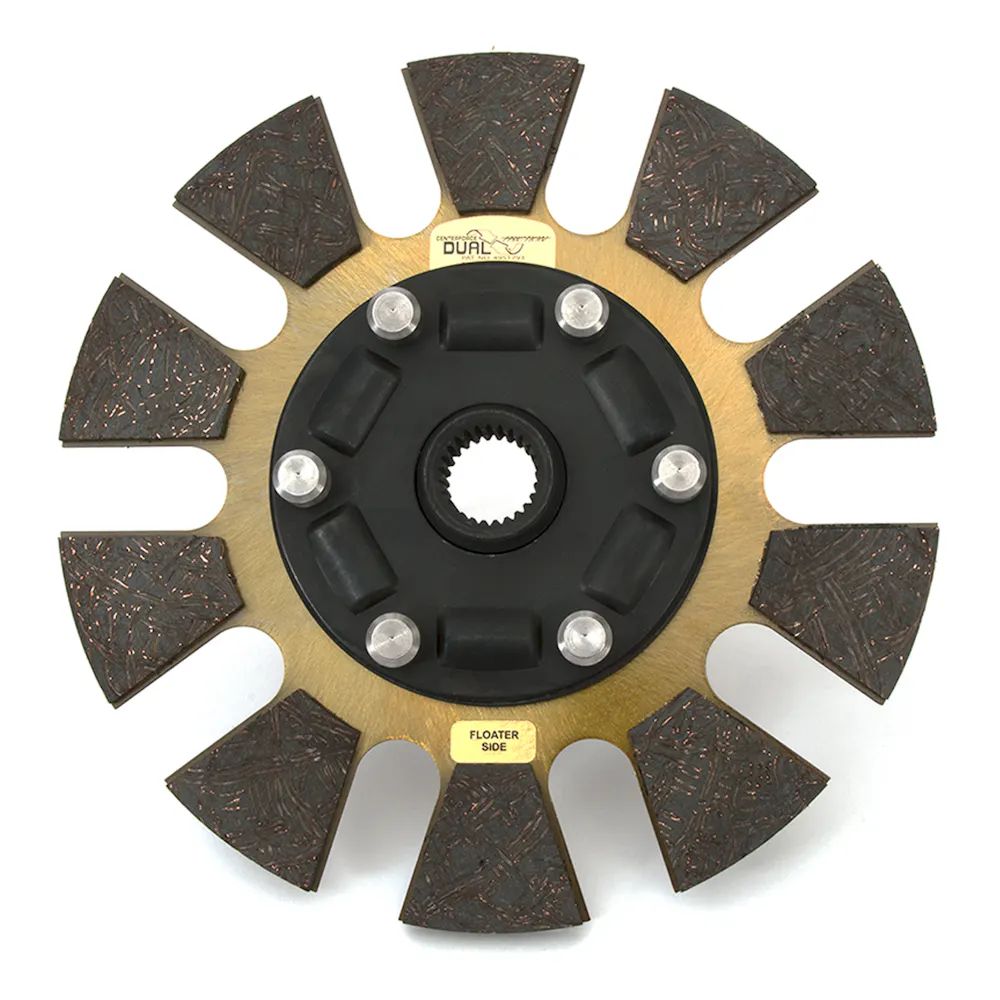

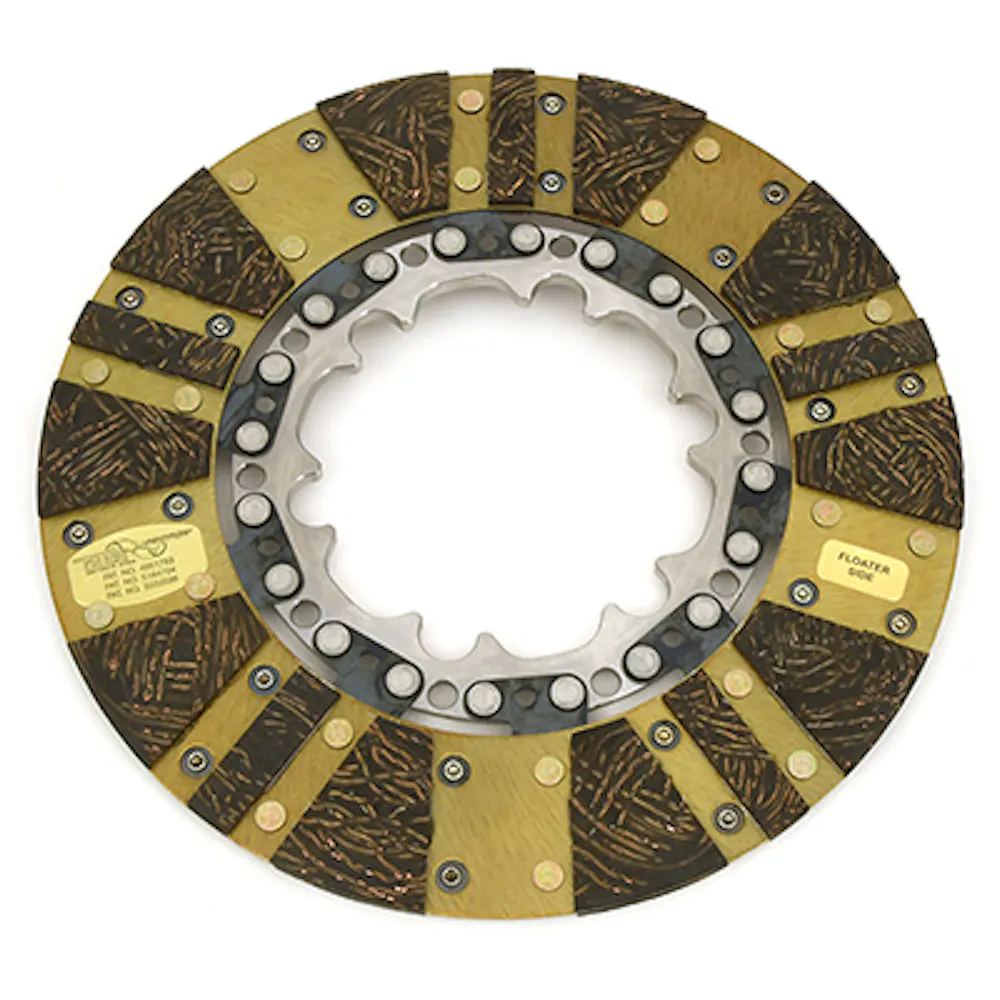

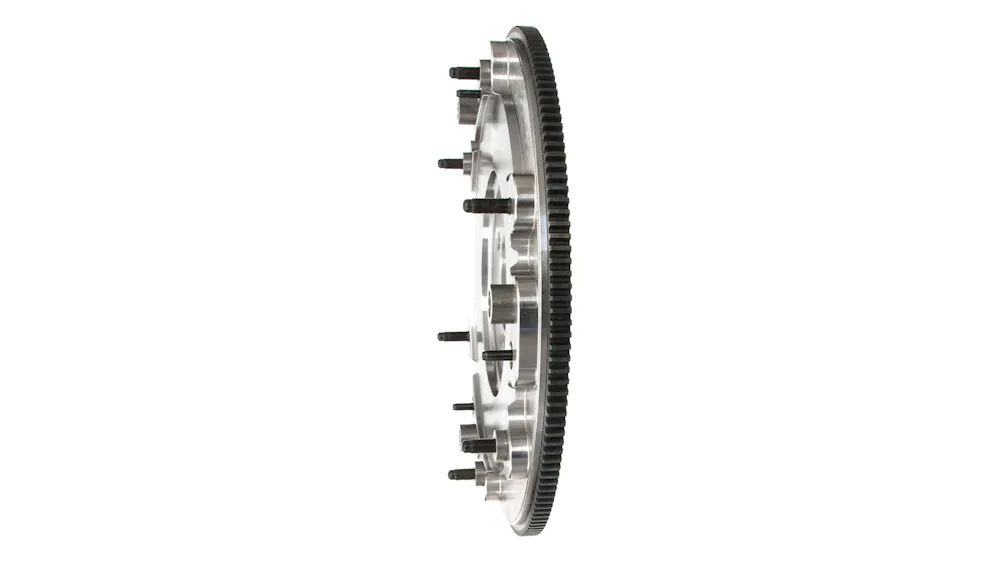

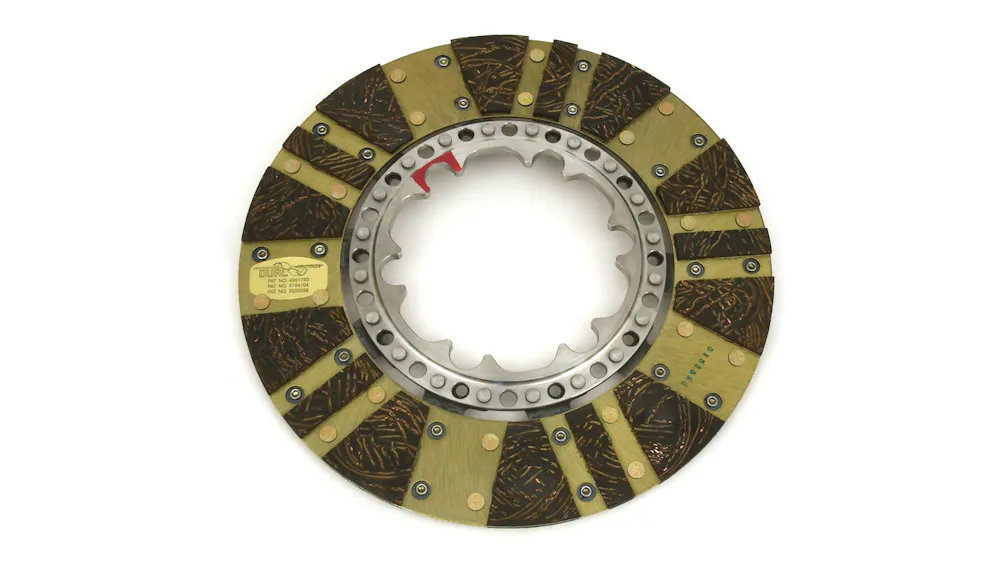

The Centerforce(R) DYAD DS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.
Features & benefits
- No complicated setup or adjustments required
Application summary
| Year | Make / model |
|---|---|
| 1967-1972 | Pontiac Bonneville |
| 1974 | Pontiac Bonneville |
| 1967-1974 | Pontiac Catalina |
| 1967-1970 | Pontiac Executive |
| 1967-1982 | Pontiac Firebird |
| 1973-1975 | Pontiac Grand Am |
| 1967-1972 | Pontiac Grand Prix |
| 1971-1972 | Pontiac Grandville |
| 1970-1973 | Pontiac GTO |
| 1964-1974 | Pontiac LeMans |
| 1976-1977 | Pontiac LeMans |
| 1979 | Pontiac Phoenix |
| 1964-1970 | Pontiac Tempest |
| 1971-1974 | Pontiac Ventura |
Specifications
- GTIN
- 00788442028652
- Weight
- 55.45 lb
- Height
- 5.5 in
- Length
- 17 in
- Width
- 18 in
- EO
- Legal US
- Life cycle
- Superseded
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Disc Diameter
- 10.4
- Counterweight Assist
- Yes
- Crankshaft Bolt Hole Quantity
- 6
- Disc Material
- Organic/Carbon composite
- Disc Type
- Segmented face
- Disc Type Sprung Solid
- Sprung
- Flywheel Counter Balance Weight
- 0
- Flywheel Crank Bolt Size
- 1/2 x 20
- Flywheel Crank Flange Register
- 2.750
- Flywheel Deck Height
- 2.910
- Includes

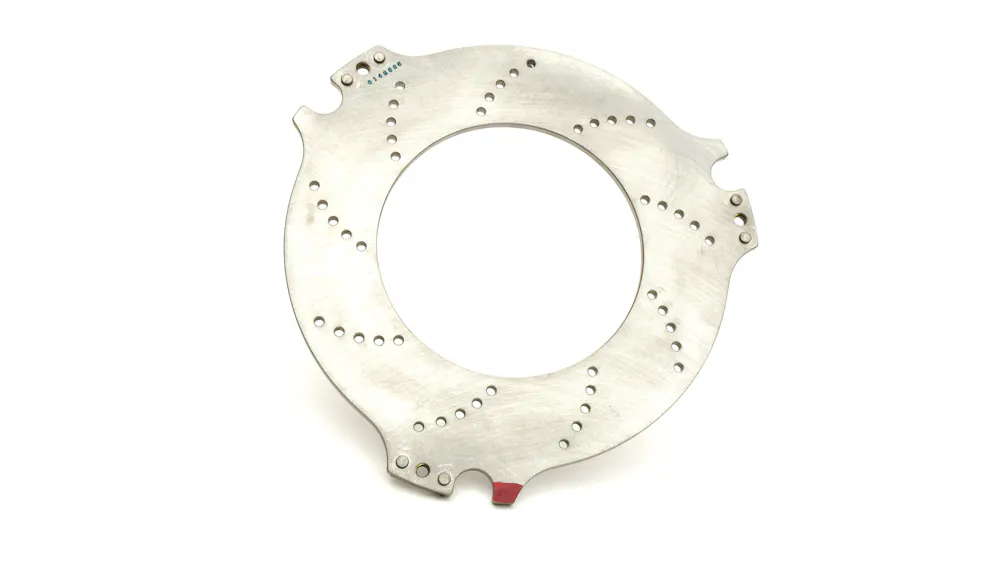

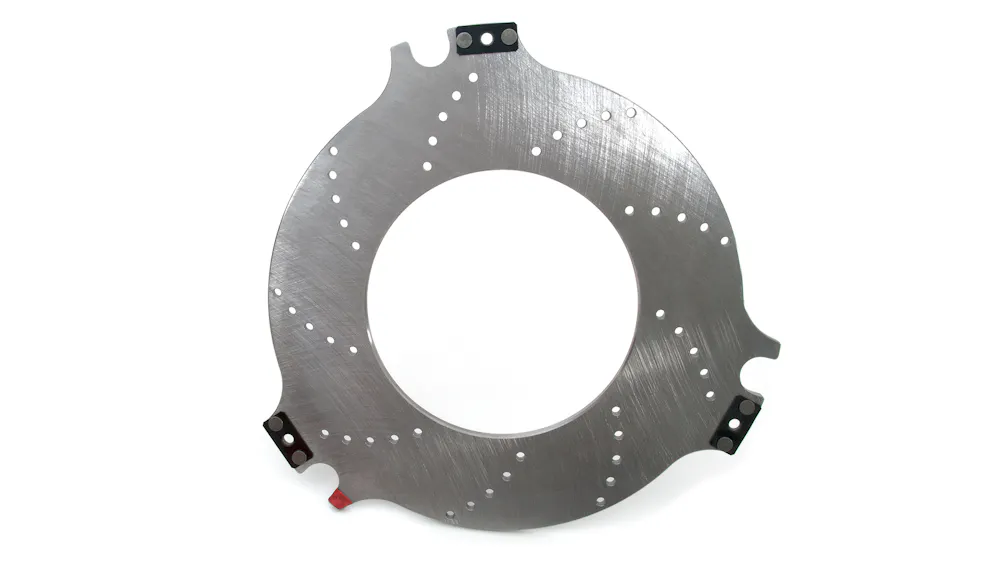

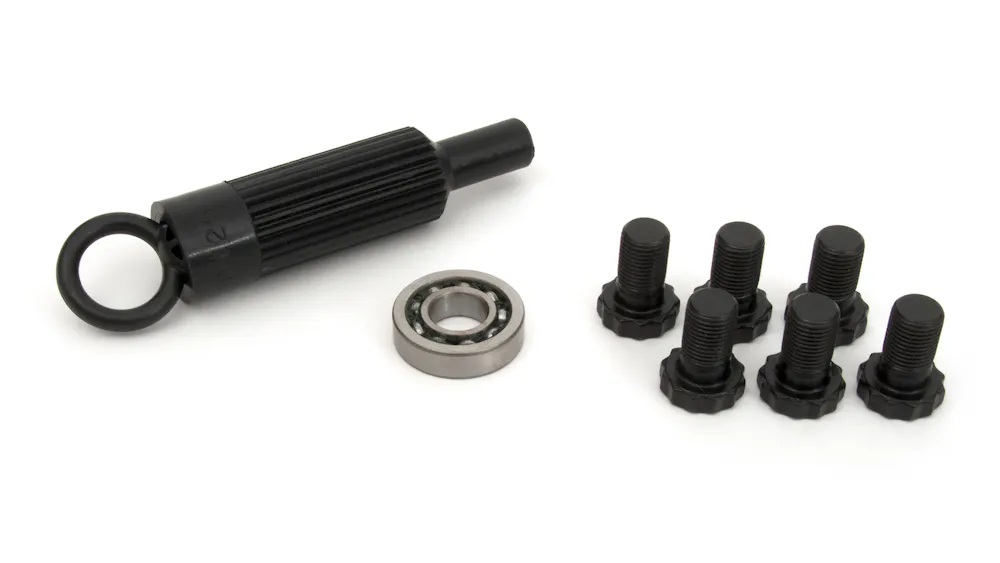

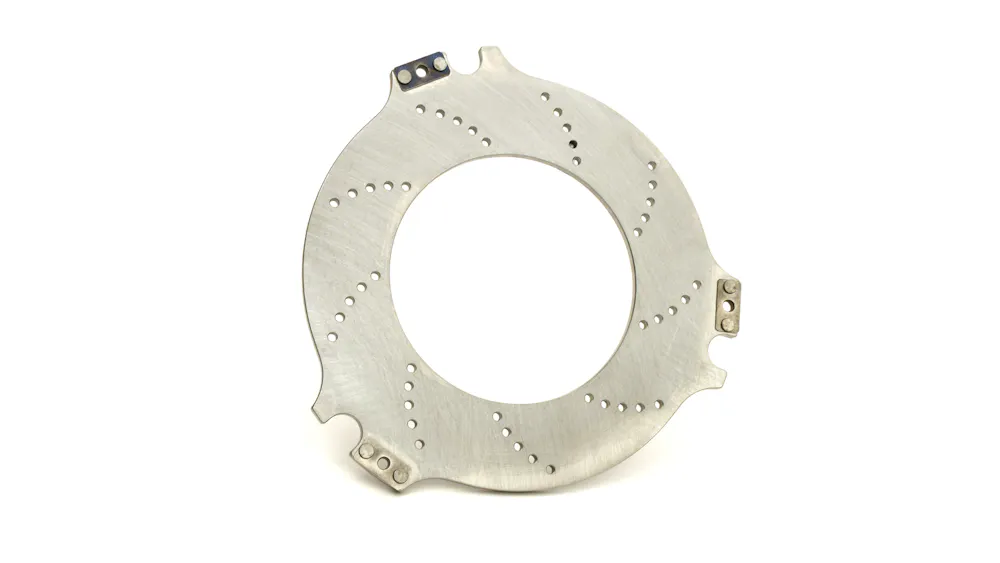

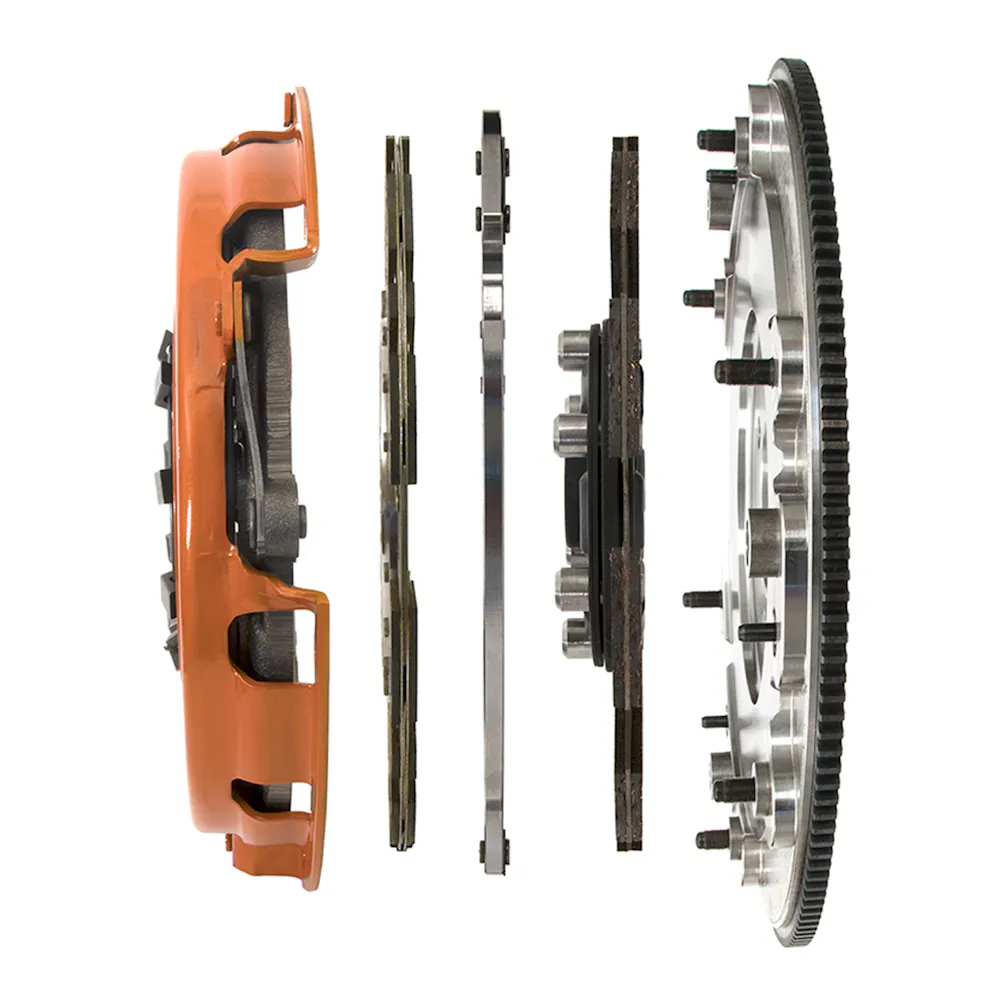

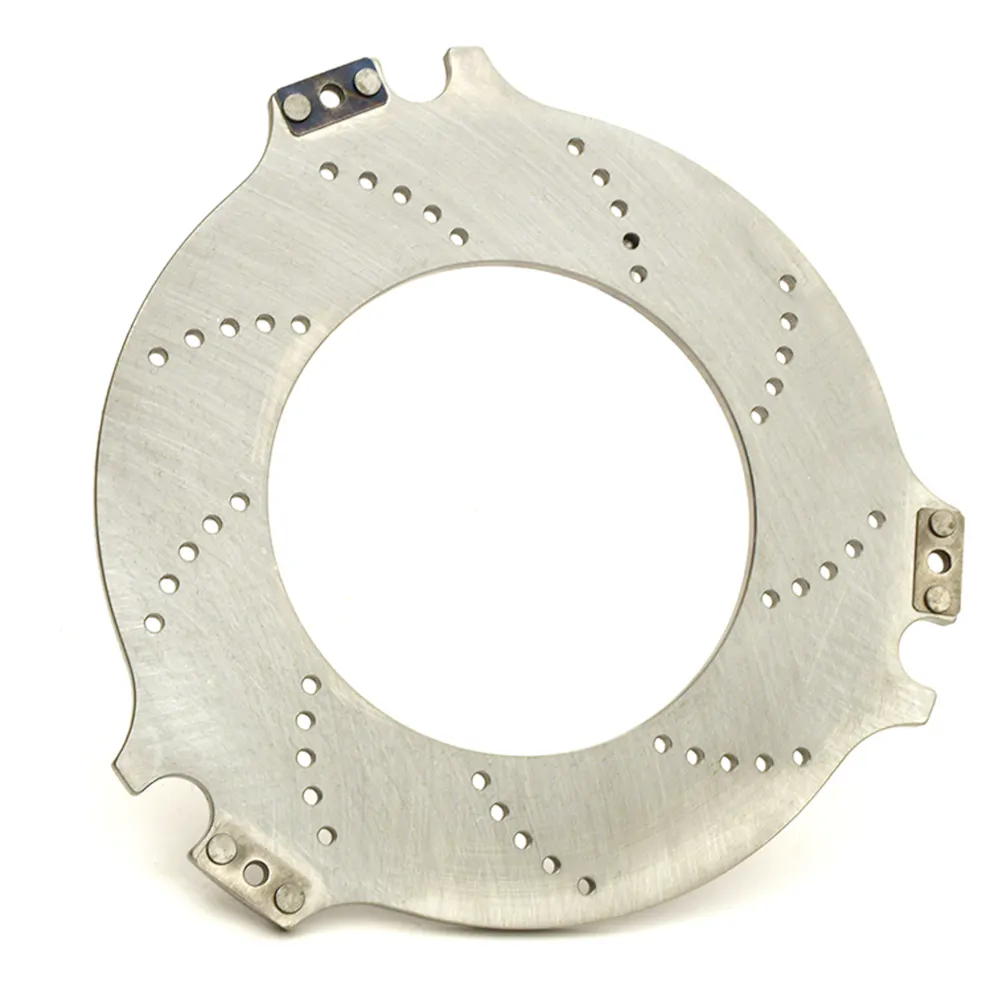

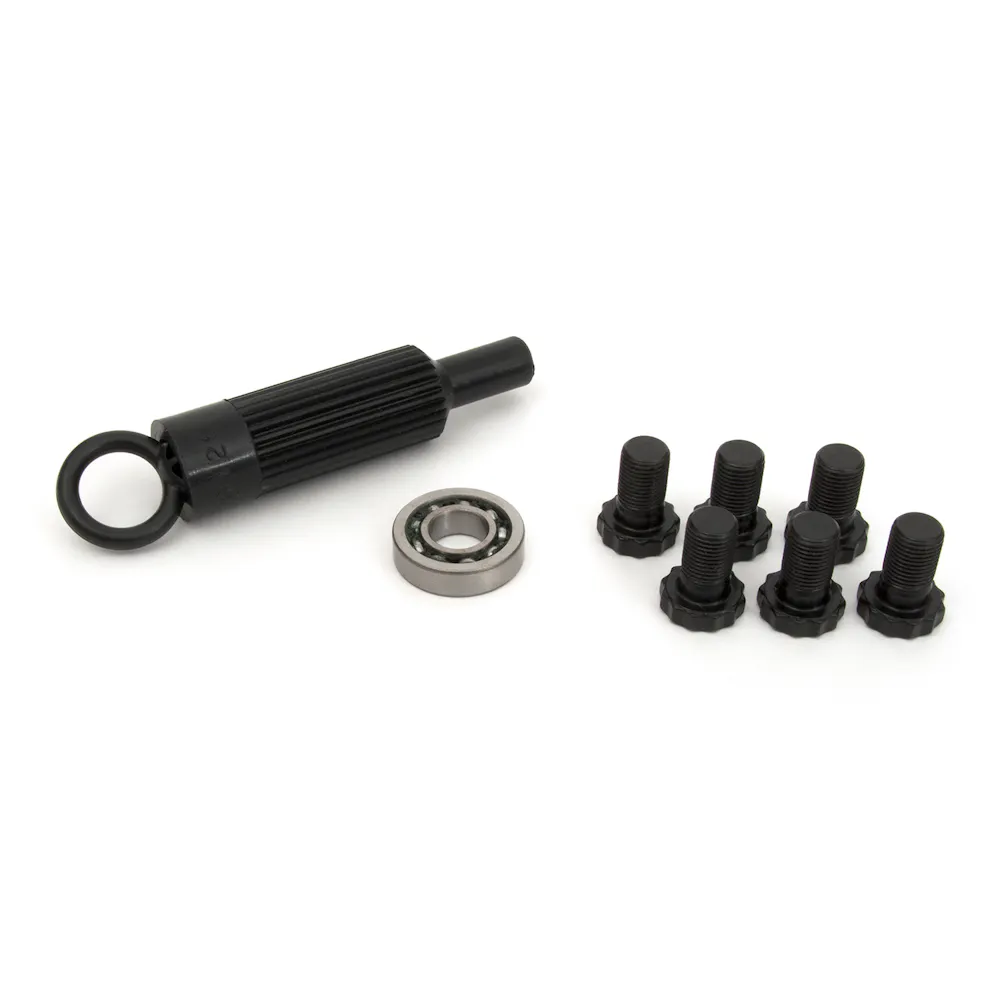

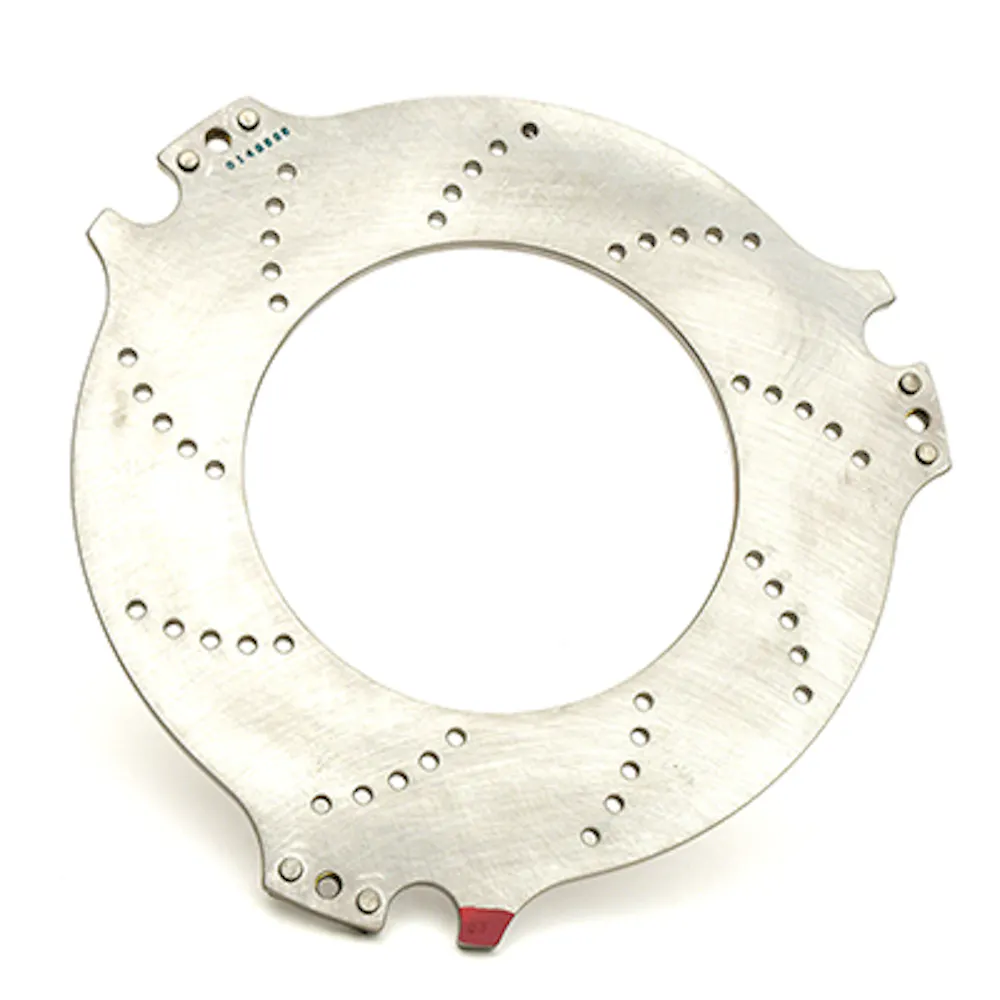

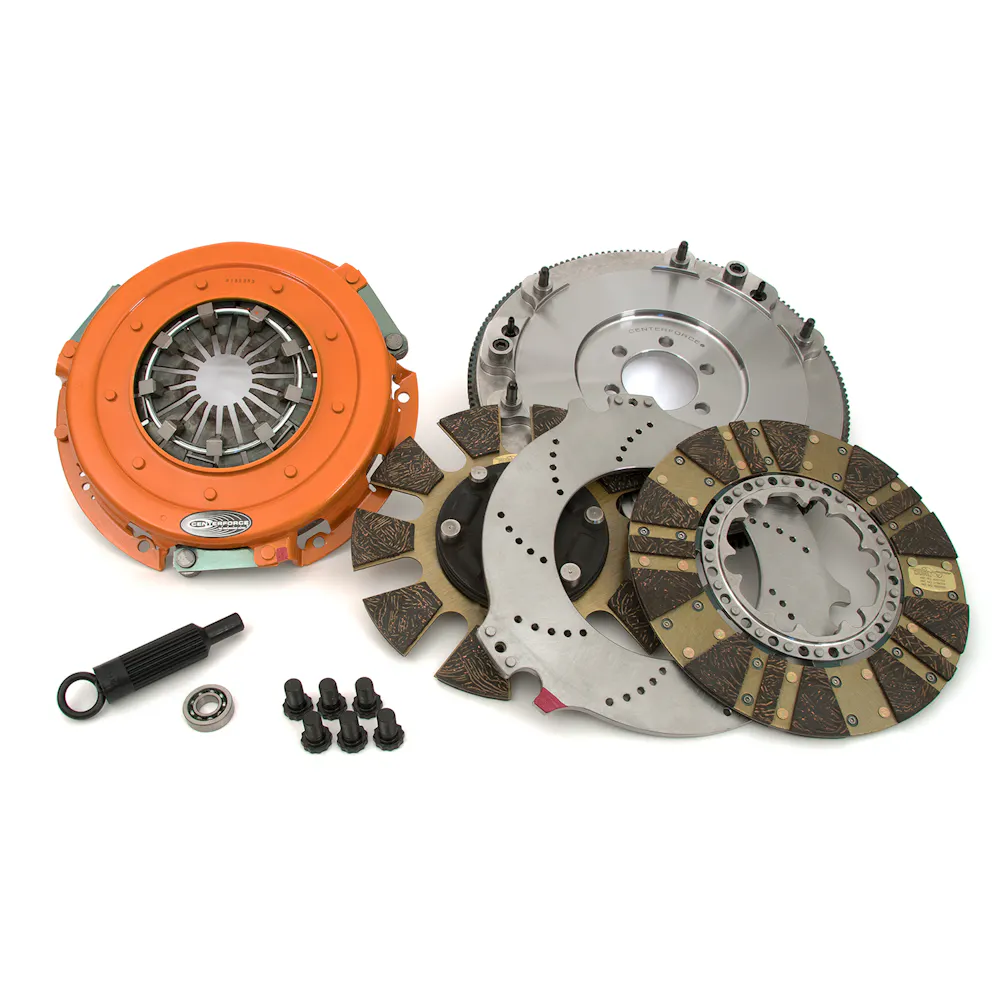

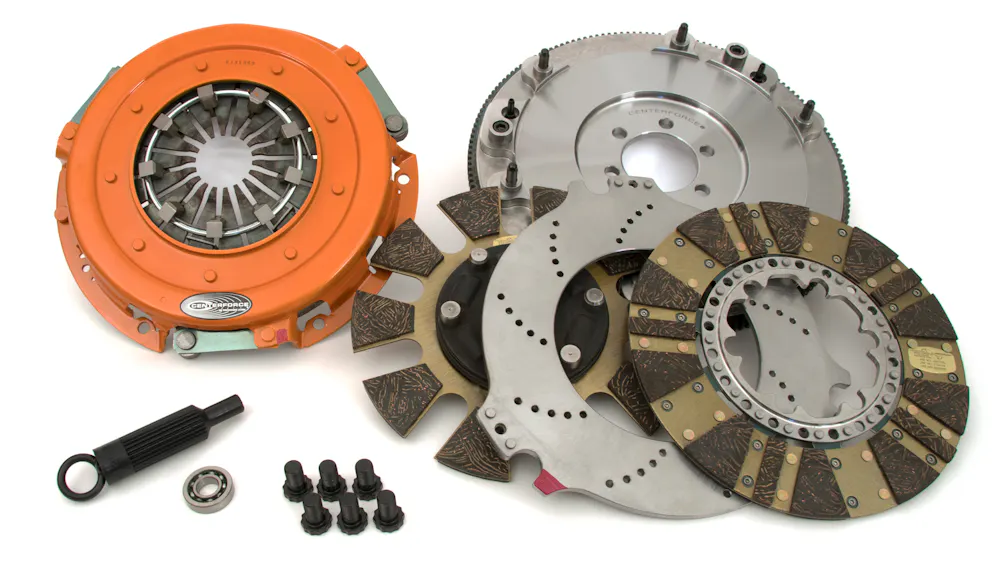

- Pressure Plate, Discs, Floater, Flywheel, Bolts, Alignment Tool, Pilot Bearing
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 26
- Material
- Billet Steel Flywheel / Nodular Iron Pressure Plate / Segmented Organic Friction
- Out of Package Weight
- 51.75
- Outside Diameter of Friction Surface (Metric)
- 266.7
- Replaceable Friction Surface
- N
- Ring Gear O.D
- 13.979
- Ring Gear Tooth Count
- 166
- Title
- PN: 04614860 - DYAD DS 10.4, Clutch and Flywheel Kit
- Torque Capacity
- 1300
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1967-1972 Pontiac Bonneville; 1974 Pontiac Bonneville; 1967-1974 Pontiac Catalina; 1967-1970 Pontiac Executive; 1967-1982 Pontiac Firebird; 1973-1975 Pontiac Grand Am; 1967-1972 Pontiac Grand Prix; 1971-1972 Pontiac Grandville; 1970-1973 Pontiac GTO; 1964-1974 Pontiac LeMans; 1976-1977 Pontiac LeMans; 1979 Pontiac Phoenix; 1964-1970 Pontiac Tempest; 1971-1974 Pontiac Ventura
Resources
- Brand logo
- Technical Bulletin
- Technical Bulletin
- Technical Bulletin
- Technical Bulletin
- Logo Image
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Primary

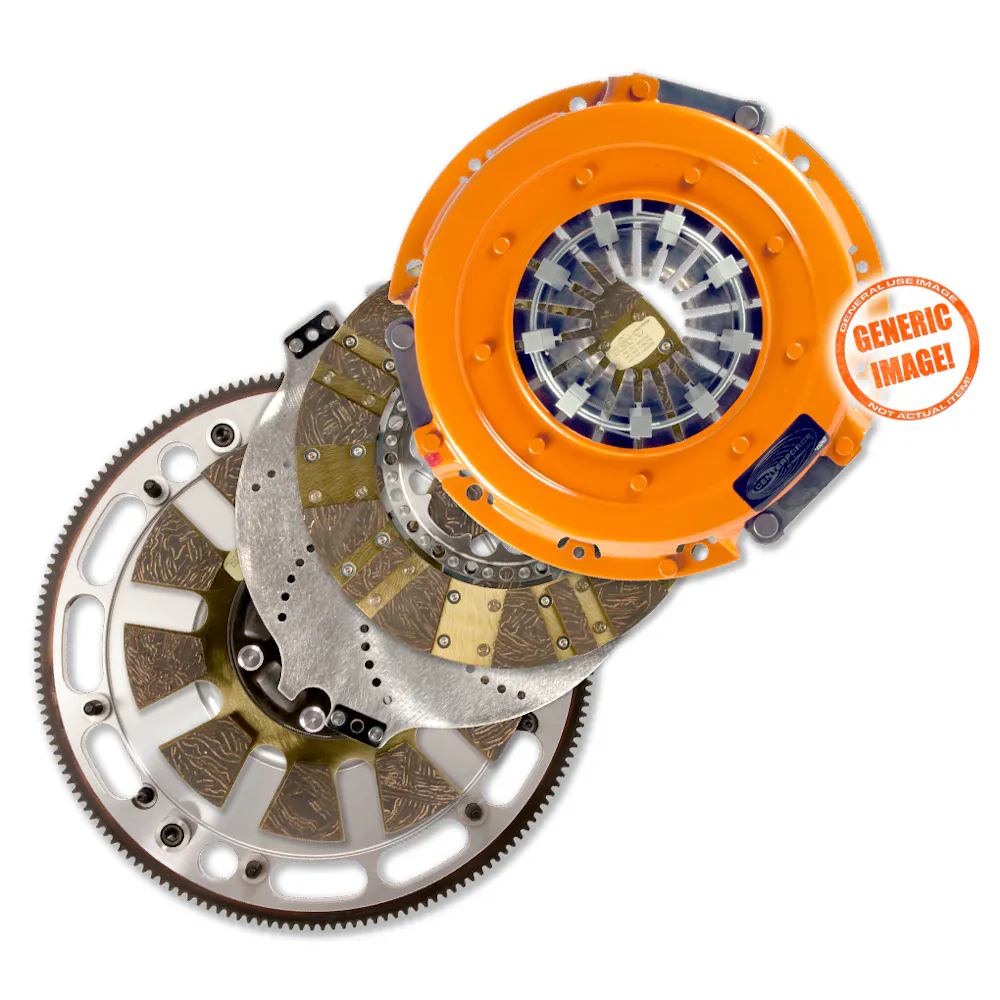

- Centerforce Twin Disc DYAD Clutch
