Centerforce · 04614800
Part #: 04614800
UPC: 788442027488
Log in for inventory
Notify me when this item is in stock.

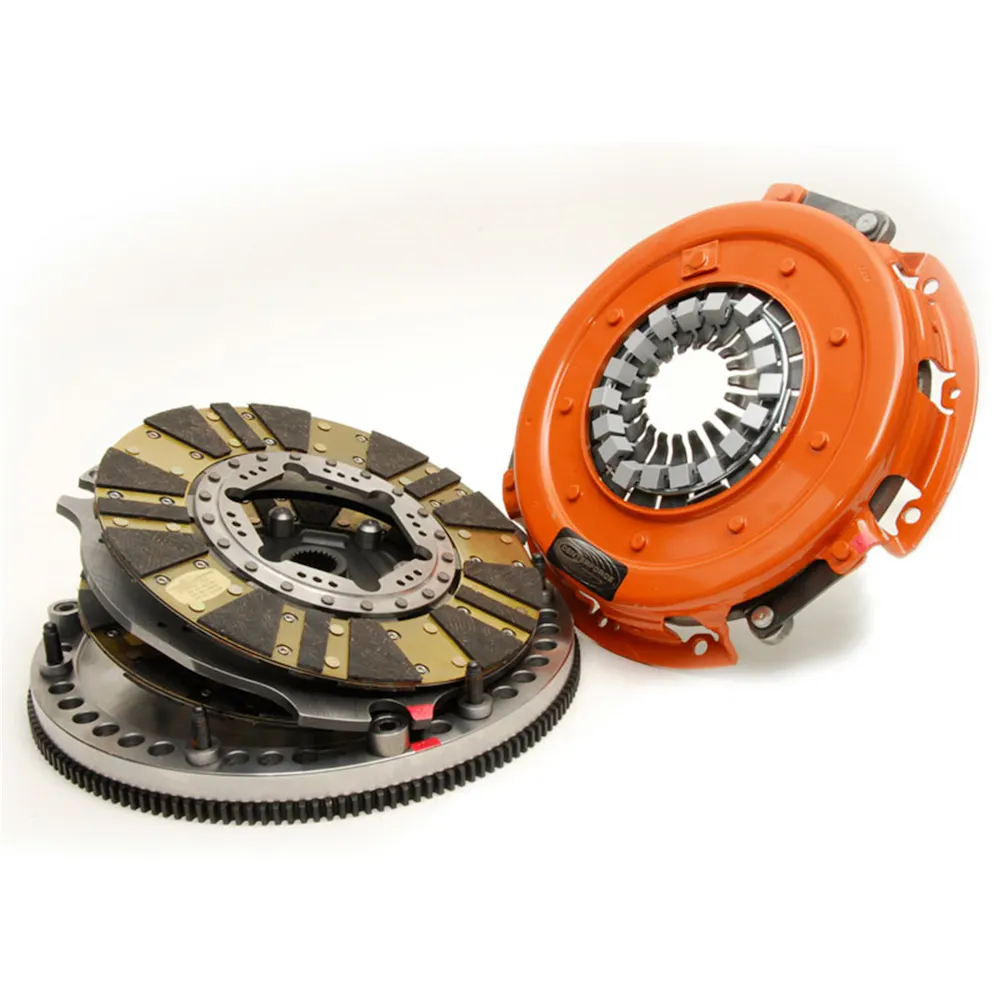

Description: DYAD(R) DS 10.4, Clutch and Flywheel Kit; The Centerforce(R) DYAD(R) DS (Drive System) 10.4 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 500 to 1300 ft /lbs.
Description:
This part number has been superseded by 413614800.
Description
The Centerforce(R) DYAD DS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.
Features & benefits
- No complicated setup or adjustments required
Application summary
| Year | Make / model |
|---|---|
| 1962-1969 | Chevrolet Bel Air |
| 1958-1969 | Chevrolet Biscayne |
| 1967-1969 | Chevrolet Camaro |
| 1975-1985 | Chevrolet Camaro |
| 1966-1969 | Chevrolet Caprice |
| 1964-1967 | Chevrolet Chevelle |
| 1970-1972 | Chevrolet Chevelle |
| 1965-1967 | Chevrolet Chevy II |
| 1957-1969 | Chevrolet Corvette |
| 1978 | Chevrolet Corvette |
| 1984-1985 | Chevrolet Corvette |
| 1964-1973 | Chevrolet El Camino |
| 1975 | Chevrolet El Camino |
| 1979-1981 | Chevrolet El Camino |
| 1958-1969 | Chevrolet Impala |
| 1975 | Chevrolet Malibu |
| 1979-1981 | Chevrolet Malibu |
| 1975 | Chevrolet Monte Carlo |
| 1979 | Chevrolet Monte Carlo |
| 1981 | Chevrolet Monte Carlo |
| 1975-1979 | Chevrolet Nova |
| 1978-1981 | GMC Caballero |
| 1971-1973 | GMC Sprint |
| 1975-1976 | GMC Sprint |
Specifications
- GTIN
- 00788442027488
- Weight
- 53.6 lb
- Height
- 5.5 in
- Length
- 17 in
- Width
- 18 in
- EO
- Legal US
- Life cycle
- Superseded
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Disc Diameter
- 10.4
- Counterweight Assist
- Yes
- Crankshaft Bolt Hole Quantity
- 6
- Disc Material
- Organic/Carbon composite
- Disc Type
- Segmented face
- Disc Type Sprung Solid
- Sprung
- Flywheel Counter Balance Weight
- 0
- Flywheel Crank Bolt Size
- 7/16 x 20
- Flywheel Crank Flange Register
- 2.4855
- Flywheel Deck Height
- 2.870
- Includes
- Pressure Plate, Discs, Floater, Flywheel, Bolts, Alignment Tool, Pilot Bearing
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 26
- Material
- Billet Steel Flywheel / Nodular Iron Pressure Plate / Segmented Organic Friction
- Outside Diameter of Friction Surface
- 266.7mm
- Outside Diameter of Friction Surface (Metric)
- 266.7
- Rear Main Seal Style
- 2
- Replaceable Friction Surface
- N
- Ring Gear O.D
- 12.835
- Ring Gear Tooth Count
- 153
- Spline Diameter and Tooth Count
- 1-1/8"-26
- Title
- PN: 04614800 - DYAD DS 10.4, Clutch and Flywheel Kit
- Torque Capacity
- 1300
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1962-1969 Chevrolet Bel Air; 1958-1969 Chevrolet Biscayne; 1967-1969 Chevrolet Camaro; 1975-1985 Chevrolet Camaro; 1966-1969 Chevrolet Caprice; 1964-1967 Chevrolet Chevelle; 1970-1972 Chevrolet Chevelle; 1965-1967 Chevrolet Chevy II; 1957-1969 Chevrolet Corvette; 1978 Chevrolet Corvette; 1984-1985 Chevrolet Corvette; 1964-1973 Chevrolet El Camino; 1975 Chevrolet El Camino; 1979-1981 Chevrolet El Camino; 1958-1969 Chevrolet Impala; 1975 Chevrolet Malibu; 1979-1981 Chevrolet Malibu; 1975 Chevrolet Monte Carlo; 1979 Chevrolet Monte Carlo; 1981 Chevrolet Monte Carlo; 1975-1979 Chevrolet Nova; 1978-1981 GMC Caballero; 1971-1973 GMC Sprint; 1975-1976 GMC Sprint

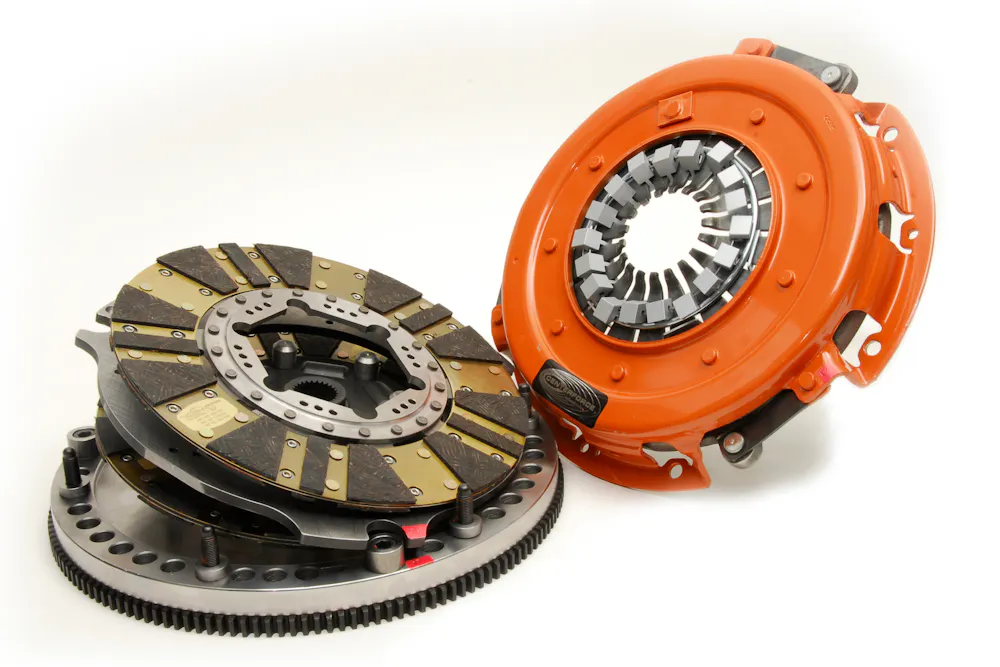

Centerforce 04614800
