Centerforce · 04613020
Part #: 04613020
UPC: 788442028003
Log in for inventory
Notify me when this item is in stock.
Description: DYAD(R) DS 10.4, Clutch and Flywheel Kit; The Centerforce(R) DYAD(R) DS (Drive System) 10.4" patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 500 to 1300 ft /lbs.
Description:
This part number has been superseded by 413613020.
Description
The Centerforce(R) DYAD DS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.
Features & benefits
- No complicated setup or adjustments required
Application summary
| Year | Make / model |
|---|---|
| 1970-1972 | Dodge Challenger |
| 1966-1972 | Dodge Charger |
| 1965-1967 | Dodge Coronet |
| 1970-1972 | Dodge Coronet |
| 1967-1972 | Dodge Dart |
| 1967-1973 | Plymouth Barracuda |
| 1963-1970 | Plymouth Belvedere |
| 1970-1973 | Plymouth Duster |
| 1963-1967 | Plymouth Fury |
| 1972 | Plymouth Gran Fury |
| 1968 | Plymouth GTX |
| 1970-1971 | Plymouth GTX |
| 1965-1969 | Plymouth Satellite |
| 1971-1972 | Plymouth Satellite |
Specifications
- GTIN
- 00788442028003
- Weight
- 53.5 lb
- Height
- 5.5 in
- Length
- 17 in
- Width
- 18 in
- EO
- Legal US
- Life cycle
- Superseded
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Disc Diameter
- 10.4
- Counterweight Assist
- Yes
- Crankshaft Bolt Hole Quantity
- 6
- Disc Material
- Organic/Carbon composite
- Disc Type
- Segmented face
- Disc Type Sprung Solid
- Sprung
- Flywheel Counter Balance Weight
- 0
- Flywheel Crank Bolt Size
- 7/16 x 20
- Flywheel Crank Flange Register
- 2.160
- Flywheel Deck Height
- 2.960
- Includes
- Pressure Plate, Discs, Floater, Flywheel, Bolts
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 26
- Material
- Billet Steel Flywheel / Nodular Iron Pressure Plate / Segmented Organic Friction
- Outside Diameter of Friction Surface (Metric)
- 266.7
- Replaceable Friction Surface
- N
- Ring Gear O.D
- 14.568
- Ring Gear Tooth Count
- 143
- Title

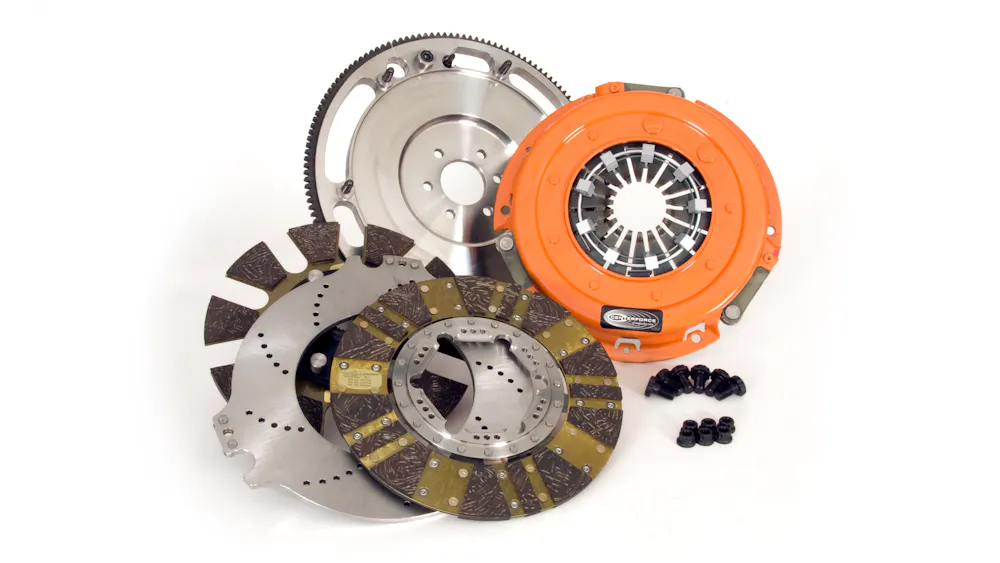

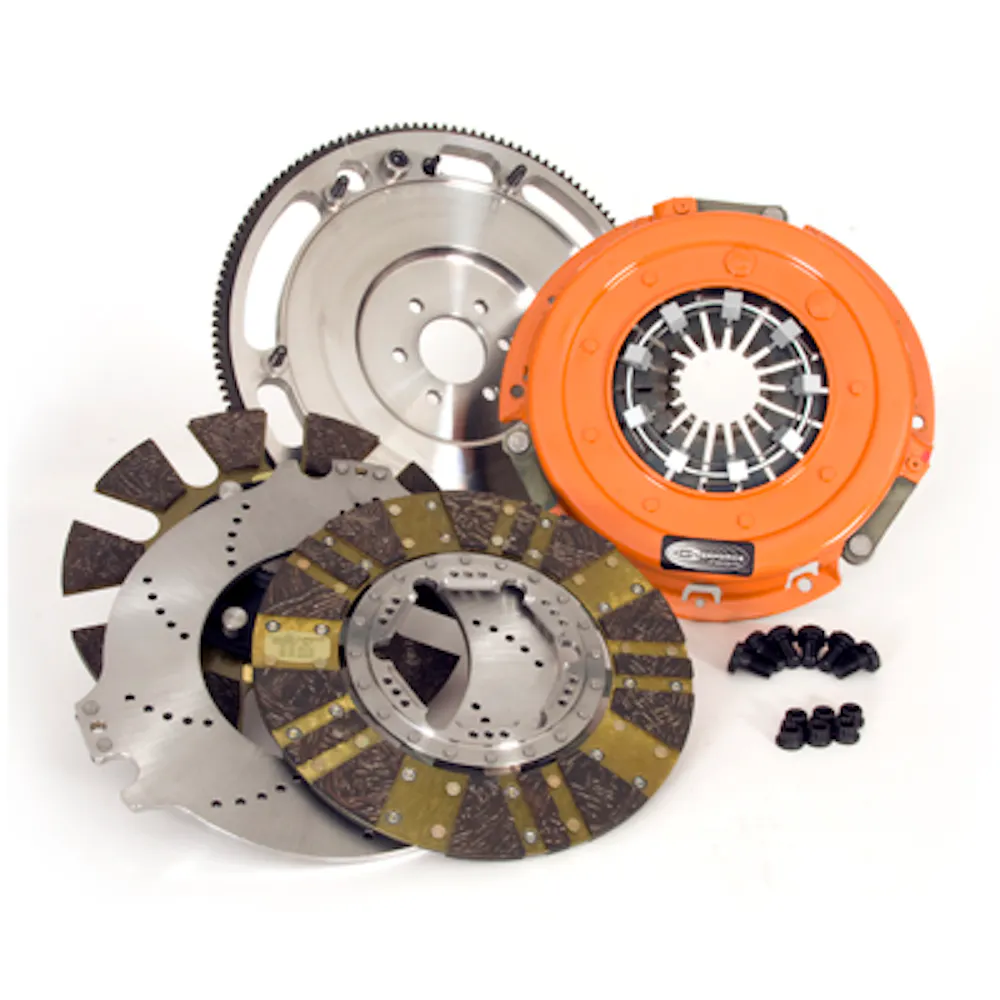

- PN: 04613020 - DYAD DS 10.4, Clutch and Flywheel Kit
- Torque Capacity
- 1300
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1970-1972 Dodge Challenger; 1966-1972 Dodge Charger; 1965-1967 Dodge Coronet; 1970-1972 Dodge Coronet; 1967-1972 Dodge Dart; 1967-1973 Plymouth Barracuda; 1963-1970 Plymouth Belvedere; 1970-1973 Plymouth Duster; 1963-1967 Plymouth Fury; 1972 Plymouth Gran Fury; 1968 Plymouth GTX; 1970-1971 Plymouth GTX; 1965-1969 Plymouth Satellite; 1971-1972 Plymouth Satellite
