Centerforce · 04215750

Part #: 04215750
UPC: 788442027907

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Centerforce

Description: DYAD(R) DS 10.4, Clutch and Flywheel Kit; The Centerforce(R) DYAD(R) DS (Drive System) 10.4" patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 500 to 1300 ft /lbs.

This part number has been superseded by 413215750.

Cancer - www.P65Warnings.ca.gov

Description

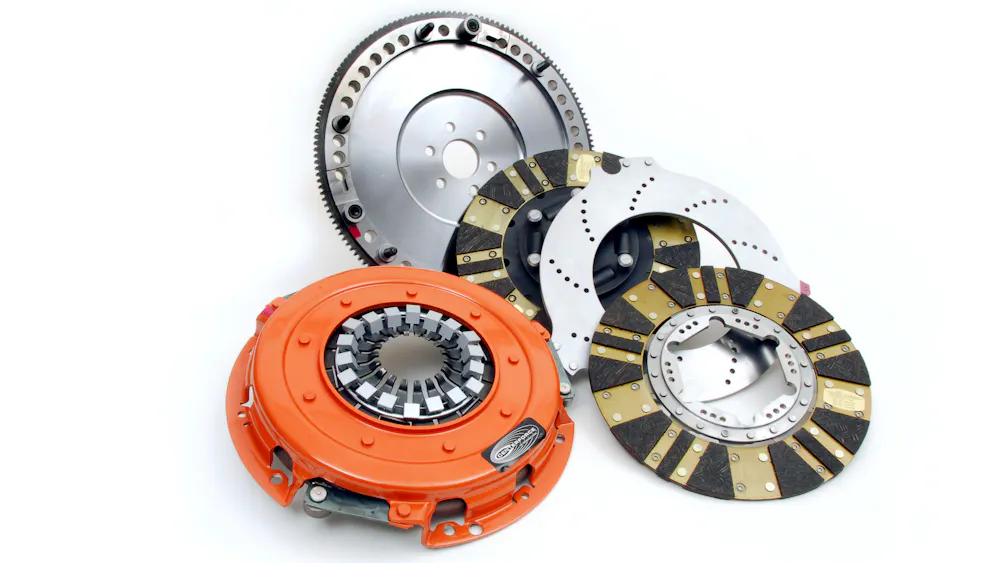

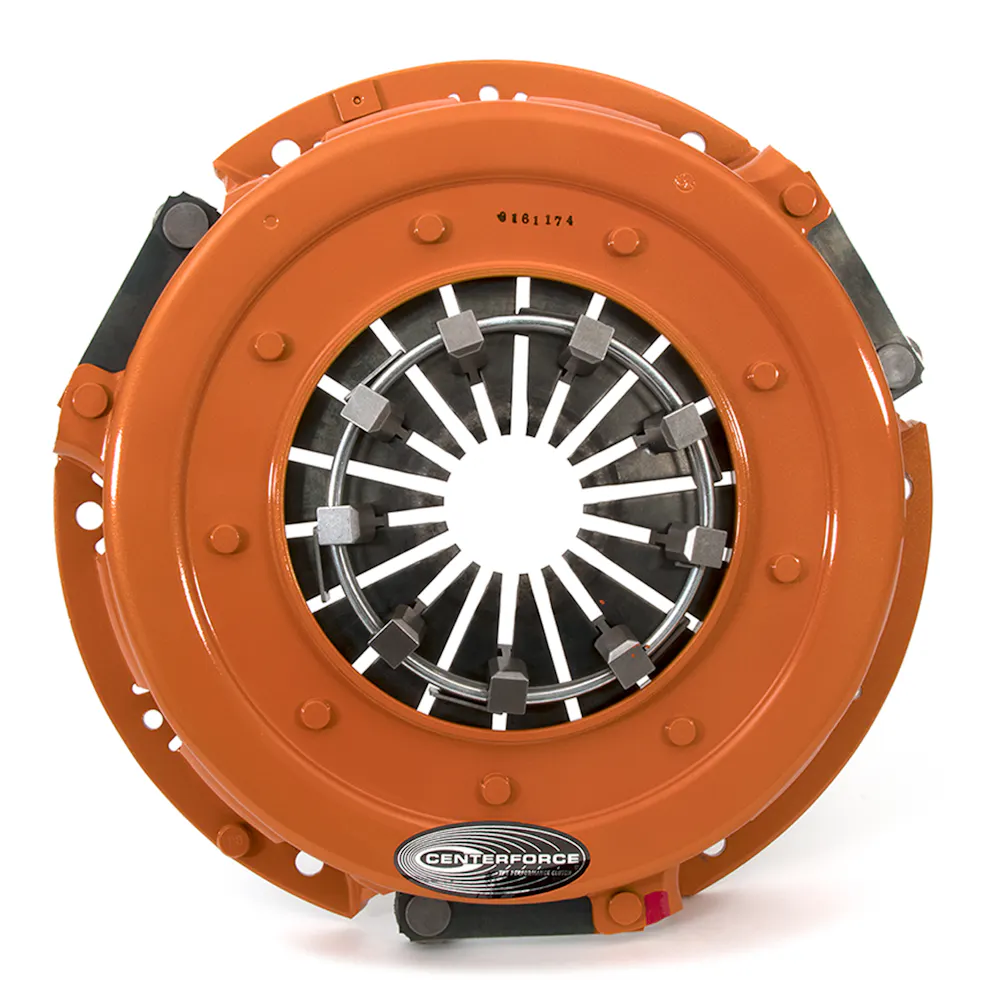

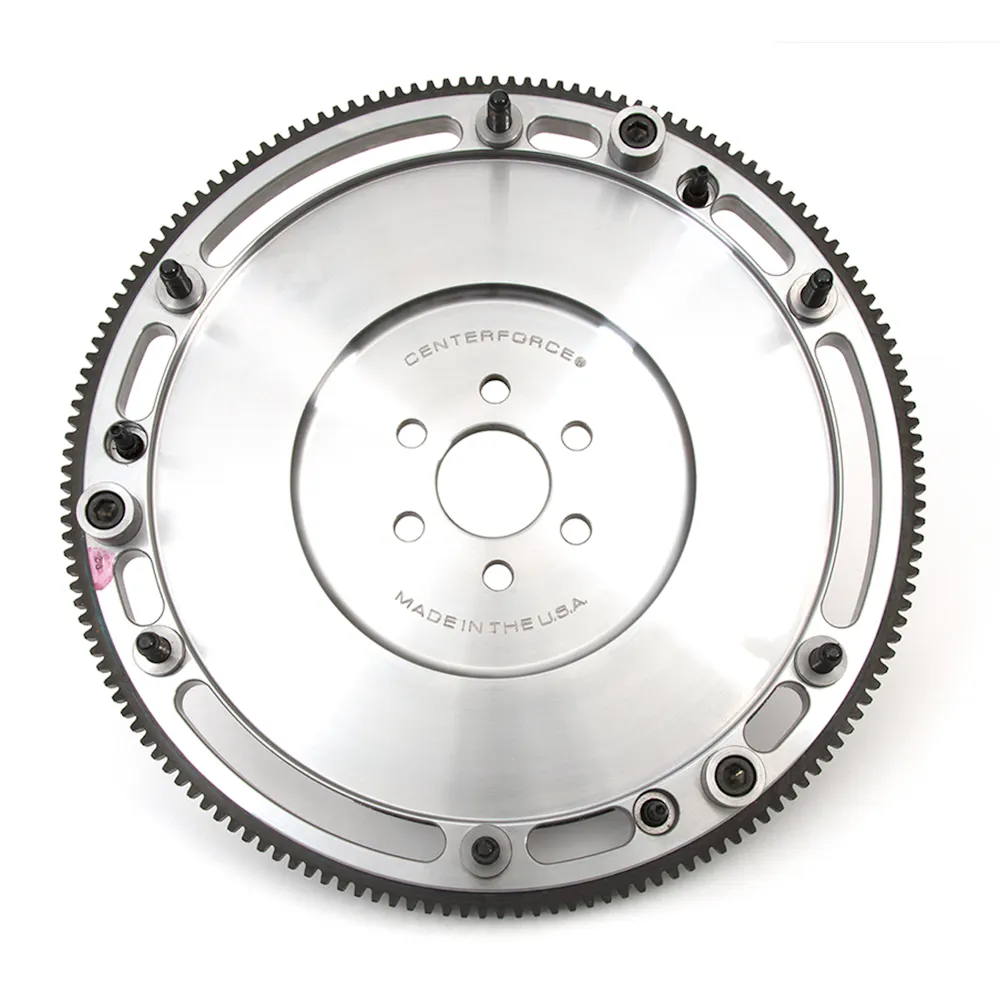

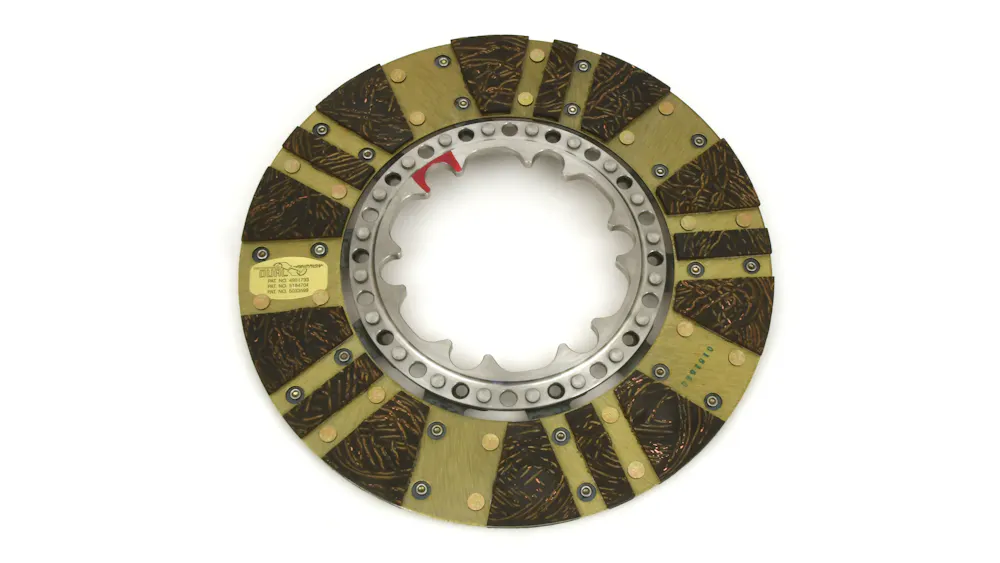

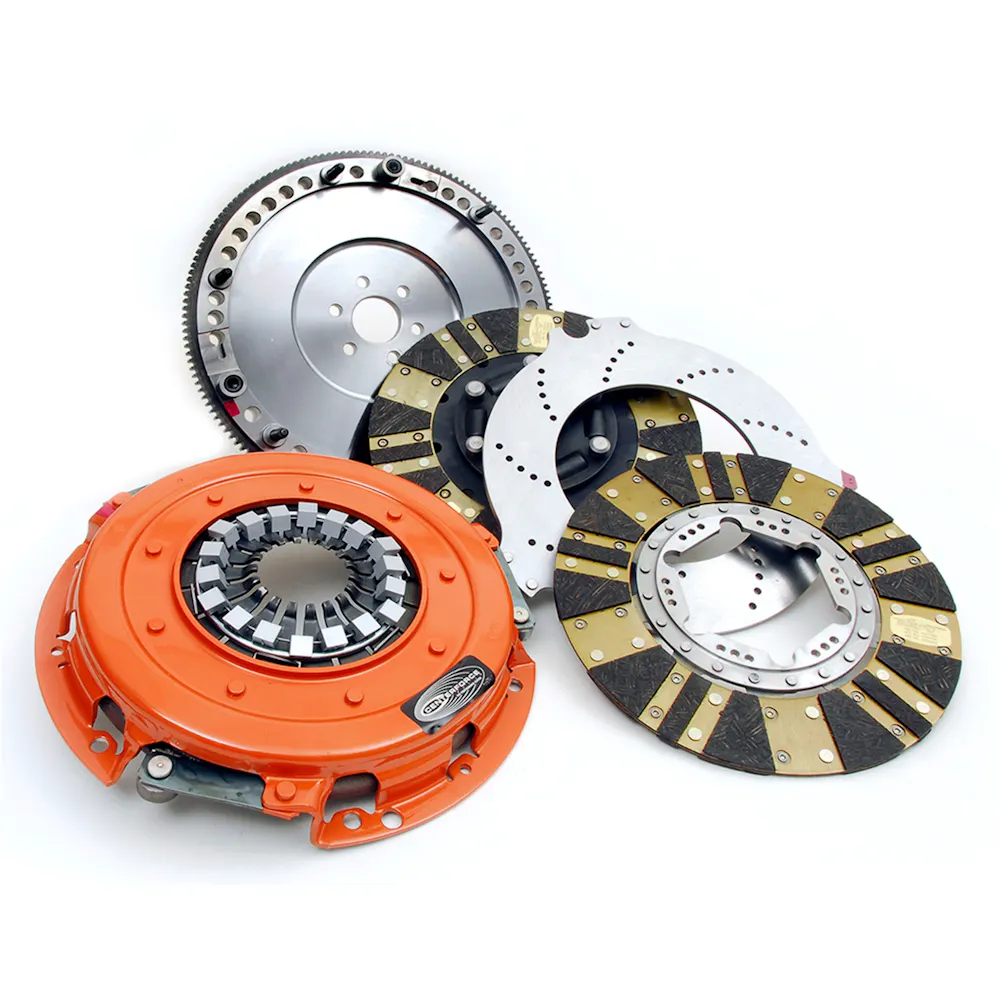

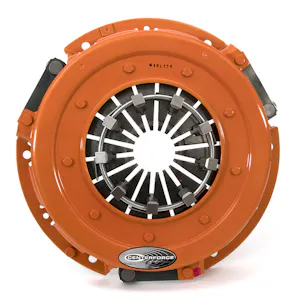

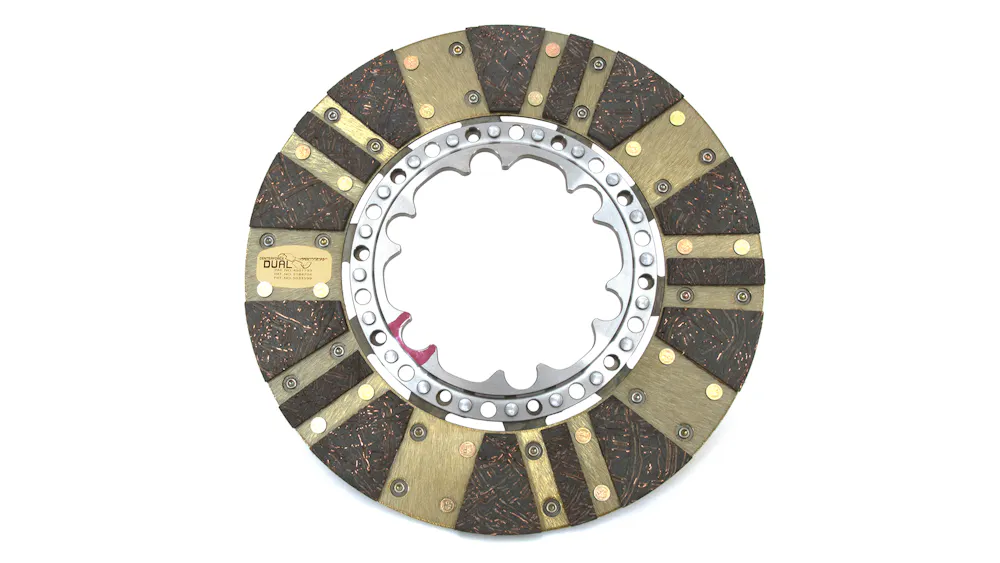

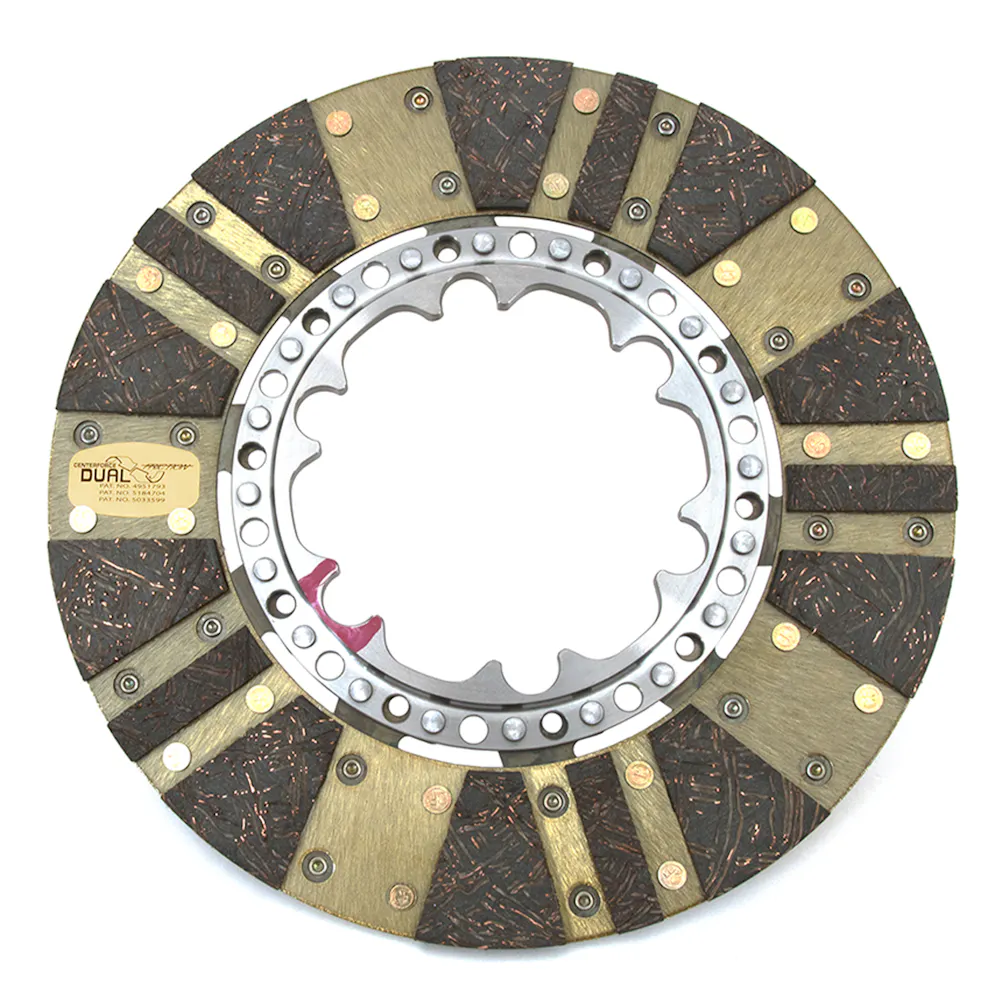

The Centerforce(R) DYAD DS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.

Features & benefits

No complicated setup or adjustments required

Application summary

Year	Make / model
1982-1994	Ford Mustang

Specifications

GTIN: 00788442027907
Weight: 48.15 lb
Height: 5.5 in
Length: 17 in
Width: 18 in
EO: Legal US
Life cycle: Superseded
AAM brand code: CEN
Warehouse brand code: CEN
AAIA brand code: BDPL

Attributes

AAM Standard Pack: 1
Attribute Data: 2
California Proposition 65: WARNING: Cancer - www.P65Warnings.ca.gov
Clutch Bolt Pattern: 7
Clutch Disc Diameter: 10.4
Counterweight Assist: Yes
Crankshaft Bolt Hole Quantity: 6
Disc Material: Organic/Carbon composite
Disc Type: Segmented face
Disc Type Sprung Solid: Sprung
Flywheel Counter Balance Weight: 50.0
Flywheel Crank Bolt Size: 7/16 x 20
Flywheel Crank Flange Register: 1.751
Flywheel Deck Height: 2.850

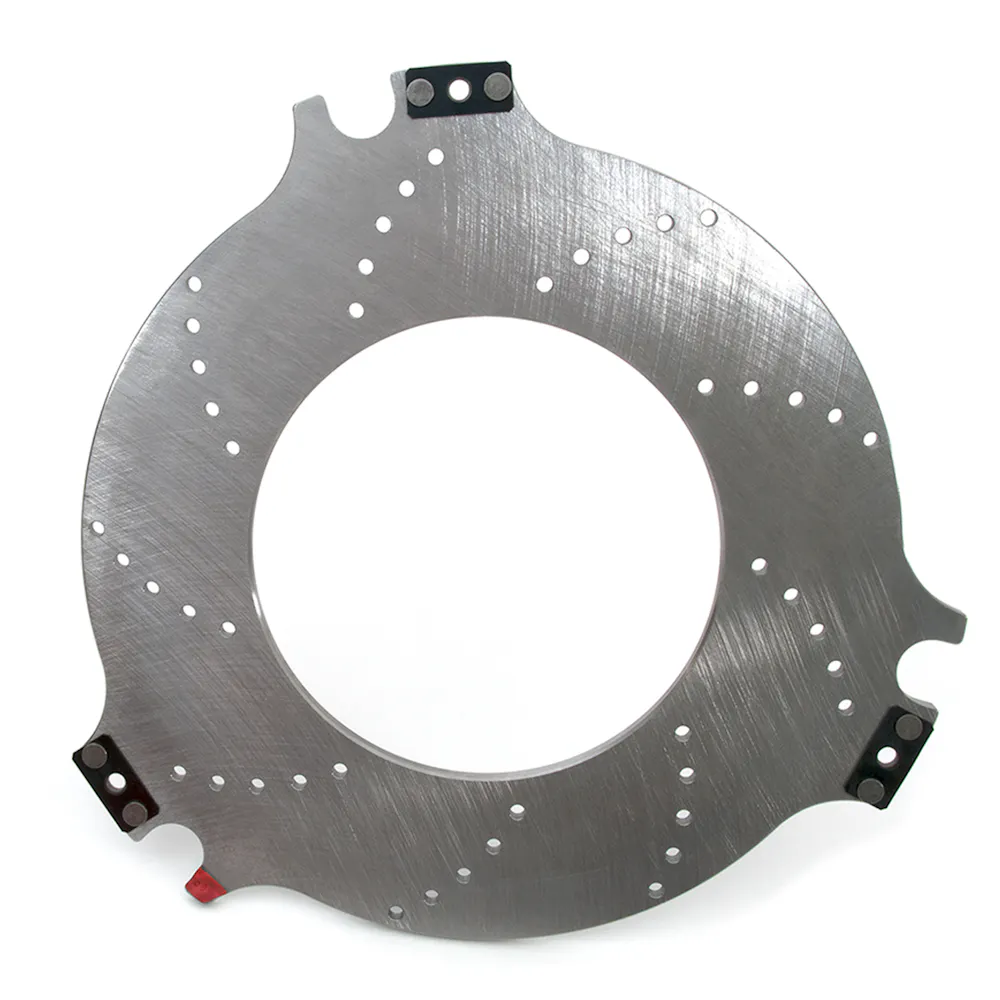

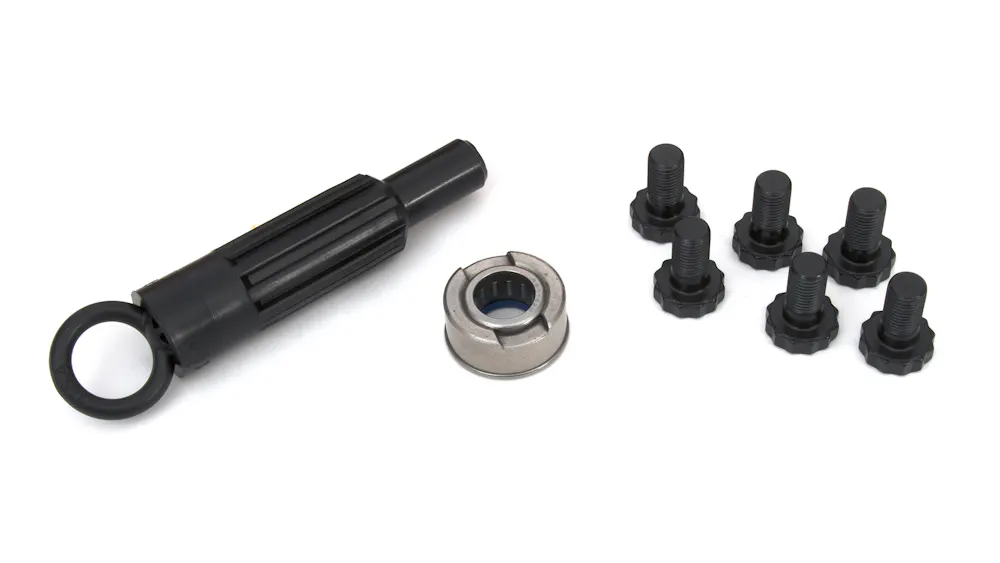

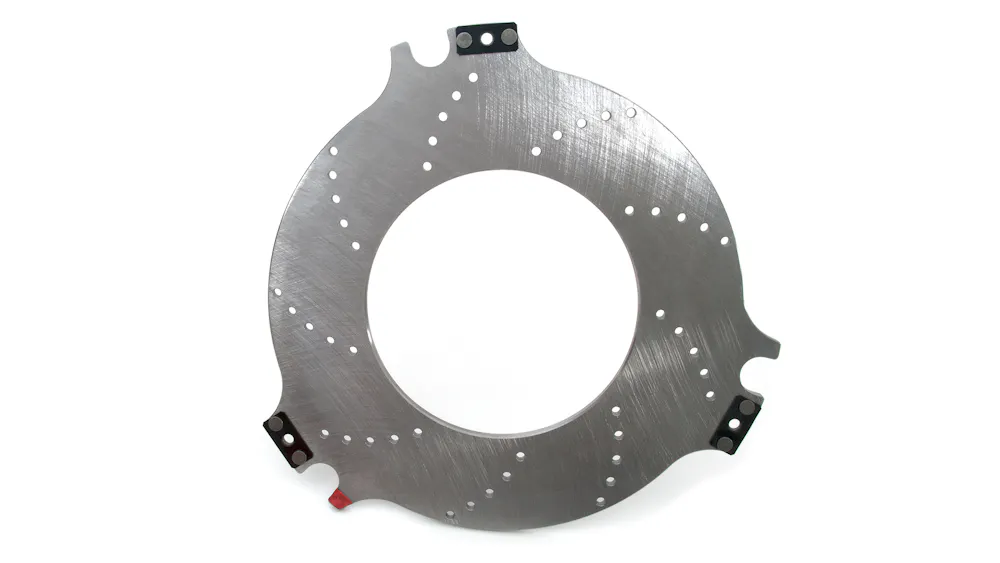

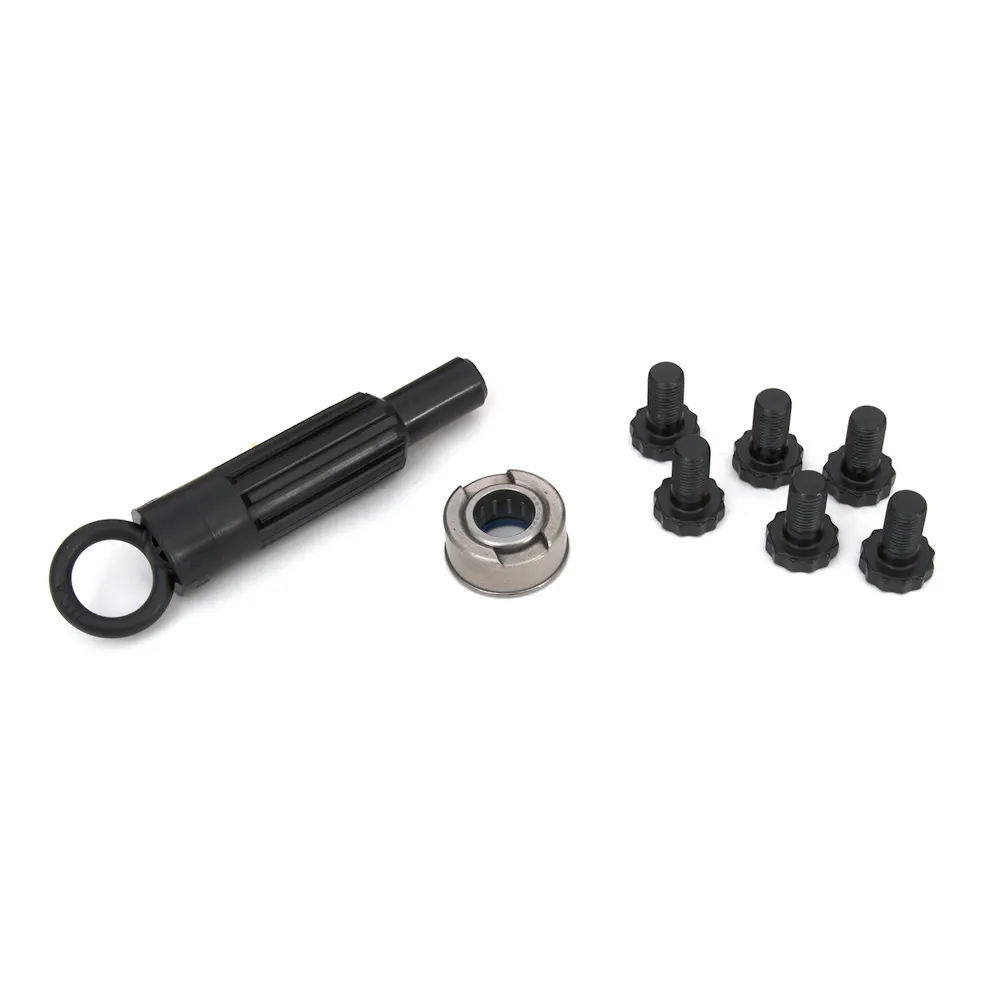

Includes: Pressure Plate, Discs, Floater, Flywheel, Bolts, Alignment Tool, Pilot Bearing
Input Shaft Diameter: 1-1/16
Input Spline Quantity: 10
Material: Billet Steel Flywheel / Nodular Iron Pressure Plate / Segmented Organic Friction
Outside Diameter of Friction Surface: 266.7mm
Outside Diameter of Friction Surface (Metric): 266.7
Outside Diameter of Friction Surface (Standard): 10.4
Replaceable Friction Surface: N
Ring Gear O.D: 13.294
Ring Gear Tooth Count: 157
Spline Diameter and Tooth Count: 1-1/16"-10
Title: PN: 04215750 - DYAD DS 10.4, Clutch and Flywheel Kit
Torque Capacity: 1300
