Centerforce / 04026651
Part #: 04026651
UPC: 788442028621
Loading...
Notify me when this item is in stock.

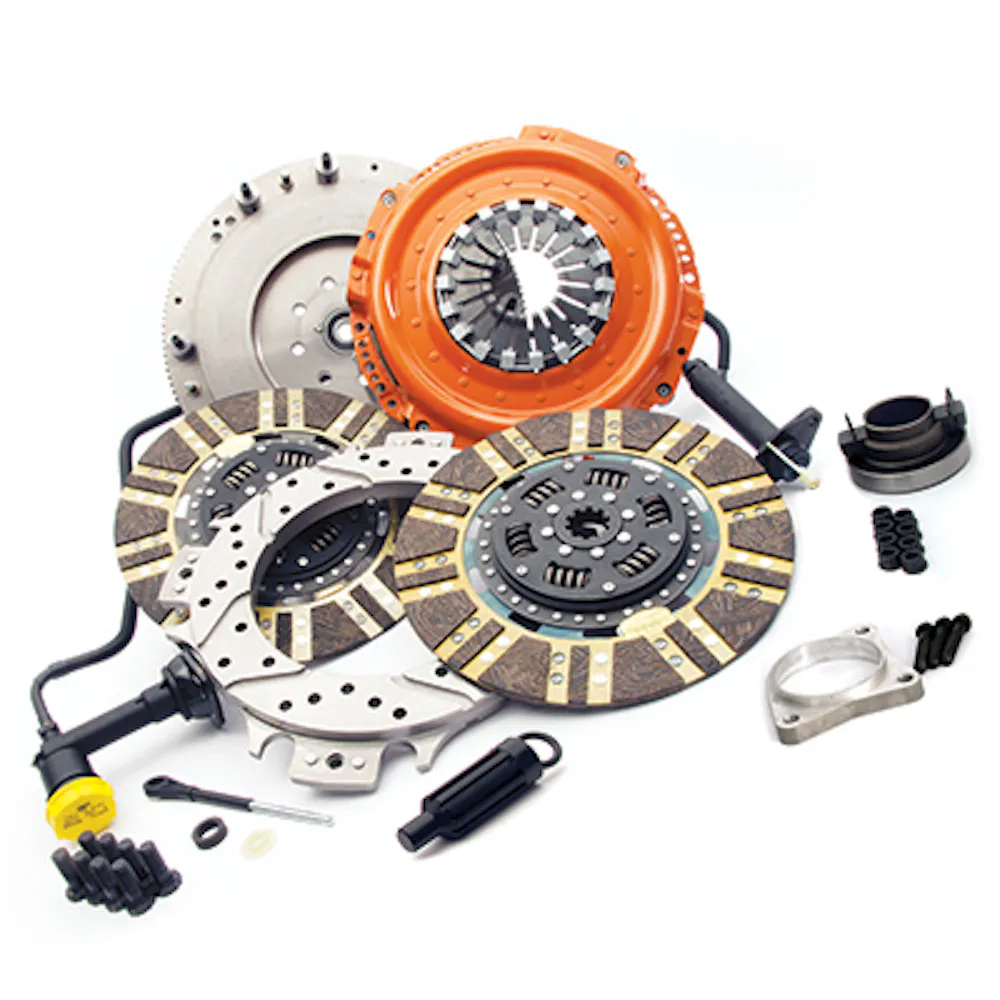

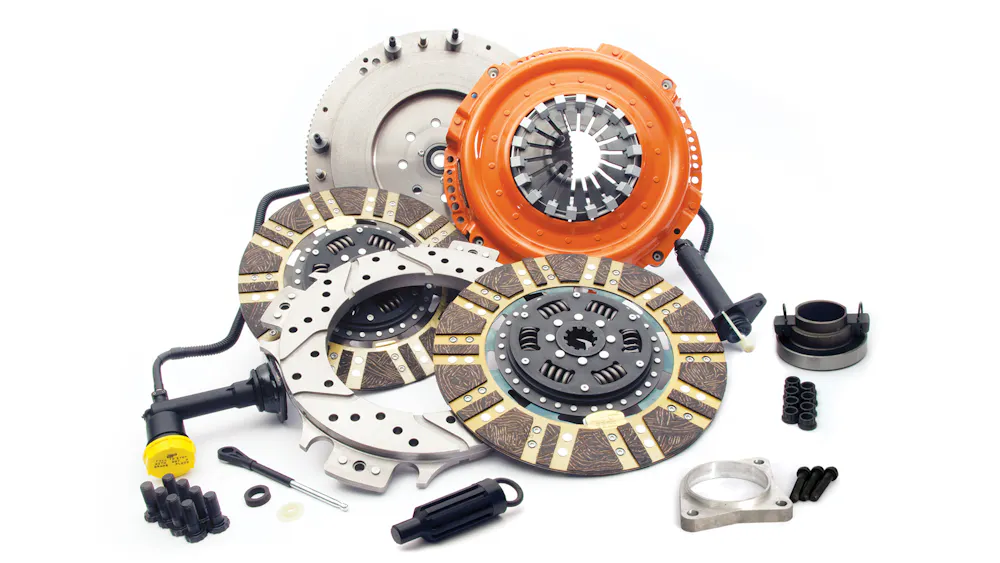

Description: Centerforce(R) Diesel Twin and Flywheel Kit; This Centerforce Twin Disc clutch offers smooth engagement, quiet operation, light pedal, and high-end holding capacity.
Description:
This part number has been superseded by 519026651.
Description
Available for Dodge Cummins Diesel equipped 2500-5500 trucks. Centerforce announces their NEW Twin Disc clutch set for Heavy-Duty street and towing use. Truck owners pushing power levels up to 1700 ft/lbs will enjoy the smooth and quiet operation this unique clutch set offers. All components are match balanced and ready for installation.
Features & benefits
- ARP hardware for unparalleled fastener strength and durability.
Application summary
| Year | Make / model |
|---|---|
| 2005-2010 | Dodge Ram 2500 |
| 2005-2010 | Dodge Ram 3500 |
| 2011-2016 | Ram 2500 |
| 2011-2015 | Ram 3500 |
Specifications
- GTIN
- 00788442028621
- Weight
- 114.8 lb
- Height
- 15 in
- Length
- 19 in
- Width
- 18.3 in
- EO
- Legal US
- Life cycle
- Superseded
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Bolt Pattern
- 22
- Clutch Disc Diameter
- 12.250
- Counterweight Assist
- Yes
- Crankshaft Bolt Hole Quantity
- 8

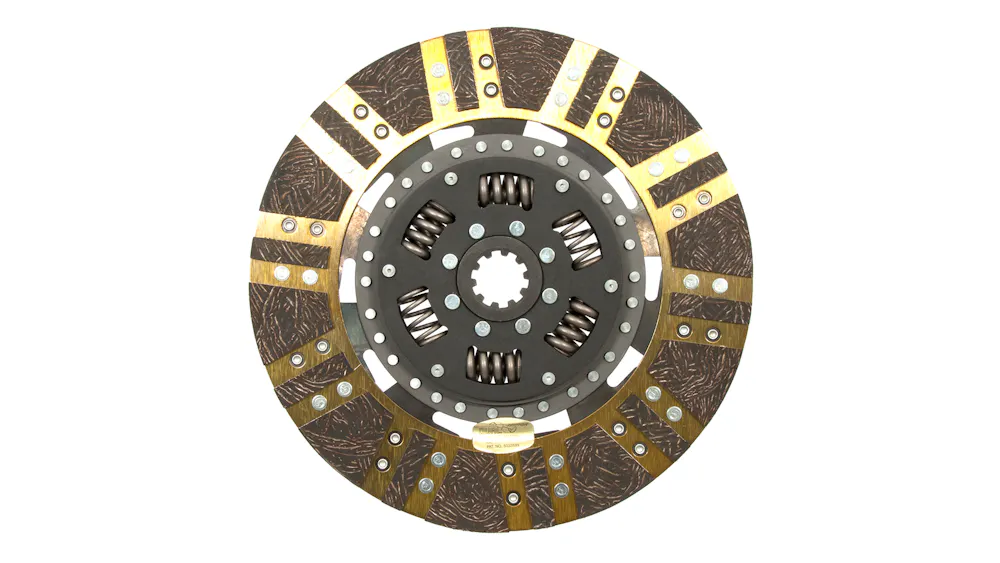

- Disc Material
- Organic/Carbon composite
- Disc Type
- Segmented face
- Disc Type Sprung Solid
- Sprung
- Flywheel Counter Balance Weight
- 0
- Flywheel Crank Bolt Size
- 12mm
- Includes

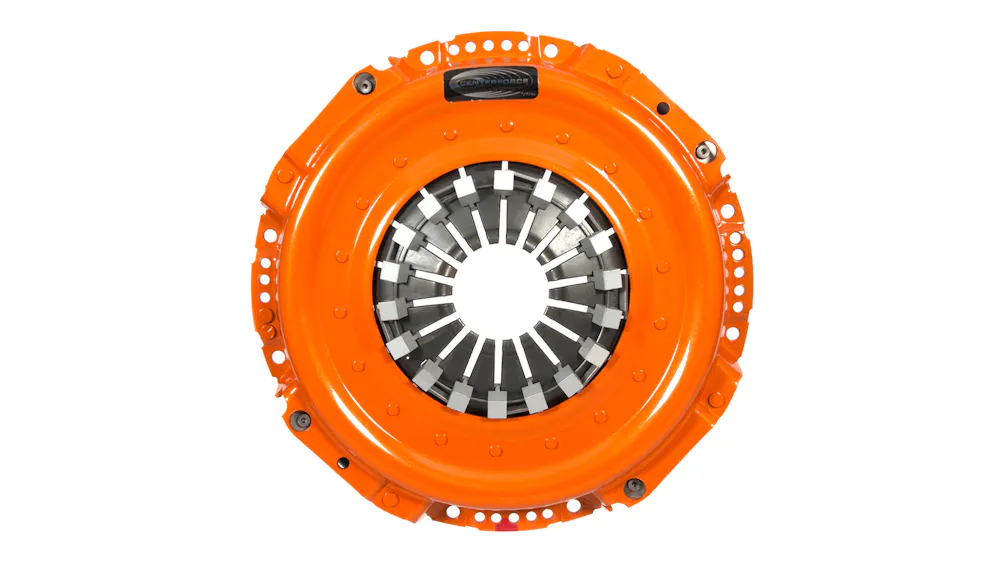

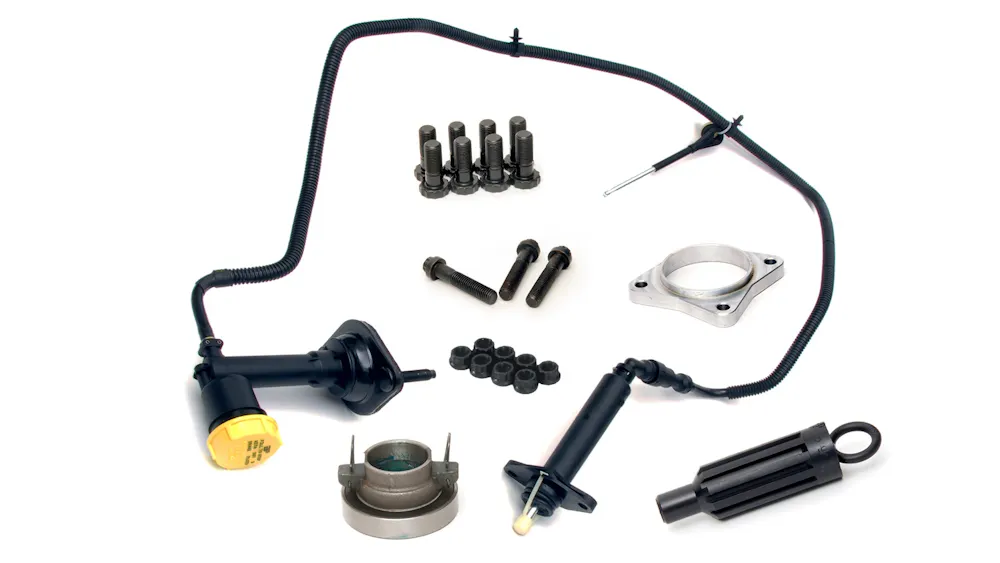

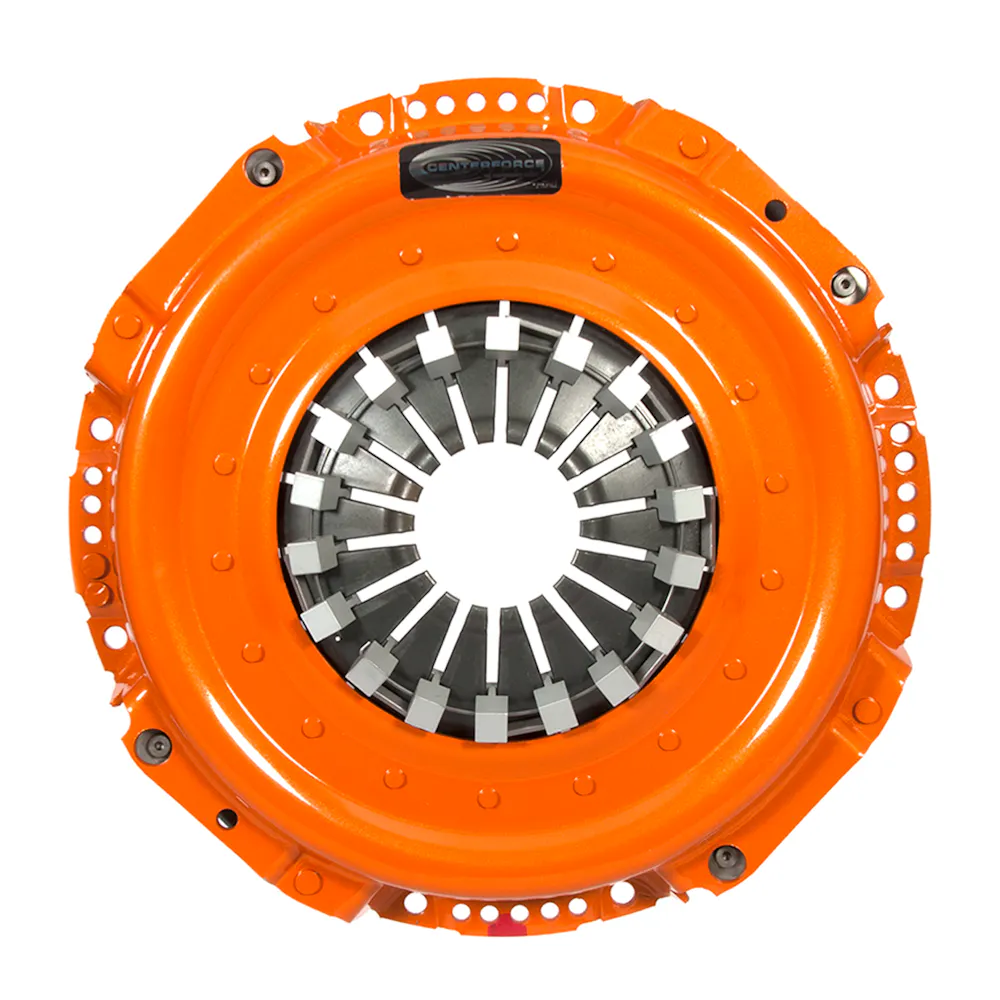

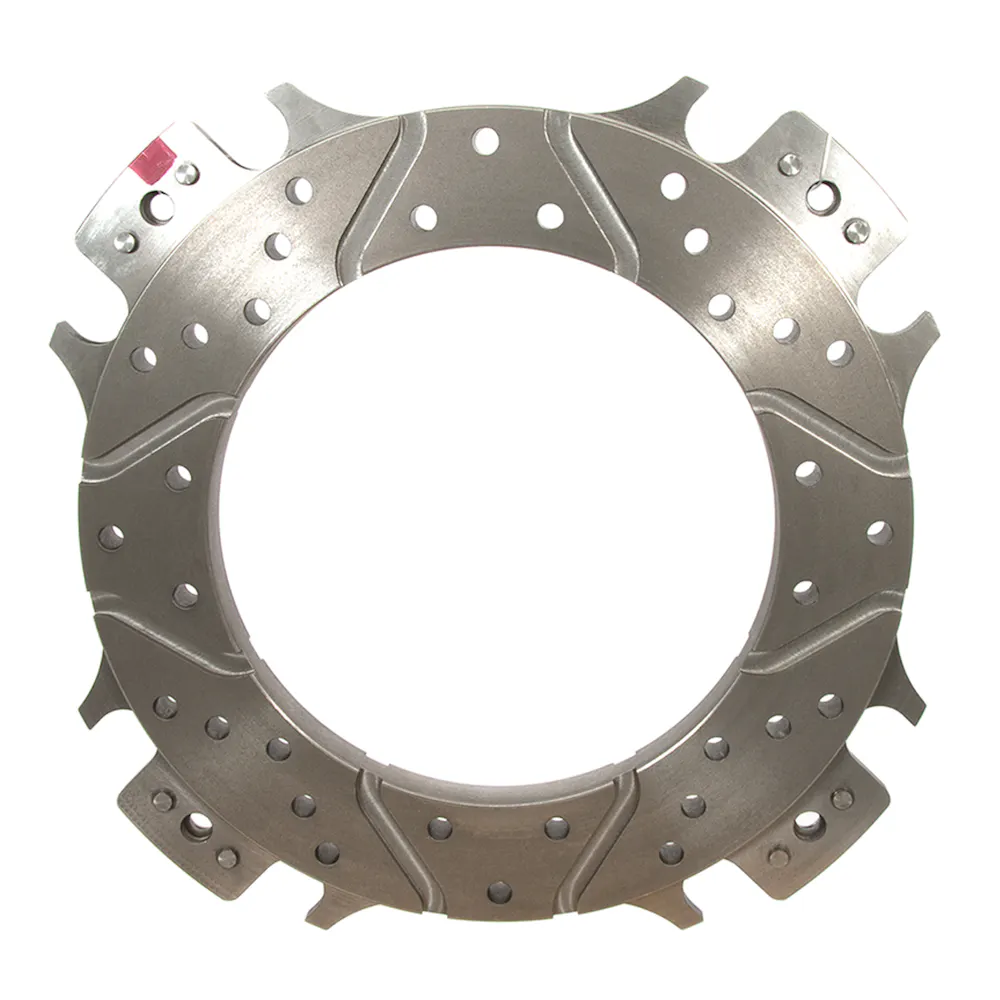

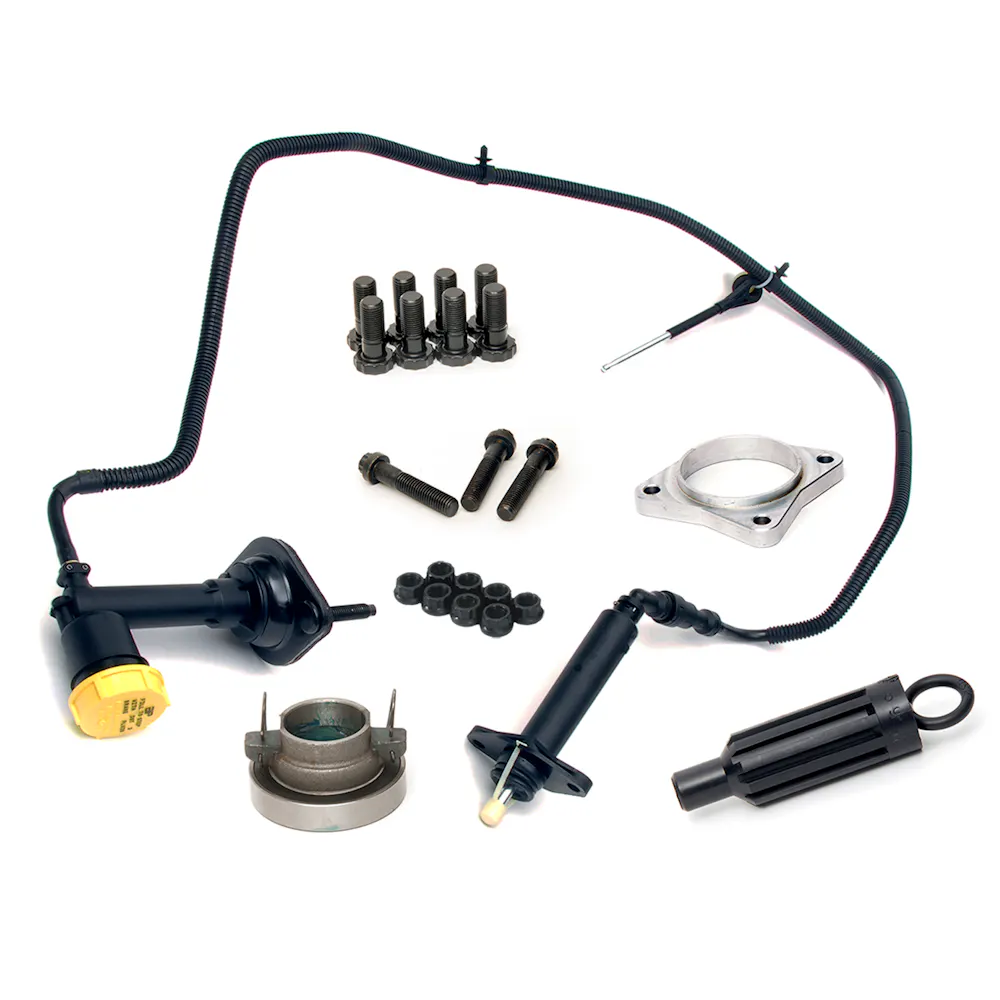

- P.P., Discs, Floater, Flywhl, Bolts, A.Tool, Pilot Brg, Hyd Mst & Slave.
- Input Shaft Diameter
- 1-3/8
- Input Spline Quantity
- 10
- Material
- Billet Steel Flywheel / Cast Iron Pressure Plate / Segmented Organic Friction
- Outside Diameter of Friction Surface
- 266.7mm
- Outside Diameter of Friction Surface (Metric)
- 266.7
- Outside Diameter of Friction Surface (Standard)
- 13
- Replaceable Friction Surface
- N
- Ring Gear O.D
- 15.625
- Ring Gear Tooth Count
- 152
- Spline Diameter and Tooth Count
- 1-3/8"-10
- Title
- PN: 04026651 - Centerforce Diesel Twin and Flywheel Kit
- Torque Capacity
- 1700
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2005-2010 Dodge Ram 2500; 2005-2010 Dodge Ram 3500; 2011-2016 Ram 2500; 2011-2015 Ram 3500

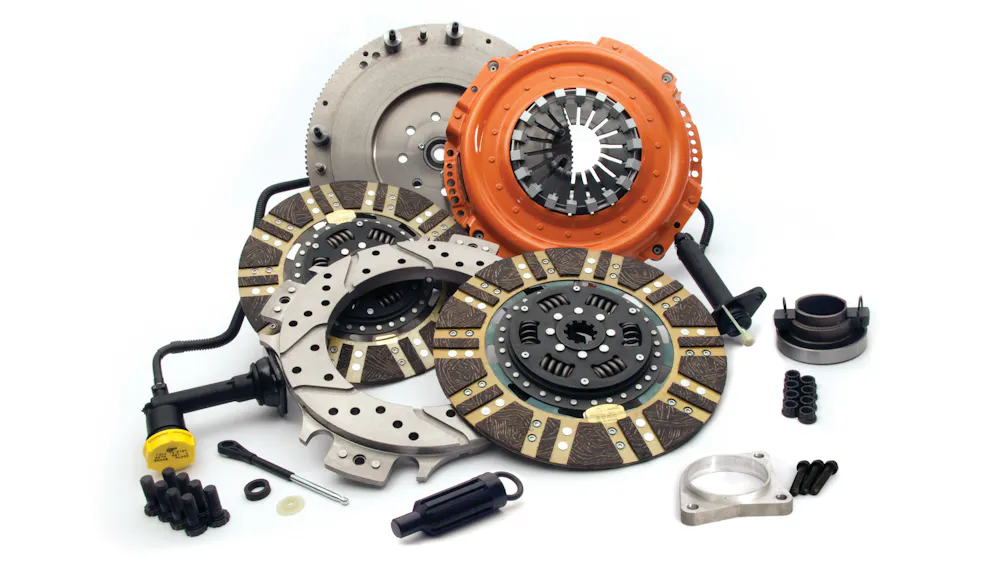

Centerforce 04026651
