Centerforce · 01735552
Part #: 01735552
UPC: 788442025293
Log in for inventory
Notify me when this item is in stock.

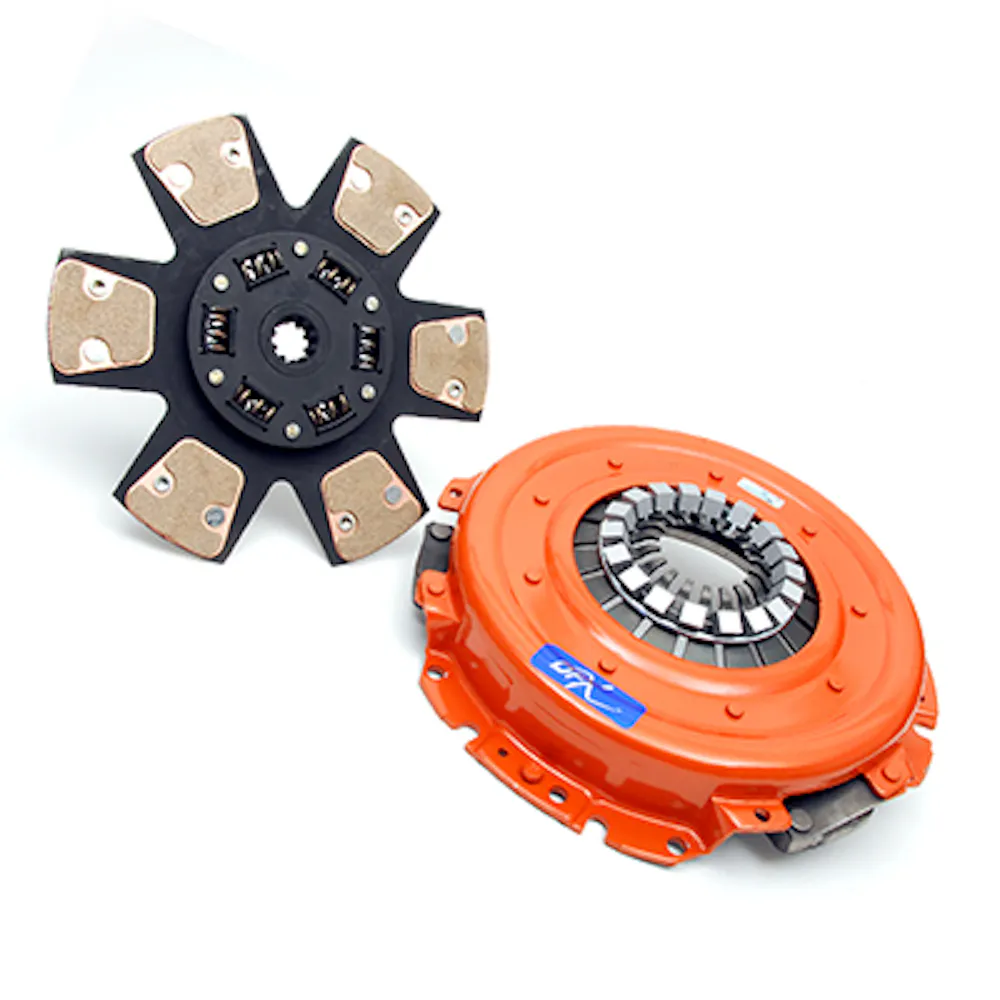

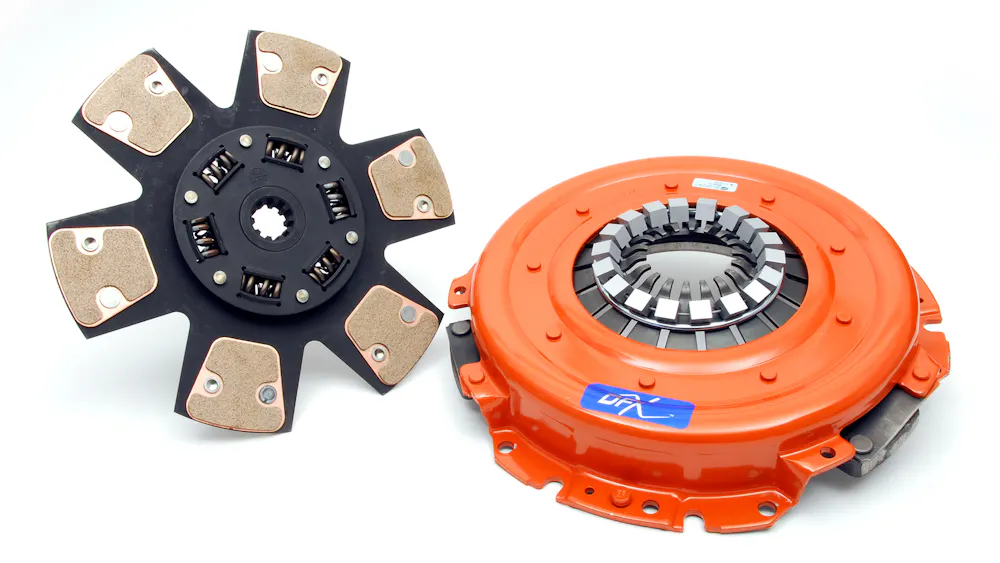

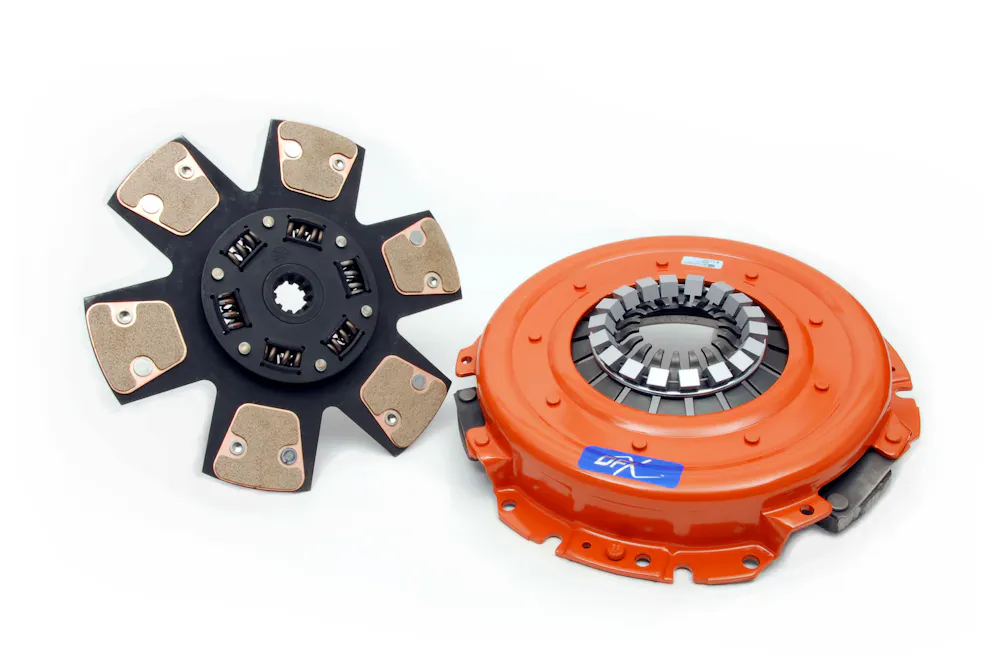

Description: DFX(R), Clutch Pressure Plate and Disc Set; The Centerforce(R) DFX(R) Clutch Series is SFI approved and brings together various reinforcements and patenteds technologies for a great race-inspired single disc clutch.
Description:
This part number has been superseded by 315735552.
Description
The Centerforce(R) DFX(R) Clutch Series is the competition-proven clutch package for select import and domestic applications. This DFX series is engineered for competition standards of quality and craftsmanship. The DFX series is aimed at high-end applications that continually demand increased integrity and holding-capacity. DFX scores big, not only with holding-capacity and strength, but also provides some of the best drivability from a race-inspired single disc clutch. The DFX series features the patented Centerforce centrifugal weight system (where applicable) and retains an easy pedal effort, thanks to Centerforce's patented ball bearing actuated diaphragm, for smooth engagements without detriment to the vehicle's release components. The Centerforce DFX performance clutch system is SFI approved for competition with Nodular Iron pressure plate rings and reinforcements designed to help prevent drive strap breakage and safety. Note: Due to the materials used, the DFX clutch series is more aggressive with less dampening; this can cause some additional drive train noise and/or chatter.
Features & benefits
- Added Durability
Application summary
| Year | Make / model |
|---|---|
| 1966 | Buick Electra |
| 1967-1968 | Buick Skylark |
| 1970 | Buick Skylark |
| 1966-1969 | Chevrolet Bel Air |
| 1965-1969 | Chevrolet Biscayne |
| 1969-1973 | Chevrolet Blazer |
| 1975-1984 | Chevrolet C10 |
| 1968-1974 | Chevrolet C10 Suburban |
| 1977-1980 | Chevrolet C10 Suburban |
| 1975-1984 | Chevrolet C20 |
| 1968-1982 | Chevrolet C20 Suburban |
| 1975-1984 | Chevrolet C30 |
| 1967-1969 | Chevrolet Camaro |
| 1966-1969 | Chevrolet Caprice |
| 1966-1967 | Chevrolet Chevelle |
| 1972 | Chevrolet Chevelle |
| 1966-1969 | Chevrolet Corvette |
| 1966-1970 | Chevrolet El Camino |
| 1972 | Chevrolet El Camino |
| 1965-1969 | Chevrolet Impala |
| 1975-1982 | Chevrolet K10 |
| 1968-1973 | Chevrolet K10 Suburban |
| 1977-1980 | Chevrolet K10 Suburban |
| 1975-1984 | Chevrolet K20 |
| 1968-1982 | Chevrolet K20 Suburban |
| 1977-1984 | Chevrolet K30 |
| 1975-1982 | Chevrolet K5 Blazer |
| 1972 | Chevrolet Monte Carlo |
| 1969-1970 | Chevrolet Nova |
| 1975-1978 | GMC C15 |
| 1975-1978 | GMC C15 Suburban |
| 1968-1974 | GMC C15/C1500 Pickup |
| 1968-1974 | GMC C15/C1500 Suburban |
| 1979-1984 | GMC C1500 |
| 1979-1984 | GMC C1500 Suburban |
| 1975-1978 | GMC C25 |
| 1975-1978 | GMC C25 Suburban |
| 1968-1974 | GMC C25/C2500 Pickup |
| 1968-1974 | GMC C25/C2500 Suburban |
| 1979-1984 | GMC C2500 |
| 1979-1984 | GMC C2500 Suburban |
| 1975-1978 | GMC C35 |
| 1968-1974 | GMC C35/C3500 Pickup |
| 1979-1984 | GMC C3500 |
| 1970-1984 | GMC Jimmy |
| 1975-1978 | GMC K15 |
| 1975-1978 | GMC K15 Suburban |
| 1968-1974 | GMC K15/K1500 Pickup |
| 1968-1973 | GMC K15/K1500 Suburban |
| 1979-1984 | GMC K1500 |
| 1979-1980 | GMC K1500 Suburban |
| 1982-1984 | GMC K1500 Suburban |
| 1975-1978 | GMC K25 |
| 1975-1978 | GMC K25 Suburban |
| 1968-1974 | GMC K25/K2500 Pickup |
| 1968-1974 | GMC K25/K2500 Suburban |
| 1979-1984 | GMC K2500 |
| 1979-1982 | GMC K2500 Suburban |
| 1984 | GMC K2500 Suburban |
| 1977-1978 | GMC K35 |
| 1970-1974 | GMC K35/K3500 Pickup |
| 1979-1984 | GMC K3500 |
| 1972 | GMC Sprint |
| 1970 | Jeep J-4500 |
| 1970 | Jeep J-4600 |
| 1970 | Jeep J-4700 |
| 1966-1971 | Oldsmobile 442 |
| 1965-1968 | Oldsmobile Cutlass |
| 1968-1972 | Oldsmobile Delta 88 |
| 1966 | Oldsmobile Starfire |
| 1965-1972 | Oldsmobile Vista Cruiser |
| 1965-1971 | Pontiac Bonneville |
| 1965-1971 | Pontiac Catalina |
Specifications
- GTIN
- 00788442025293
- Weight
- 31.25 lb
- Height
- 4 in
- Length
- 14 in
- Width
- 14 in
- EO
- Legal US
- Life cycle
- Superseded
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Bolt Pattern
- 3
- Clutch Disc Diameter
- 11
- Disc Material
- Cerametallic
- Disc Type
- 6-Paddle
- Disc Type Sprung Solid
- Sprung
- Includes
- Pressure Plate, Disc, Alignment tool.
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 10
- Material
- Cast Iron Pressure Plate / Cerametallic Button Style Friction
- Outside Diameter of Friction Surface (Standard)
- 11
- Replaceable Friction Surface
- N
- SFI 1.1 Approved
- Y
- Spline Diameter and Tooth Count
- 1-1/8"-10
- Title
- PN: 01735552 - DFX, Clutch Pressure Plate and Disc Set
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1966 Buick Electra; 1967-1968 Buick Skylark; 1970 Buick Skylark; 1966-1969 Chevrolet Bel Air; 1965-1969 Chevrolet Biscayne; 1969-1973 Chevrolet Blazer; 1975-1984 Chevrolet C10; 1968-1974 Chevrolet C10 Suburban; 1977-1980 Chevrolet C10 Suburban; 1975-1984 Chevrolet C20; 1968-1982 Chevrolet C20 Suburban; 1975-1984 Chevrolet C30; 1967-1969 Chevrolet Camaro; 1966-1969 Chevrolet Caprice; 1966-1967 Chevrolet Chevelle; 1972 Chevrolet Chevelle; 1966-1969 Chevrolet Corvette; 1966-1970 Chevrolet El Camino; 1972 Chevrolet El Camino; 1965-1969 Chevrolet Impala; 1975-1982 Chevrolet K10; 1968-1973 Chevrolet K10 Suburban; 1977-1980 Chevrolet K10 Suburban; 1975-1984 Chevrolet K20; 1968-1982 Chevrolet K20 Suburban; 1977-1984 Chevrolet K30; 1975-1982 Chevrolet K5 Blazer; 1972 Chevrolet Monte Carlo; 1969-1970 Chevrolet Nova; 1975-1978 GMC C15; 1975-1978 GMC C15 Suburban; 1968-1974 GMC C15/C1500 Pickup; 1968-1974 GMC C15/C1500 Suburban; 1979-1984 GMC C1500; 1979-1984 GMC C1500 Suburban; 1975-1978 GMC C25; 1975-1978 GMC C25 Suburban; 1968-1974 GMC C25/C2500 Pickup; 1968-1974 GMC C25/C2500 Suburban; 1979-1984 GMC C2500; 1979-1984 GMC C2500 Suburban; 1975-1978 GMC C35; 1968-1974 GMC C35/C3500 Pickup; 1979-1984 GMC C3500; 1970-1984 GMC Jimmy; 1975-1978 GMC K15; 1975-1978 GMC K15 Suburban; 1968-1974 GMC K15/K1500 Pickup; 1968-1973 GMC K15/K1500 Suburban; 1979-1984 GMC K1500; 1979-1980 GMC K1500 Suburban; 1982-1984 GMC K1500 Suburban; 1975-1978 GMC K25; 1975-1978 GMC K25 Suburban; 1968-1974 GMC K25/K2500 Pickup; 1968-1974 GMC K25/K2500 Suburban; 1979-1984 GMC K2500; 1979-1982 GMC K2500 Suburban; 1984 GMC K2500 Suburban; 1977-1978 GMC K35; 1970-1974 GMC K35/K3500 Pickup; 1979-1984 GMC K3500; 1972 GMC Sprint; 1970 Jeep J-4500; 1970 Jeep J-4600; 1970 Jeep J-4700; 1966-1971 Oldsmobile 442; 1965-1968 Oldsmobile Cutlass; 1968-1972 Oldsmobile Delta 88; 1966 Oldsmobile Starfire; 1965-1972 Oldsmobile Vista Cruiser; 1965-1971 Pontiac Bonneville; 1965-1971 Pontiac Catalina; ...
Equivalent Parts
Centerforce 01735552
