Centerforce / 01489989
Part #: 01489989
UPC: 788442025880
Loading...
Notify me when this item is in stock.

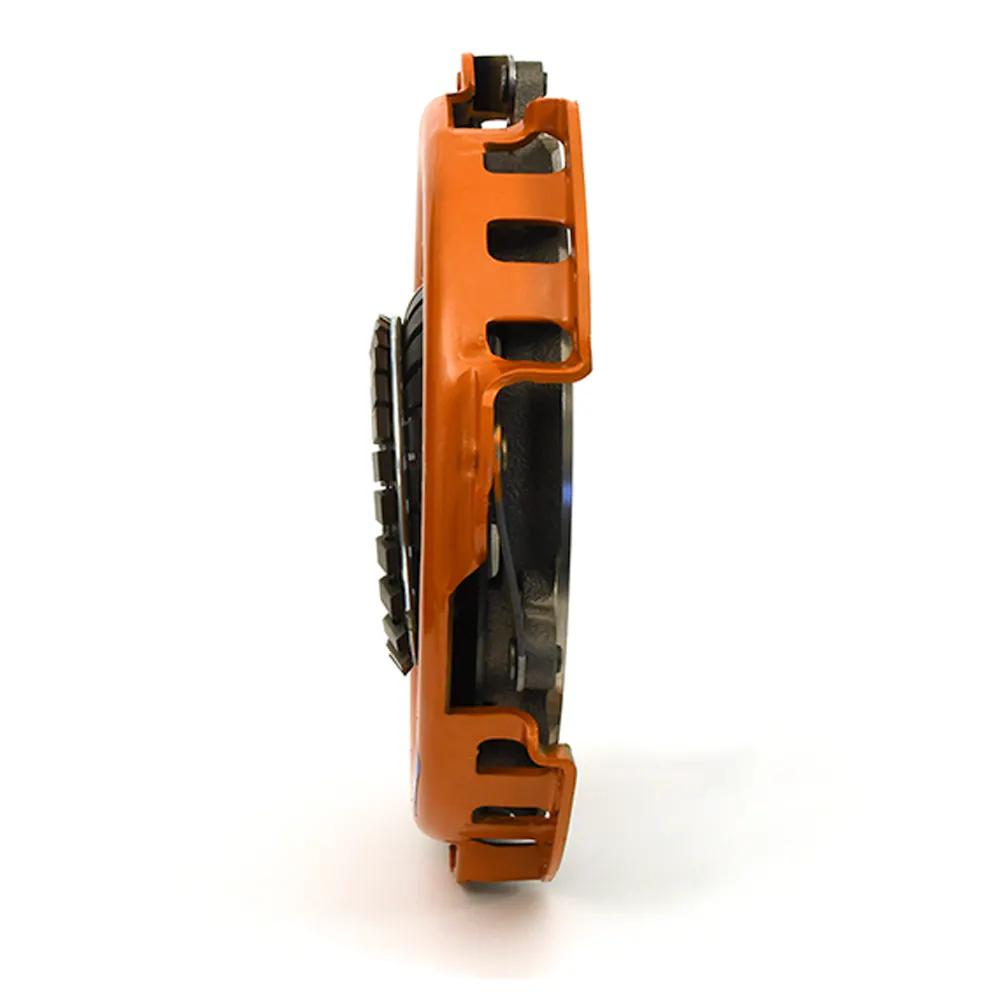

Description: DFX(R), Clutch Pressure Plate and Disc Set; The Centerforce(R) DFX(R) Clutch Series is SFI approved and brings together various reinforcements and patenteds technologies for a great race-inspired single disc clutch.
Description:
This part number has been superseded by 315489989.
Description
The Centerforce(R) DFX(R) Clutch Series is the competition-proven clutch package for select import and domestic applications. This DFX series is engineered for competition standards of quality and craftsmanship. The DFX series is aimed at high-end applications that continually demand increased integrity and holding-capacity. DFX scores big, not only with holding-capacity and strength, but also provides some of the best drivability from a race-inspired single disc clutch. The DFX series features the patented Centerforce centrifugal weight system (where applicable) and retains an easy pedal effort, thanks to Centerforce's patented ball bearing actuated diaphragm, for smooth engagements without detriment to the vehicle's release components. The Centerforce DFX performance clutch system is SFI approved for competition with Nodular Iron pressure plate rings and reinforcements designed to help prevent drive strap breakage and safety. Note: Due to the materials used, the DFX clutch series is more aggressive with less dampening; this can cause some additional drive train noise and/or chatter.
Features & benefits
- Added Durability
Application summary
| Year | Make / model |
|---|---|
| 1994-2004 | Dodge Ram 2500 |
| 1994-2003 | Dodge Ram 3500 |
Specifications
- GTIN
- 00788442025880
- Weight
- 45 lb
- Height
- 4 in
- Length
- 14 in
- Width
- 14 in
- EO
- Legal US
- Life cycle
- Superseded
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Bolt Pattern
- 22
- Clutch Disc Diameter
- 12-1/4
- Disc Material
- Cerametallic

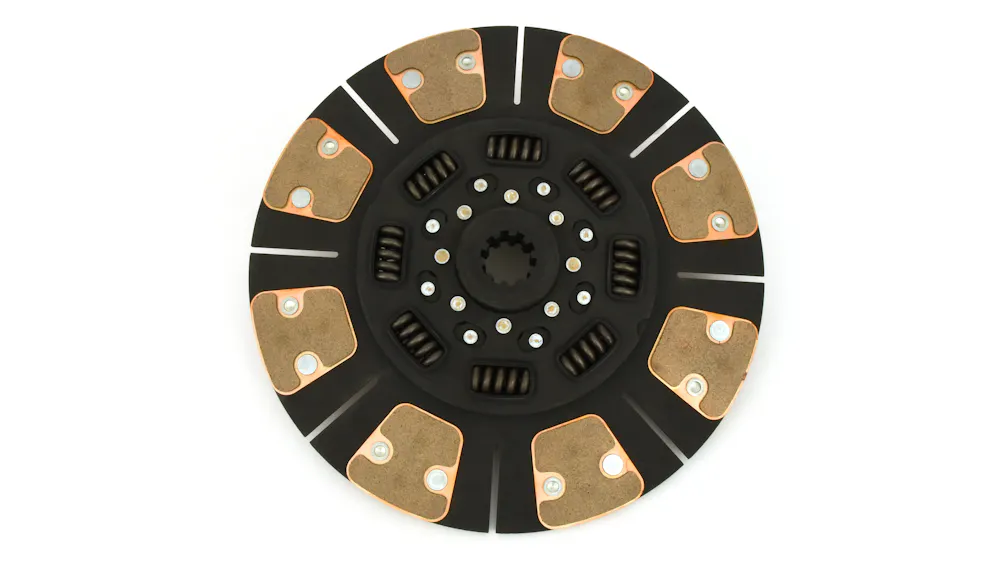

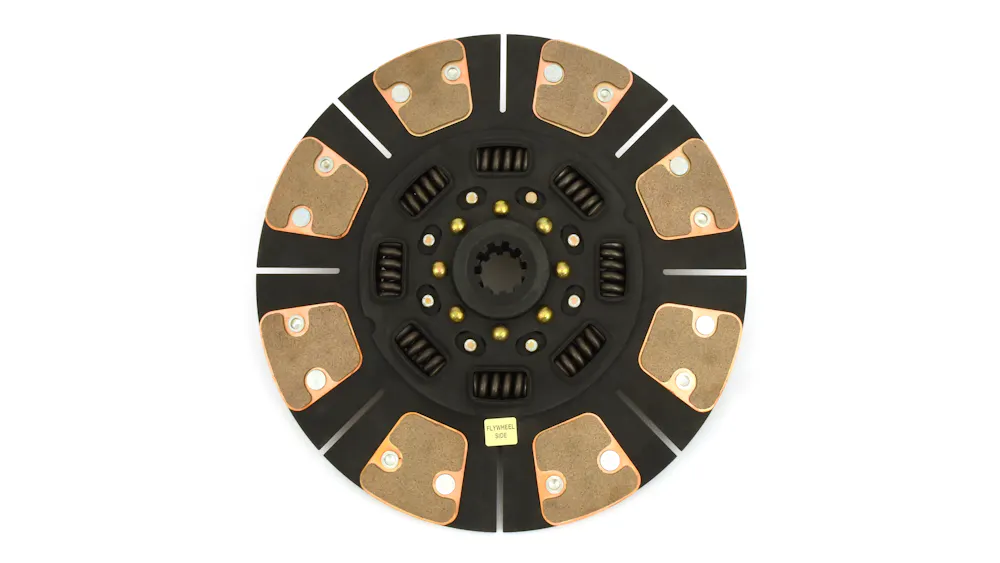

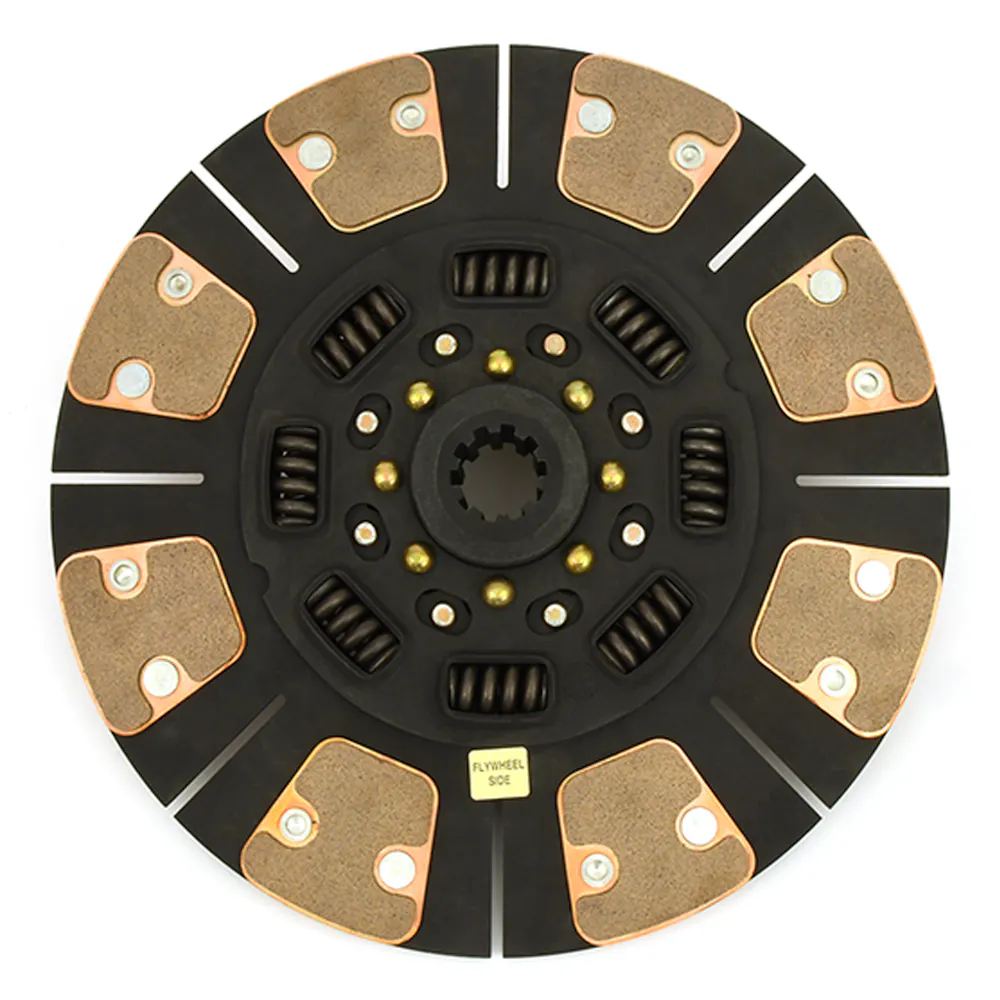

- Disc Type
- 8-Paddle
- Disc Type Sprung Solid
- Sprung

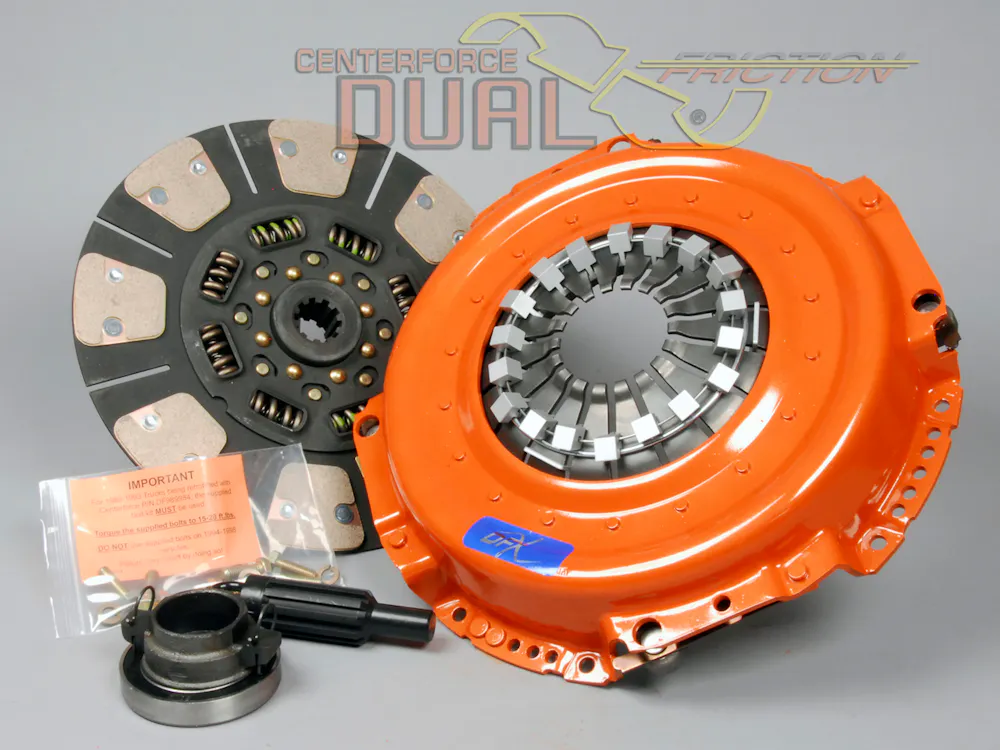

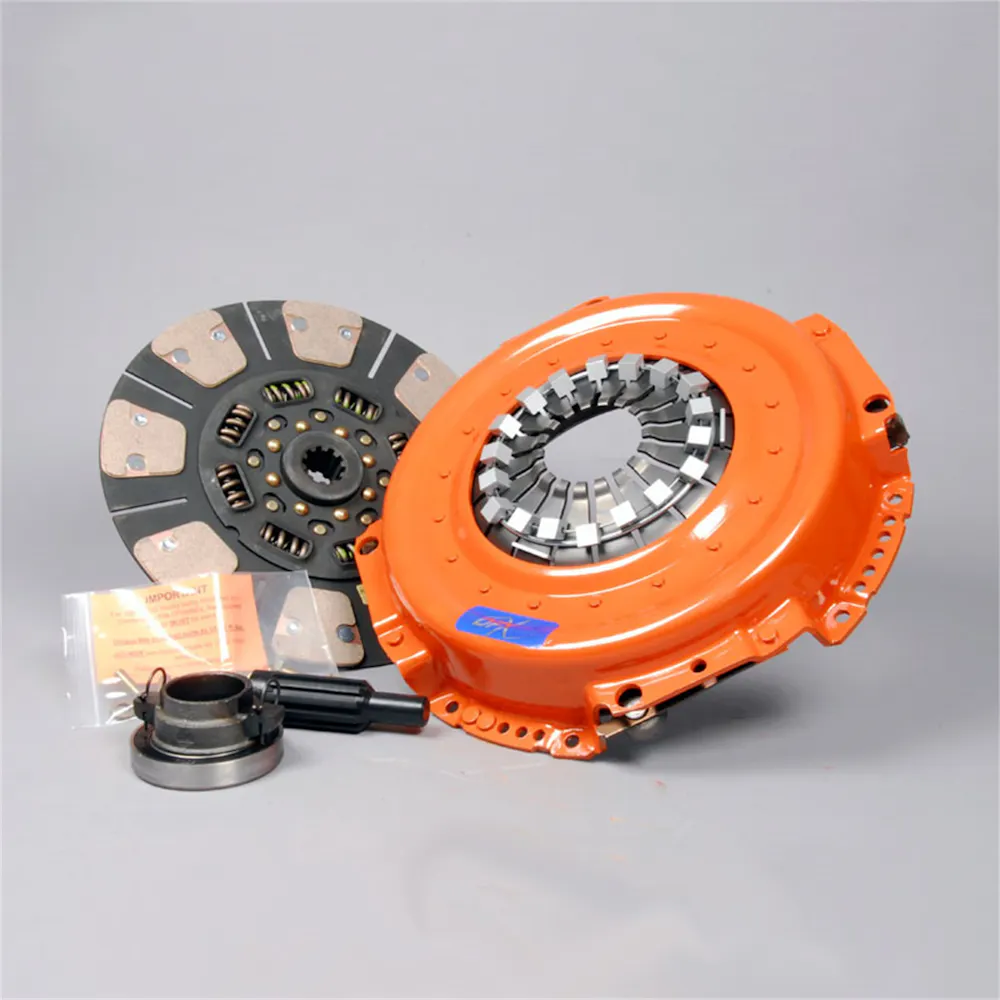

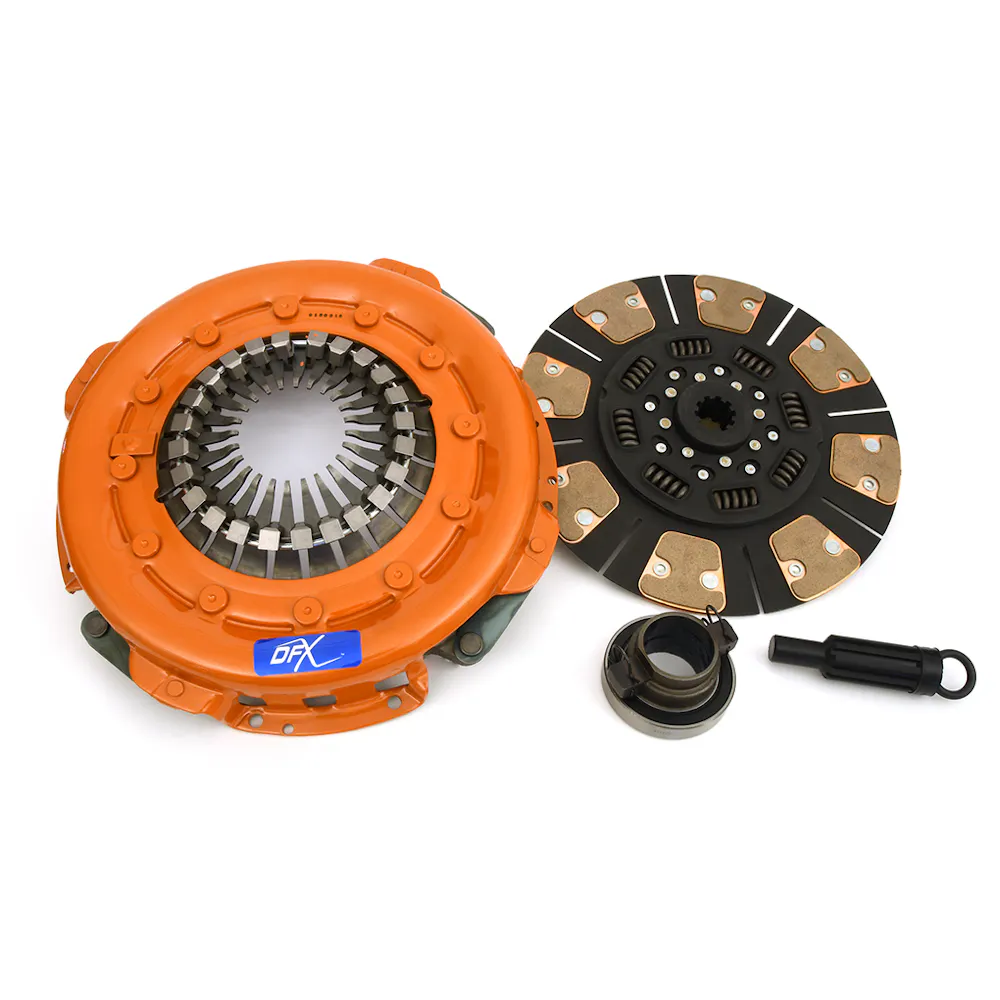

- Includes

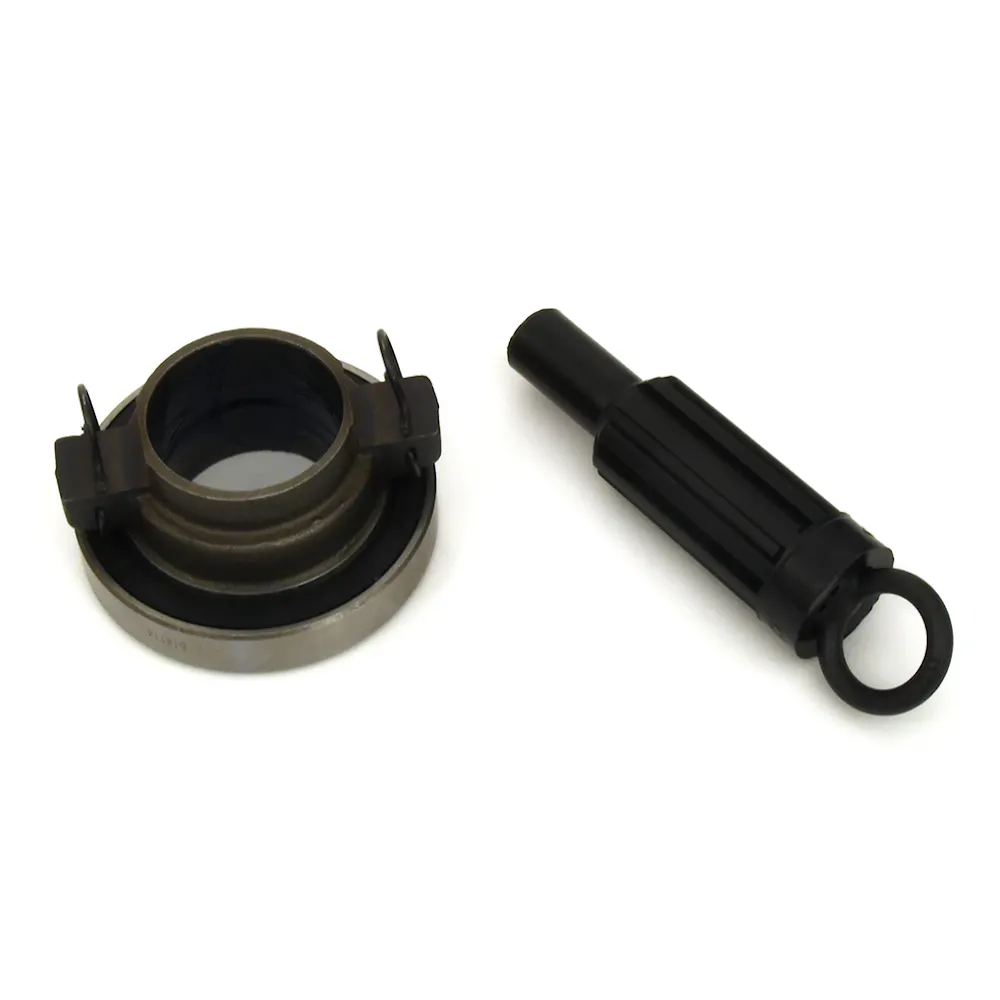

- Pressure Plate, Disc, T.O.B., Alignment Tool
- Input Shaft Diameter
- 1-1/4
- Input Spline Quantity
- 10
- Material
- Cast Iron Pressure Plate / Cerametallic Button Style Friction
- Outside Diameter of Friction Surface (Standard)
- 12-1/4
- Replaceable Friction Surface
- N
- SFI 1.1 Approved
- Y
- Spline Diameter and Tooth Count
- 1-1/4"-10
- Title
- PN: 01489989 - DFX, Clutch Pressure Plate and Disc Set
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1994-2004 Dodge Ram 2500; 1994-2003 Dodge Ram 3500
Resources
- Brand logo
- Technical Bulletin
- Technical Bulletin
- Technical Bulletin
- Technical Bulletin
- Logo Image
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Primary
- Photo - Unmounted
- Photo - Unmounted
- Photo - Unmounted
- Centerforce® DFX Clutch
