Centerforce · 01271739
Part #: 01271739
UPC: 788442024463
Log in for inventory
Notify me when this item is in stock.
Description: DFX(R), Clutch Pressure Plate and Disc Set; The Centerforce(R) DFX(R) Clutch Series is SFI approved and brings together various reinforcements and patenteds technologies for a great race-inspired single disc clutch.
Description:
This part number has been superseded by 315271739.
Description
The Centerforce(R) DFX(R) Clutch Series is the competition-proven clutch package for select import and domestic applications. This DFX series is engineered for competition standards of quality and craftsmanship. The DFX series is aimed at high-end applications that continually demand increased integrity and holding-capacity. DFX scores big, not only with holding-capacity and strength, but also provides some of the best drivability from a race-inspired single disc clutch. The DFX series features the patented Centerforce centrifugal weight system (where applicable) and retains an easy pedal effort, thanks to Centerforce's patented ball bearing actuated diaphragm, for smooth engagements without detriment to the vehicle's release components. The Centerforce DFX performance clutch system is SFI approved for competition with Nodular Iron pressure plate rings and reinforcements designed to help prevent drive strap breakage and safety. Note: Due to the materials used, the DFX clutch series is more aggressive with less dampening; this can cause some additional drive train noise and/or chatter.
Features & benefits
- Added Durability
Application summary
| Year | Make / model |
|---|---|
| 1968-1970 | American Motors AMX |
| 1968-1974 | American Motors Javelin |
| 1979 | Buick Century |
| 1967 | Buick LeSabre |
| 1979 | Buick Regal |
| 1967 | Buick Skylark |
| 1967 | Buick Special |
| 1955-1956 | Chevrolet Bel Air |
| 1962-1969 | Chevrolet Bel Air |
| 1958-1969 | Chevrolet Biscayne |
| 1967-1969 | Chevrolet Camaro |
| 1975-1982 | Chevrolet Camaro |
| 1966-1969 | Chevrolet Caprice |
| 1964-1967 | Chevrolet Chevelle |
| 1970-1972 | Chevrolet Chevelle |
| 1965-1967 | Chevrolet Chevy II |
| 1957-1969 | Chevrolet Corvette |
| 1978 | Chevrolet Corvette |
| 1964-1973 | Chevrolet El Camino |
| 1975 | Chevrolet El Camino |
| 1978-1981 | Chevrolet El Camino |
| 1958-1969 | Chevrolet Impala |
| 1975 | Chevrolet Malibu |
| 1978-1981 | Chevrolet Malibu |
| 1975 | Chevrolet Monte Carlo |
| 1978-1979 | Chevrolet Monte Carlo |
| 1981 | Chevrolet Monte Carlo |
| 1975-1979 | Chevrolet Nova |
| 1978-1981 | GMC Caballero |
| 1971-1973 | GMC Sprint |
| 1975-1977 | GMC Sprint |
| 1965-1967 | Oldsmobile Cutlass |
| 1979-1981 | Oldsmobile Cutlass |
| 1979 | Oldsmobile Omega |
| 1965-1967 | Oldsmobile Vista Cruiser |
| 1963-1966 | Pontiac Bonneville |
| 1970-1971 | Pontiac Bonneville |
| 1963-1966 | Pontiac Catalina |
| 1970-1971 | Pontiac Catalina |
| 1967-1970 | Pontiac Executive |
| 1967-1974 | Pontiac Firebird |
| 1977-1982 | Pontiac Firebird |
| 1963-1966 | Pontiac Grand Prix |
| 1965 | Pontiac GTO |
| 1964-1971 | Pontiac LeMans |
| 1976-1977 | Pontiac LeMans |
| 1979 | Pontiac LeMans |
| 1979 | Pontiac Phoenix |
| 1964-1970 | Pontiac Tempest |
| 1971-1974 | Pontiac Ventura |
Specifications
- GTIN
- 00788442024463
- Weight
- 22.4 lb
- Height
- 4 in
- Length
- 14 in
- Width
- 14 in
- EO
- Legal US
- Life cycle
- Superseded
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Bolt Pattern
- 2
- Clutch Disc Diameter
- 10.4
- Clutch Disc Type
- Solid
- Disc Material
- Cerametallic
- Disc Type
- 6-Paddle
- Disc Type Sprung Solid
- Sprung
- Includes
- Pressure Plate, Disc, Alignment tool.
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 10
- Material
- Cast Iron Pressure Plate / Cerametallic Button Style Friction
- Outside Diameter of Friction Surface (Standard)
- 10.4
- Replaceable Friction Surface
- N
- SFI 1.1 Approved
- Y
- Spline Diameter and Tooth Count
- 1-1/8"-10
- Title
- PN: 01271739 - DFX, Clutch Pressure Plate and Disc Set
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1968-1970 American Motors AMX; 1968-1974 American Motors Javelin; 1979 Buick Century; 1967 Buick LeSabre; 1979 Buick Regal; 1967 Buick Skylark; 1967 Buick Special; 1955-1956 Chevrolet Bel Air; 1962-1969 Chevrolet Bel Air; 1958-1969 Chevrolet Biscayne; 1967-1969 Chevrolet Camaro; 1975-1982 Chevrolet Camaro; 1966-1969 Chevrolet Caprice; 1964-1967 Chevrolet Chevelle; 1970-1972 Chevrolet Chevelle; 1965-1967 Chevrolet Chevy II; 1957-1969 Chevrolet Corvette; 1978 Chevrolet Corvette; 1964-1973 Chevrolet El Camino; 1975 Chevrolet El Camino; 1978-1981 Chevrolet El Camino; 1958-1969 Chevrolet Impala; 1975 Chevrolet Malibu; 1978-1981 Chevrolet Malibu; 1975 Chevrolet Monte Carlo; 1978-1979 Chevrolet Monte Carlo; 1981 Chevrolet Monte Carlo; 1975-1979 Chevrolet Nova; 1978-1981 GMC Caballero; 1971-1973 GMC Sprint; 1975-1977 GMC Sprint; 1965-1967 Oldsmobile Cutlass; 1979-1981 Oldsmobile Cutlass; 1979 Oldsmobile Omega; 1965-1967 Oldsmobile Vista Cruiser; 1963-1966 Pontiac Bonneville; 1970-1971 Pontiac Bonneville; 1963-1966 Pontiac Catalina; 1970-1971 Pontiac Catalina; 1967-1970 Pontiac Executive; 1967-1974 Pontiac Firebird; 1977-1982 Pontiac Firebird; 1963-1966 Pontiac Grand Prix; 1965 Pontiac GTO; 1964-1971 Pontiac LeMans; 1976-1977 Pontiac LeMans; 1979 Pontiac LeMans; 1979 Pontiac Phoenix; 1964-1970 Pontiac Tempest; 1971-1974 Pontiac Ventura

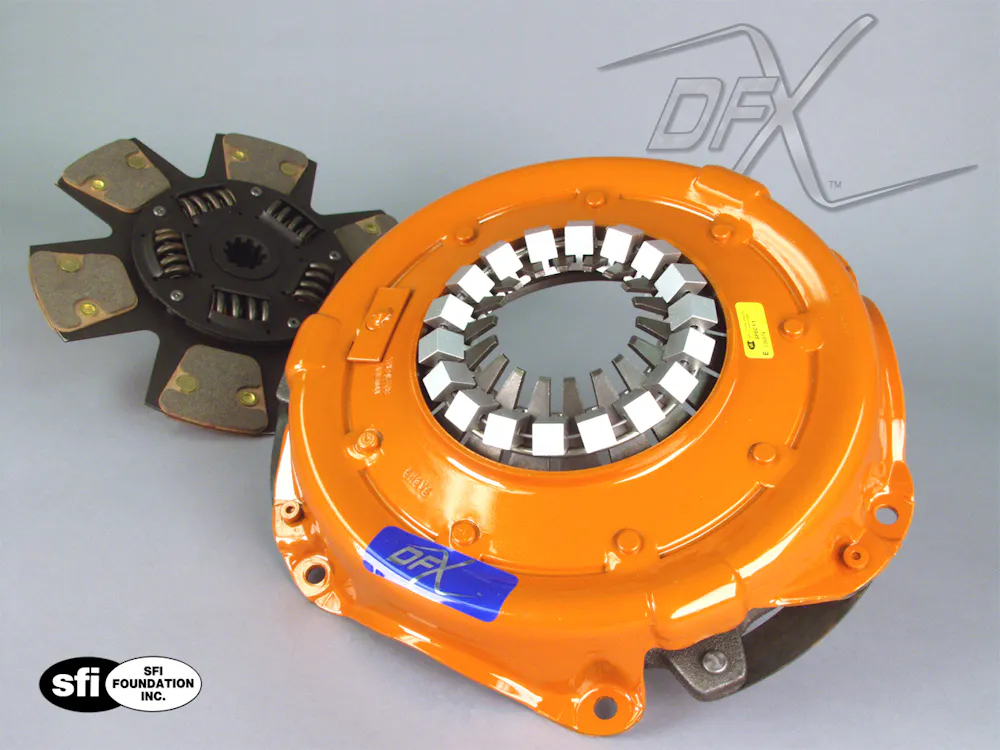

Centerforce 01271739
