Centerforce · 01269739

Part #: 01269739
UPC: 788442029918

Loading availability... Log in for inventory
Notify me when this item is in stock.

Brand: Centerforce

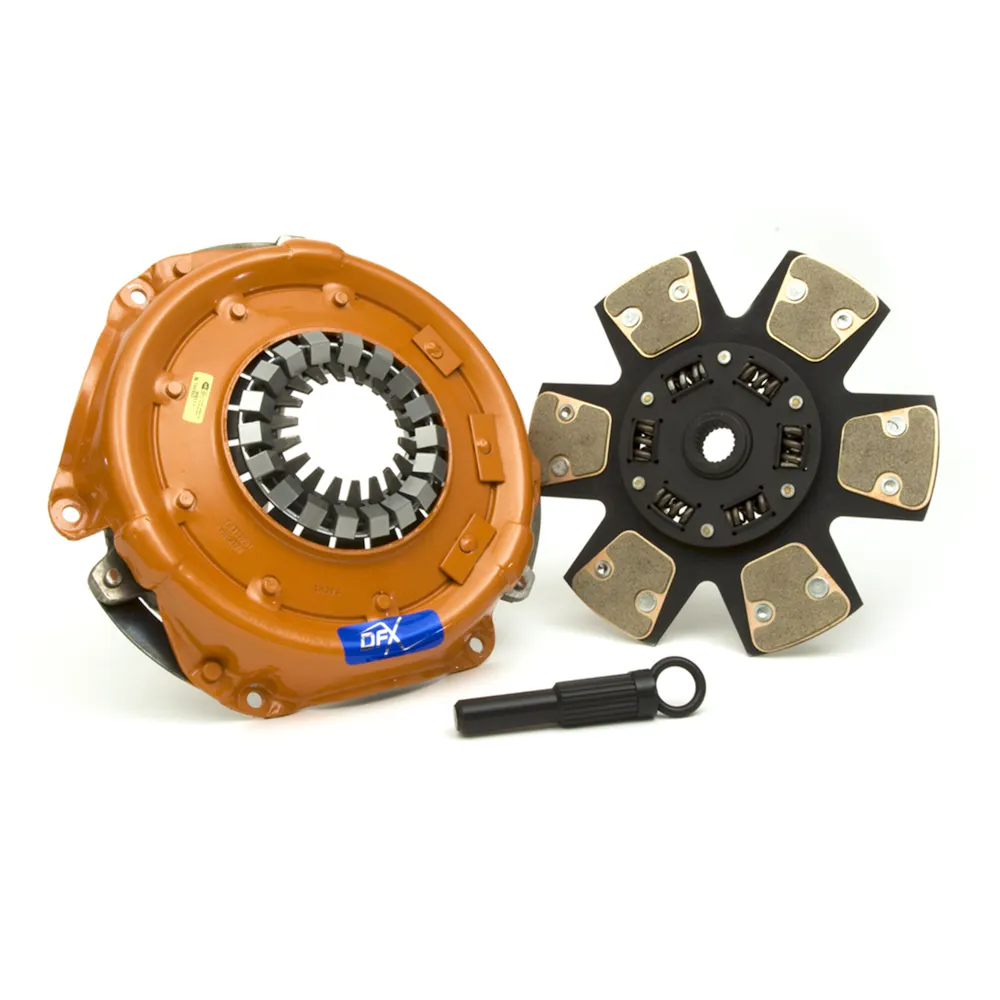

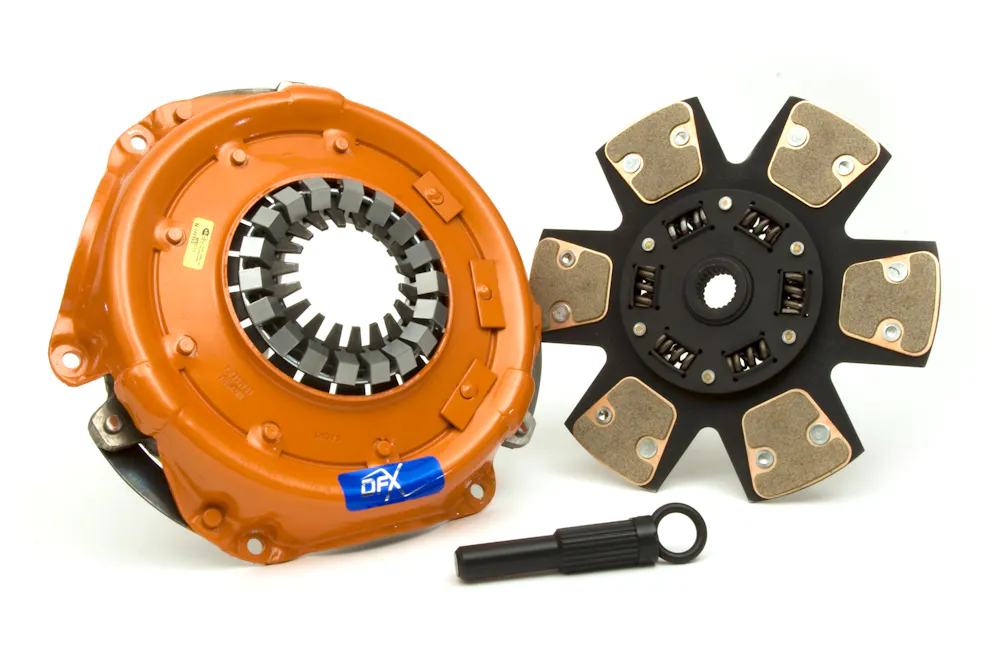

Description: DFX(R), Clutch Pressure Plate and Disc Set; The Centerforce(R) DFX(R) Clutch Series is SFI approved and brings together various reinforcements and patenteds technologies for a great race-inspired single disc clutch.

Description:

This part number has been superseded by 315269739.

Description

The Centerforce(R) DFX(R) Clutch Series is the competition-proven clutch package for select import and domestic applications. This DFX series is engineered for competition standards of quality and craftsmanship. The DFX series is aimed at high-end applications that continually demand increased integrity and holding-capacity. DFX scores big, not only with holding-capacity and strength, but also provides some of the best drivability from a race-inspired single disc clutch. The DFX series features the patented Centerforce centrifugal weight system (where applicable) and retains an easy pedal effort, thanks to Centerforce's patented ball bearing actuated diaphragm, for smooth engagements without detriment to the vehicle's release components. The Centerforce DFX performance clutch system is SFI approved for competition with Nodular Iron pressure plate rings and reinforcements designed to help prevent drive strap breakage and safety. Note: Due to the materials used, the DFX clutch series is more aggressive with less dampening; this can cause some additional drive train noise and/or chatter.

Features & benefits

  • Added Durability

Application summary

Year Make / model
1970-1972 Dodge Challenger
1966-1972 Dodge Charger
1965-1967 Dodge Coronet
1970-1972 Dodge Coronet
1967-1972 Dodge Dart
1967-1973 Plymouth Barracuda
1963-1970 Plymouth Belvedere
1970-1973 Plymouth Duster
1963-1967 Plymouth Fury
1968-1969 Plymouth GTX
1971 Plymouth GTX
1965-1969 Plymouth Satellite
1971-1972 Plymouth Satellite

Specifications

GTIN
00788442029918
Weight
22.55 lb
Height
4 in
Length
14 in
Width
14 in
EO
Legal US
Life cycle
Superseded
AAM brand code
CEN
Warehouse brand code
CEN
AAIA brand code
BDPL

Attributes

AAM Standard Pack
1
Attribute Data
2
California Proposition 65
WARNING: Cancer - www.P65Warnings.ca.gov
Clutch Bolt Pattern
2
Clutch Disc Diameter
10.4
Clutch Disc Type
Sprung
Disc Material
Cerametallic
Disc Type
6-Paddle
Disc Type Sprung Solid
Sprung
Input Shaft Diameter
1
Input Spline Quantity
23
Material
Cast Iron Pressure Plate / Cerametallic Button Style Friction
Out of Package Weight
21.25
Outside Diameter of Friction Surface (Standard)
10.4
Replaceable Friction Surface
N
SFI 1.1 Approved
Y
Title
PN: 01269739 - DFX, Clutch Pressure Plate and Disc Set

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

1970-1972 Dodge Challenger; 1966-1972 Dodge Charger; 1965-1967 Dodge Coronet; 1970-1972 Dodge Coronet; 1967-1972 Dodge Dart; 1967-1973 Plymouth Barracuda; 1963-1970 Plymouth Belvedere; 1970-1973 Plymouth Duster; 1963-1967 Plymouth Fury; 1968-1969 Plymouth GTX; 1971 Plymouth GTX; 1965-1969 Plymouth Satellite; 1971-1972 Plymouth Satellite
