Centerforce · 01161739
Part #: 01161739
UPC: 788442024487
Log in for inventory
Notify me when this item is in stock.

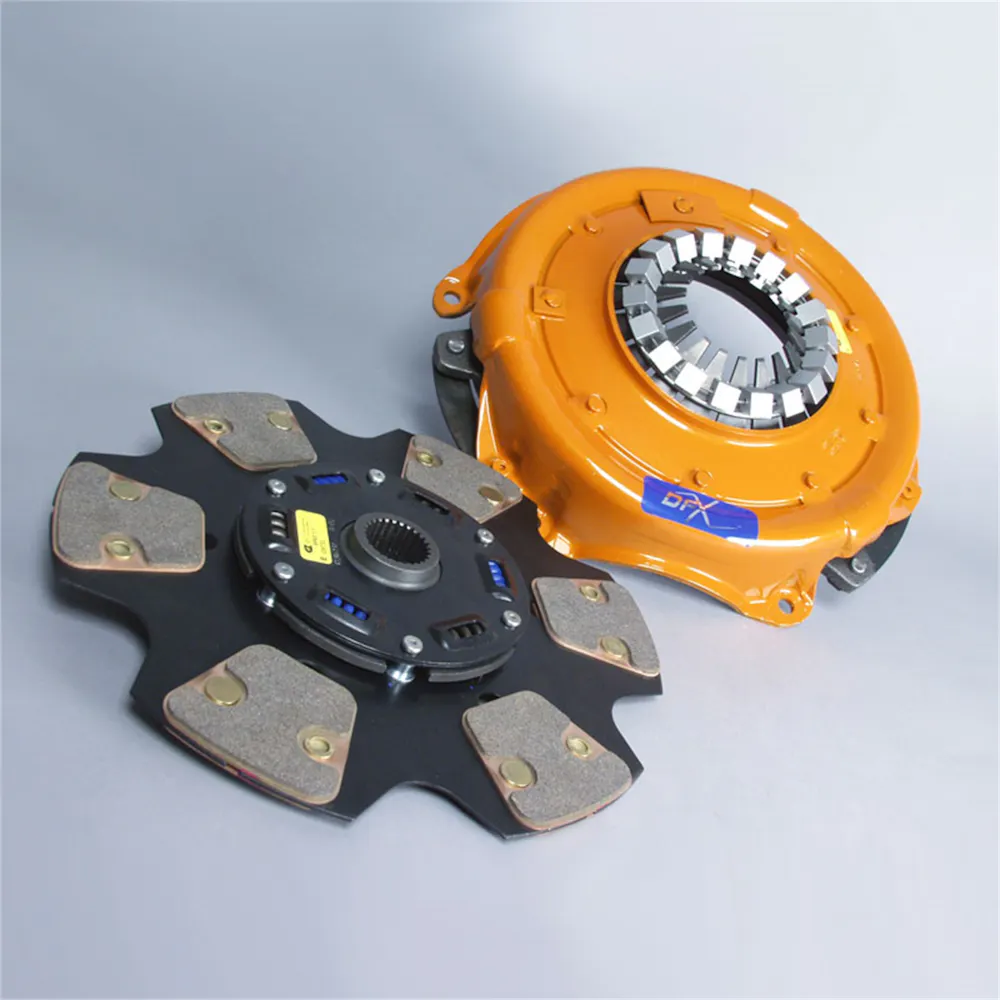

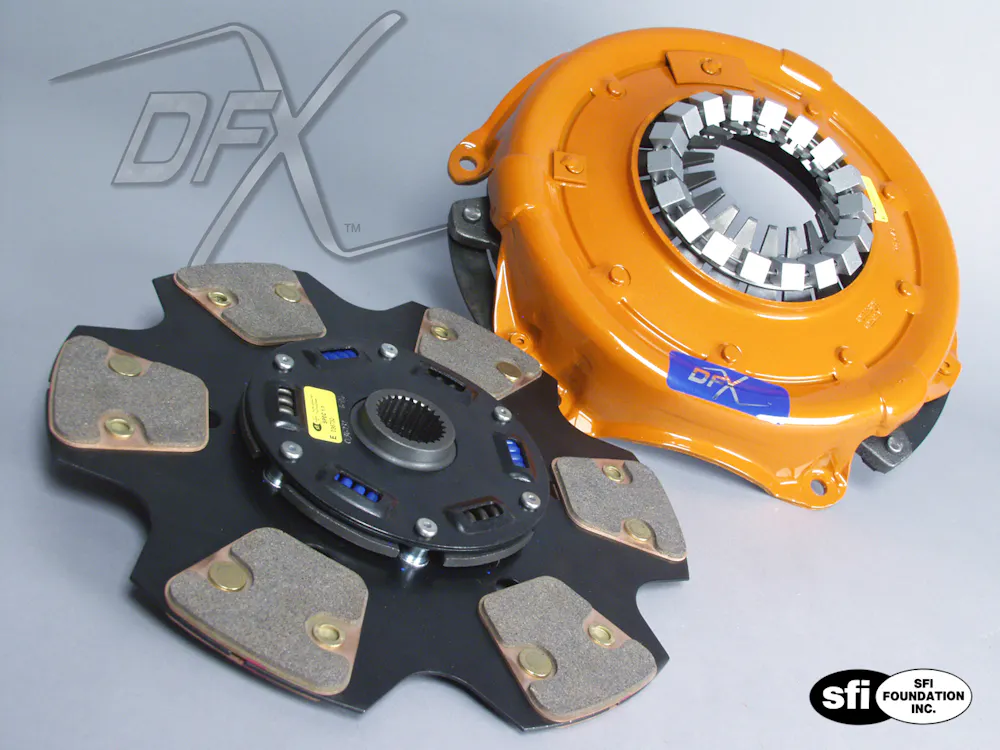

Description: DFX(R), Clutch Pressure Plate and Disc Set; The Centerforce(R) DFX(R) Clutch Series is SFI approved and brings together various reinforcements and patenteds technologies for a great race-inspired single disc clutch.
Description:
This part number has been superseded by 315161739.
Description
The Centerforce(R) DFX(R) Clutch Series is the competition-proven clutch package for select import and domestic applications. This DFX series is engineered for competition standards of quality and craftsmanship. The DFX series is aimed at high-end applications that continually demand increased integrity and holding-capacity. DFX scores big, not only with holding-capacity and strength, but also provides some of the best drivability from a race-inspired single disc clutch. The DFX series features the patented Centerforce centrifugal weight system (where applicable) and retains an easy pedal effort, thanks to Centerforce's patented ball bearing actuated diaphragm, for smooth engagements without detriment to the vehicle's release components. The Centerforce DFX performance clutch system is SFI approved for competition with Nodular Iron pressure plate rings and reinforcements designed to help prevent drive strap breakage and safety. Note: Due to the materials used, the DFX clutch series is more aggressive with less dampening; this can cause some additional drive train noise and/or chatter.
Features & benefits
- Added Durability
Application summary
| Year | Make / model |
|---|---|
| 1962-1969 | Chevrolet Bel Air |
| 1958-1969 | Chevrolet Biscayne |
| 1978 | Chevrolet C10 |
| 1978 | Chevrolet C20 |
| 1978 | Chevrolet C20 Suburban |
| 1978 | Chevrolet C30 |
| 1967-1969 | Chevrolet Camaro |
| 1975-1983 | Chevrolet Camaro |
| 1966-1969 | Chevrolet Caprice |
| 1964-1967 | Chevrolet Chevelle |
| 1970-1972 | Chevrolet Chevelle |
| 1965-1967 | Chevrolet Chevy II |
| 1957-1968 | Chevrolet Corvette |
| 1978 | Chevrolet Corvette |
| 1964-1973 | Chevrolet El Camino |
| 1975 | Chevrolet El Camino |
| 1979-1981 | Chevrolet El Camino |
| 1958-1969 | Chevrolet Impala |
| 1978 | Chevrolet K10 |
| 1978 | Chevrolet K20 |
| 1978 | Chevrolet K20 Suburban |
| 1978 | Chevrolet K30 |
| 1978 | Chevrolet K5 Blazer |
| 1975 | Chevrolet Malibu |
| 1979-1981 | Chevrolet Malibu |
| 1975 | Chevrolet Monte Carlo |
| 1979 | Chevrolet Monte Carlo |
| 1981 | Chevrolet Monte Carlo |
| 1975-1979 | Chevrolet Nova |
| 1970-1972 | Dodge Challenger |
| 1966-1972 | Dodge Charger |
| 1965-1967 | Dodge Coronet |
| 1970-1972 | Dodge Coronet |
| 1967-1972 | Dodge Dart |
| 1978 | GMC C15 |
| 1978 | GMC C25 |
| 1978 | GMC C25 Suburban |
| 1978 | GMC C35 |
| 1978-1981 | GMC Caballero |
| 1978 | GMC K15 |
| 1978 | GMC K15 Suburban |
| 1978 | GMC K25 |
| 1978 | GMC K25 Suburban |
| 1978 | GMC K35 |
| 1971-1973 | GMC Sprint |
| 1975-1977 | GMC Sprint |
| 1967-1973 | Plymouth Barracuda |
| 1963-1970 | Plymouth Belvedere |
| 1970-1973 | Plymouth Duster |
| 1963-1967 | Plymouth Fury |
| 1968-1969 | Plymouth GTX |
| 1971 | Plymouth GTX |
| 1965-1969 | Plymouth Satellite |
| 1971-1973 | Plymouth Satellite |
| 1971 | Pontiac Bonneville |
| 1970-1971 | Pontiac Catalina |
| 1967-1983 | Pontiac Firebird |
| 1973-1975 | Pontiac Grand Am |
| 1971 | Pontiac Grand Prix |
| 1964-1971 | Pontiac LeMans |
| 1976-1977 | Pontiac LeMans |
| 1979 | Pontiac LeMans |
| 1979 | Pontiac Phoenix |
| 1964-1970 | Pontiac Tempest |
| 1971-1974 | Pontiac Ventura |
Specifications
- GTIN
- 00788442024487
- Weight
- 22.75 lb
- Height
- 4 in
- Length
- 14 in
- Width
- 14 in
- EO
- Legal US
- Life cycle
- Superseded
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Bolt Pattern
- 2
- Clutch Disc Diameter
- 10.4
- Disc Material
- Cerametallic
- Disc Type
- 6-Paddle
- Disc Type Sprung Solid
- Sprung
- Includes
- Pressure Plate, Disc, Alignment tool.
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 26
- Material
- Cast Iron Pressure Plate / Cerametallic Button Style Friction
- Outside Diameter of Friction Surface (Standard)
- 10.4
- Replaceable Friction Surface
- N
- SFI 1.1 Approved
- Y
- Spline Diameter and Tooth Count
- 1-1/8"-26
- Title
- PN: 01161739 - DFX, Clutch Pressure Plate and Disc Set
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1962-1969 Chevrolet Bel Air; 1958-1969 Chevrolet Biscayne; 1978 Chevrolet C10; 1978 Chevrolet C20; 1978 Chevrolet C20 Suburban; 1978 Chevrolet C30; 1967-1969 Chevrolet Camaro; 1975-1983 Chevrolet Camaro; 1966-1969 Chevrolet Caprice; 1964-1967 Chevrolet Chevelle; 1970-1972 Chevrolet Chevelle; 1965-1967 Chevrolet Chevy II; 1957-1968 Chevrolet Corvette; 1978 Chevrolet Corvette; 1964-1973 Chevrolet El Camino; 1975 Chevrolet El Camino; 1979-1981 Chevrolet El Camino; 1958-1969 Chevrolet Impala; 1978 Chevrolet K10; 1978 Chevrolet K20; 1978 Chevrolet K20 Suburban; 1978 Chevrolet K30; 1978 Chevrolet K5 Blazer; 1975 Chevrolet Malibu; 1979-1981 Chevrolet Malibu; 1975 Chevrolet Monte Carlo; 1979 Chevrolet Monte Carlo; 1981 Chevrolet Monte Carlo; 1975-1979 Chevrolet Nova; 1970-1972 Dodge Challenger; 1966-1972 Dodge Charger; 1965-1967 Dodge Coronet; 1970-1972 Dodge Coronet; 1967-1972 Dodge Dart; 1978 GMC C15; 1978 GMC C25; 1978 GMC C25 Suburban; 1978 GMC C35; 1978-1981 GMC Caballero; 1978 GMC K15; 1978 GMC K15 Suburban; 1978 GMC K25; 1978 GMC K25 Suburban; 1978 GMC K35; 1971-1973 GMC Sprint; 1975-1977 GMC Sprint; 1967-1973 Plymouth Barracuda; 1963-1970 Plymouth Belvedere; 1970-1973 Plymouth Duster; 1963-1967 Plymouth Fury; 1968-1969 Plymouth GTX; 1971 Plymouth GTX; 1965-1969 Plymouth Satellite; 1971-1973 Plymouth Satellite; 1971 Pontiac Bonneville; 1970-1971 Pontiac Catalina; 1967-1983 Pontiac Firebird; 1973-1975 Pontiac Grand Am; 1971 Pontiac Grand Prix; 1964-1971 Pontiac LeMans; 1976-1977 Pontiac LeMans; 1979 Pontiac LeMans; 1979 Pontiac Phoenix; 1964-1970 Pontiac Tempest; 1971-1974 Pontiac Ventura
