Bulldog Winch Co LLC · 10012
Part #: 10012
UPC: 878850002921
Log in for inventory
Notify me when this item is in stock.
Description: Bulldog 15000lb Winch, Heavy-duty, 7.2hp Series Wound, Roller Fairlead, 92ft Wire Rope
Description:
This part number has been superseded by 10063.
Description

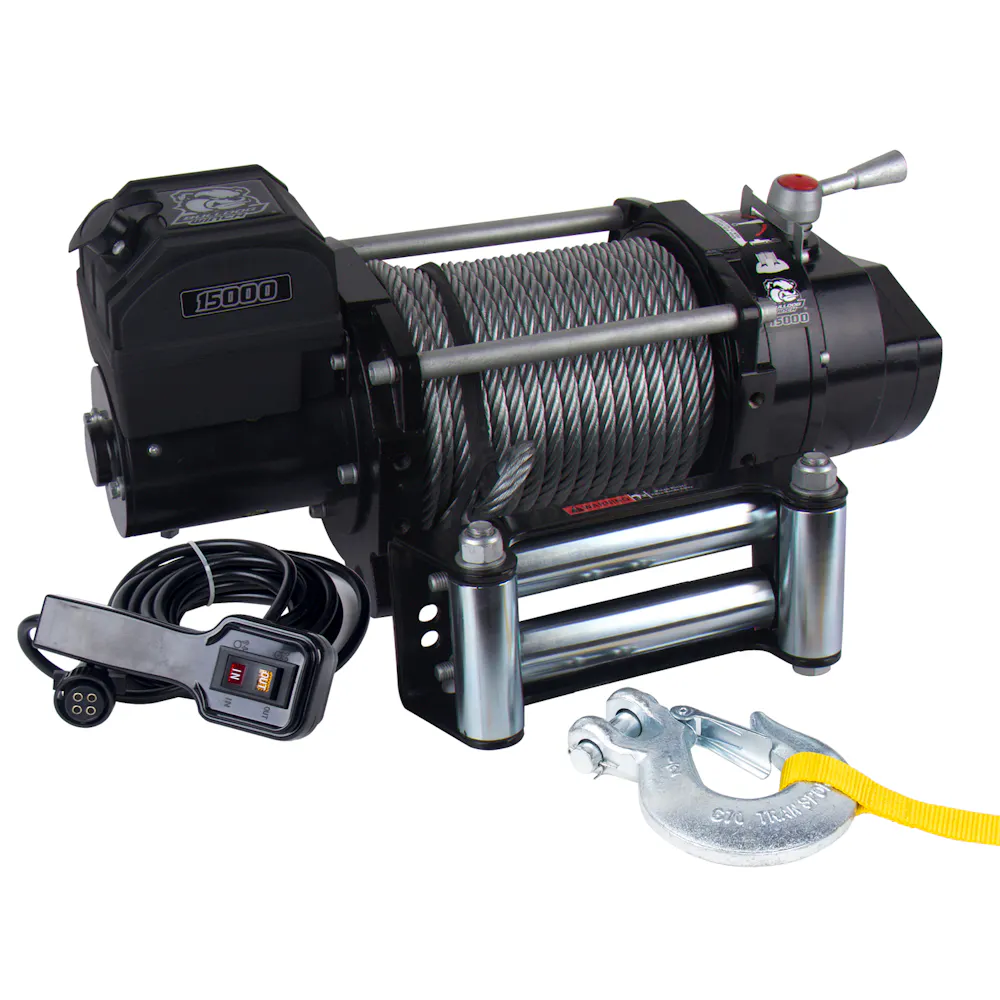

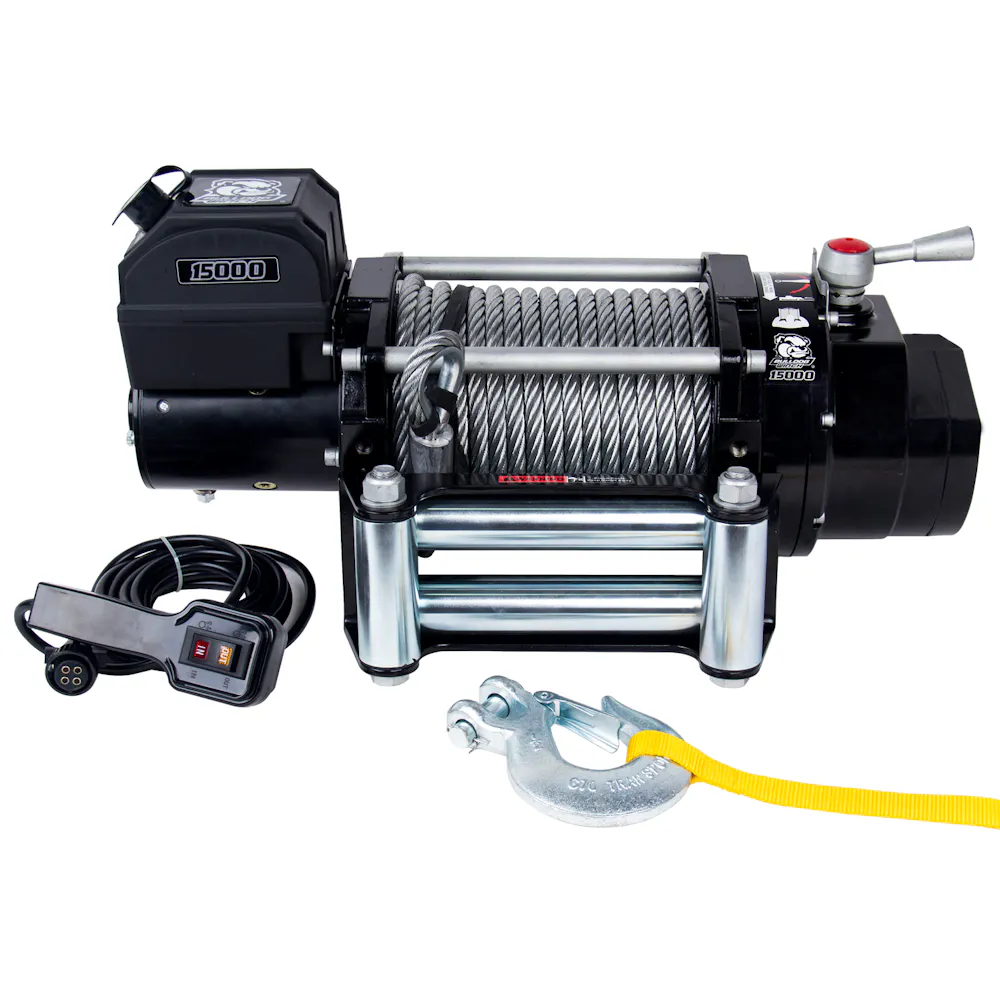

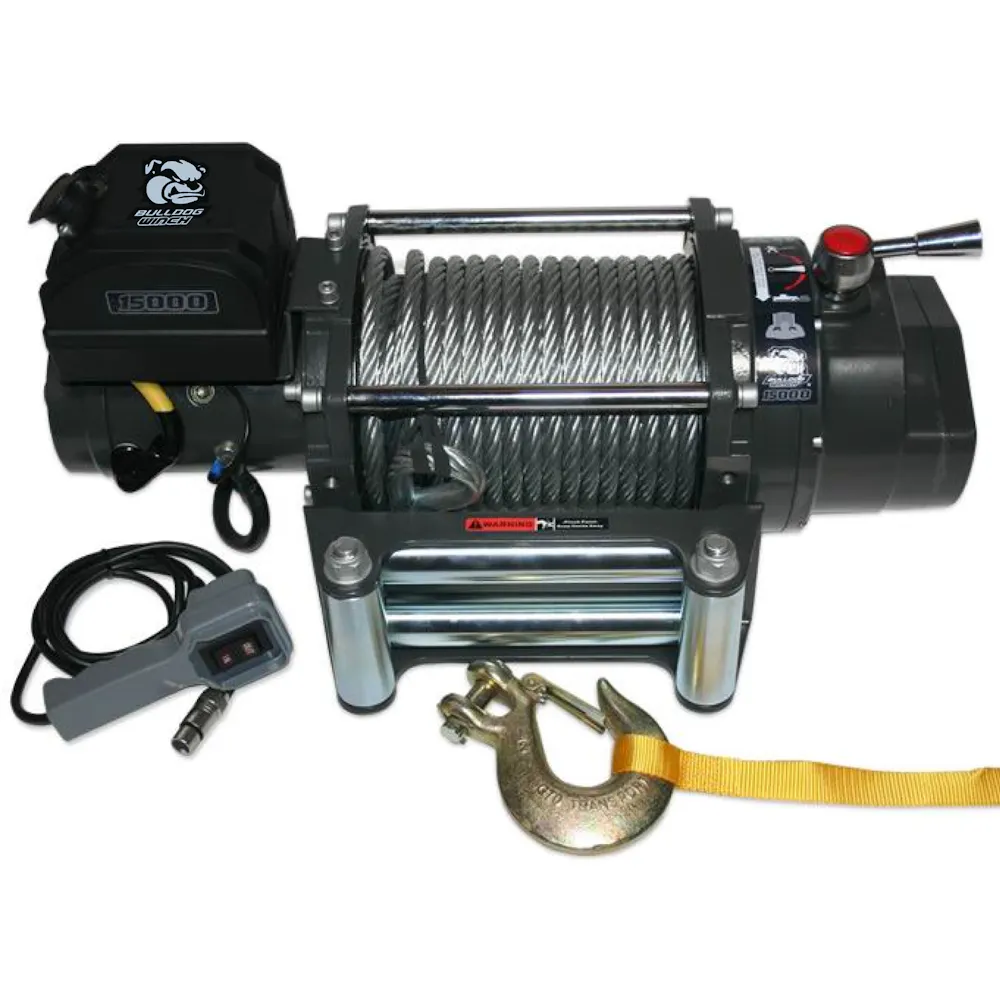

15,000 LB Winch W/92 FT Wire Rope from Bulldog Winch. Heavy duty steel housing and frame components for maximum strength, durability, and reliability. Premium series wound 7.2hp motor and sealed 500 Amp Contactor for maximum performance. Powers load in and out. Automatic ratcheting pawl load holding brake in gear box.Freespooling clutch for quick rope deployment. This winch is a beast at 158lbs. Its designed and built to perform in the toughest of jobs, work trucks!Details:Pull capacity: 15,000 LB92 Foot 15/32 Inch x 92 Foot Wire RopeContactor: 500 A Sealed for Superior Weather/Water ResistanceMotor: Series Wound 7.2HP 12vDCSwitch: 500A Sealed ContractorBattery Cables: 6 footGear Ratio: 520:1Overall Dimensions: 25.2 inch L x 8.5 inch W X 10 inch HMounting Bolt Pattern: 10x4.5 inch 10x6.3 foot down install requires additional 4 bolt mounthingWarranty: 2 Yr Limited Non CommercialBattery Recommendation: 650CCA
Specifications
- GTIN
- 00878850002921
- Weight
- 178.6 lb
- Height
- 15 in
- Length
- 29.5 in
- Width
- 13.5 in
- EO
- Legal US
- Life cycle
- Discontinued
- AAM brand code
- BDW
- Warehouse brand code
- BDW
- AAIA brand code
- FMJR
Attributes
- California Proposition 65
- Yes
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
