AutoMeter Products · 5788

Part #: 5788
UPC: 046074057885

Loading availability... Loading...
Notify me when this item is in stock.

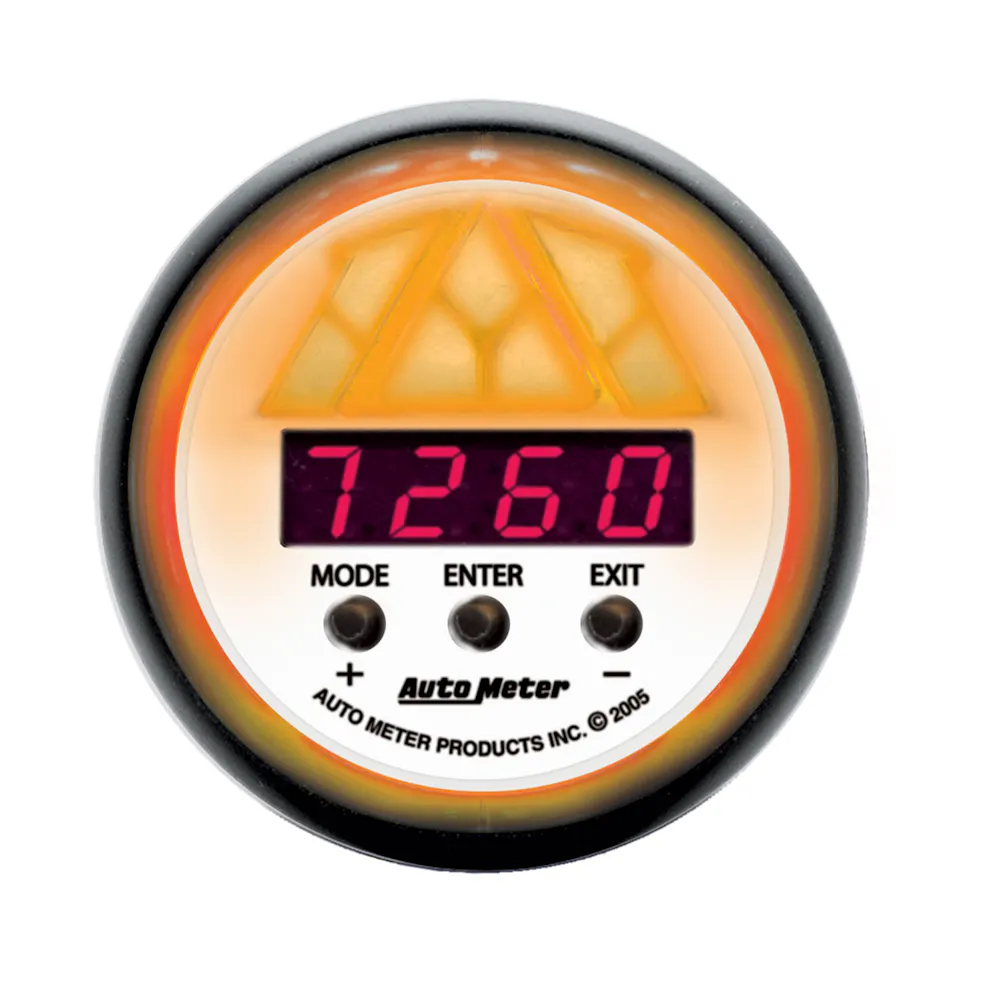

Description: GAUGE; SHIFT LIGHT; DIGITAL RPM W/MULTI-COLOR LED LIGHT; DPSS LEVEL 2; PHANTOM; 2-1/16in. DPSS SHIFT-LIGHT; 0-16;000 RPM; LEVEL 2; PHANTOM

Description:

This part number has been superseded by 5787.

Description

Easily add a shift light with a lightning quick digital tach display to your vehicle with AutoMeter's DPSS. This gauge reads and interprets your vehicle's engine speed (rpm) using AutoMeter's legendary tach technology for unparalleled accuracy. Don't let it's size fool you, this is a serious piece of hardware built with the professional in mind. The tach display can be defeated to avoid distraction. With LED shift light brightness settings ranging from nighttime visible to retina searing in a open top car on a sunny day, the DPSS makes sure you hit your shifts at precisely the correct moment, protecting your engine from damage and allowing you to extract the most performance from your vehicle. Level 1 functions as a traditional single point shift light, Level 2 adds multiple shift shift points (with optional progressive shift indication) and launch light for drag race applications as well 7 user configurable color options. Level 3 includes all the functions of Level 2, but also adds 80 seconds of playback recording, which can be displayed both on the digital tach display or through your existing AutoMeter tach.

Features & benefits

  • 12 And 16V Compatible
  • Compatible w/.5-6 Pulse Ignition Signals
  • Features Four Programmable Digital Shift Points
  • Seven User Selectable Colors w/Adjustable Brightness
  • E-Z View Digital LED Display
  • Triage Engine Health And Setup Changes
  • Peak RPM Memory Recall w/One-Touch Review

Specifications

GTIN
00046074057885
Weight
0.6 lb
Height
4.5 in
Length
4.75 in
Width
4.25 in
EO
Legal US
Life cycle
Available Only While Supplies Last
AAM brand code
ATM
Warehouse brand code
ATM
AAIA brand code
BDHZ

Attributes

Add-On Part
N/A
Bezel Color
Black
Bezel Style
Super Bezel
Bracket Included
Yes
Bulb Technology
LCD/LED
Bulb Type
LCD/LED
California Proposition 65
WARNING: Cancer - www.P65Warnings.ca.gov
Dial (Face Color)
White
Face Color
White
Gauge Size
2.0625 in.
Gauge Size (in.)
2.0625
Gauge Size (mm)
52.4
Gauge Type
DPSS Shift-Light
Hole Size
0.0625 in.
Lens
Flat Clear
Lighting Color
Red LED/7 User Selectable Shift Light Colors
Lighting Type
Digital LED
Mounting Bracket Included
Yes
Mounting Bracket Number
2230
Mounting Hardware Included
Yes
Movement Type
Digital
Outer Bezel Diameter
2.250 in.
Pointer Color
N/A
RPM Range
0-16000
Size
2.3125 in.
Size (in.)
2-1/16
Title
2-1/16" DPSS SHIFT-LIGHT, 0-16,000 RPM, LEVEL 2, PHANTOM
Voltage
8-18 V
