AutoMeter Products · 5780-00406
Part #: 5780-00406
UPC: 046074136283
Loading...
Notify me when this item is in stock.
Description: GAUGE; TACHOMETER; 3 3/4in.; 8K RPM; PEDESTAL W/RED LINE; CHEVY RED BOWTIE; WHIT; 3-3/4in. PEDESTAL TACHOMETER; 0-8;000 RPM; CHEVY RED BOWTIE; WHITE
Description:
This part number has been superseded by 5780.
Description
Since 1957, AutoMeter has set the standard in performance, accuracy and durability with their legendary Tachometers. The absolute pinnacle of engineering and technology, it's no wonder AutoMeter can lay claim to more motorsports victories than every other gauge manufacturer combined. The patented air core meter movement, wound in house to exacting standards, can move the needle from 0 - 10,000 rpm in 333 milliseconds. An inaugural inductee to the Hot Rod Speed Parts Hall of Fame, no other tachometer on the market has had anything approaching its impact on professional racing. Built for a lifetime of service under the harshest conditions, this is the no compromise tach for no compromise builds. When you're ready for the best, there isn't another choice.
Features & benefits
- Red Pointer For Quick Glance Monitoring
- 1 Year Limited Warranty
- Traditional Incandescent Lighting Illuminates Perimeter Of Dial
- Compatible w/2-4 Pulse Ignition Signals
- Incl. Bulb And Socket Assembly; Red/Green Bulb Covers
- Incl. Mounting Hardware/Installation Instructions
- 12 And 16 Volt Compatible
Specifications
- GTIN
- 00046074136283
- Weight
- 2 lb
- Height
- 6 in
- Length
- 6 in
- Width
- 6 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- ATM
- Warehouse brand code
- ATM
- AAIA brand code
- BDHZ
Attributes
- AAM Standard Pack
- 18
- Add-On Part
- N/A
- Bezel Color
- Black
- Bezel Style
- Super Bezel
- Bracket Included
- Yes
- Bulb Technology
- Incandescent
- Bulb Type
- Incandescent
- Bulb and Socket Number
- 3212
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Dial (Face Color)
- White
- Face Color
- White
- Gauge Size
- 95.3mm
- Gauge Size (in.)
- 3.75
- Gauge Size (mm)
- 95.3
- Gauge Type
- Pedestal Tachometer
- Hole Size
- 3.4375 in.
- Housing Color
- Not Available
- Lens
- Flat Clear
- Light Covers Number
- 3244/3241
- Lighting Color
- White Incandescent
- Lighting Type
- Incandescent
- Mounting
- In-Dash
- Mounting Bracket Included
- Yes
- Movement Type
- Electric Air-Core
- Number Color
- Black
- Outer Bezel Diameter
- 3.8125 in.
- Pointer Color
- Fluorescent Red
- RPM Range
- 0-8000
- Shift Light
- Without Shift Light
- Shift Light Included
- No
- Size
- 3.750 in.
- Size (in.)
- 3.750 in.
- Title
- 3-3/4" PEDESTAL TACHOMETER, 0-8,000 RPM, GM WHITE
Fitment status
This product is universal and will fit your application.

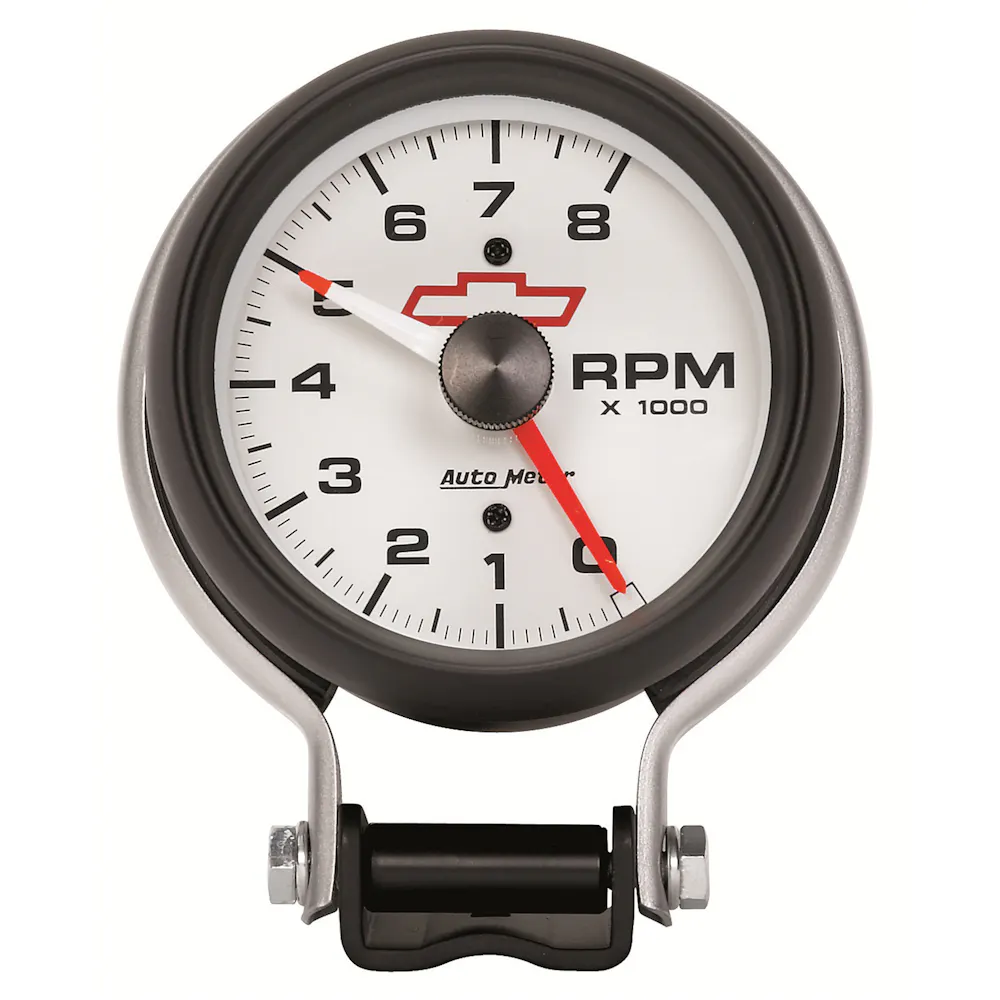

AutoMeter Products 5780-00406
